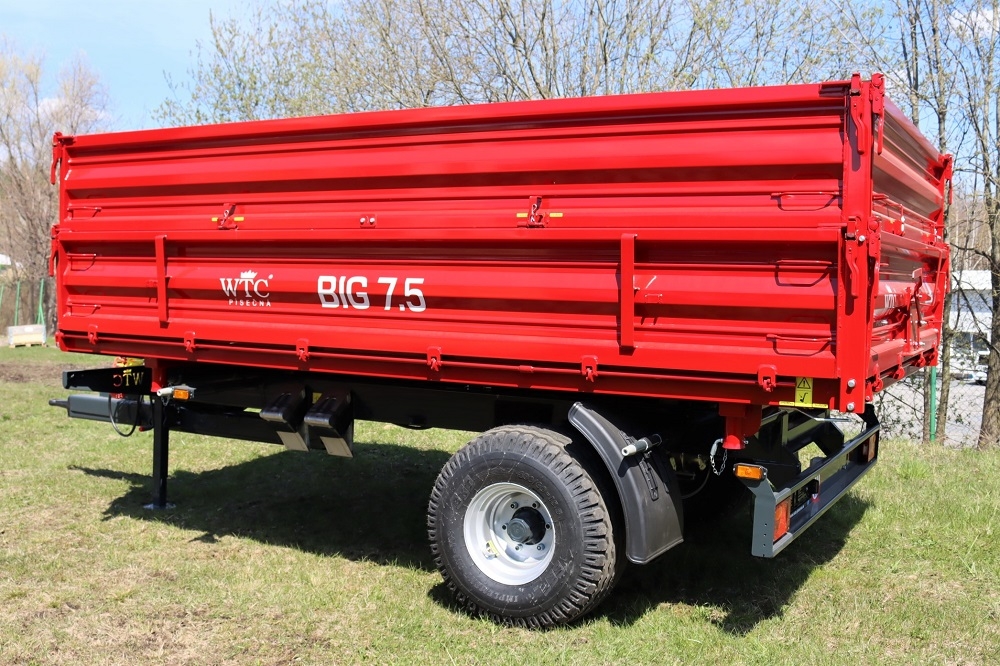

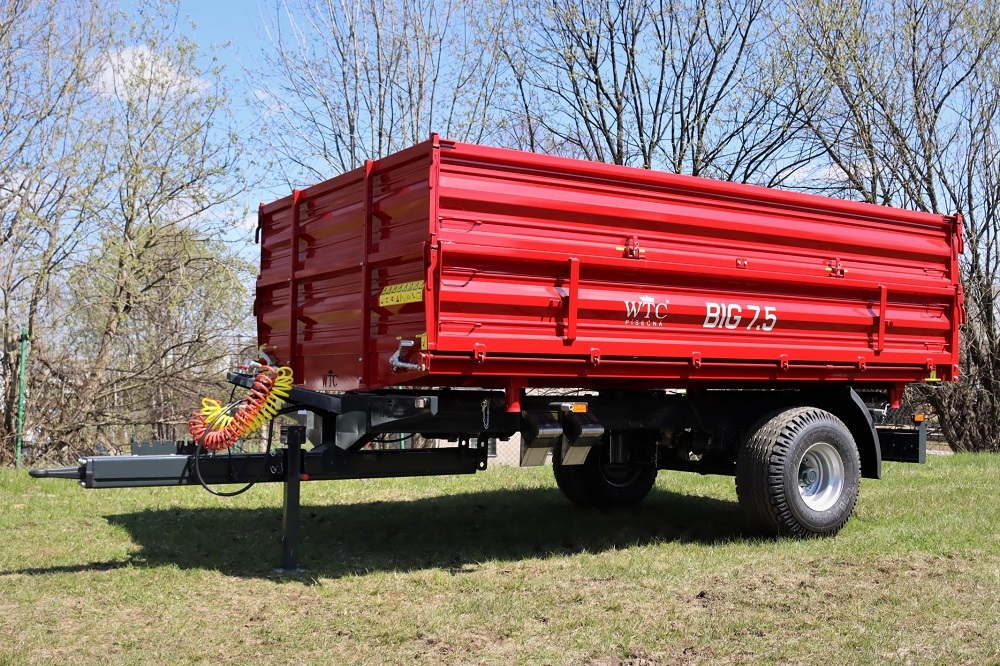

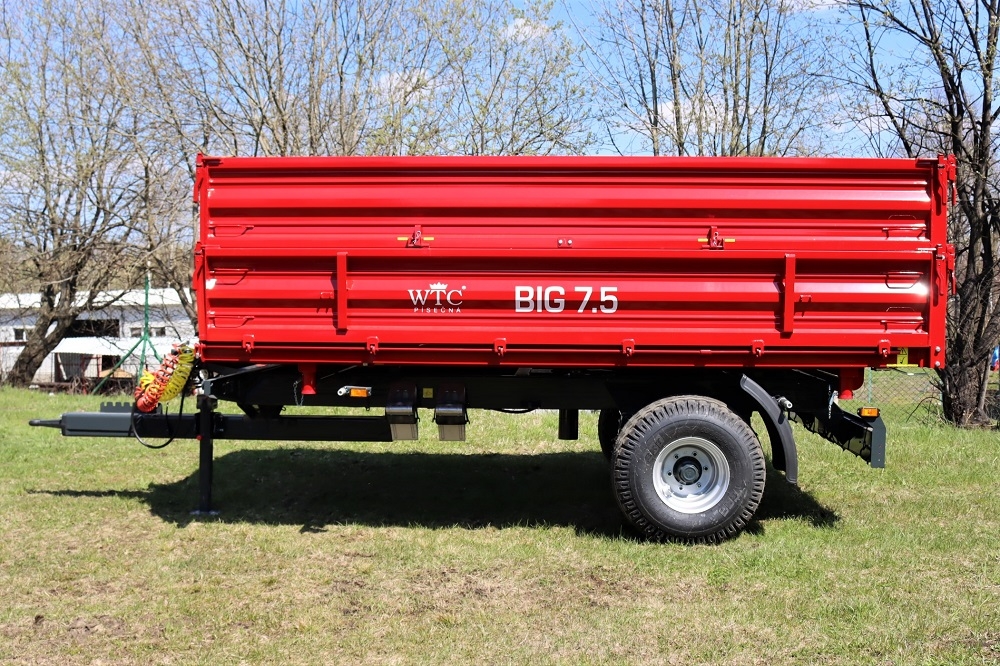

Tractor trailer BIG 7.5

Tractor trailer BIG 7.5Tractor trailer BIG 7.5Tractor trailer BIG 7.5Tractor trailer BIG 7.5
Standard equipment

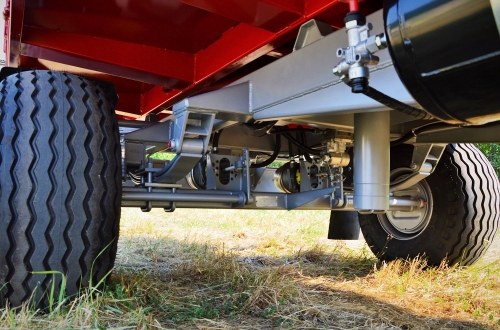

  • simple suspended axle ADR
  • total permissible weight 7 000 kg
  • loading capacity 5 250 kg
  • platform: 4 x 2,34 m
  • bed height from the ground 1080 mm
  • side board 500 mm = 5 m³ (type Fuhrmann)
  • mechanical drawbar support with wheels
  • automatic parking brake

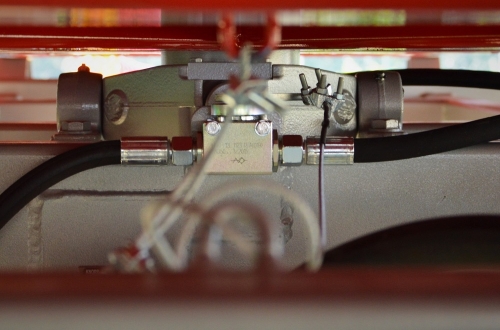

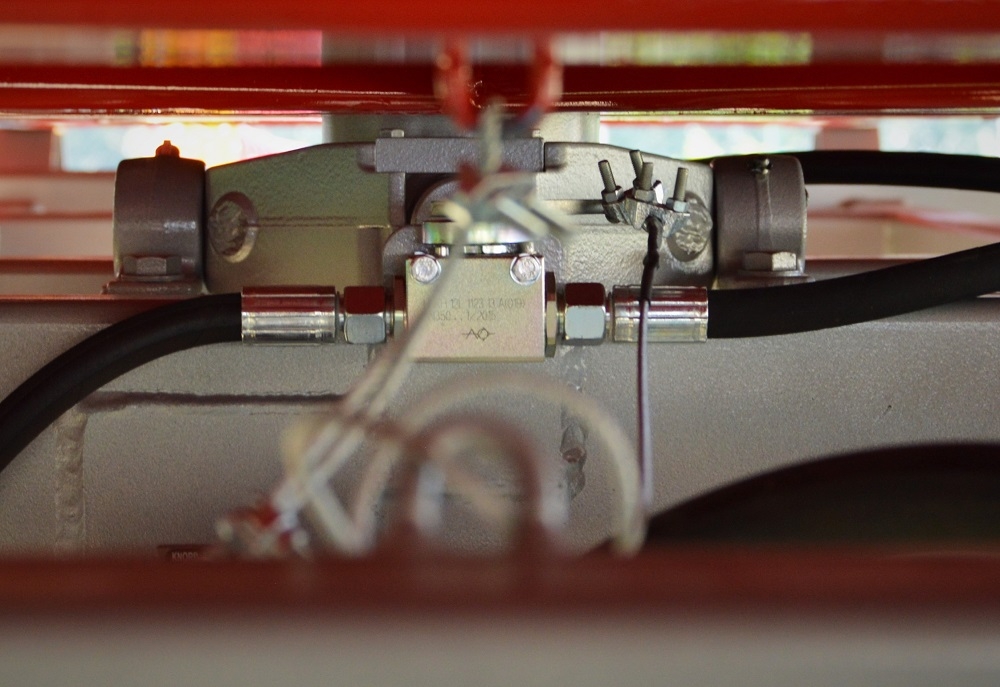

  • automatic brake load sensing controller
  • adjustment for superstructures
  • rear dump hatch

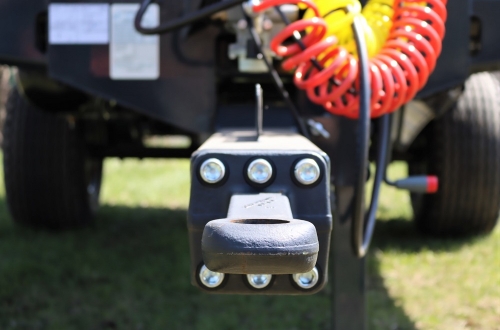

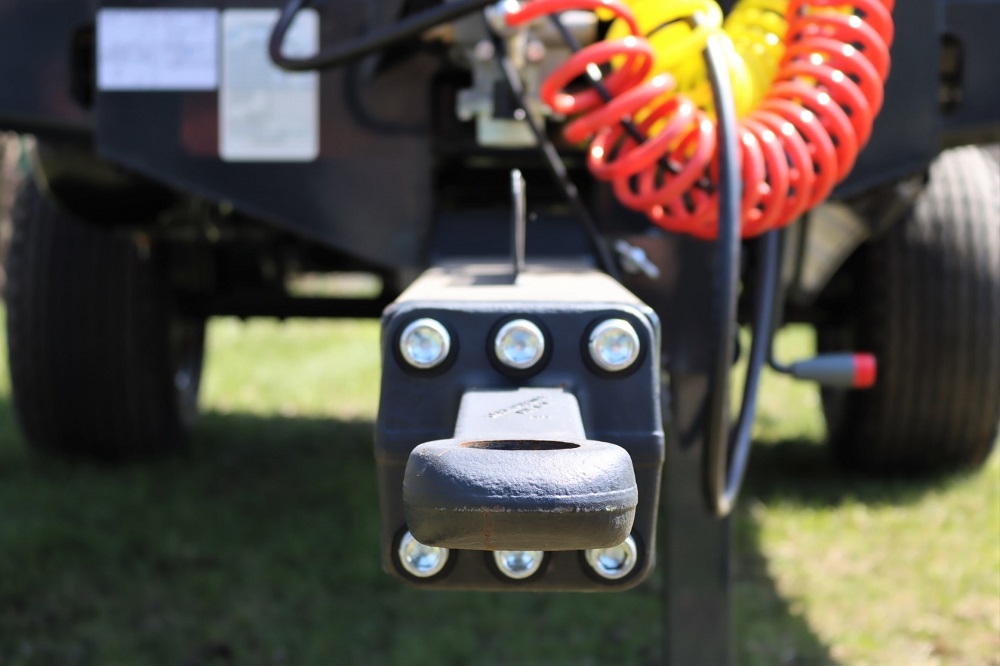

  • towing hitch 50/40 mm/K-80
  • speed 40 km/hod
  • polyurethane paint
Optional equipment
  • single line brakes (total permissible weight 6 000 kg)
  • ADR overrun brake (40 km/h)
  • tailpiece 500 mm = 5 m³
  • standard rolling tarpaulin
  • colour on request
  • swivel hitch Scharmüller 50 mm
  • wheels 400/60-15,5 18 PR
  • wheels 445/45 R 19,5 radial
  • spare wheel holder
Technical parameters
Number of axles
1
Technically permissible mass (kg)
7 000
Payload (kg)
5 250
Operating weight (kg)
1 750
Body Capacity - 1 m (m3)
9,6
Platform width (m)
2,34
Length of usable space (m)
4
Overall length (m)
5,6
Overall width - basic (m)
2,5
Maximum speed (km/h)
40
