Tractor trailer BIG 25.18

Tractor trailer BIG 25.18Tractor trailer BIG 25.18Tractor trailer BIG 25.18Tractor trailer BIG 25.18
Standard equipment

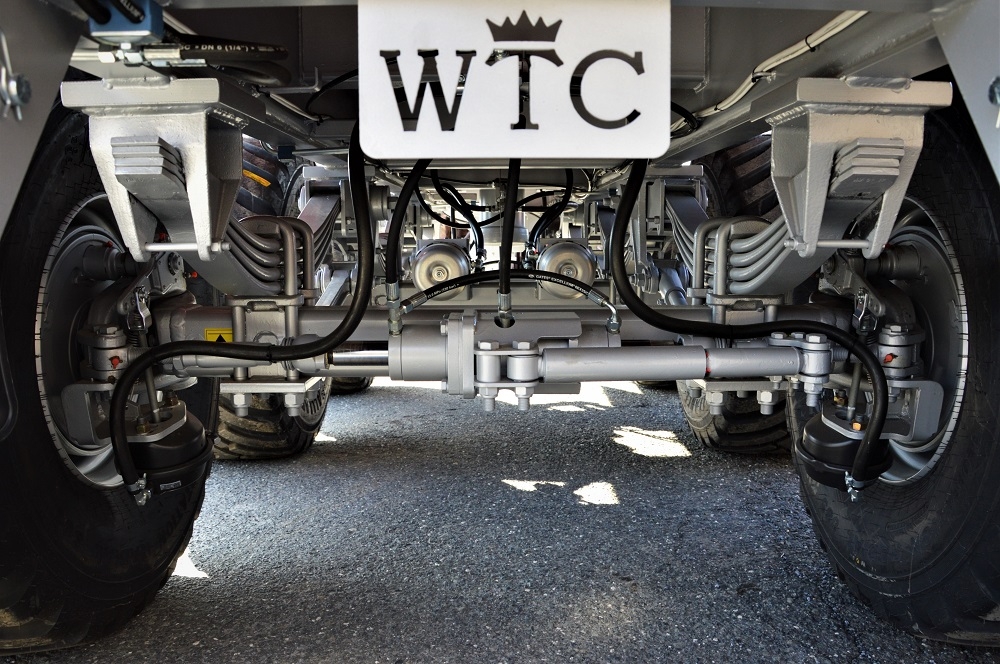

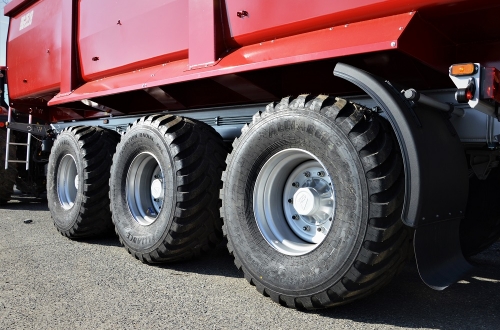

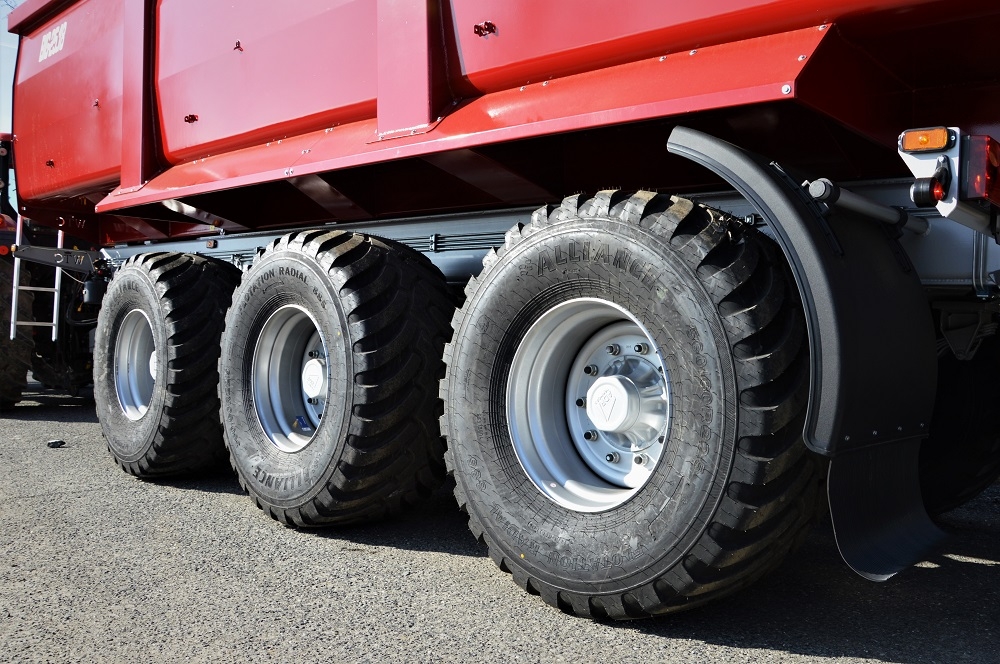

  • suspended TRIDEM axle ADR
  • total permissible weight 25 000 kg
  • loading capacity 18 000 kg
  • platform (tank body): 7,29 m x 2,25 m
  • body height 1,00 m = 16,4 m3
  • spring suspended height-adjustable drawbars

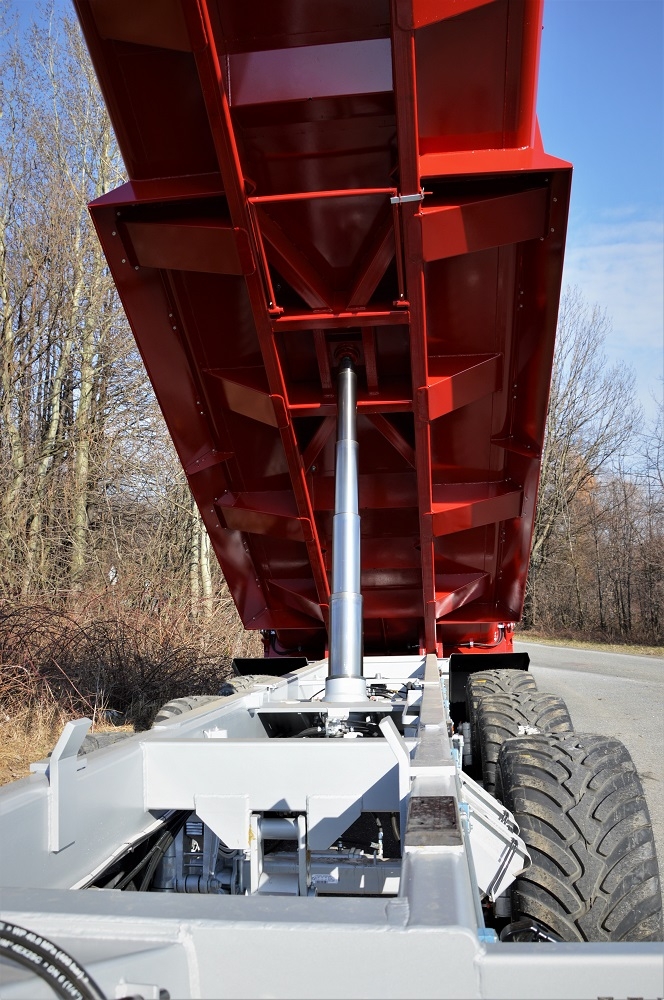

  • hydraulic drawbar support with pump
  • hydraulic door opening
  • hydraulic door lock

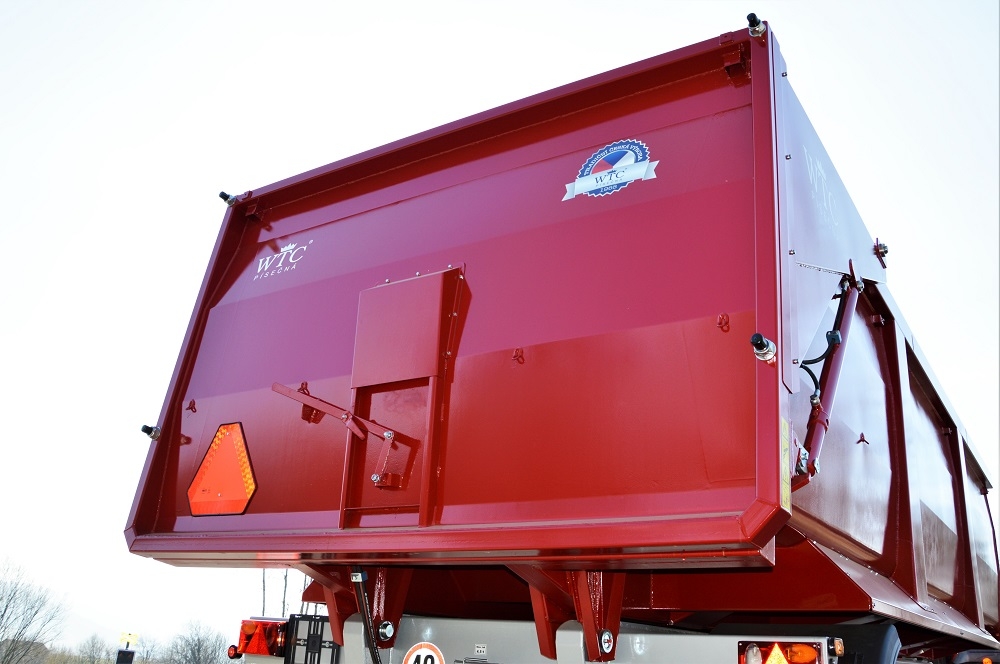

  • rear dump hatch
  • automatic parking brake
  • automatic brake load sensing controller
  • towing hitch Scharmüller ridig 50 mm/K-80
  • speed 40 km/hod

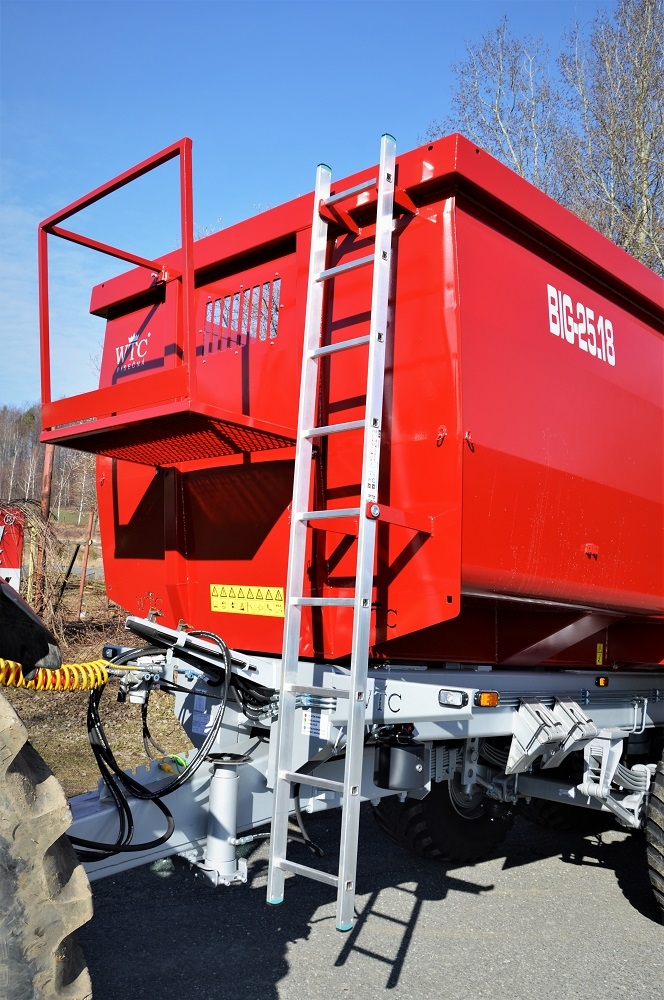

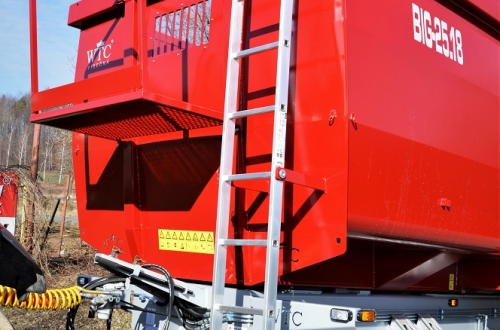

  • aluminium servise ladder
  • inspection window at the front of the body
  • adjustment for superstructures
  • polyurethane paint
Optional equipment
  • steelable trailing axle (first a third)
  • steerable axle – positive steering (first a third)
  • air suspension of the axle
  • frame locking while tilting
  • body height 1,50 m = 24,6 m3

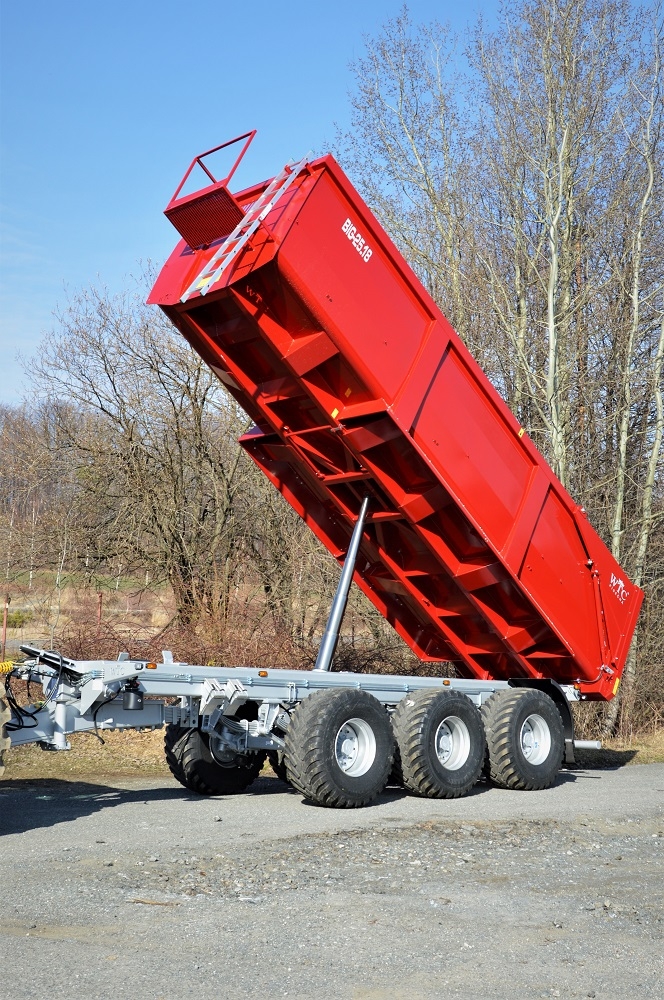

  • two way tilting (flatbed version 1,50 m – hydr. lock)
  • tailpiece 400 mm = 6,6 m3
  • tailpiece 600 mm = 9,8 m3
  • swivel hitch 50 mm
  • service footbridge
  • standard rolling tarpaulin
  • colour on request
  • speed 60 km/hod
  • wheels 385/65R22,5 RE
  • wheels 560/45R22,5 152D BKT FL-630 Plus TL
  • wheels 560/45 R22,5 ALLIANCE 885 Steel Belted
  • wheels 560/45 R22,5 BKT FL-693 TL
  • wheels 560/45 R22,5 NOKIAN Country King TL
  • wheels 560/60R22,5 Mitas AR 02
  • wheels 560/60R22,5 161D BKT FL-630 Plus TL
  • wheels 560/60R22,5 Alliance 885 Steel Belted
  • wheels 560/60R22,5 Alliance 390
  • wheels 560/60R22,5 161D Country King TL
  • wheels 560/60-22.5TL Michelin
  • wheels 600/50 R22,5 Michelin
Technical parameters
Number of axles
3
Technically permissible mass (kg)
25 000
Max. payload (kg)
18 000
Body Capacity - 1.50 m (m3)
24,6
Volume Extension 0,4 m (m3)
6,6
Volume Extension 0,6 m (m3)
9,8
Platform width (m)
2,25
Length of usable space (m)
7,29
Overall length (m)
8,85
Overall width - basic (m)
2,55
Maximum speed (km/h)
40 / 60
