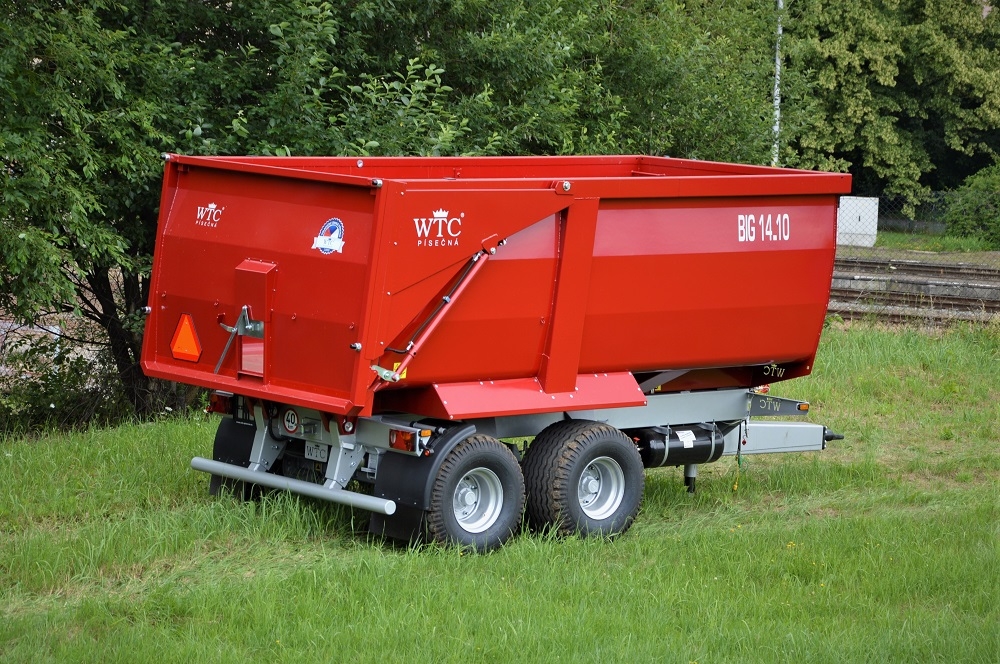

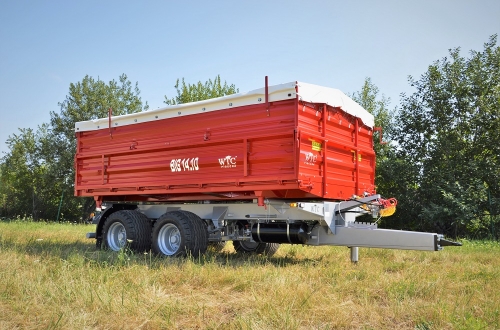

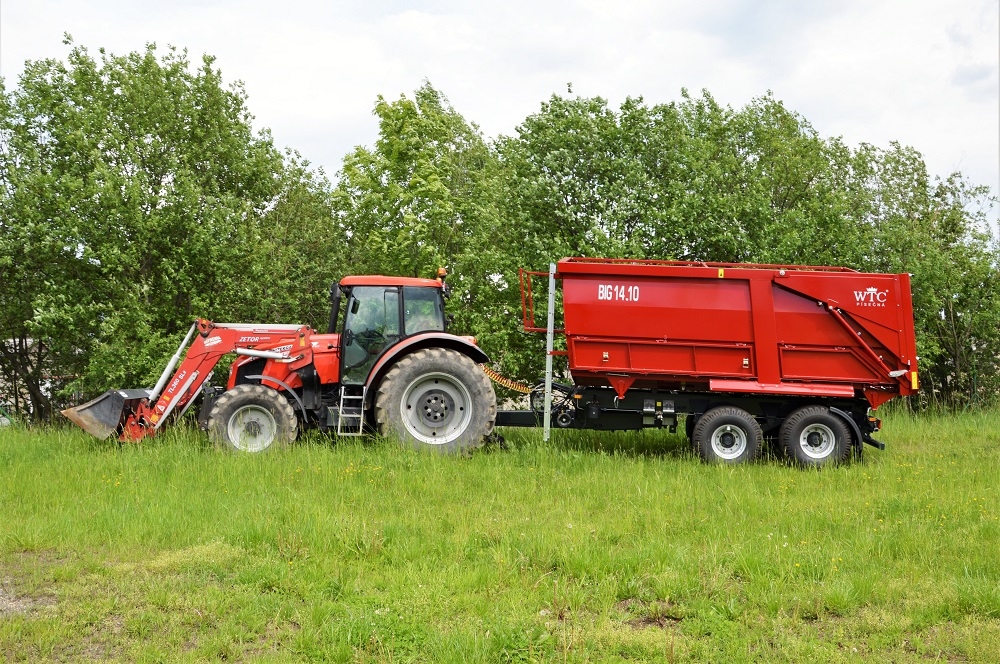

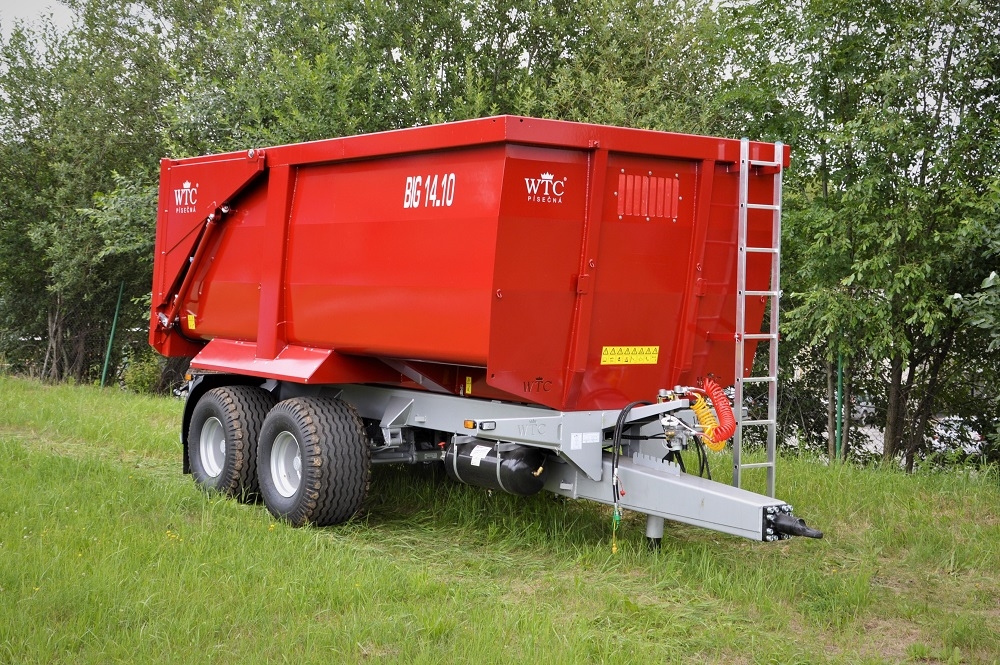

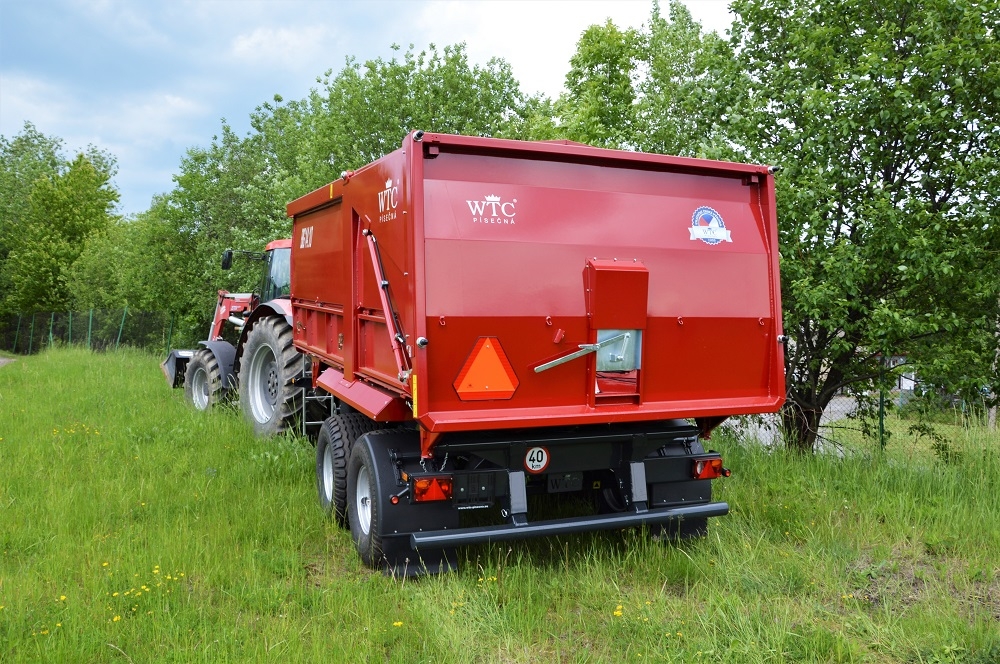

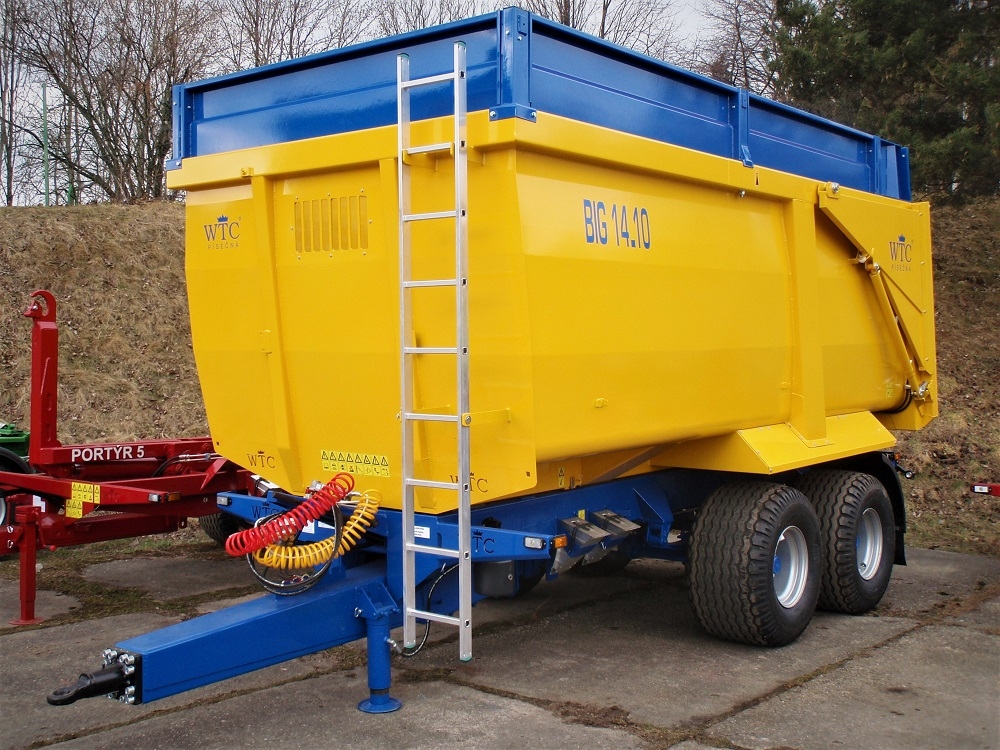

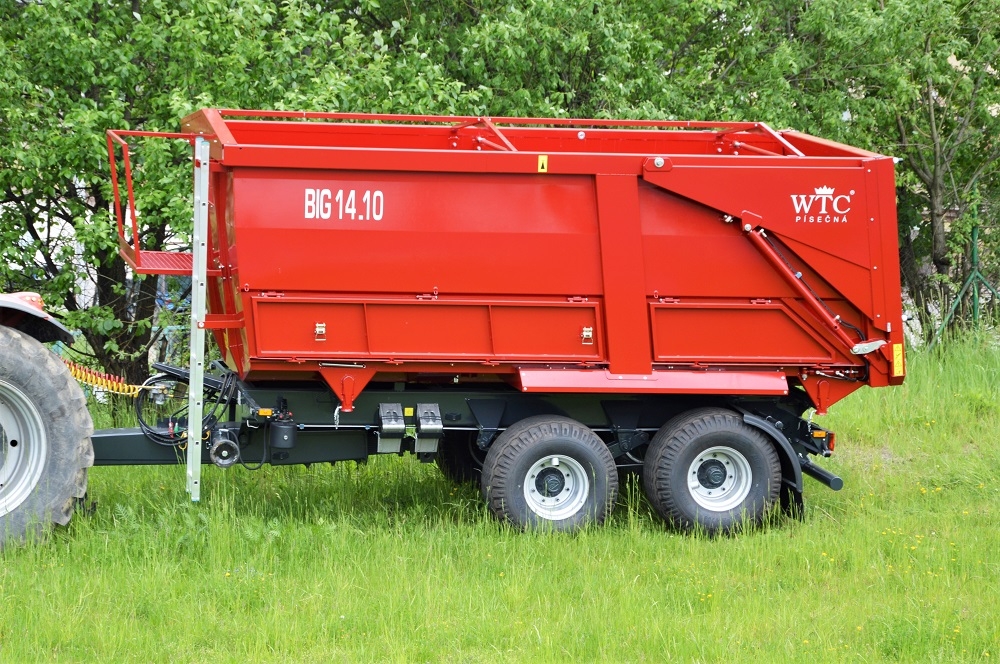

Tractor trailer BIG 14.10

Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10
Standard equipment

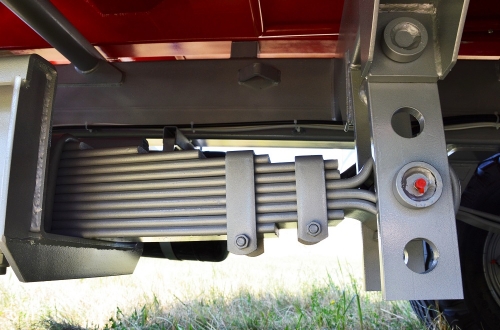

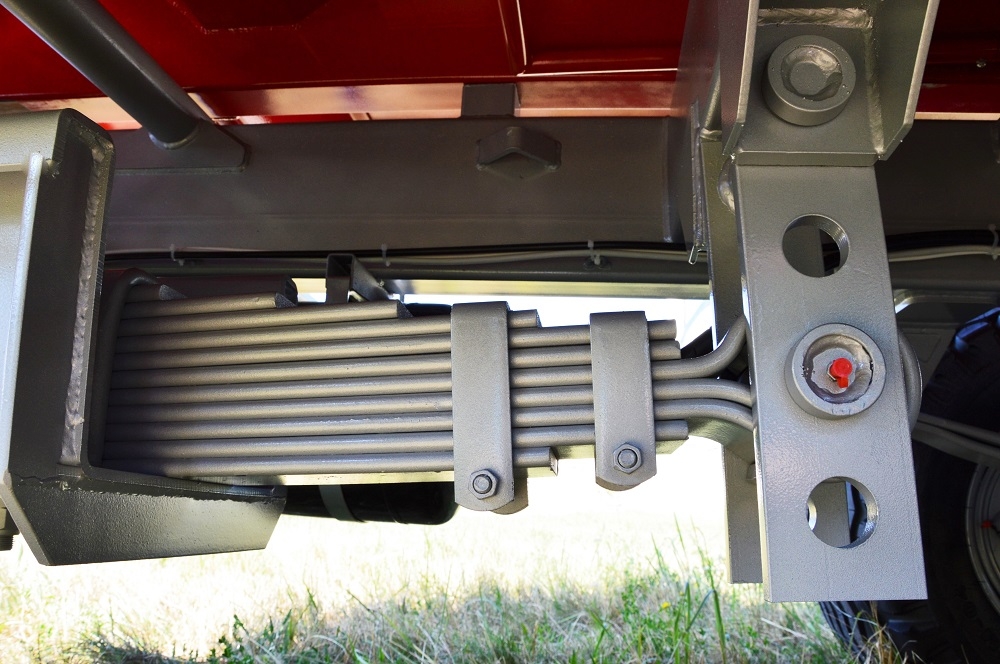

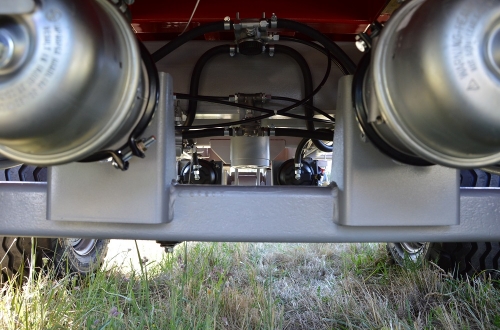

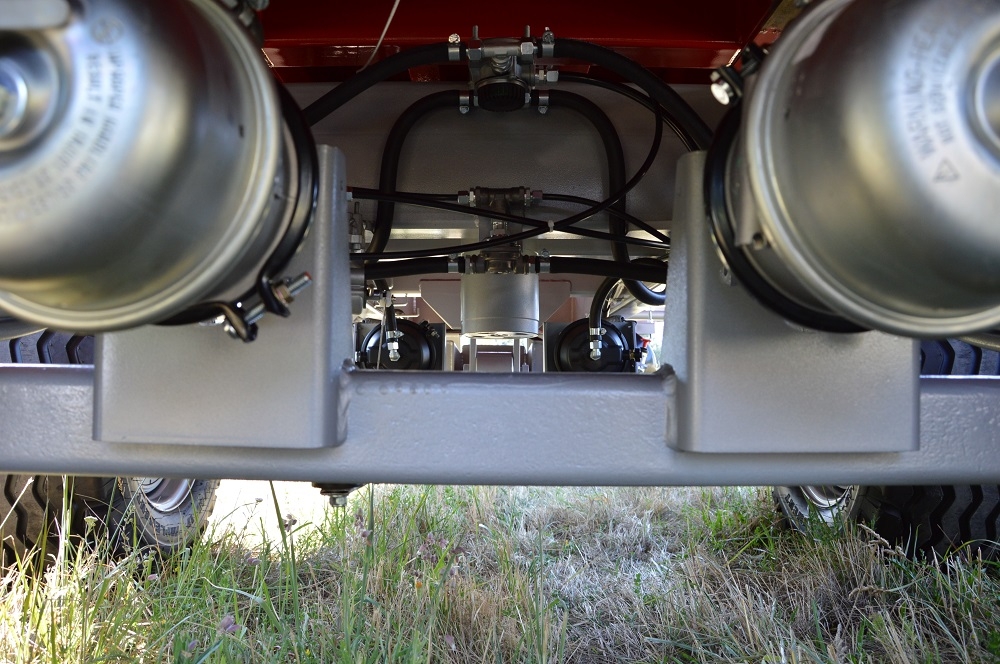

  • suspended TANDEM axle ADR
  • total permissible weight 14 000 kg
  • loading capacity 10 000 kg
  • platform (tank body): 4,64 m x 2,25 m
  • body height 1,00 m = 10,5 m3
  • suspended drawbars

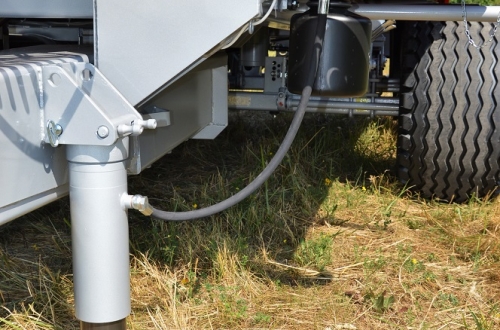

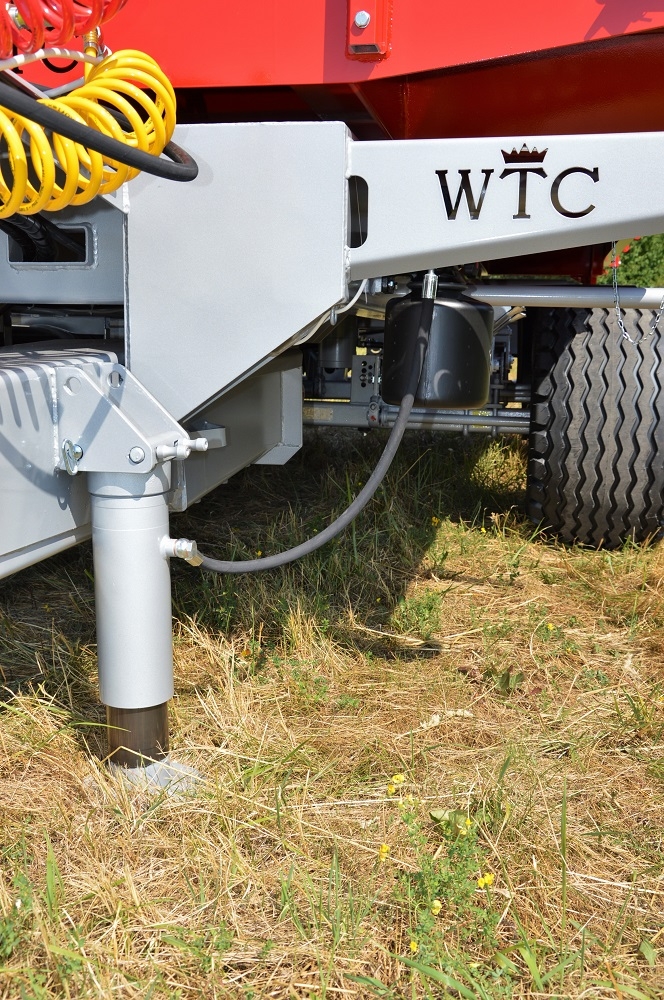

  • hydraulic drawbar support with pump
  • hydraulic door opening
  • hydraulic door lock
  • rear dump hatch

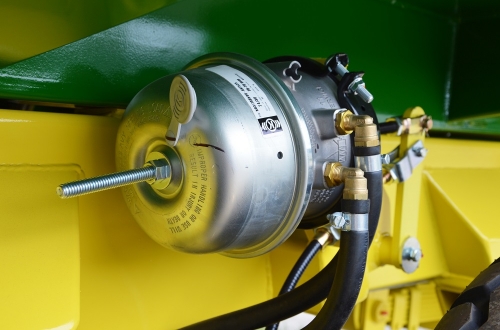

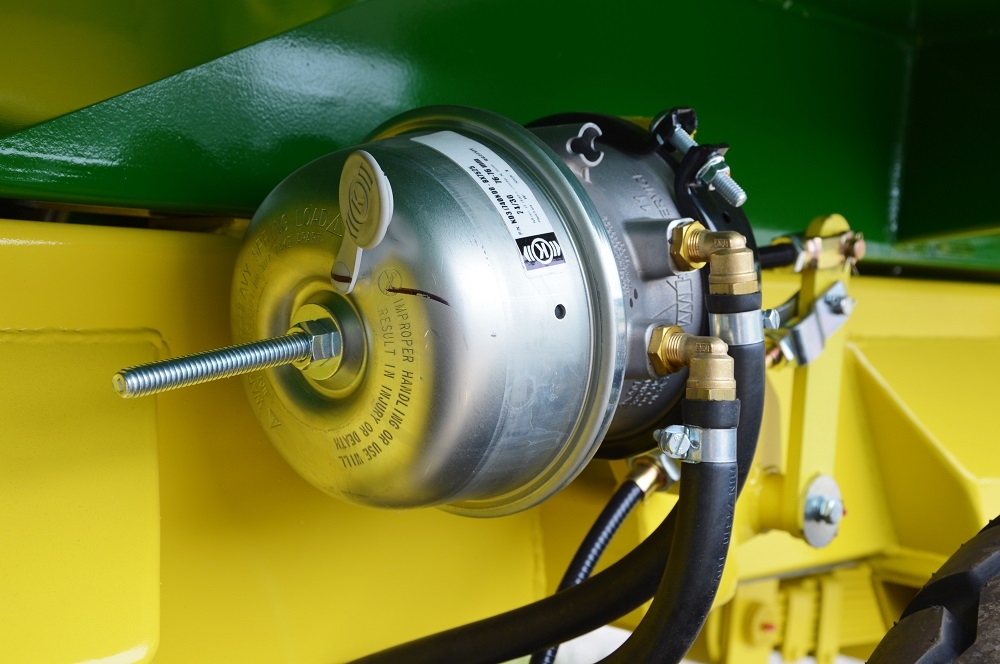

  • automatic parking brake
  • automatic brake load sensing controller

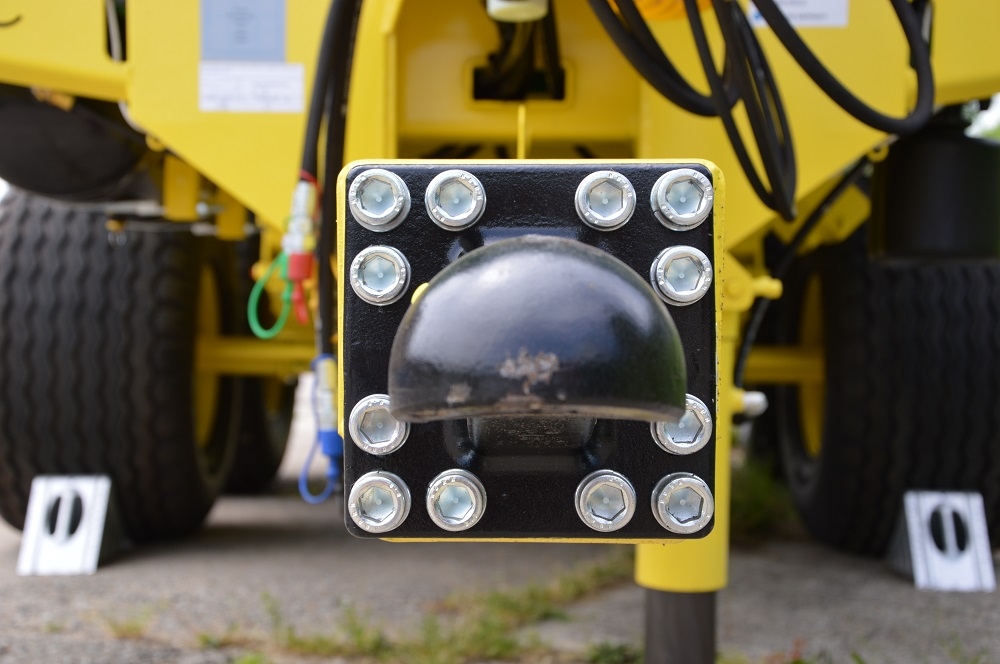

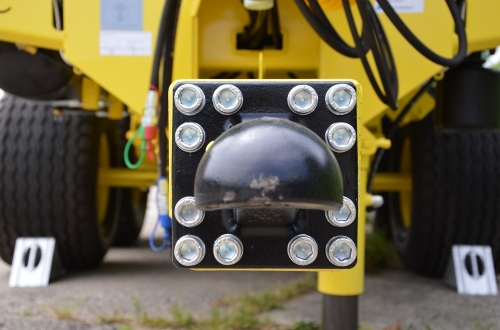

  • towing hitch Scharmüller ridig 40/50 mm/K-80
  • speed 40 km/hod

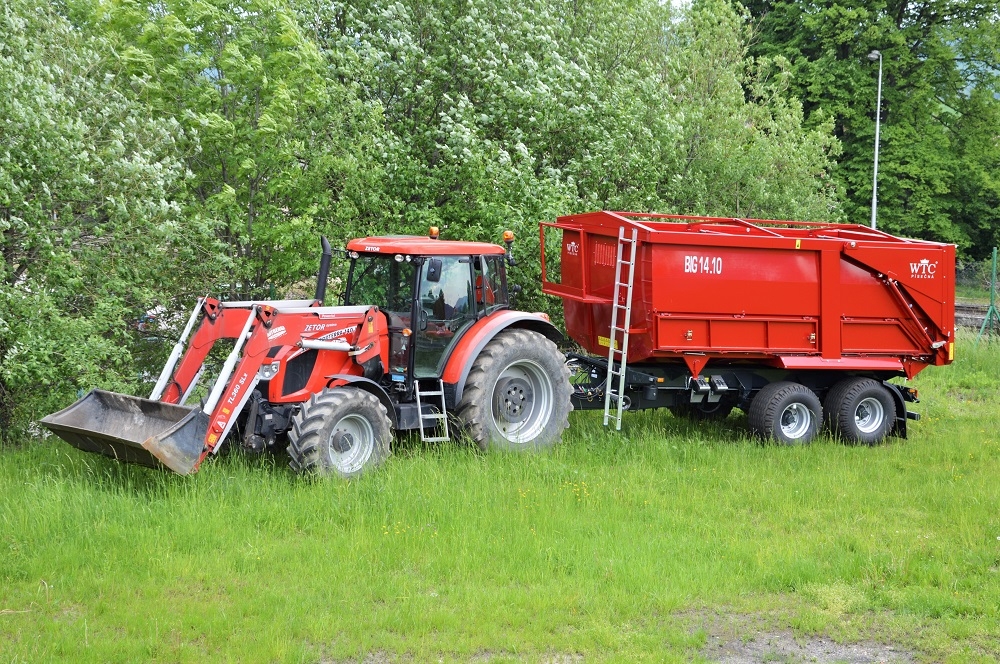

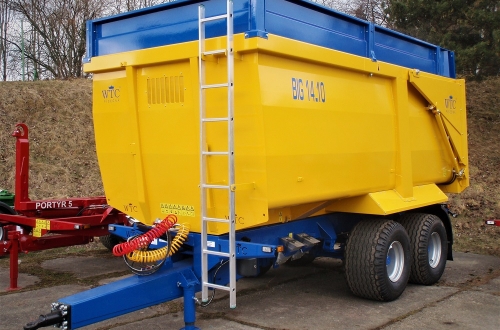

  • aluminium servise ladder
  • inspection window at the front of the body
  • adjustment for superstructures
  • polyurethane paint
Optional equipment
  • body height 1,50 m = 15,6 m3
  • two way tilting (flatbed version 1,50 m – hydr. lock)
  • tailpiece 0,4 m = 4,2 m3 – flatbed version
  • tailpiece 0,6 m = 6,3 m3 – flatbed version
  • three way tilting - platform body (loading area: 4,60 x 2,34 m x 1,2 m - 12 m3
  • swivel hitch 50 mm
  • simple axle version
  • service footbridge
  • standard rolling tarpaulin
  • colour on request
  • wheels 500/50-17
  • wheels 19/45-17
  • wheels 385/55 R 19,5 LINGLONG radial
  • wheels 445/45 R 19,5 LINGLONG radial
  • wheels 385/65R22,5 RE
  • wheels 560/60R22,5 Mitas AR 02
  • wheels 560/45R22,5 152D BKT FL-630 Plus TL
  • wheels 560/45R22,5 Alliance 885 Steel Belted
  • wheels 560/60R22,5 161D BKT FL-630 Plus TL
  • wheels 560/60R22,5 Alliance 885 Steel Belted
  • wheels 560/60-22.5TL Michelin CARGOXBIB
  • wheels 560/60R22,5 161D Country King TL
  • wheels 560/60R22,5 Alliance 390
  • spare wheel holder
Technical parameters
Number of axles
2
Tech. permissible mass (kg)
14 000
Max. payload (kg)
10 000
Operating weight (kg)
4 000
Body Capacity - 1.50 m (m3)
15,6
Volume Extension 0,4 m (m3)
4,2
Volume Extension 0,6 m (m3)
6,3
Platform width (m)
2,25
Length of usable space (m)
4,64
Overall length (m)
6,4
Overall width - basic (m)
2,55
Maximum speed (km/h)
40

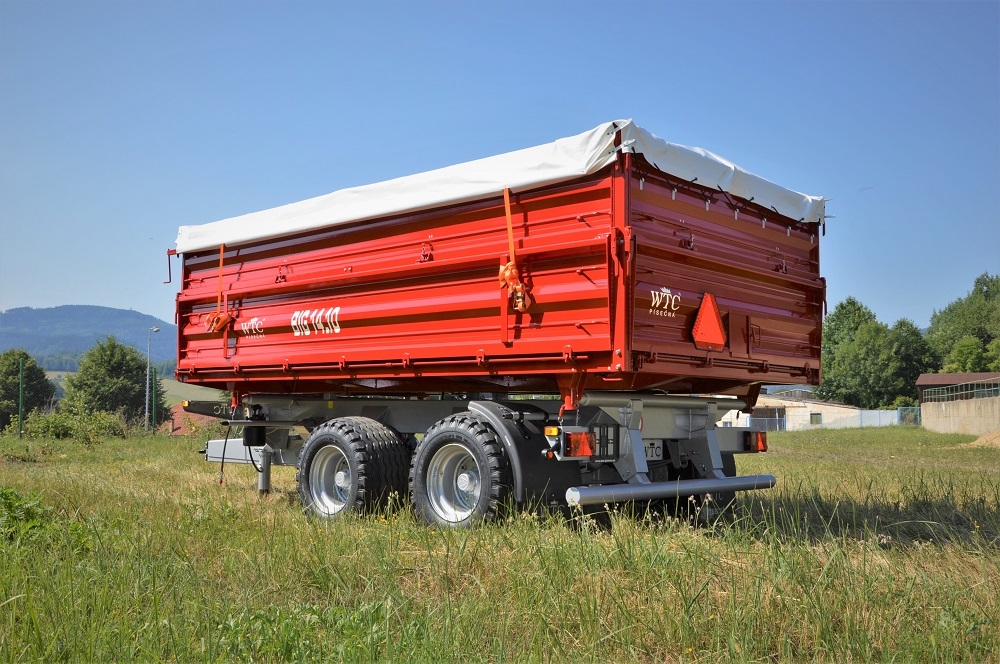

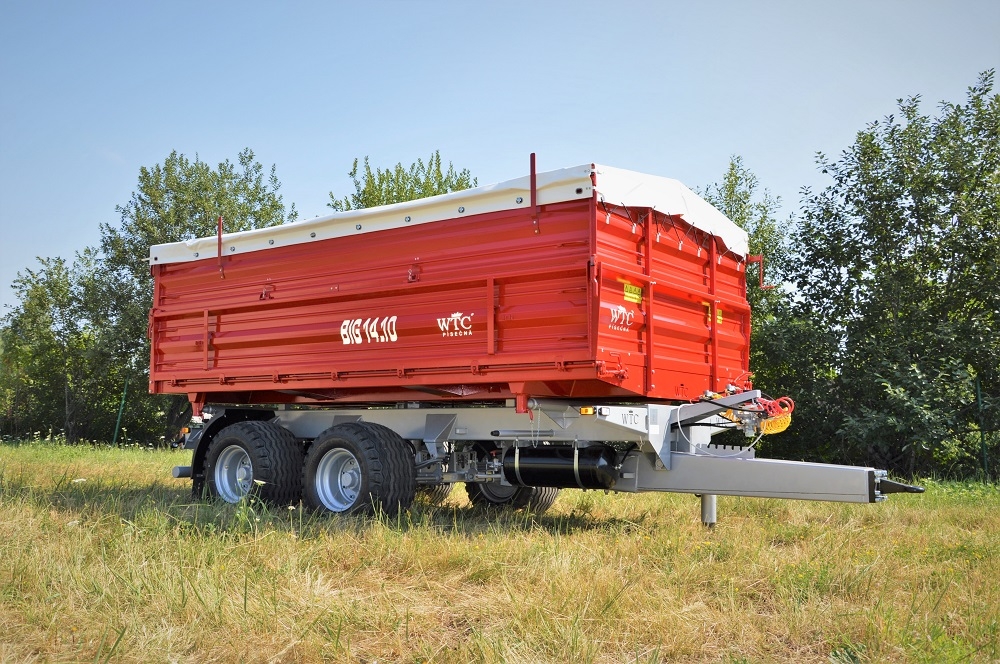

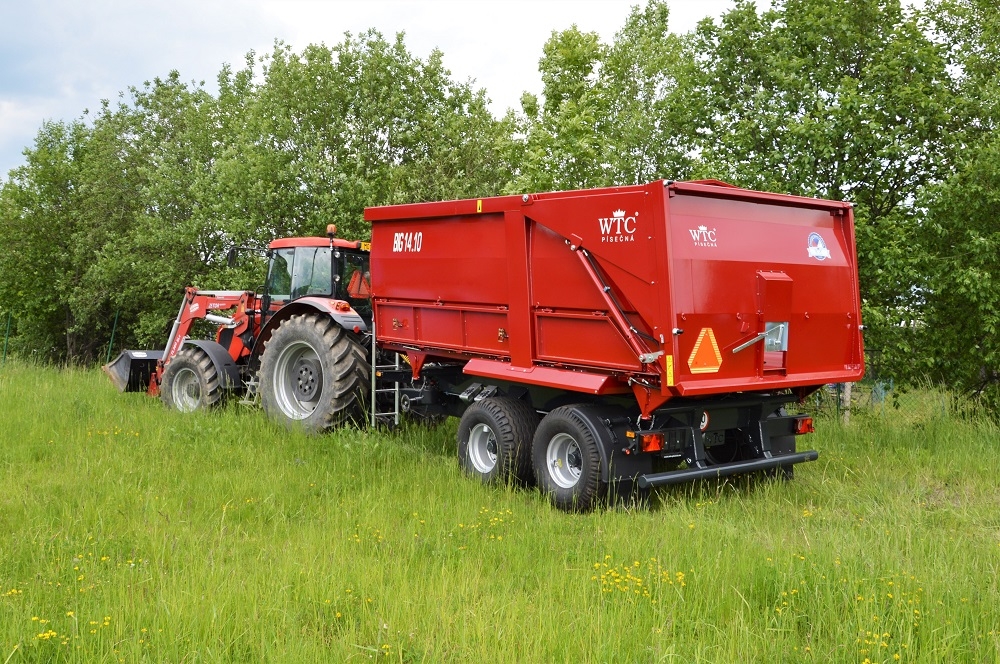

Photo gallery
Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10Tractor trailer BIG 14.10
Inquiry
If you are interested in any of our products, please do not hesitate to use the simple inquiry form. The sent question will be perceived as completely non-binding. We will respond to your request as soon as possible.
