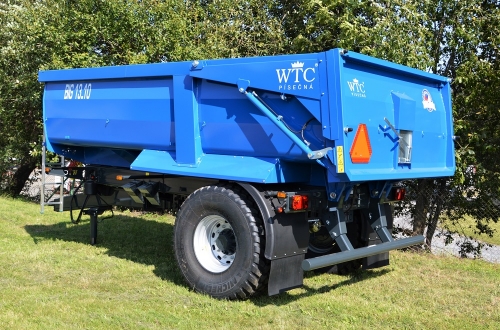

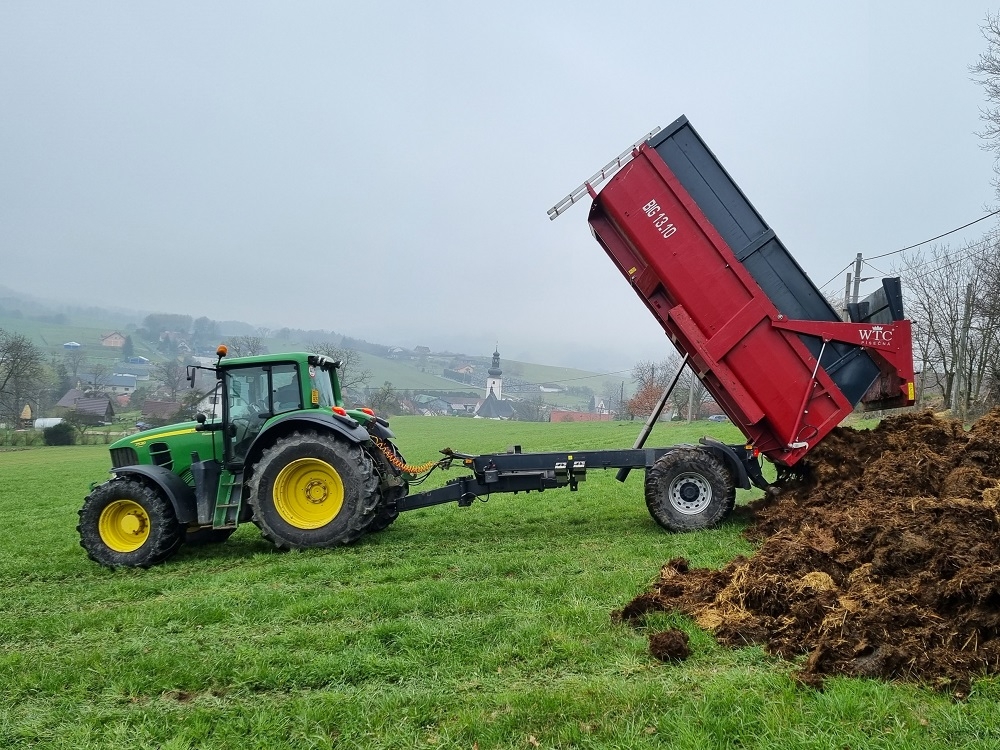

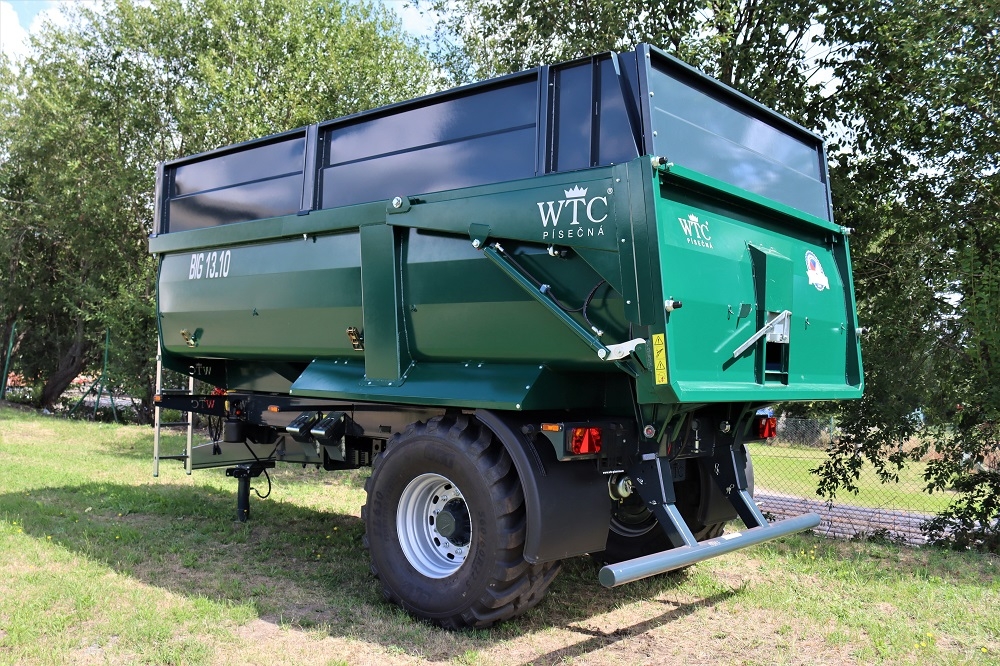

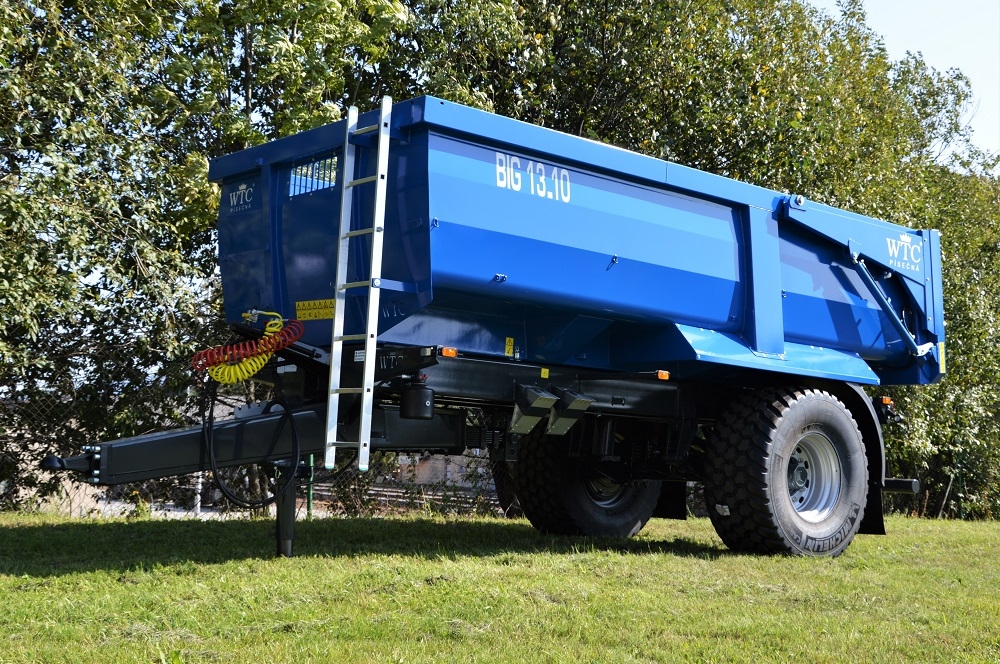

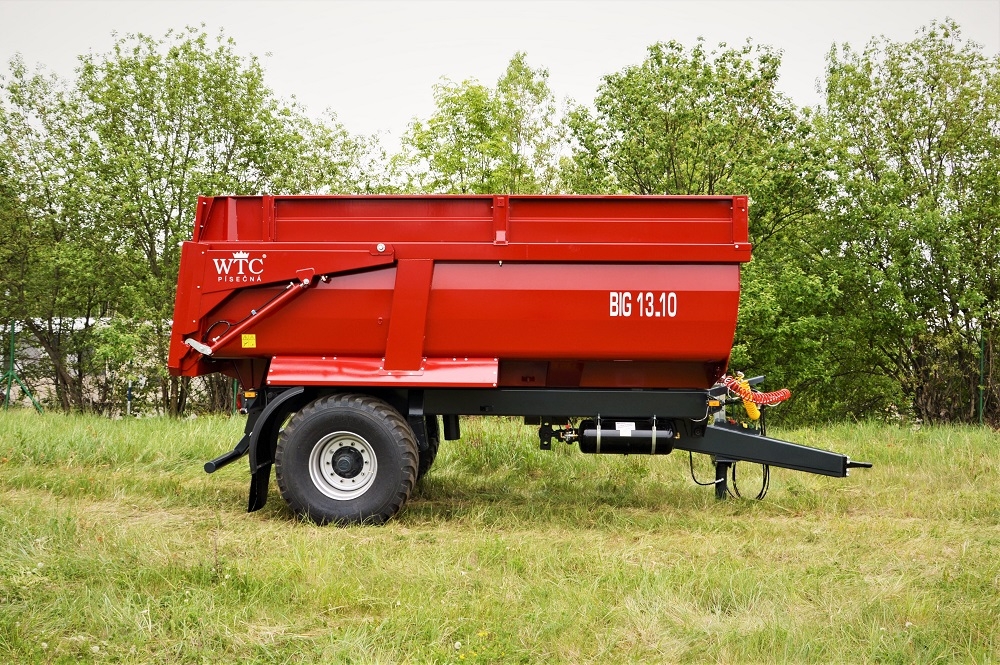

Tractor trailer BIG 13.10

Tractor trailer BIG 13.10Tractor trailer BIG 13.10Tractor trailer BIG 13.10Tractor trailer BIG 13.10
Standard equipment

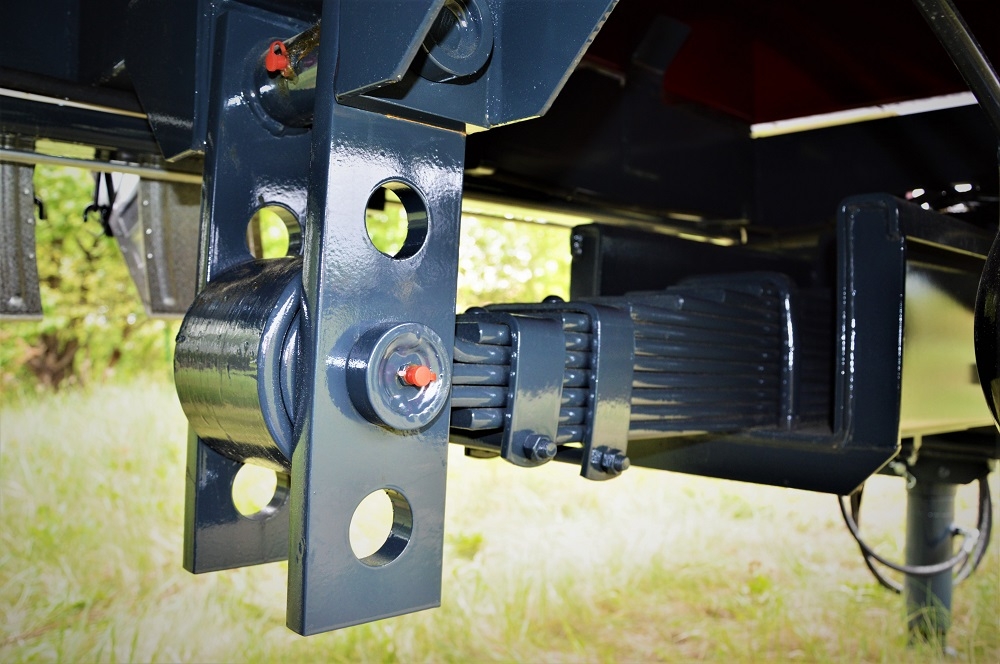

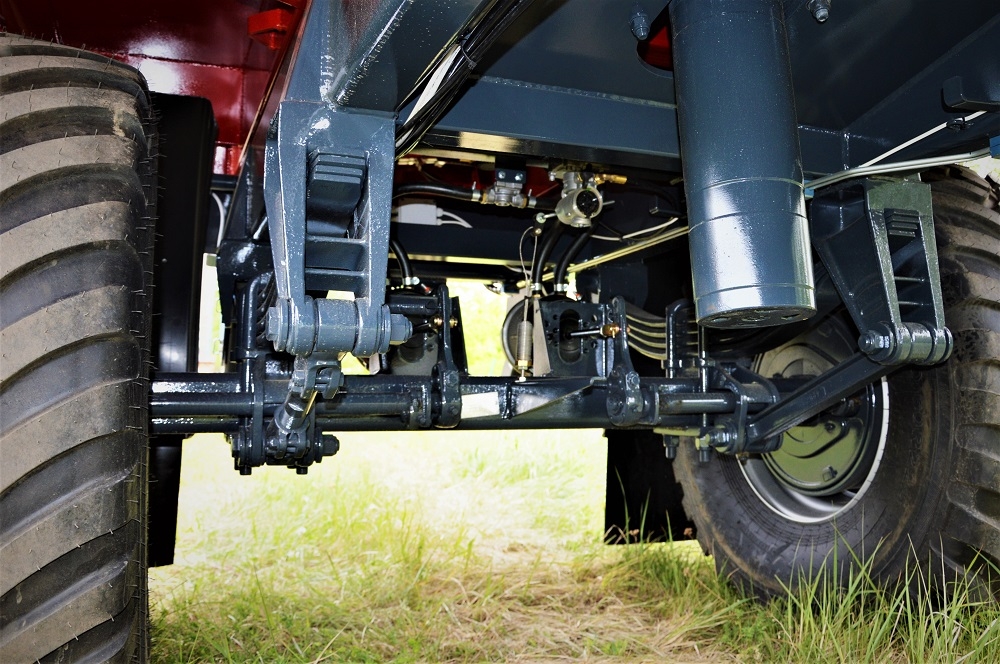

  • suspended simple axle ADR
  • total permissible weight 13 000 kg
  • loading capacity 9 665 kg
  • platform (tank body): 4,64 m x 2,25 m
  • body height 1,00 m = 10,5 m3
  • suspended drawbars

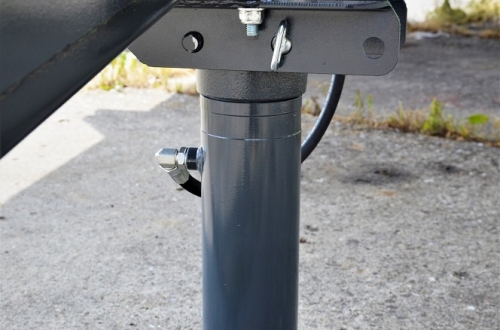

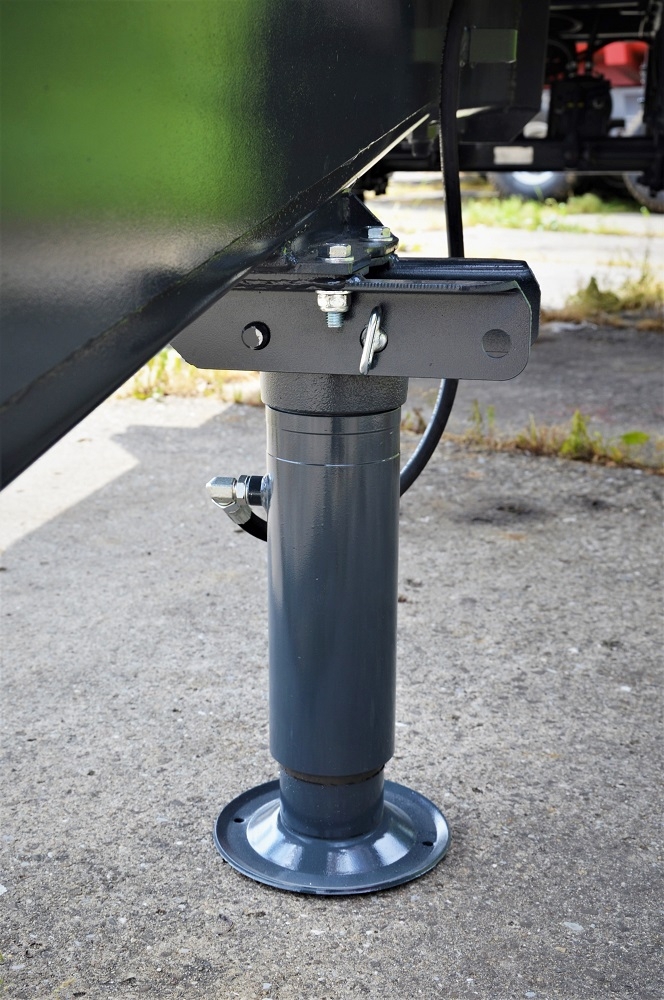

  • hydraulic drawbar support with pump
  • hydraulic door opening
  • hydraulic door lock

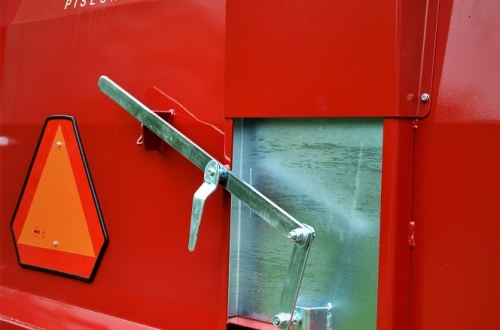

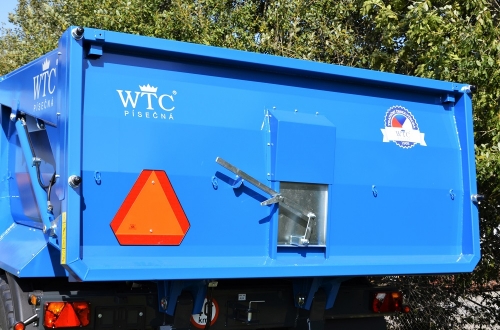

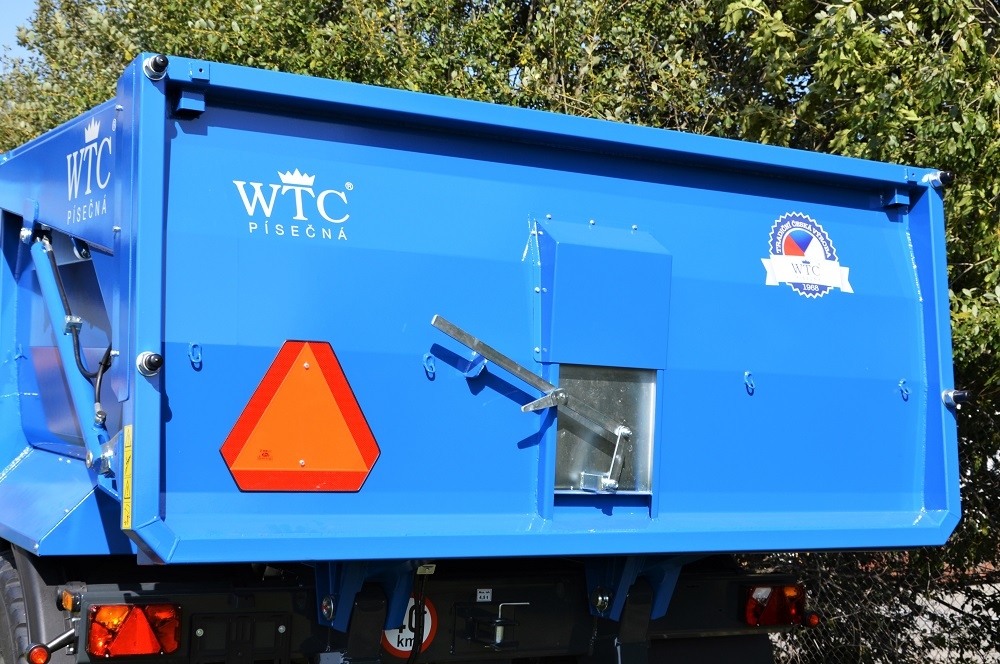

  • rear dump hatch

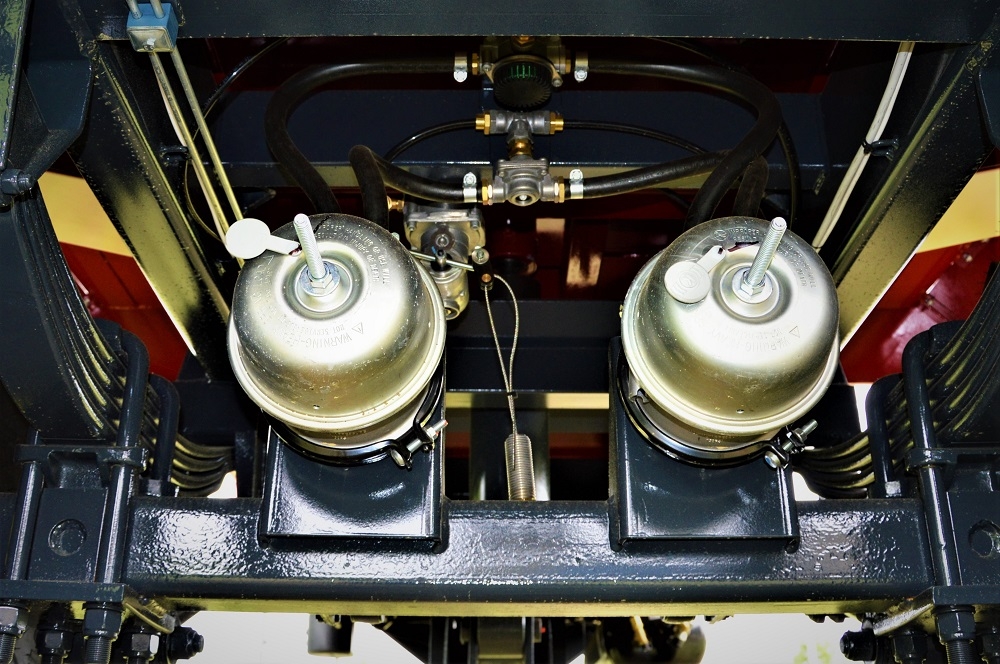

  • automatic parking brake
  • automatic brake load sensing controller

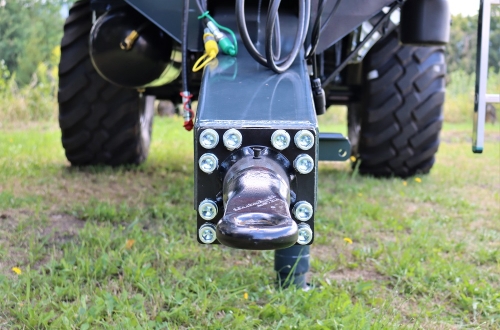

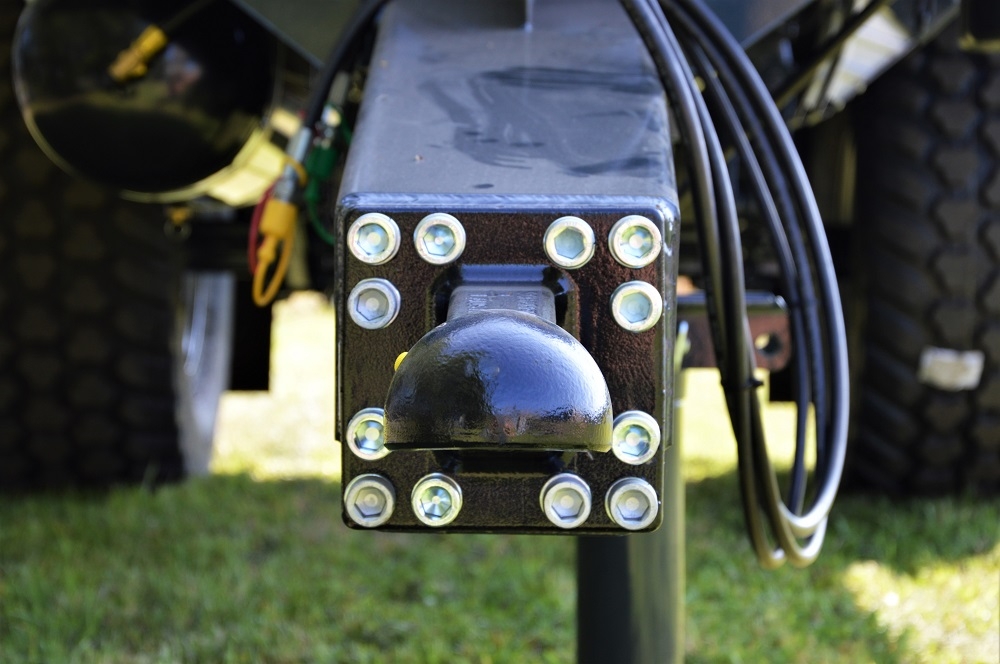

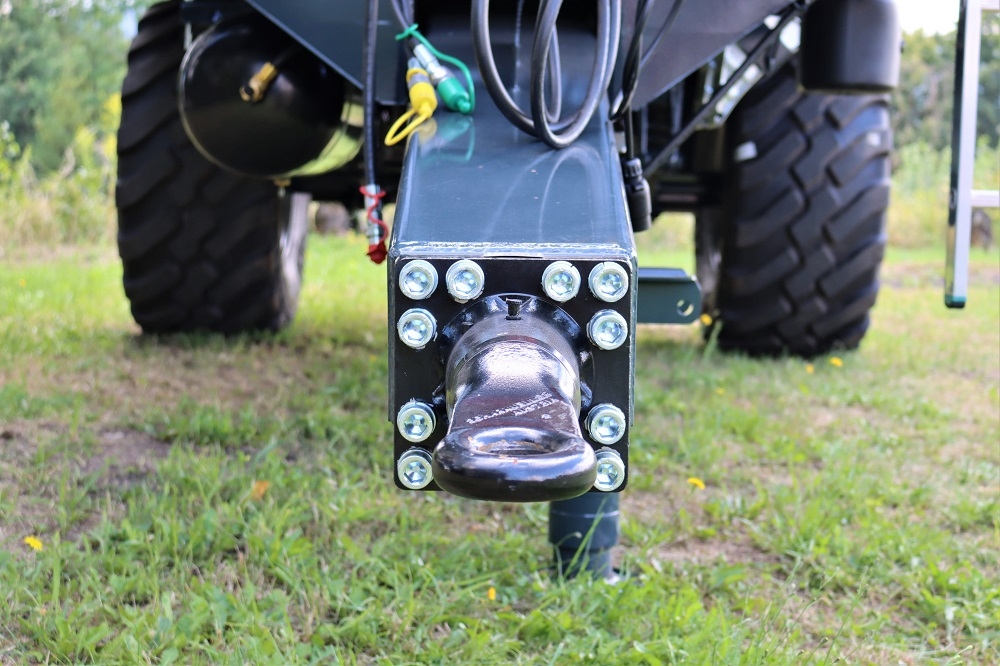

  • towing hitch Scharmüller ridig 40/50 mm/K-80
  • speed 40 km/hod

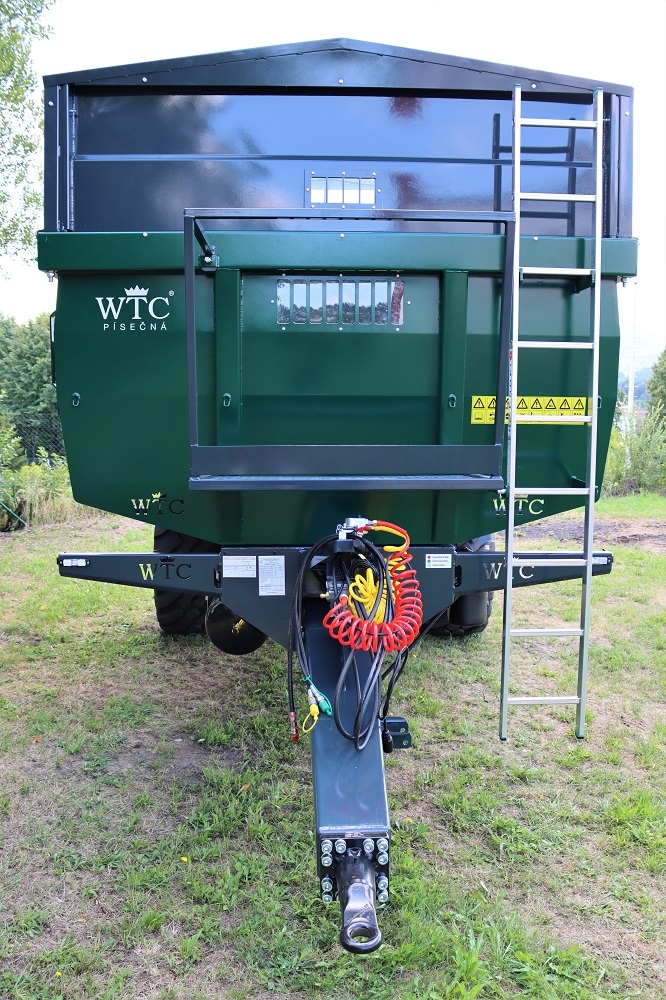

  • aluminium servise ladder

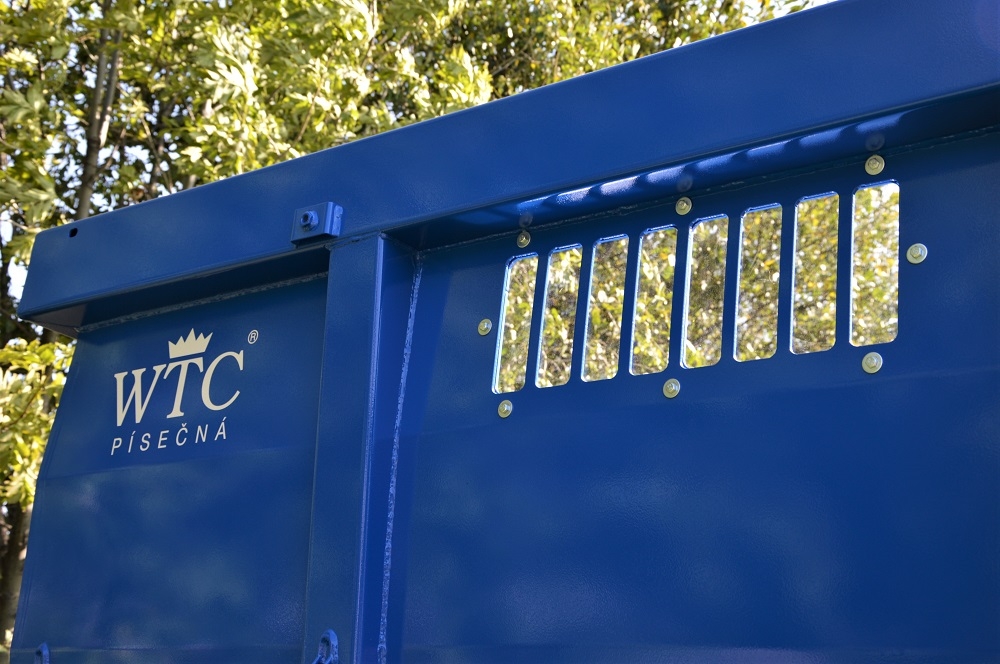

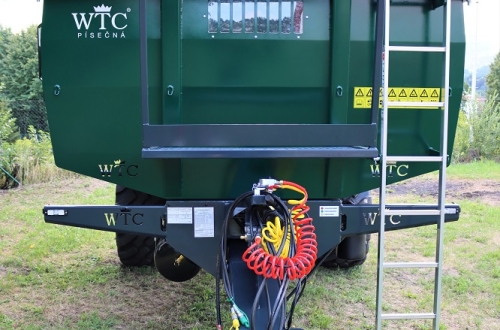

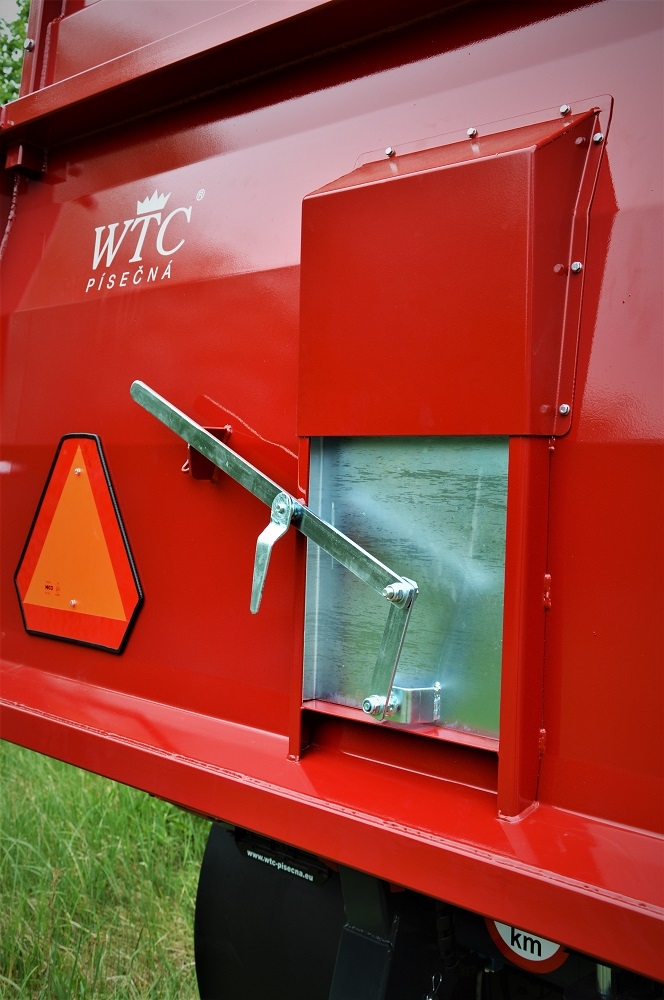

  • inspection window at the front of the body
  • adjustment for superstructures
  • polyurethane paint
Optional equipment
  • tailpiece 0,4 m = 4,2 m3 - flatbed version
  • tailpiece 0,6 m = 6,3 m3 - flatbed version

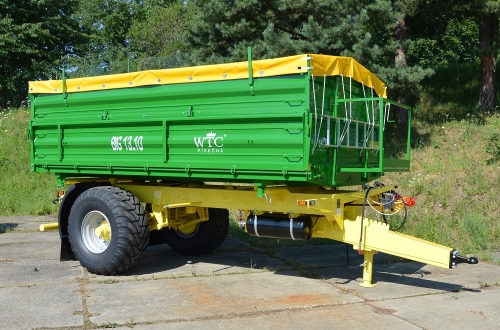

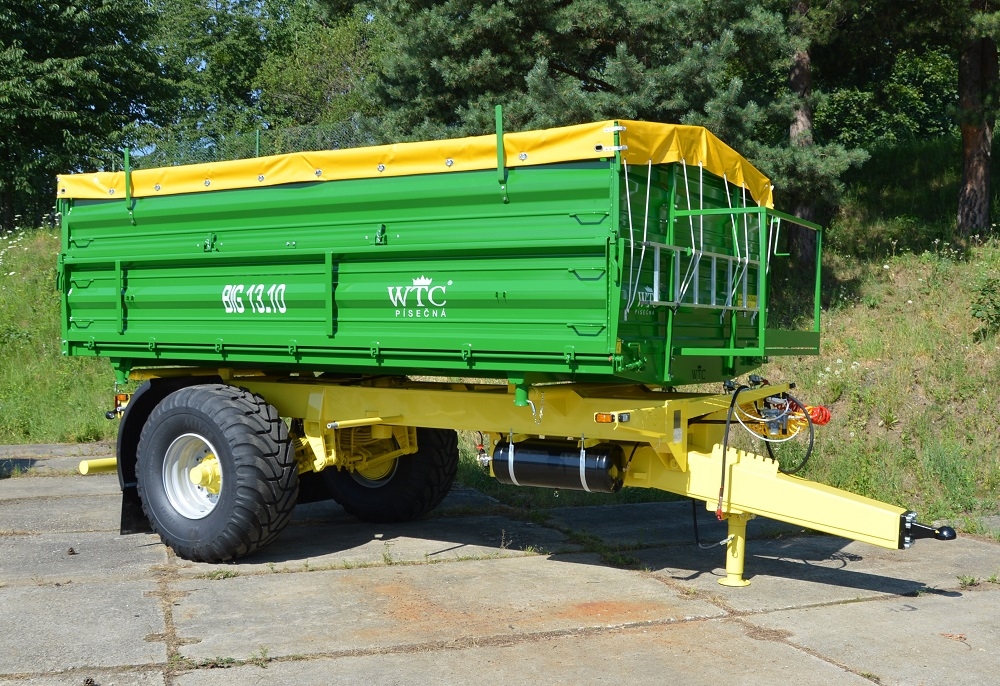

  • three way tilting - platform body (loading area: 4,60 x 2,34 m x 1,2 m - 13,2 m3
  • swivel hitch 50 mm
  • service footbridge
  • standard rolling tarpaulin
  • folding parpaulin operated from the ground
  • colour on request
  • wheels 385/65R22,5 RE
  • wheels 560/60R22,5 Mitas AR 02
  • wheels 560/45R22,5 152D BKT FL-630 Plus TL
  • wheels 560/45R22,5 Alliance 885 Steel Belted
  • wheels 560/60R22,5 161D BKT FL-630 Plus TL
  • wheels 560/60R22,5 Alliance 885 Steel Belted
  • wheels 560/60-22.5TL Michelin Trailxbib
  • wheels 560/60R22,5 161D Country King TL
  • wheels 560/60R22,5 Alliance 390
  • spare wheel holder
Technical parameters
Number of axles
1
Tech. permissible mass (kg)
13 000
Max. payload (kg)
9 665
Body Capacity - 1.0 m (m3)
10,5
Volume Extension 0,4 m (m3)
4,2
Volume Extension 0,6 m (m3)
6,3
Platform width (m)
2,25
Length of usable space (m)
4,64
Overall length (m)
6,4
Overall width - basic (m)
2,55
Maximum speed (km/h)
40

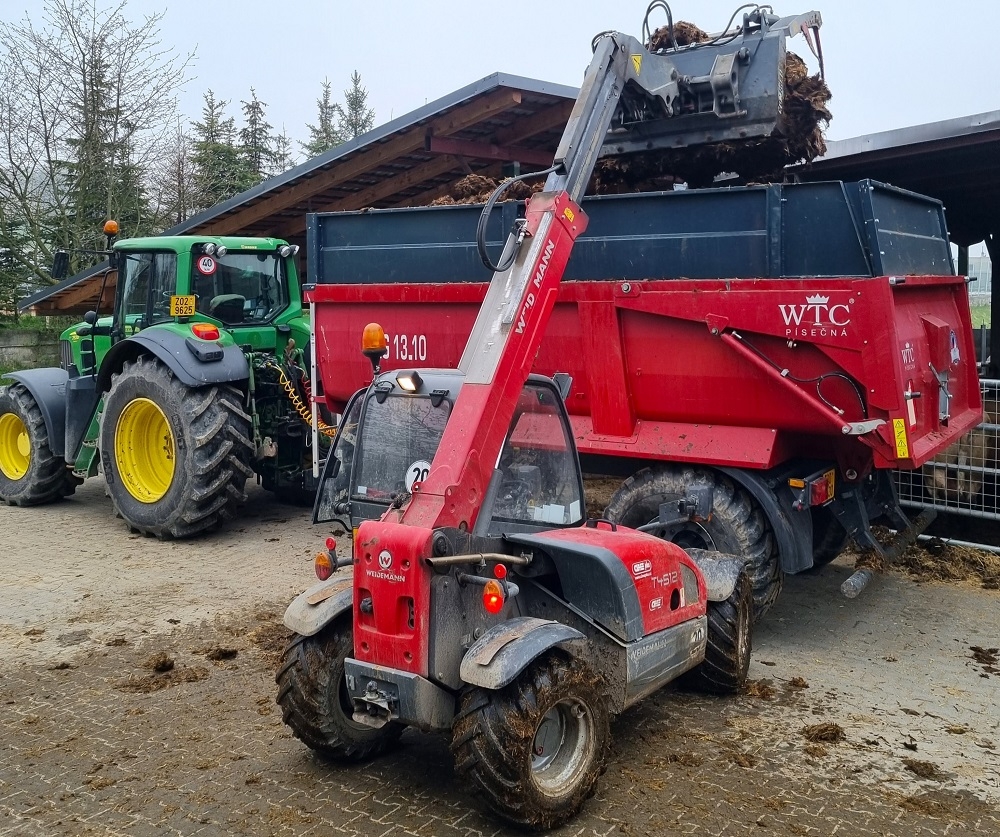

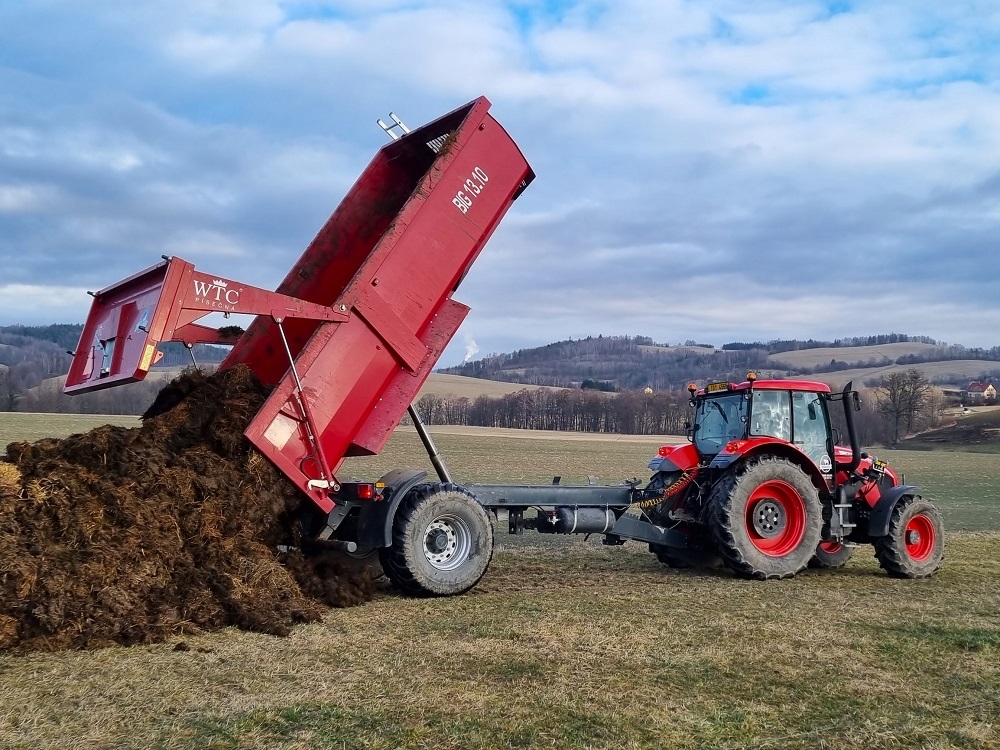

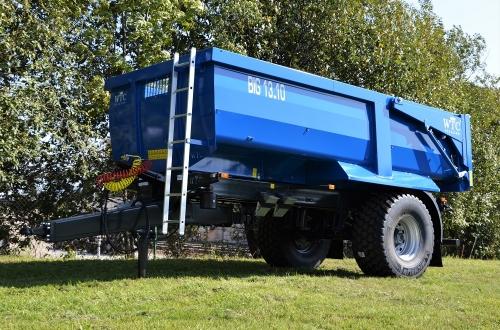

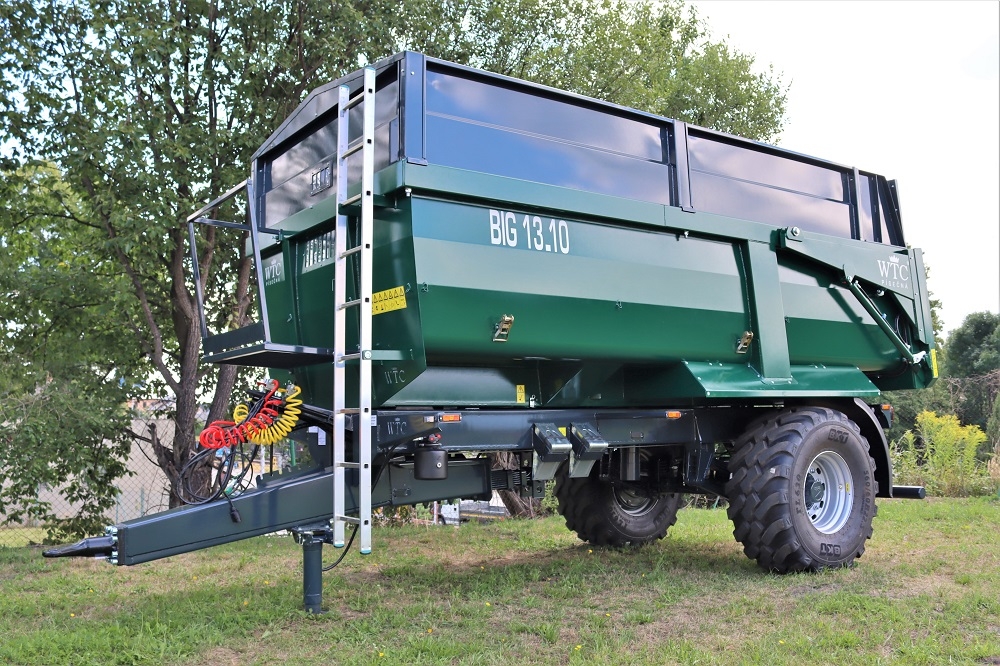

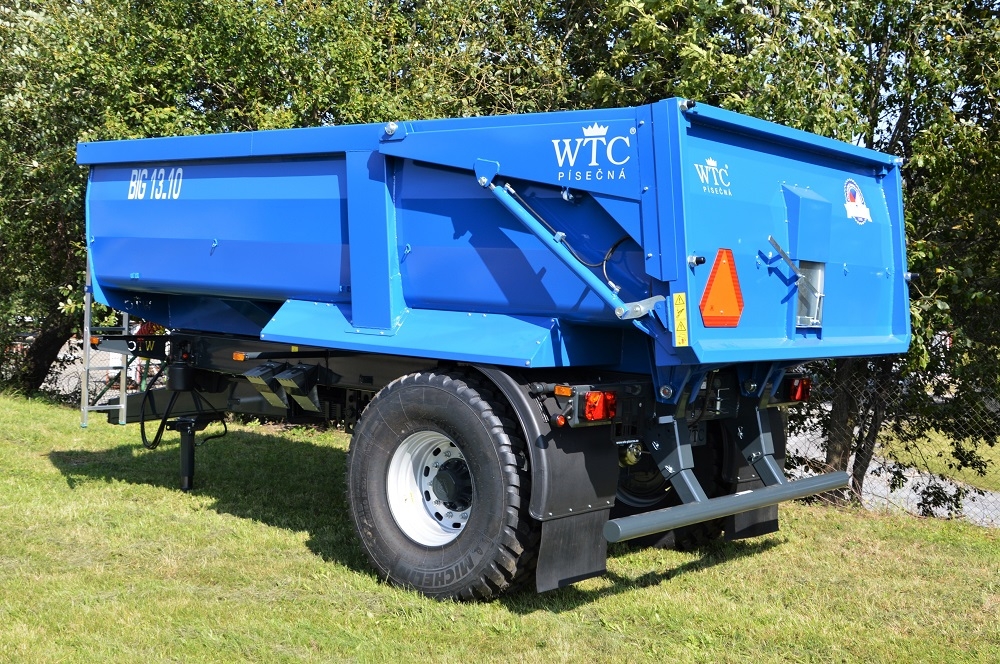

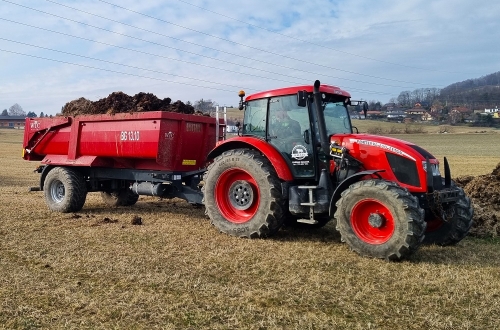

Photo gallery
