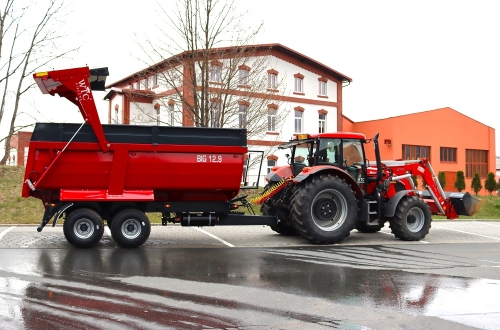

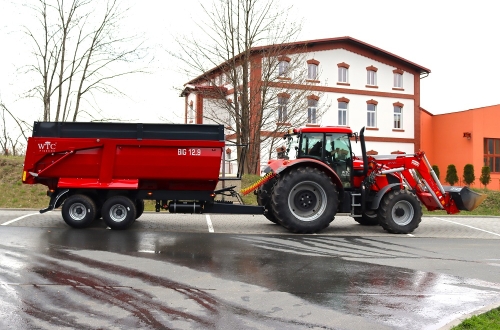

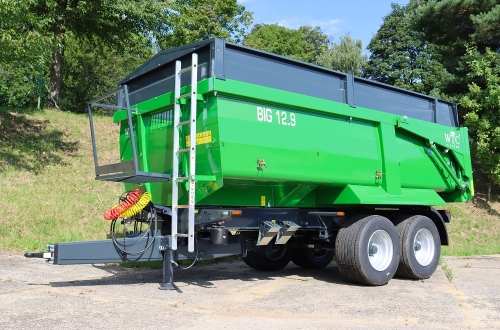

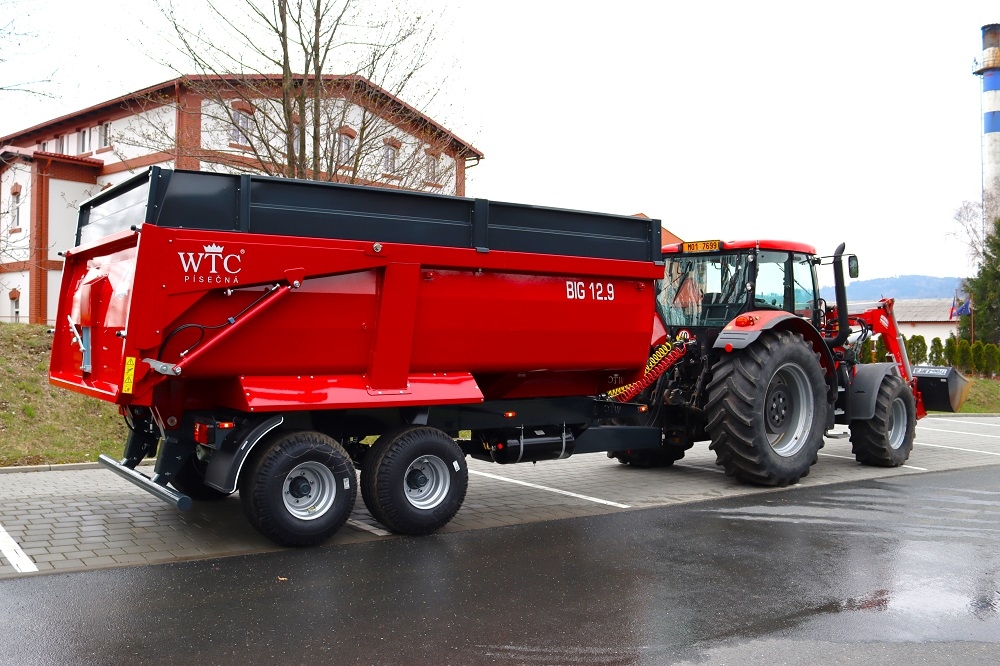

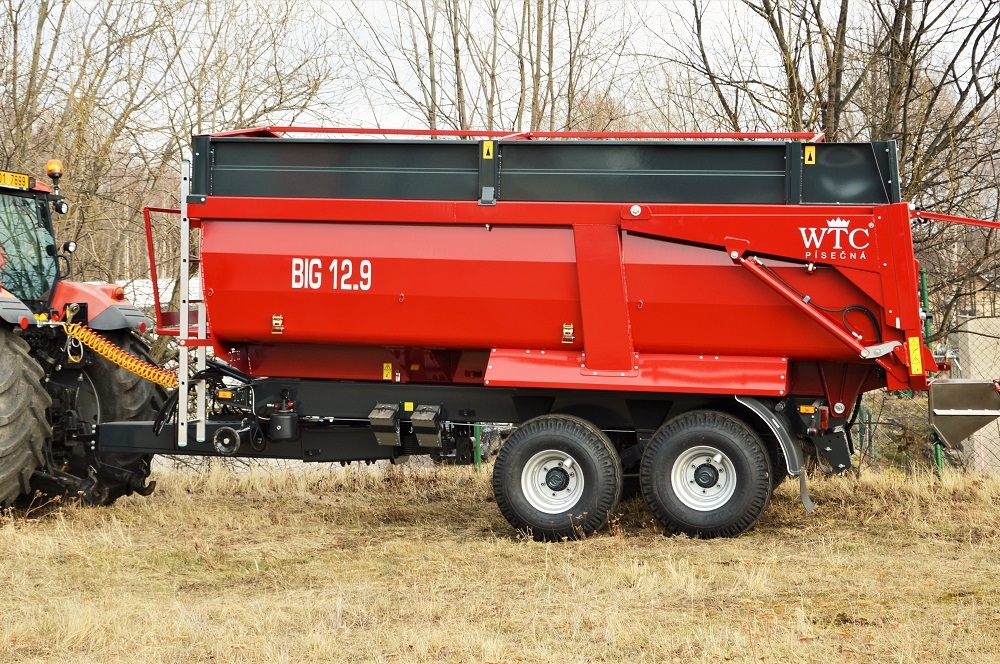

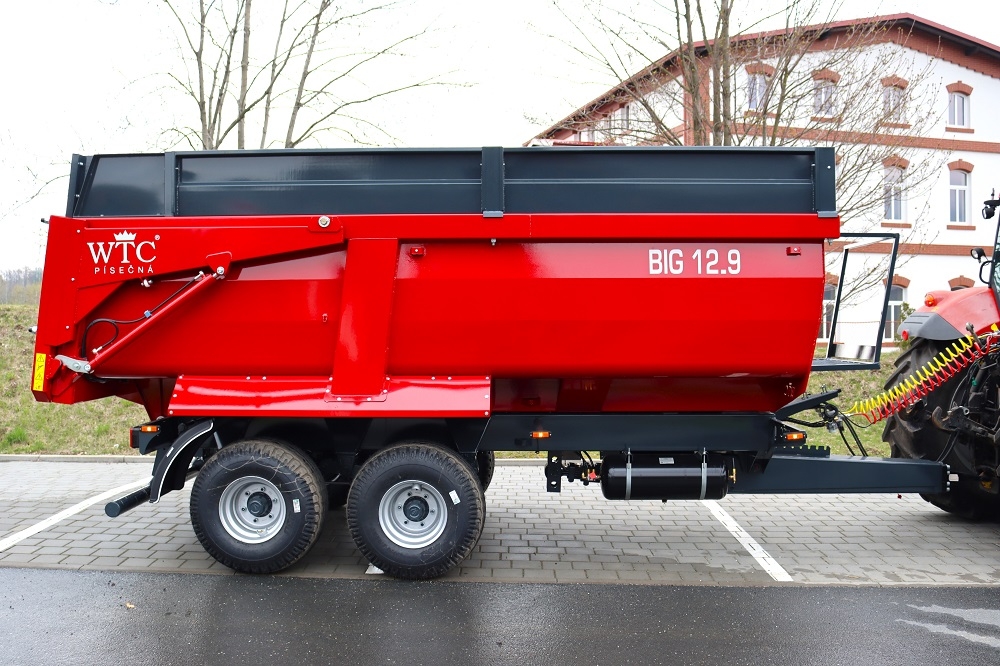

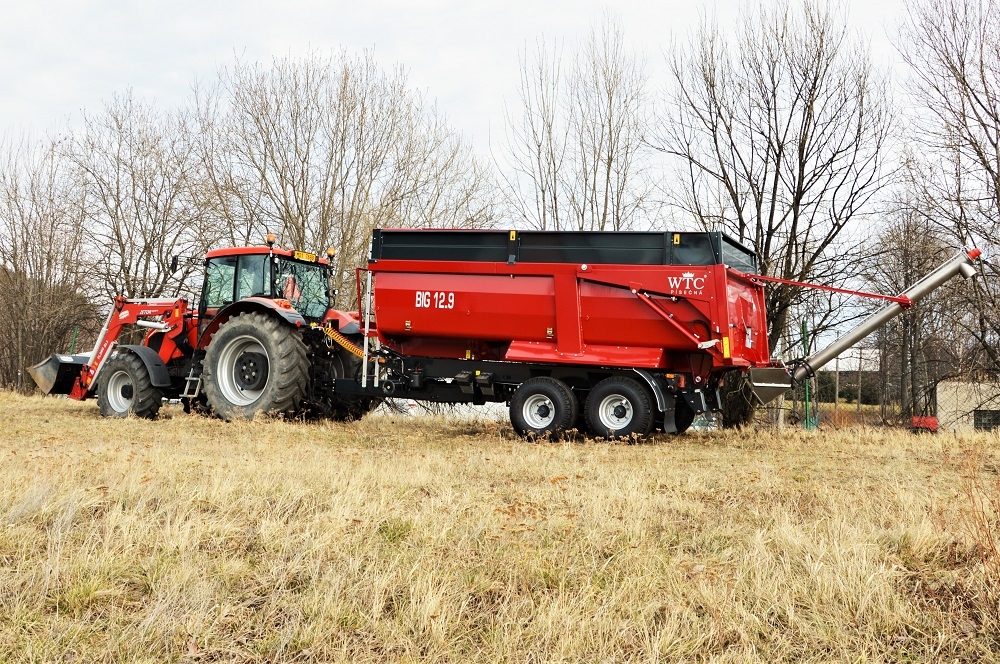

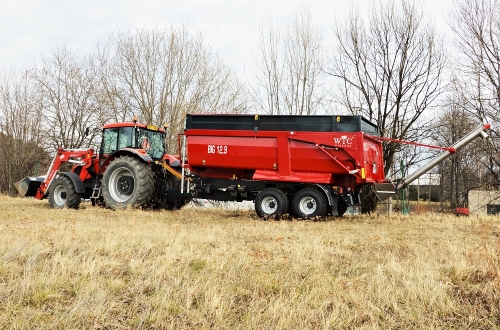

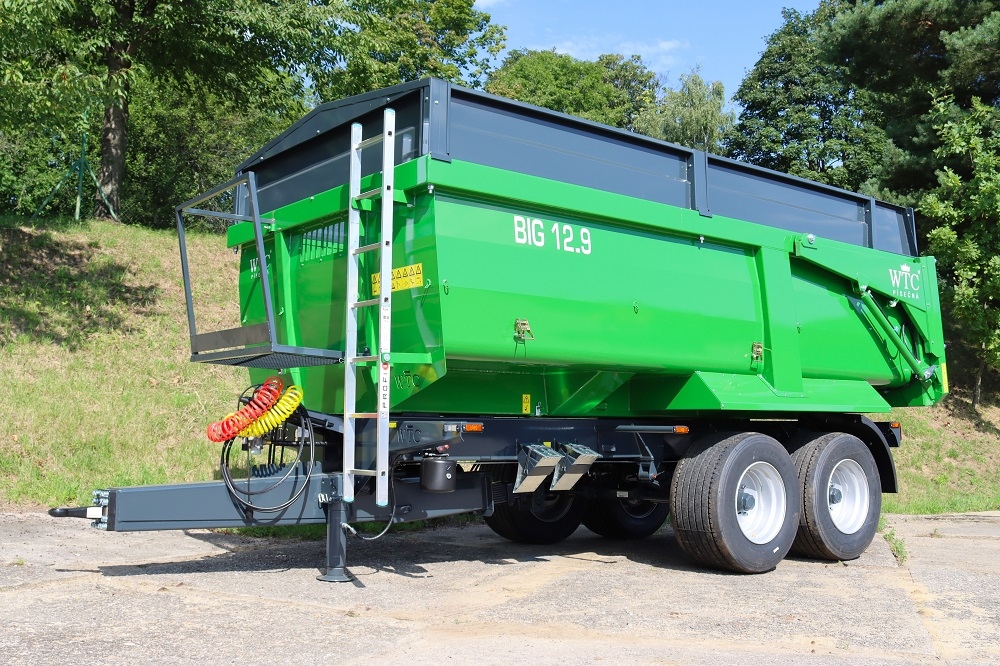

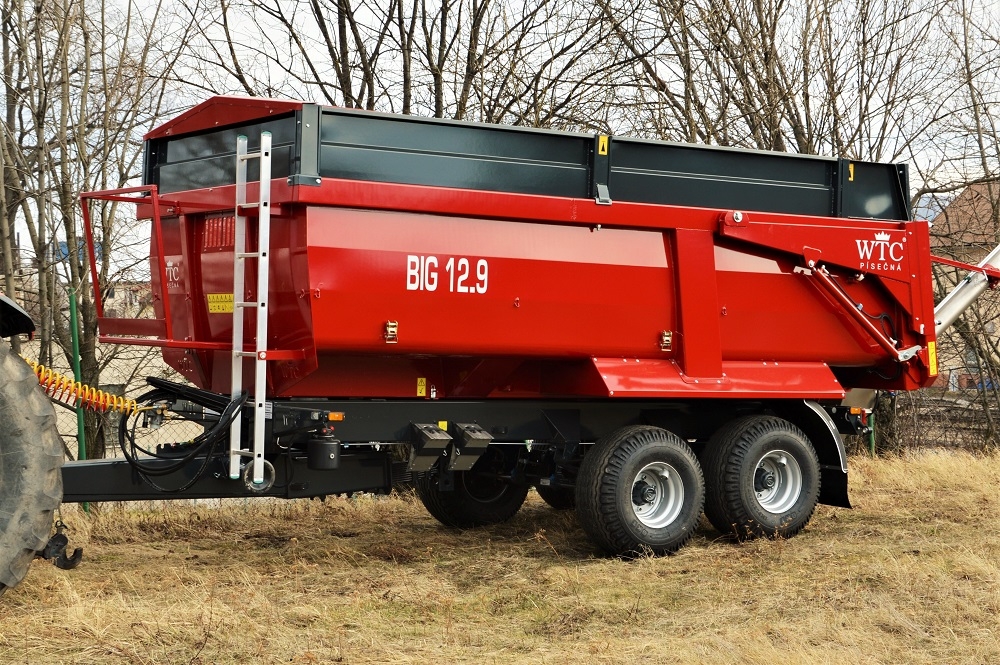

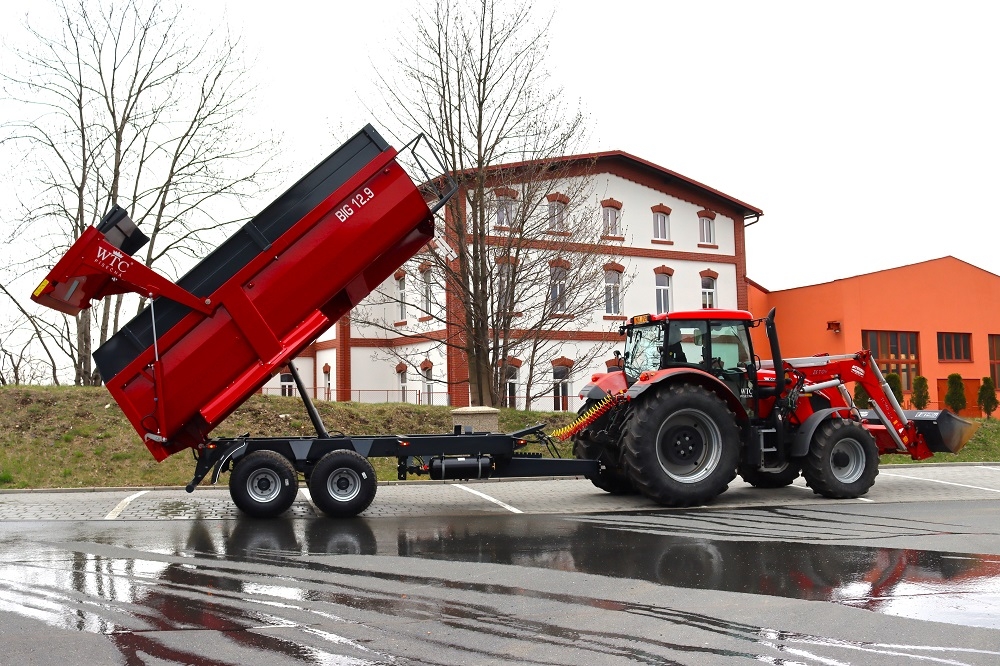

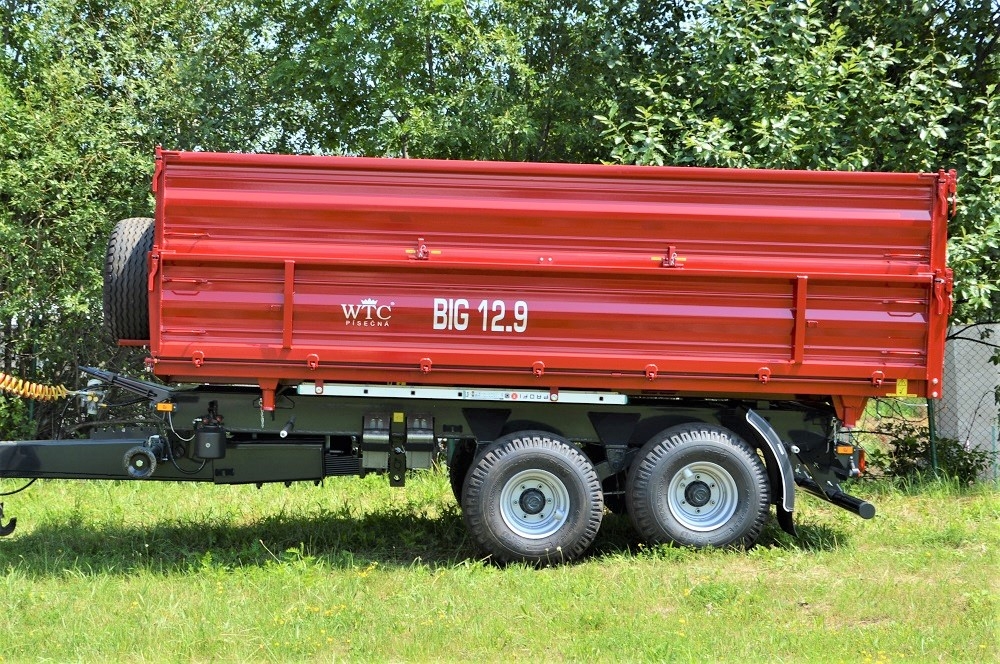

Tractor trailer BIG 12.9

Tractor trailer BIG 12.9Tractor trailer BIG 12.9Tractor trailer BIG 12.9Tractor trailer BIG 12.9
Standard equipment

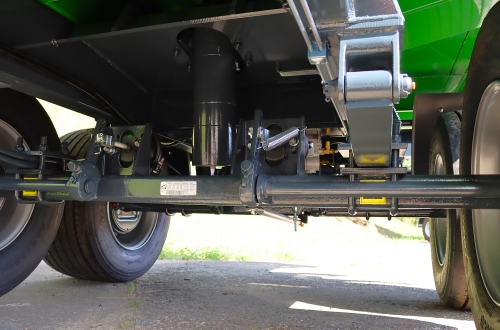

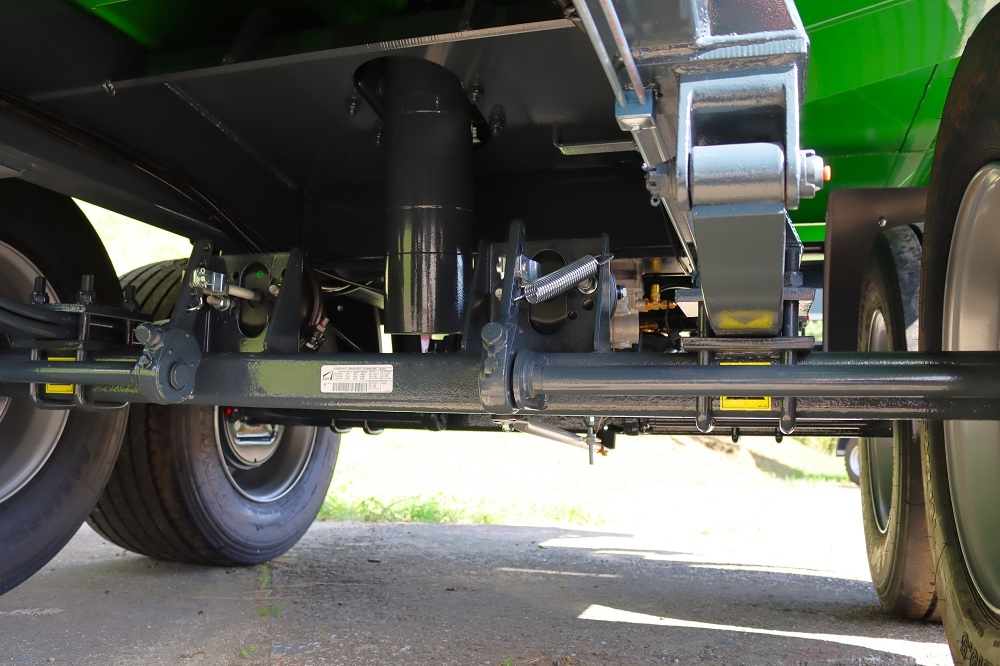

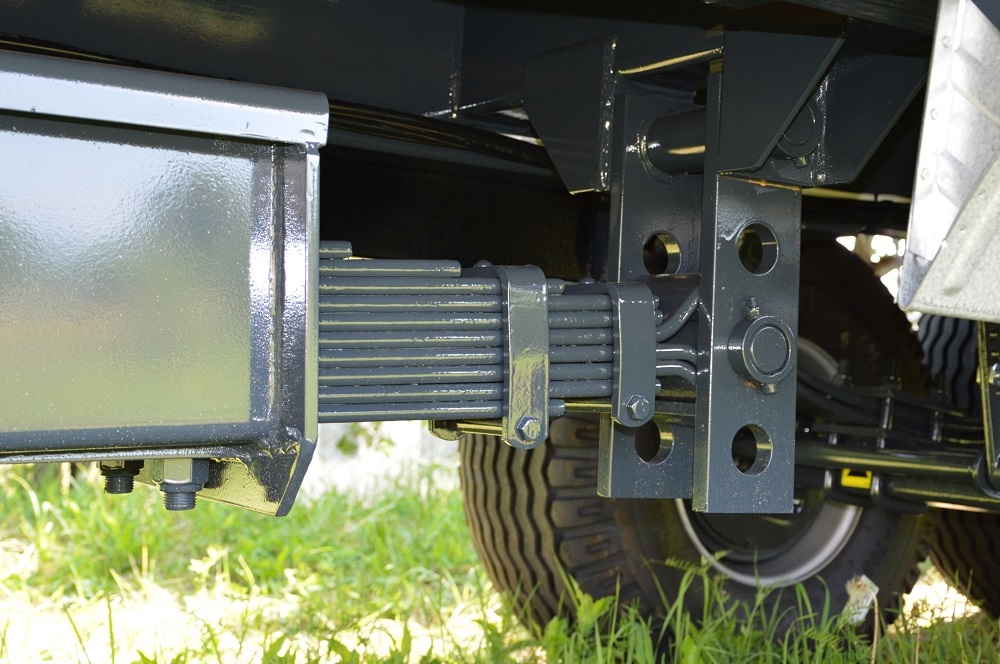

  • suspended tandem axle ADR
  • total permissible weight 12 000 kg
  • loading capacity 8 500 kg
  • platform (tank body): 4,64 m x 2,25 m
  • body height 1,00 m = 10,5 m3
  • suspended drawbars
  • hydraulic drawbar support with pump
  • hydraulic door opening
  • hydraulic door lock

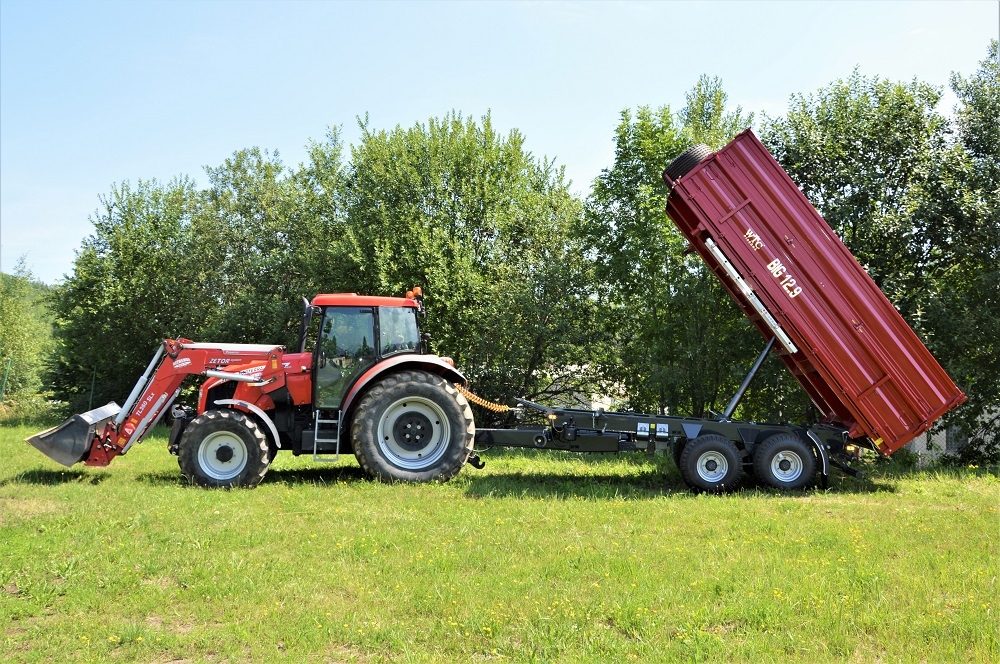

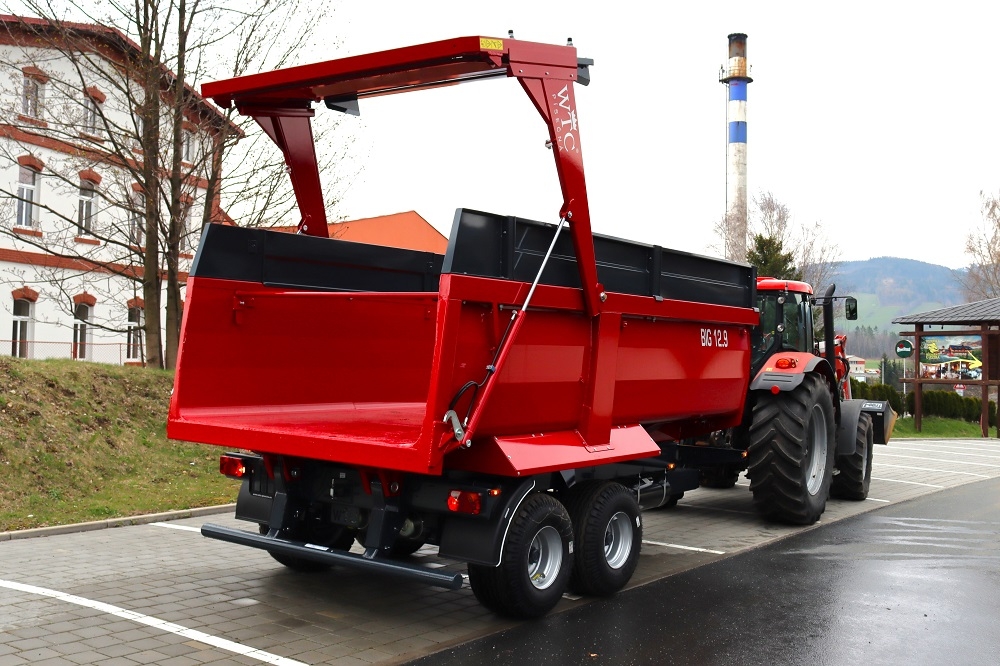

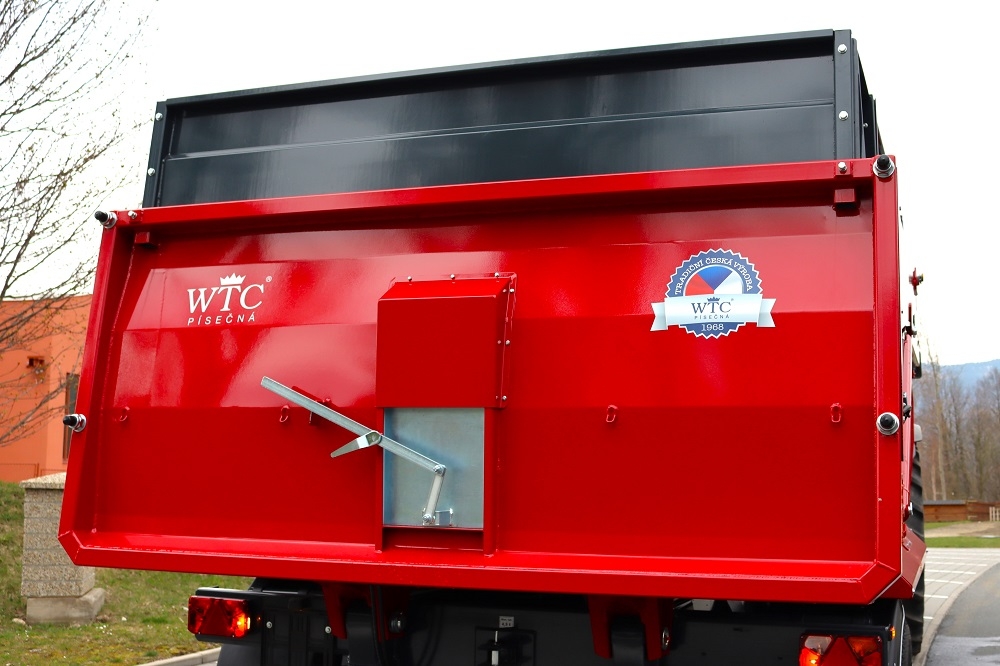

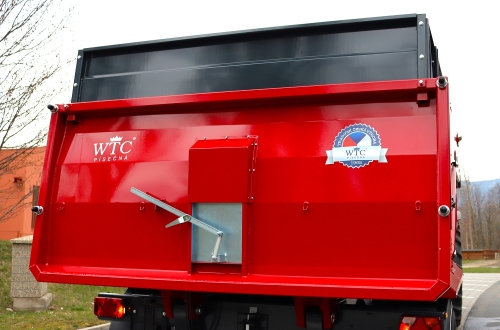

  • rear dump hatch
  • automatic parking brake
  • automatic brake load sensing controller

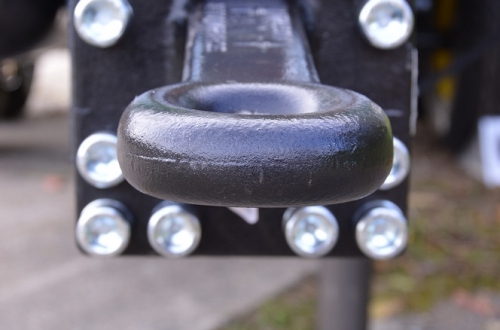

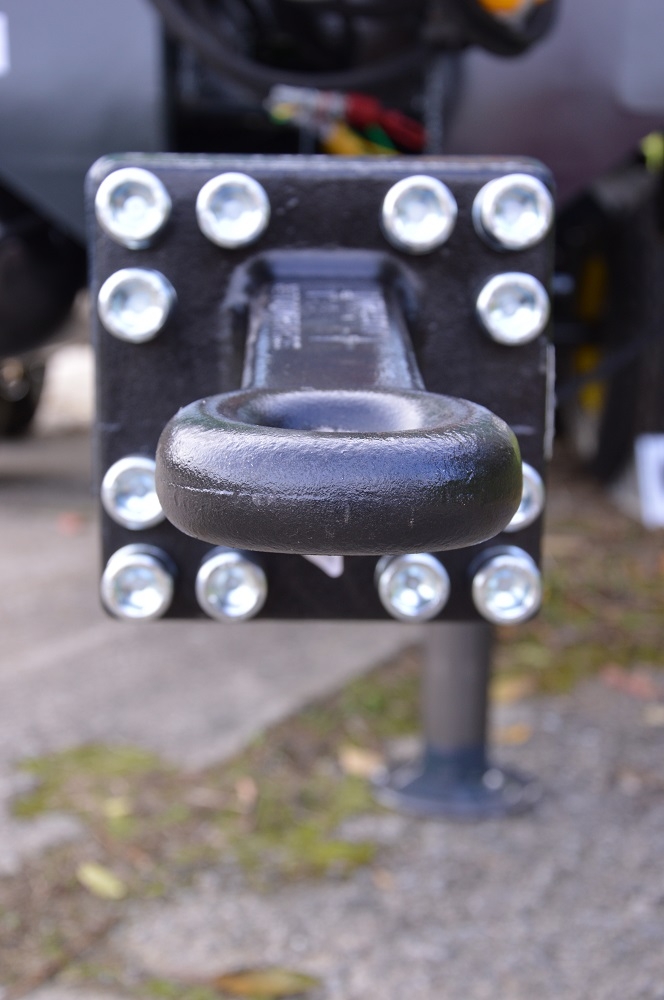

  • towing hitch Scharmüller ridig 40/50 mm/K-80
  • speed 40 km/hod

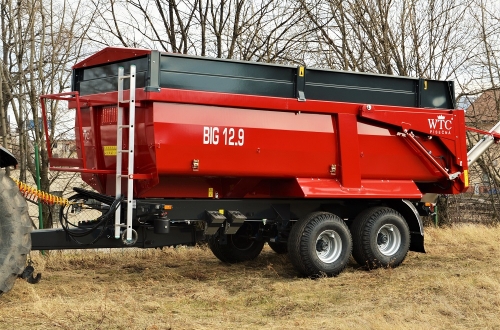

  • aluminium servise ladder
  • inspection window at the front of the body
  • adjustment for superstructures
  • polyurethane paint
Optional equipment
  • tailpiece 0,4 m = 4,2 m3 - flatbed version
  • tailpiece 0,6 m = 6,3 m3 - flatbed version

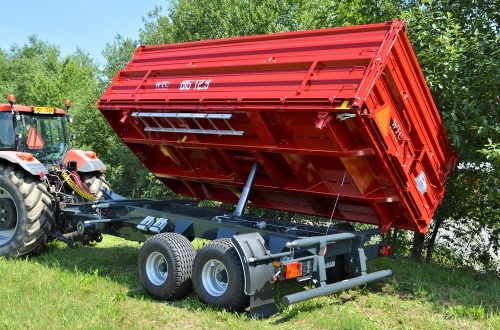

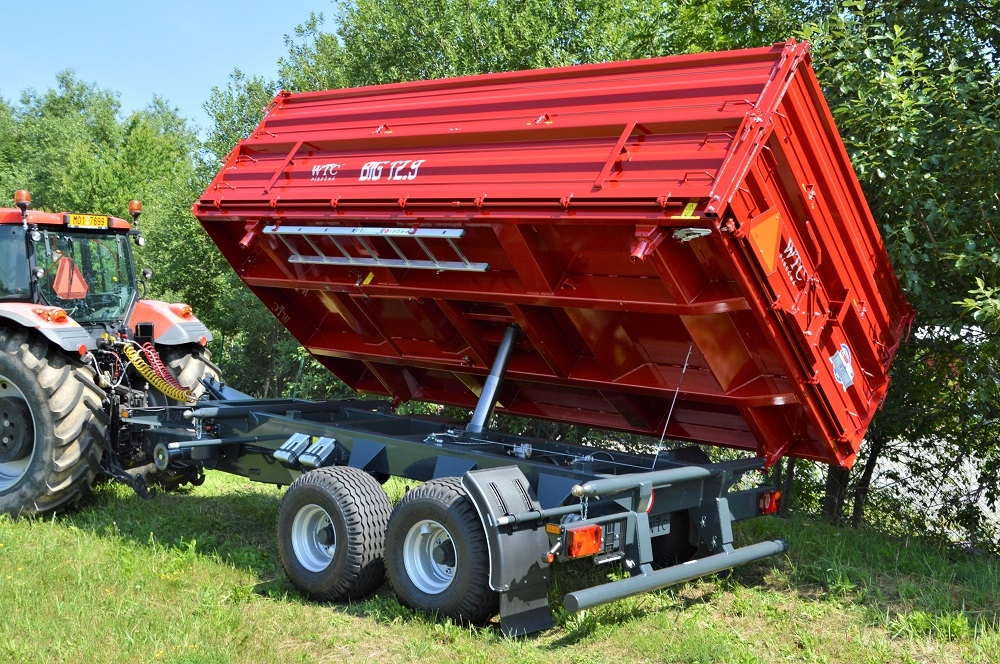

  • three way tilting - platform body (loading area: 4,60 x 2,34 m x 1,2 m - 13,2 m3
  • swivel hitch 50 mm
  • service footbridge
  • standard rolling tarpaulin
  • folding parpaulin operated from the ground
  • colour on request

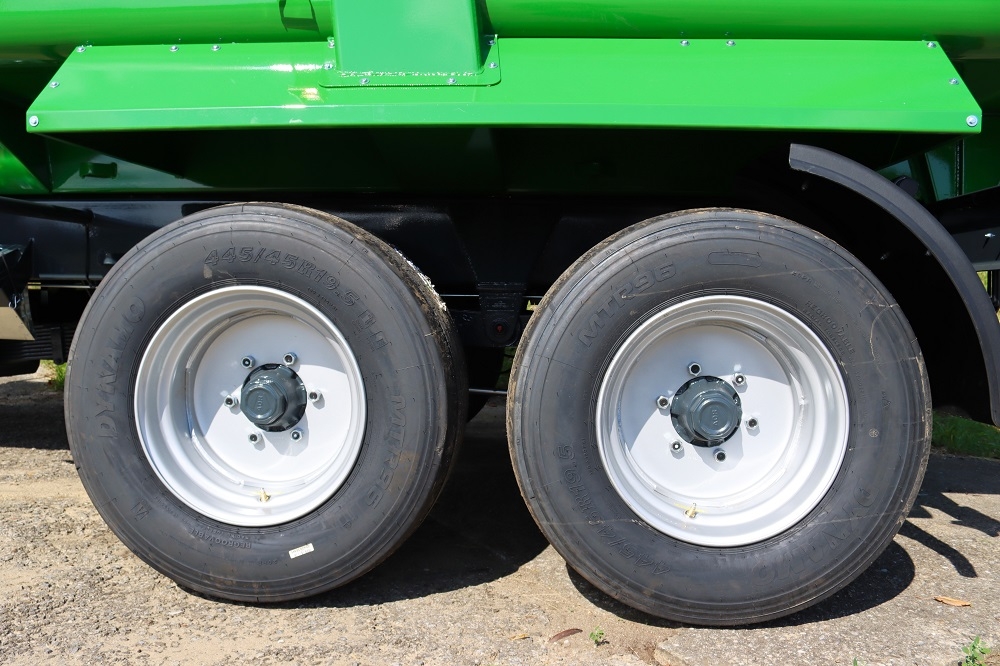

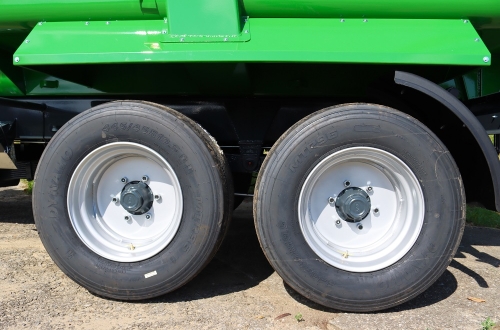

  • wheels 400/60-15,5 18 PR BKT
  • wheels 400/60-15,5 18 PR MITAS
  • wheels 445/45 R 19,5 radial
Technical parameters
Number of axles
2
Technically permissible mass (kg)
12 000
Max. payload (kg)
8 500
Operating weight (kg)
3 500
Body Capacity - 1 m (m3)
10,5
Volume Extension 0,4 m (m3)
4,2
Volume Extension 0,6 m (m3)
6,3
Platform width (m)
2,25
Length of usable space (m)
4,64
Overall length (m)
6,4
Overall width - basic (m)
2,55
Maximum speed (km/h)
40
