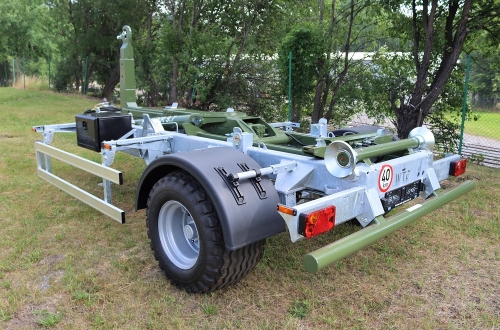

Container carrier PORTÝR 9.7

Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7
Standard equipment
  • simple suspended axle ADR
  • total permissible weight 9 000 kg
  • loading capacity 6 970 kg

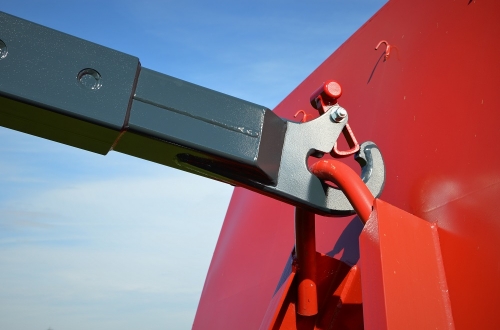

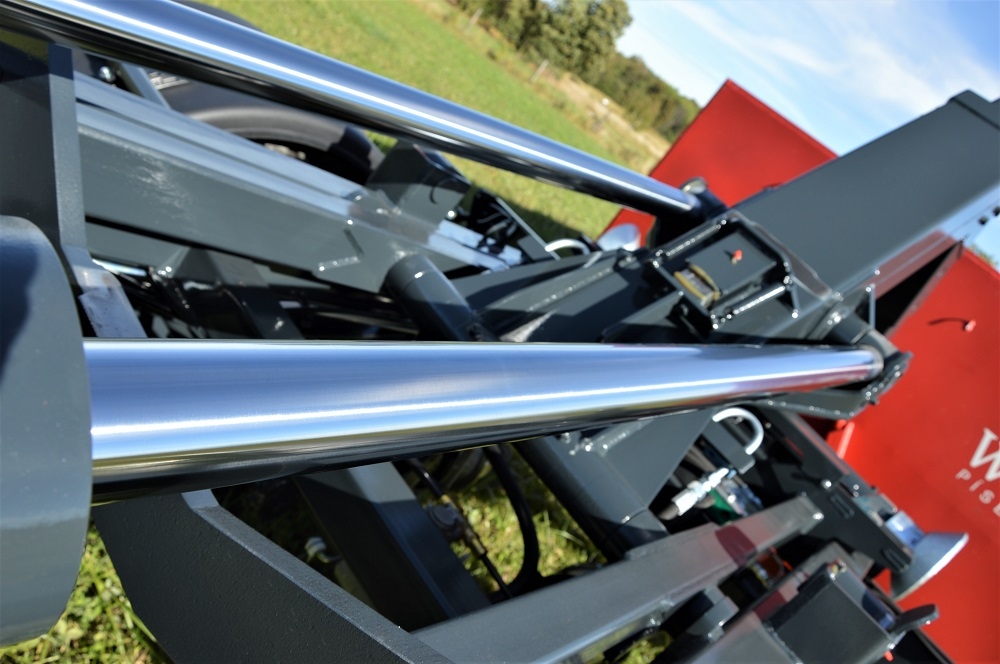

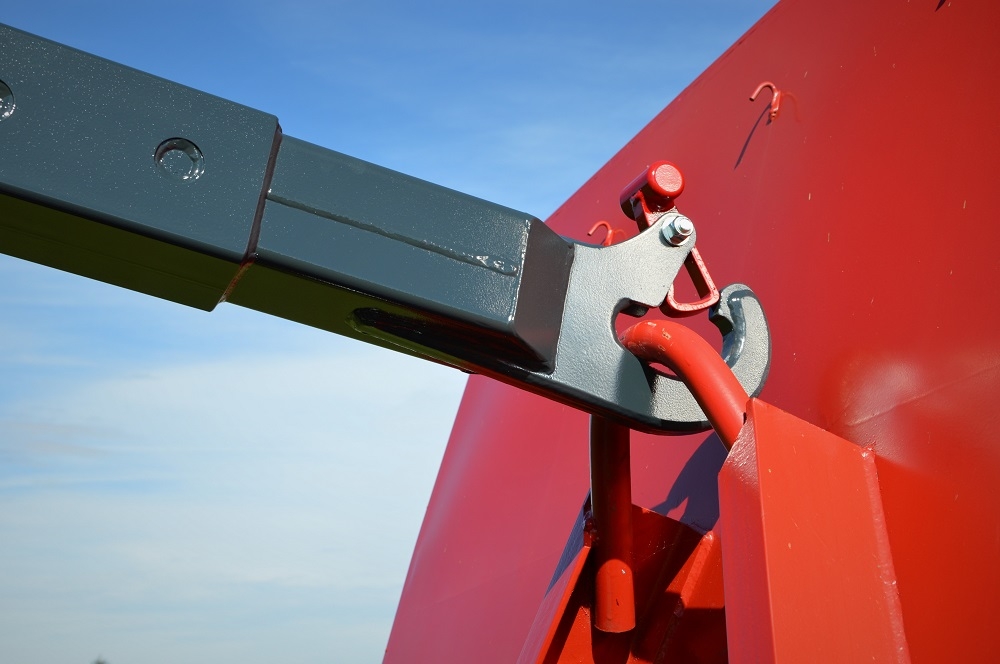

  • telescopic lift system – various container lengths
  • speed 40 km/hour
  • spring suspended height
  • hydraulic drawbar support
  • automatic parking brake
  • automatic brake load sensing controller (ALB/AZR)

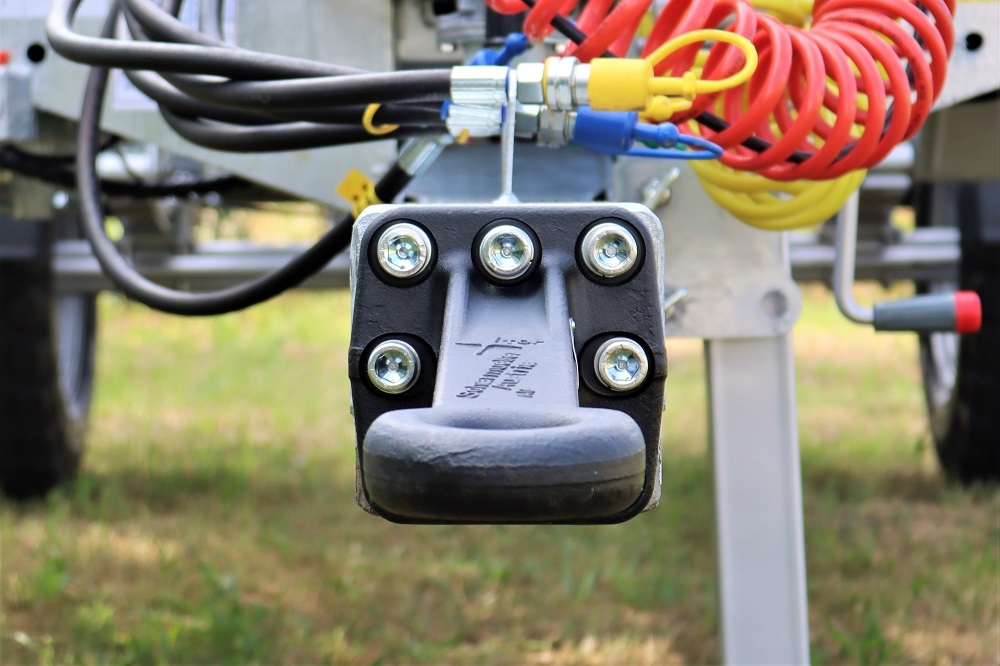

  • towing hitch 50/40 mm/K-80
  • tractor upper or lower hitch
  • optimal container length: 4,3 m
  • container length min/max: 3,6 – 4,3 m
  • direct connection to the tractor
  • polyurethane paint
Optional equipment
  • ADR overrun brake (30 km/h)
  • 6-way solenoid valve (HUB hydraulic circuit IN 2x / 4x OUT)
  • electro-hydraulic control distributor of radio control (cardan drive-pump)
  • electro-hydraulic control distributor of radio control (drive straighten the tractor)

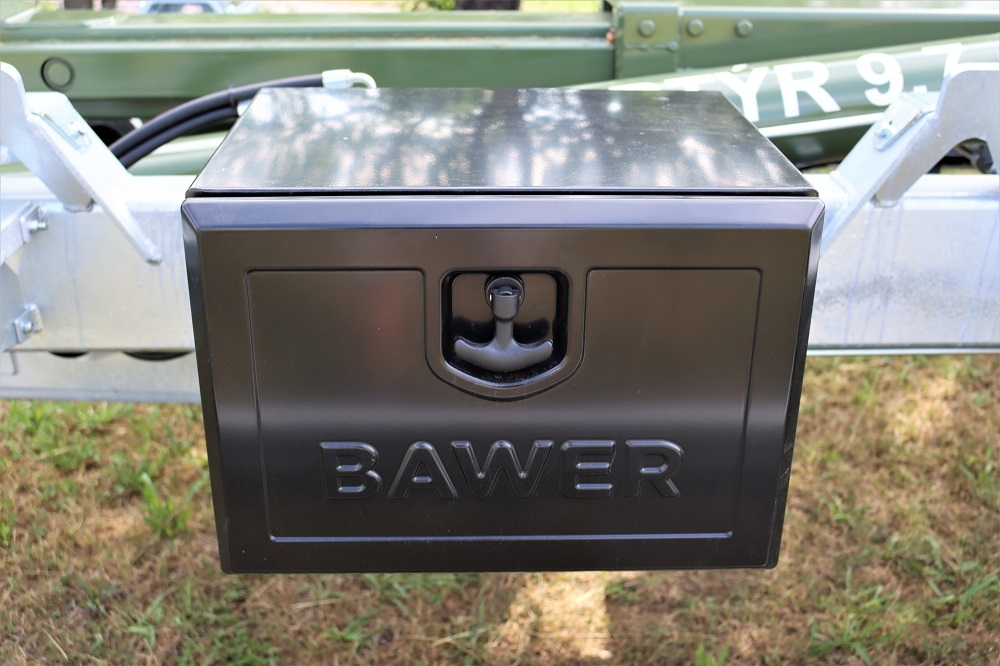

  • toolbox
  • colour on request

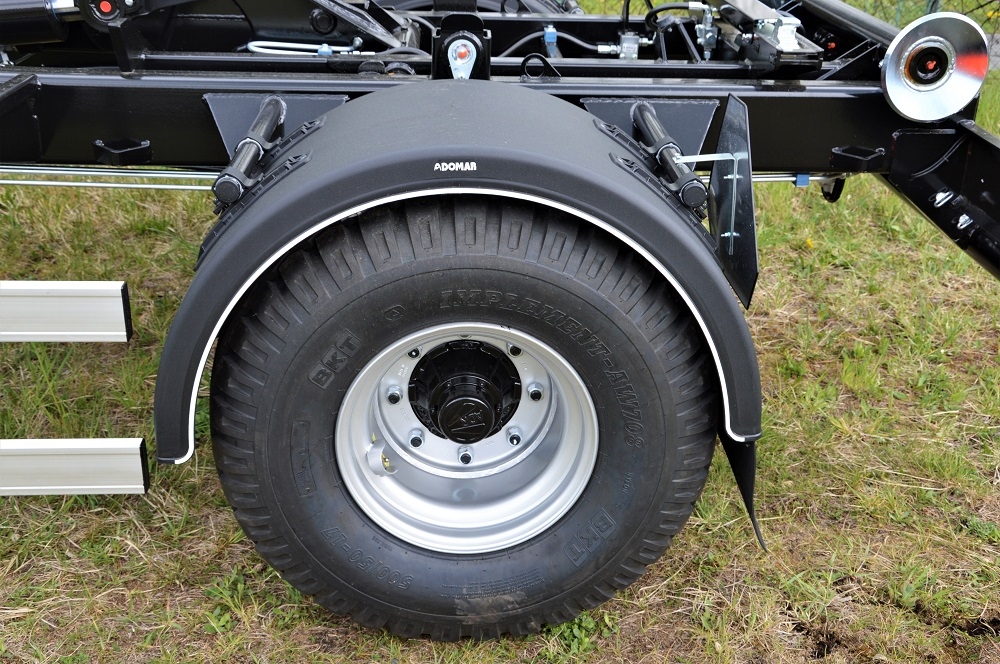

  • wheels 19/45-17 22 PR
  • wheels 500/50-17 18 PR
  • wheels 385/55 R 19,5 radial
  • wheels 445/45 R 19,5 radial
Technical parameters
Number of axles
1
Technically permissible mass (kg)
9 000
Payload (kg)
6 970
Operating weight (kg)
2 030
The length of container - optimal (m)
4,3
Hook height (mm)
1 000
Total Length (m)
5,58
The total width of the chassis (m)
2,5
Maximum speed (km/h)
40
Photo gallery

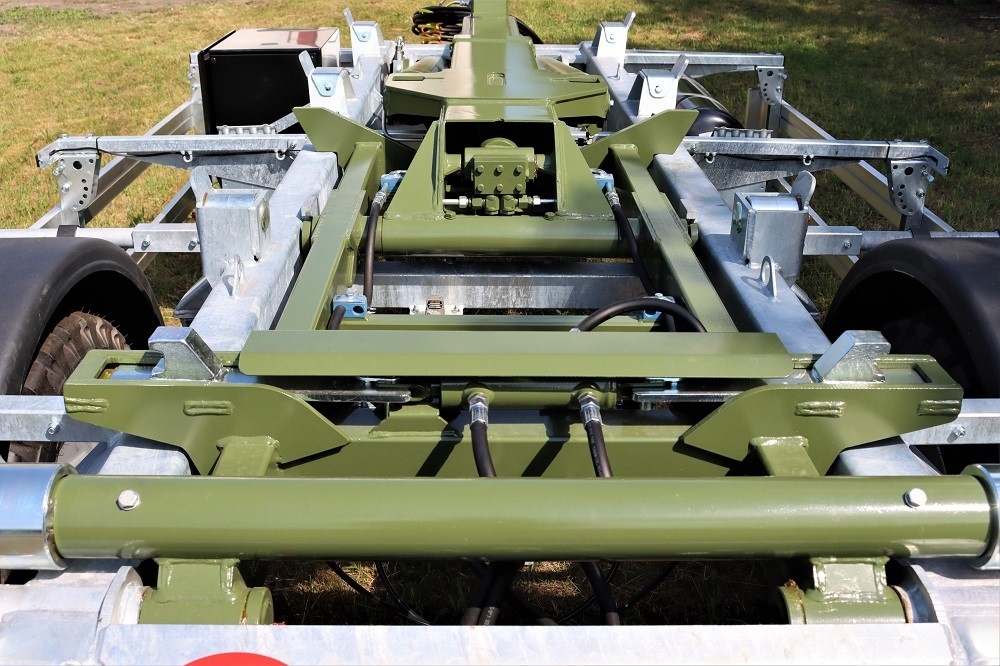

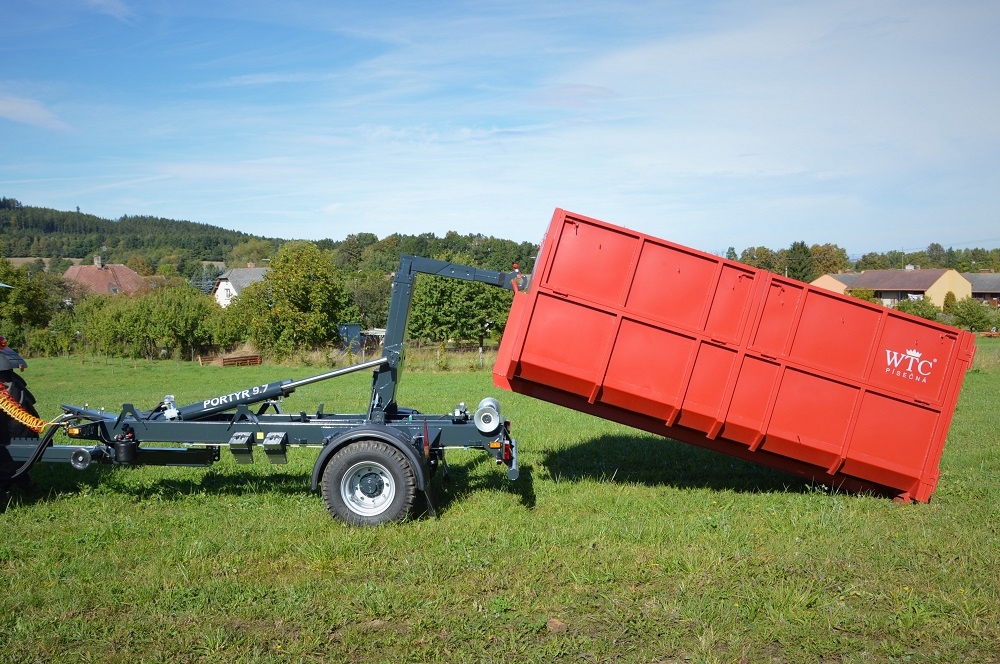

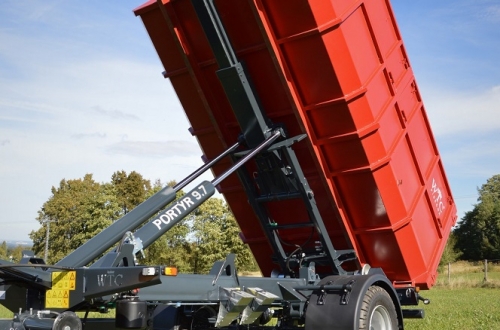

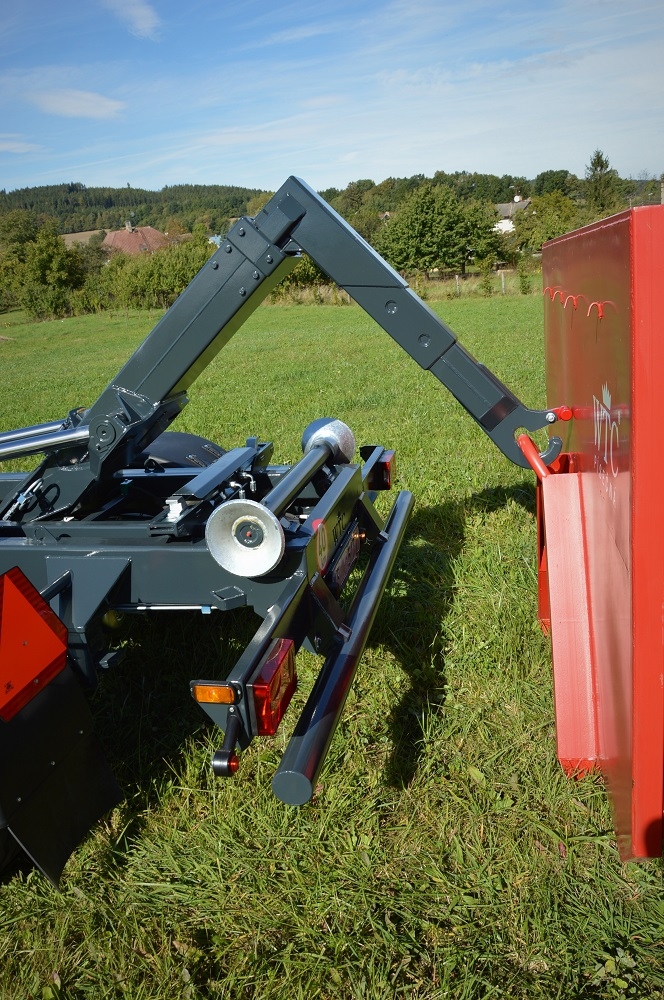

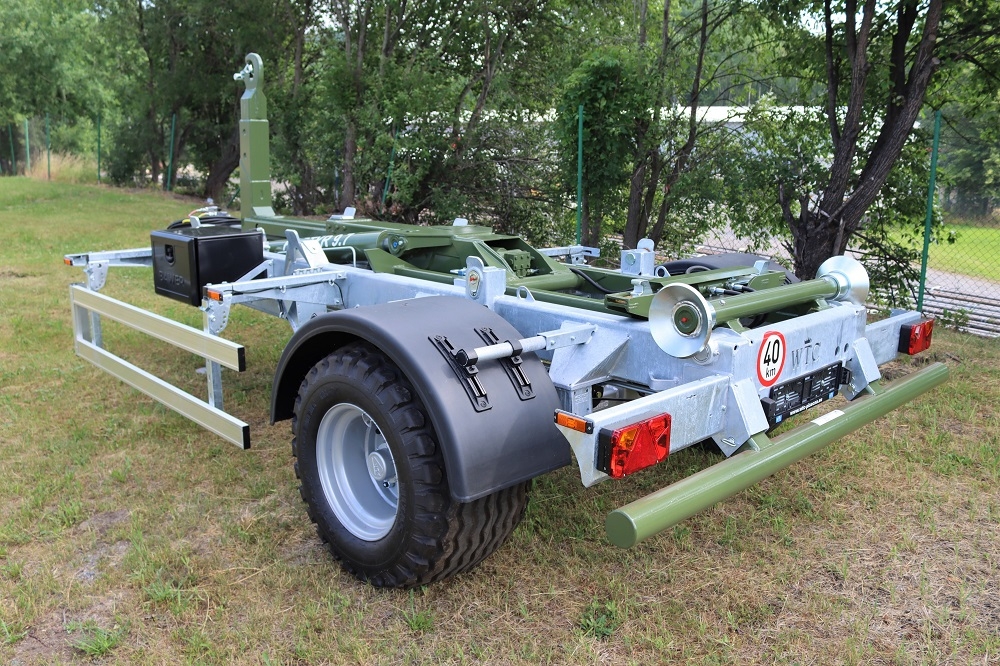

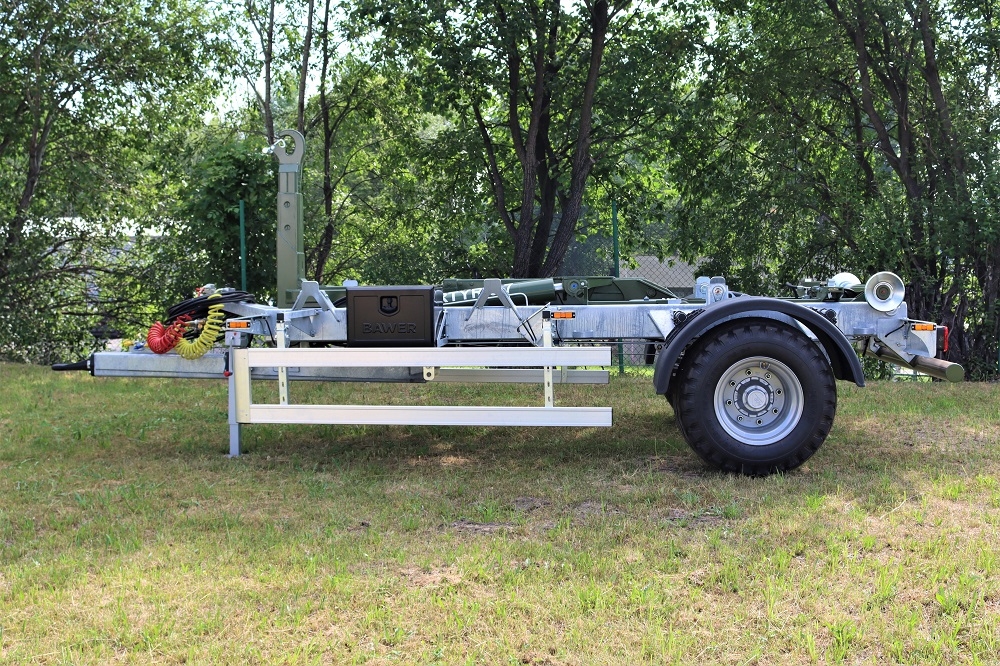

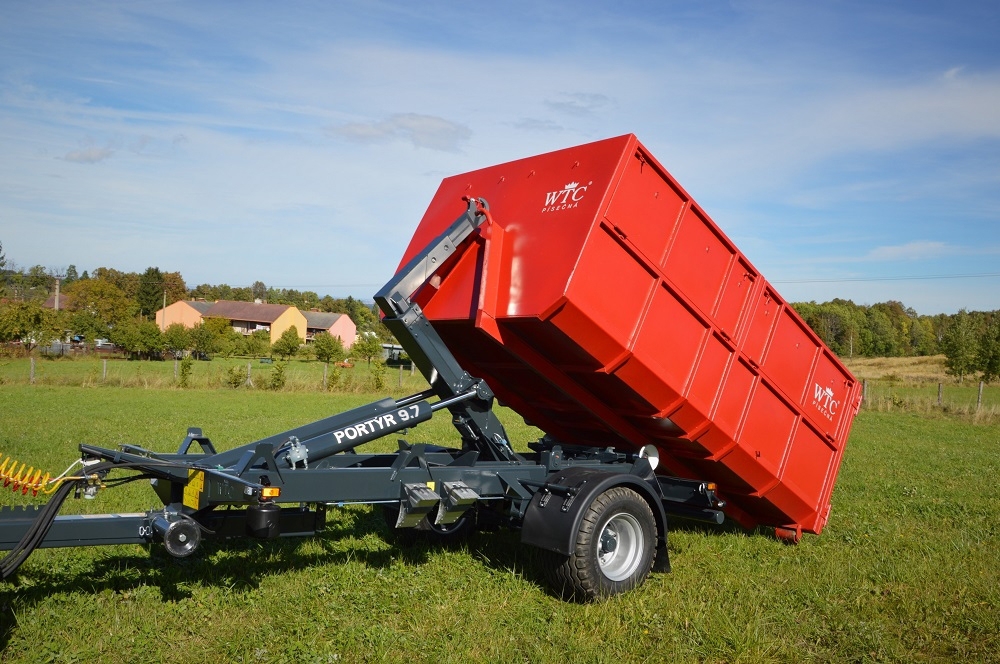

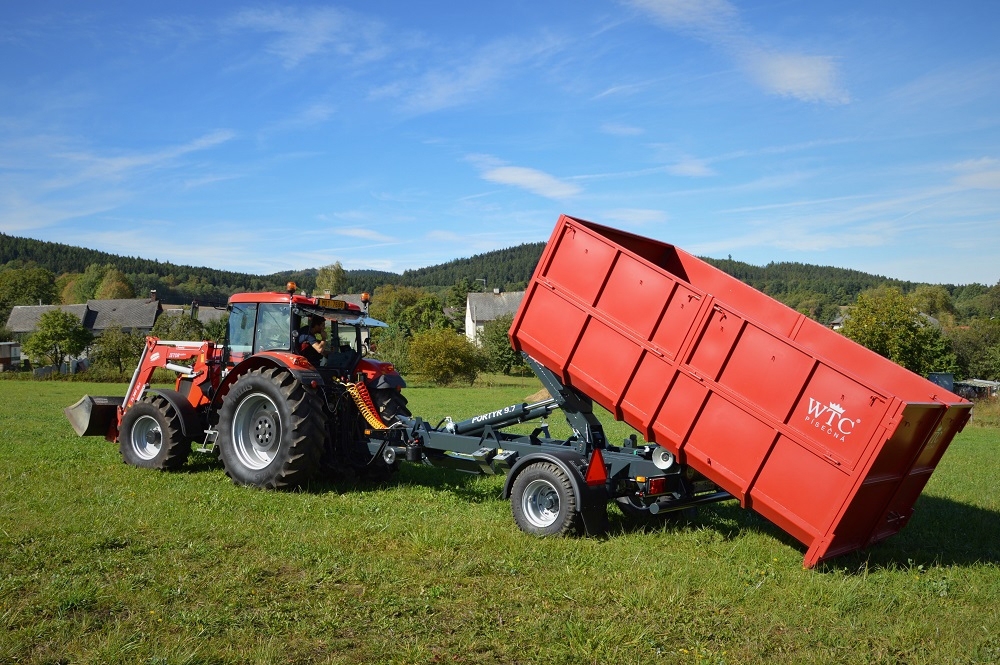

Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7Container carrier PORTÝR 9.7
Video
Container carrier PORTÝR 9.7
