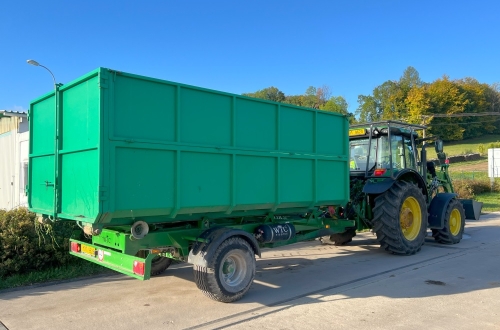

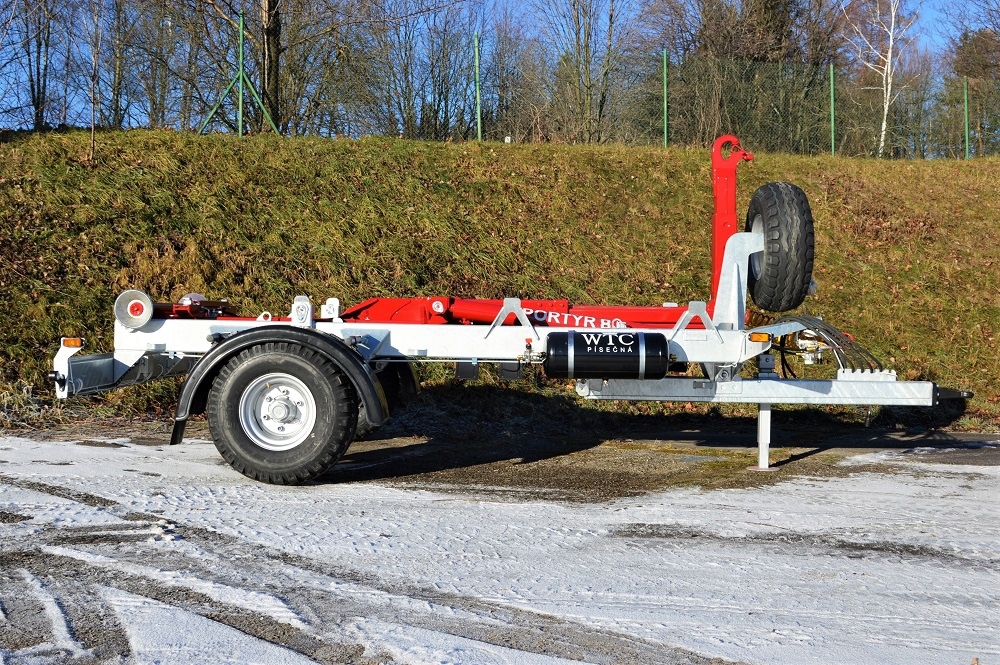

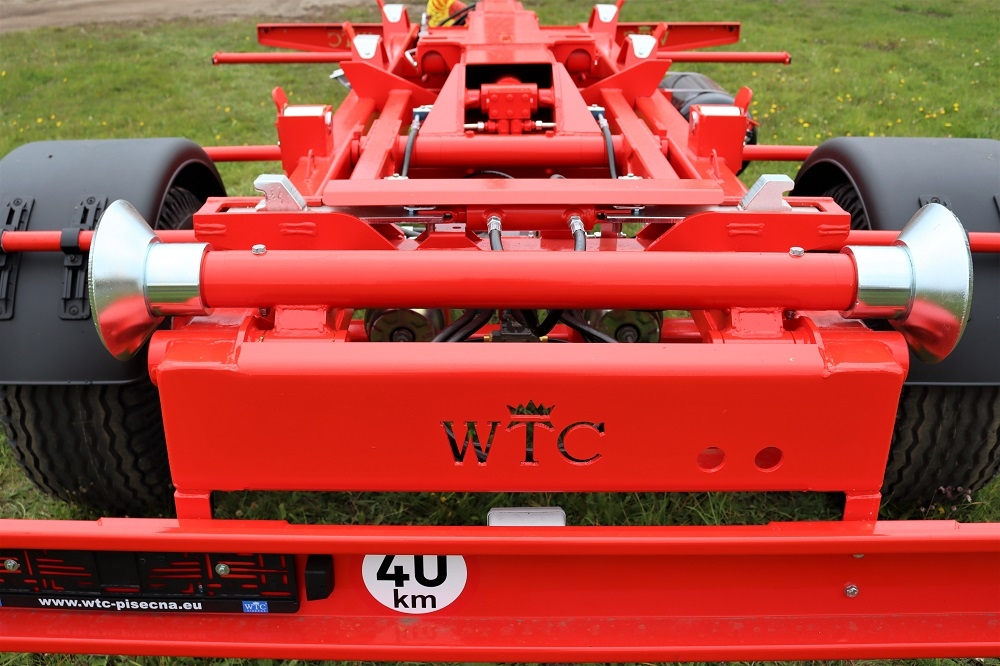

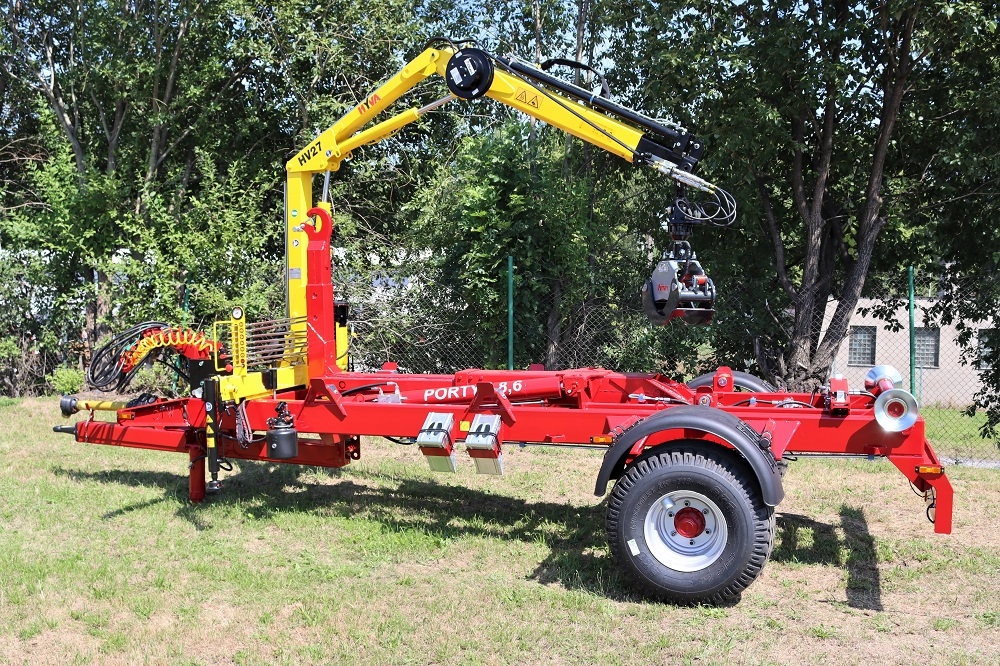

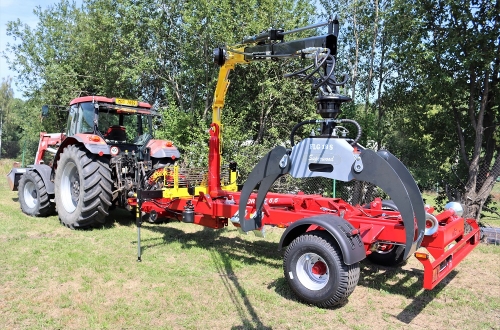

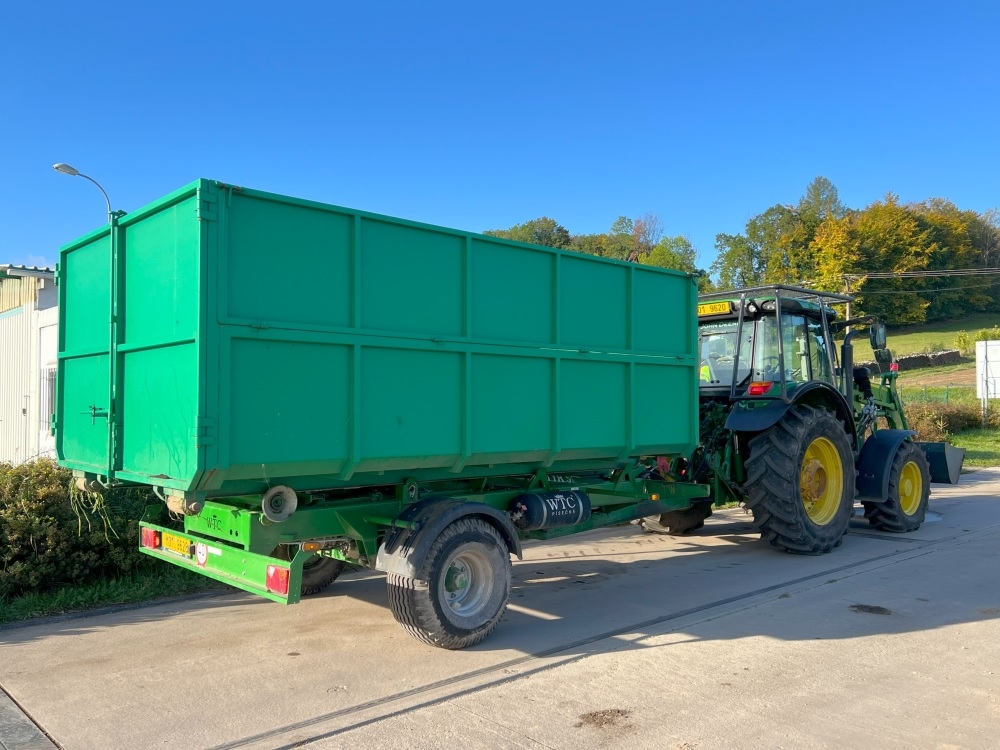

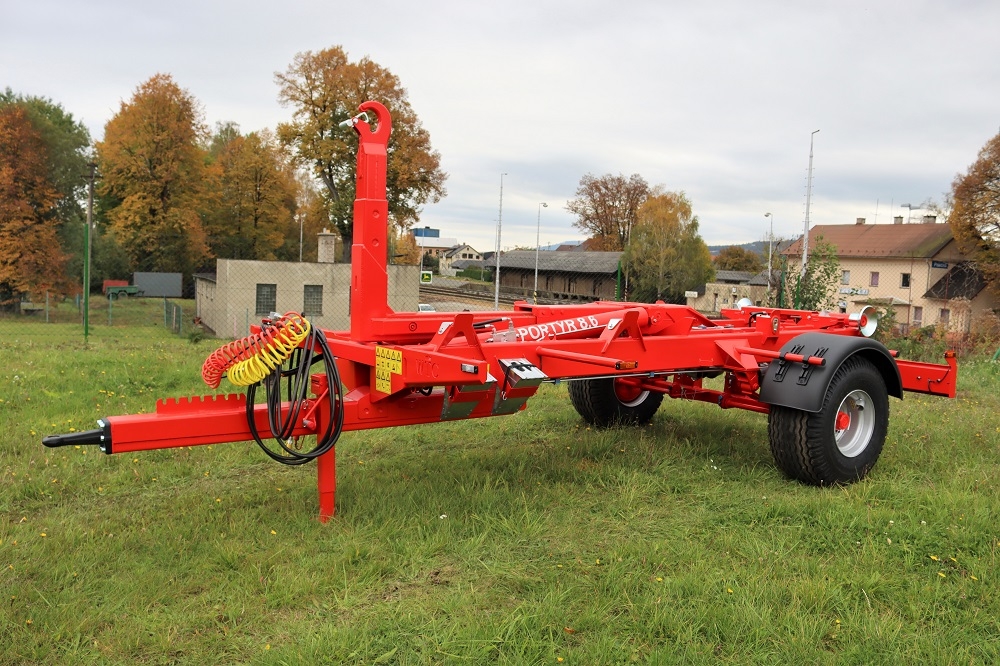

Container carrier PORTÝR 8.6

Container carrier PORTÝR 8.6Container carrier PORTÝR 8.6Container carrier PORTÝR 8.6Container carrier PORTÝR 8.6
Standard equipment

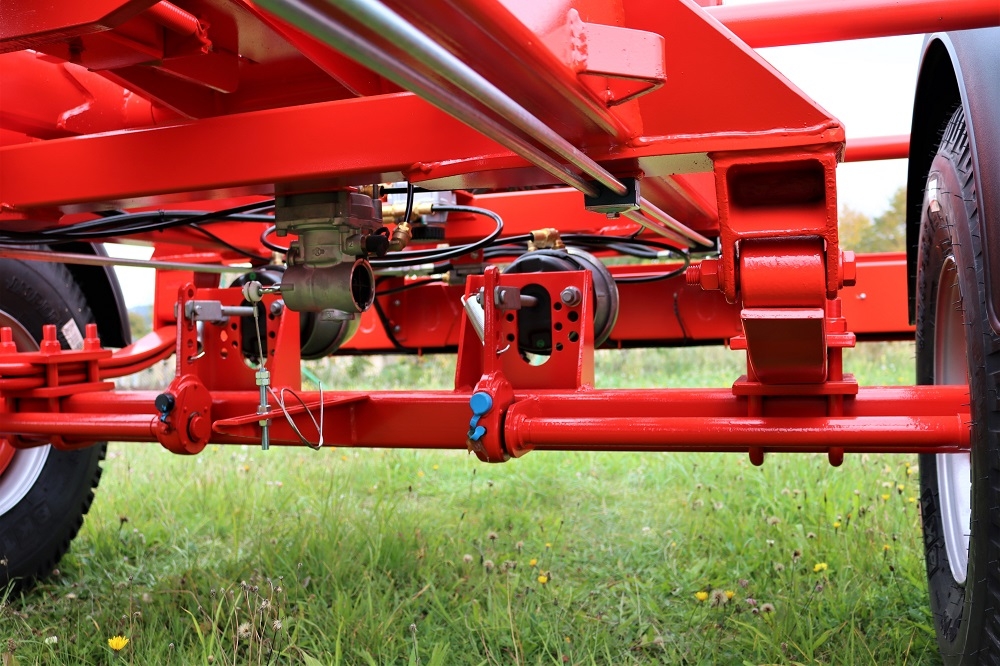

  • simple suspended axle ADR
  • total permissible weight 8 000 kg
  • loading capacity 6 160 kg

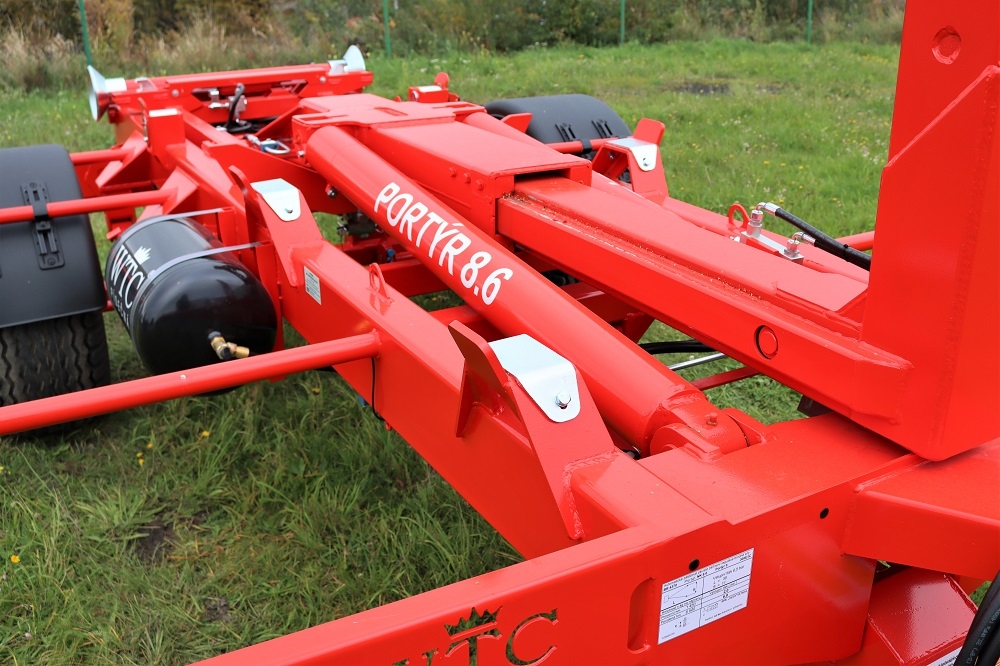

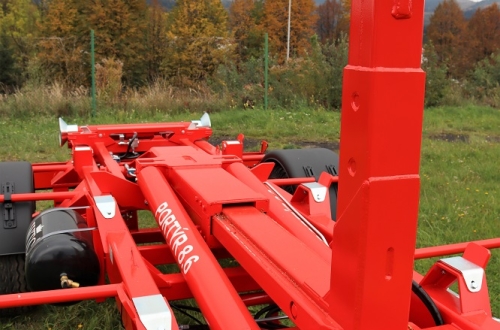

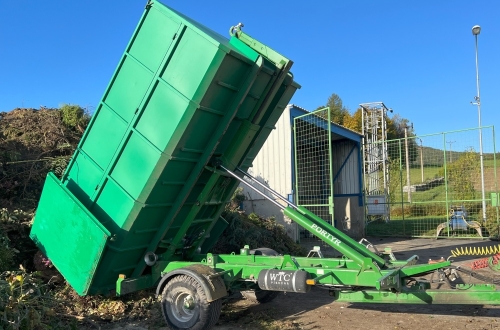

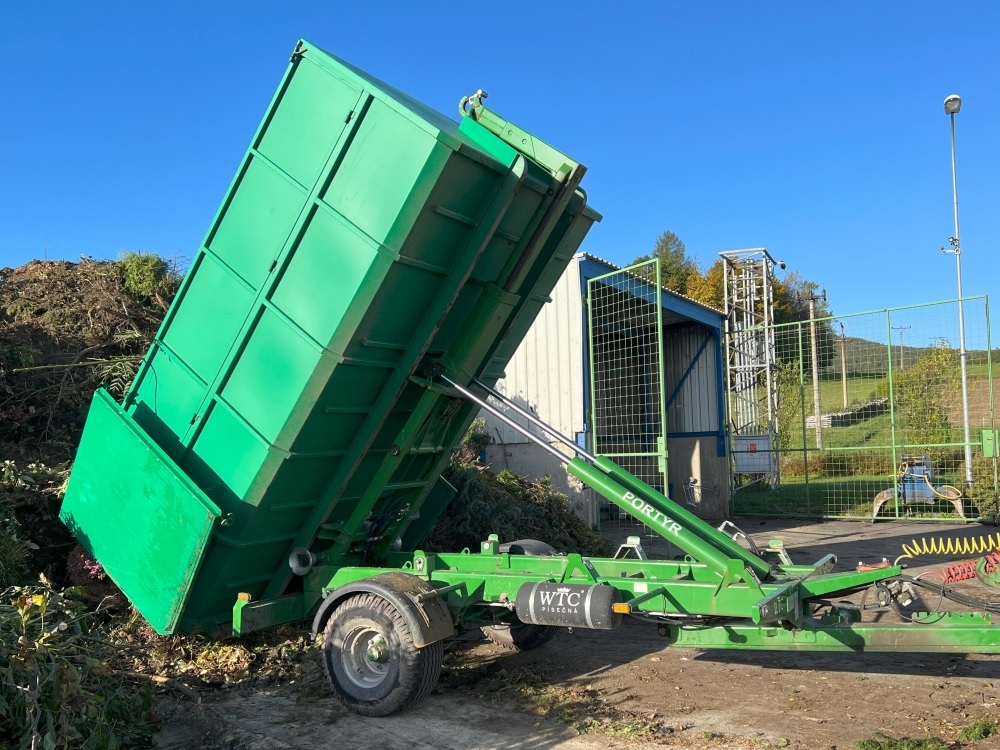

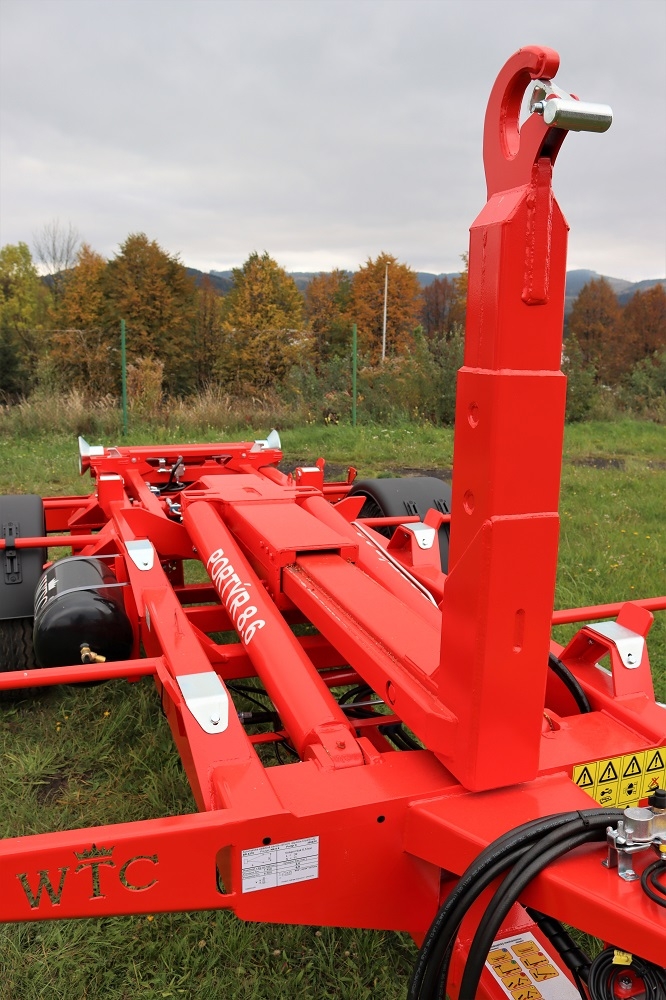

  • telescopic lift system – various container lengths
  • optimal container length: 3,6 - 4,3 m
  • speed 40 km/hour
  • spring suspended height
  • mechanical drawbar support
  • automatic parking brake
  • automatic brake load sensing controller (ALB/AZR)

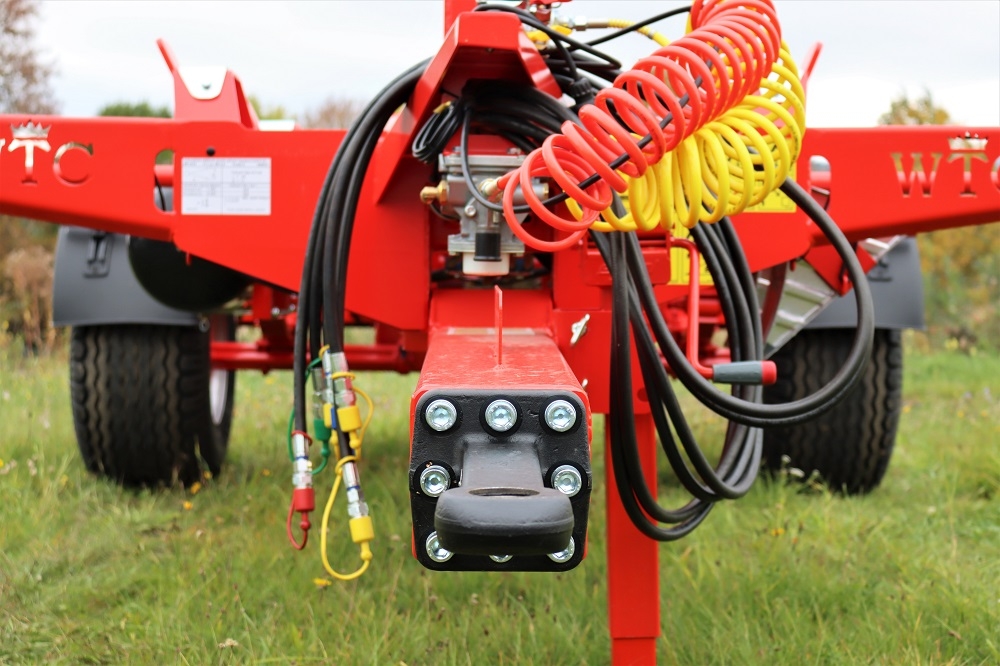

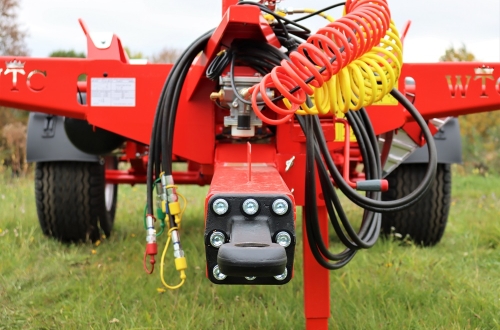

  • towing hitch 50/40 mm/K-80
  • tractor upper or lower hitch
  • direct connection to the tractor
  • polyurethane paint

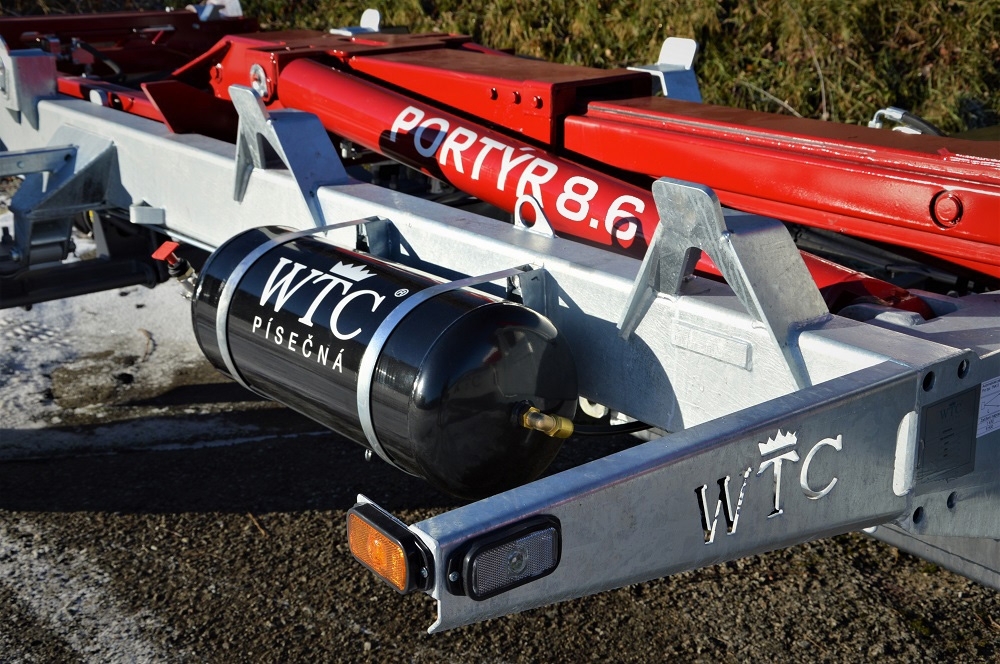

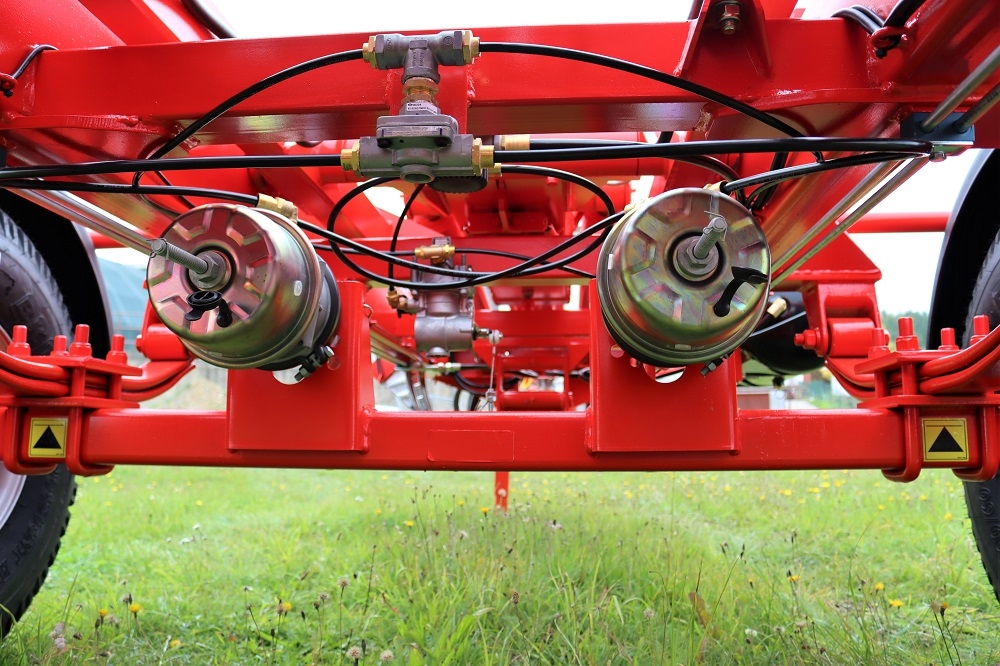

  • air brakes KNORR-BREMSE (double line)

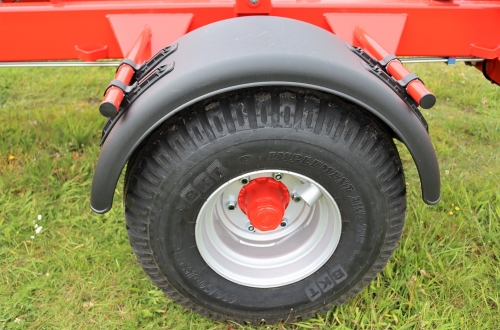

  • wheels 400/60-15,5 18 PR BKT
Optional equipment
  • swivel hitch 50 mm
  • hydraulic-drawbar support
  • 6-way solenoid valve (HUB hydraulic circuit IN 2x / 4x OUT)
  • electro-hydraulic control distributor of radio control (cardan drive-pump)
  • electro-hydraulic control distributor of radio control (drive straighten the tractor)
  • zinc finish of the undercarriage

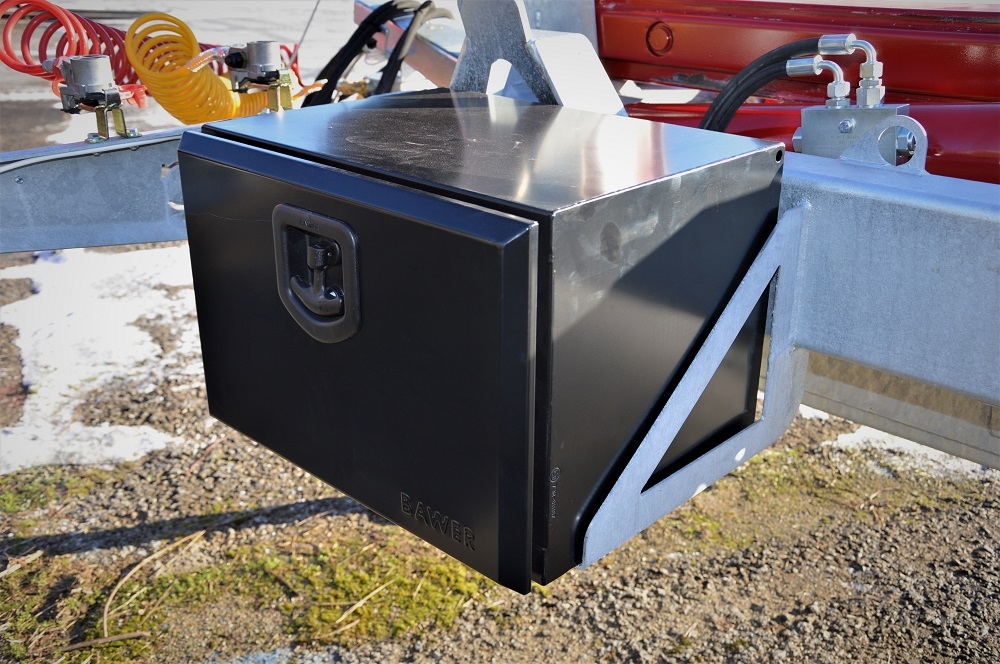

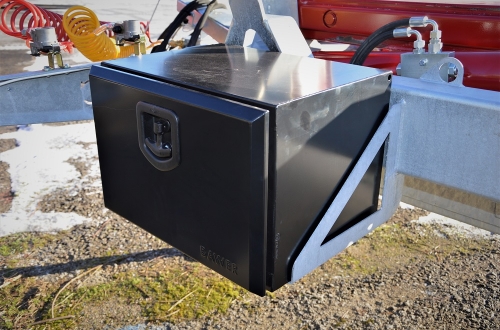

  • toolbox
  • the hydraulic circuit at the rear of the chassis
  • colour on request
  • camera (location according to usage)
  • beacon

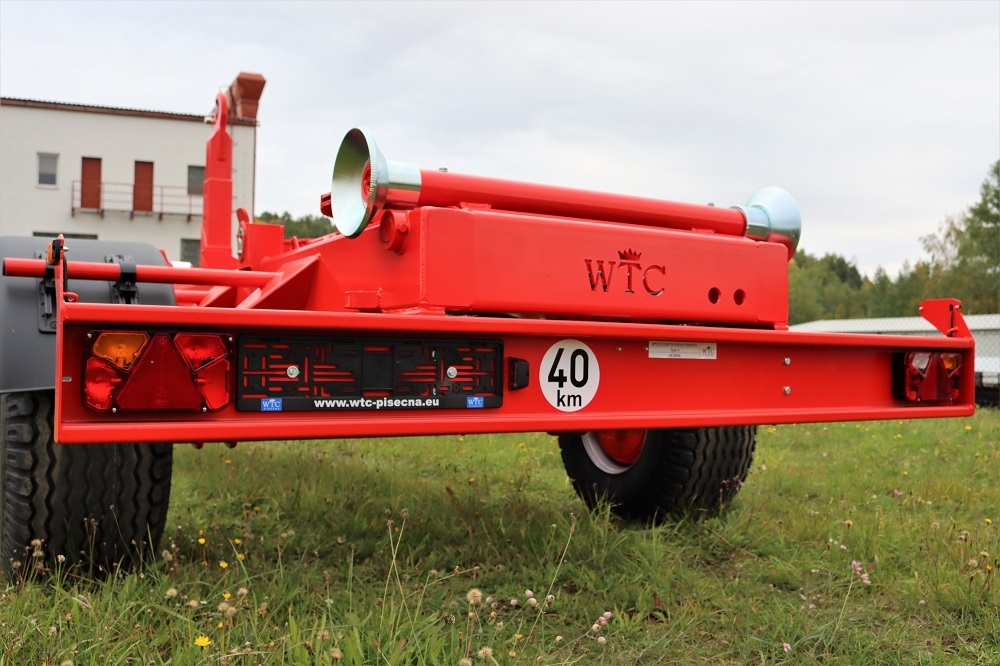

  • rear light
  • wheels 445/45 R 19,5 radial
  • spare wheel holder
Technical parameters
Number of axles
1
Technically permissible mass (kg)
8 000
Payload (kg)
6 160
Operating weight (kg)
1 840
The length of container - optimal (m)
4,3
Hook height (mm)
1 000
Total Length (mm)
5 513
The total width of the chassis (m)
2,5
Maximum speed (km/h)
40
