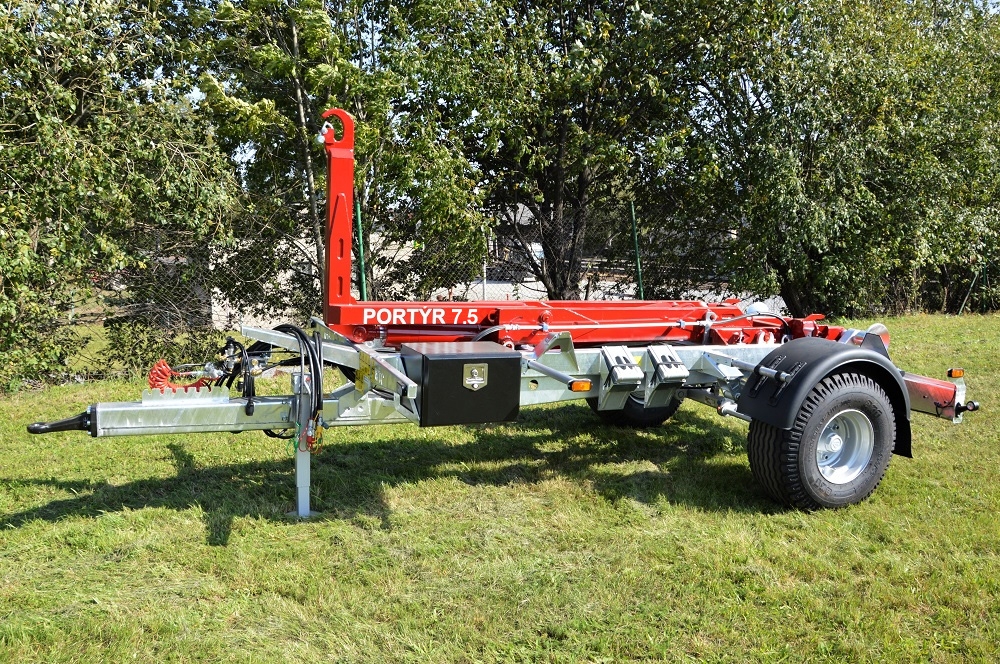

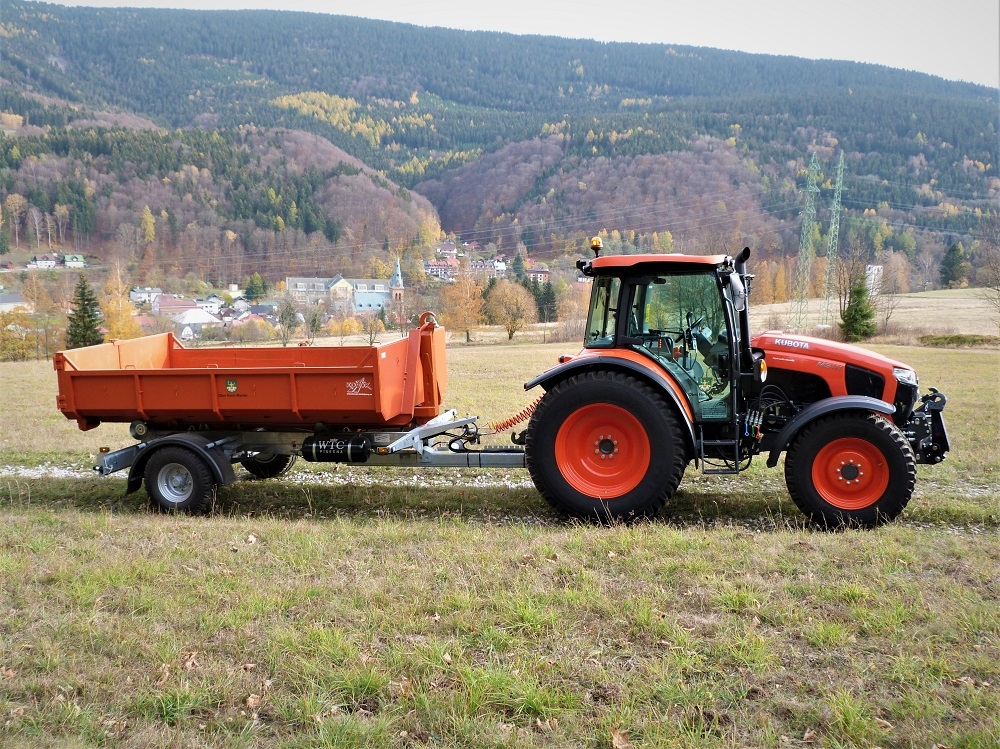

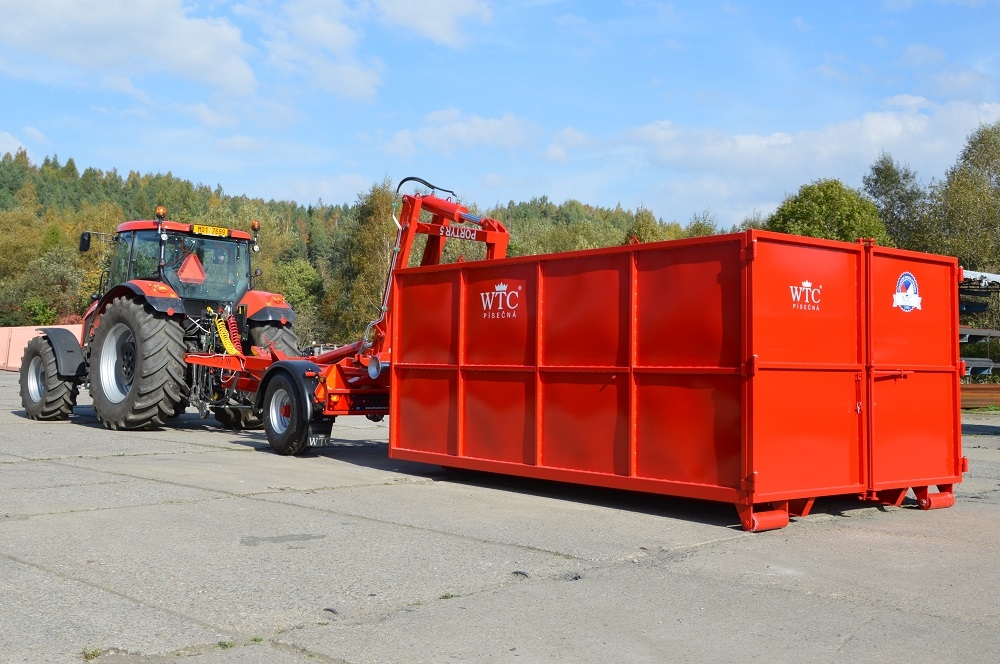

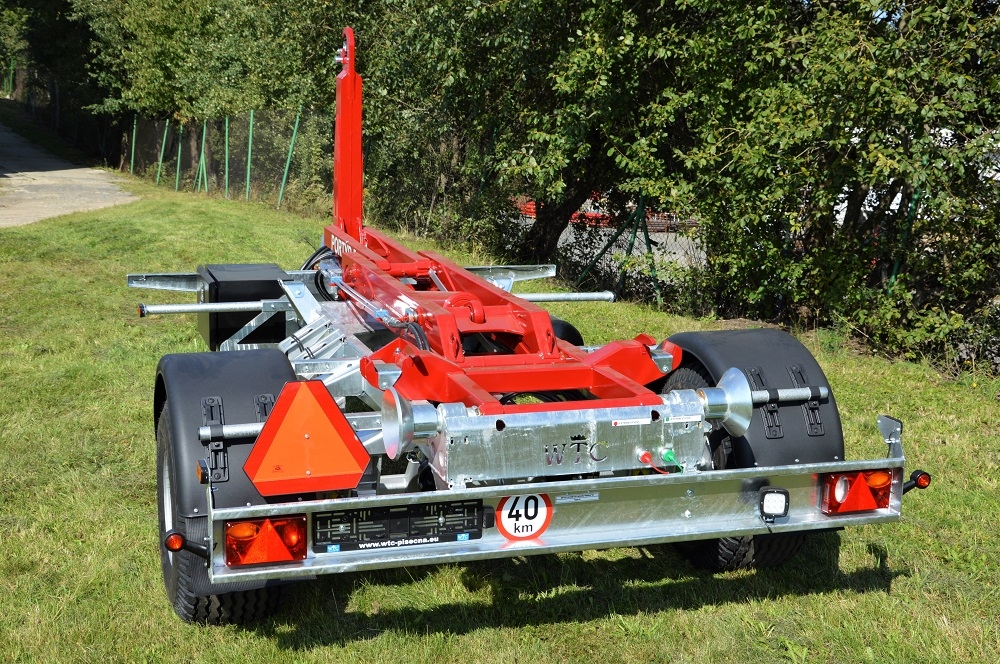

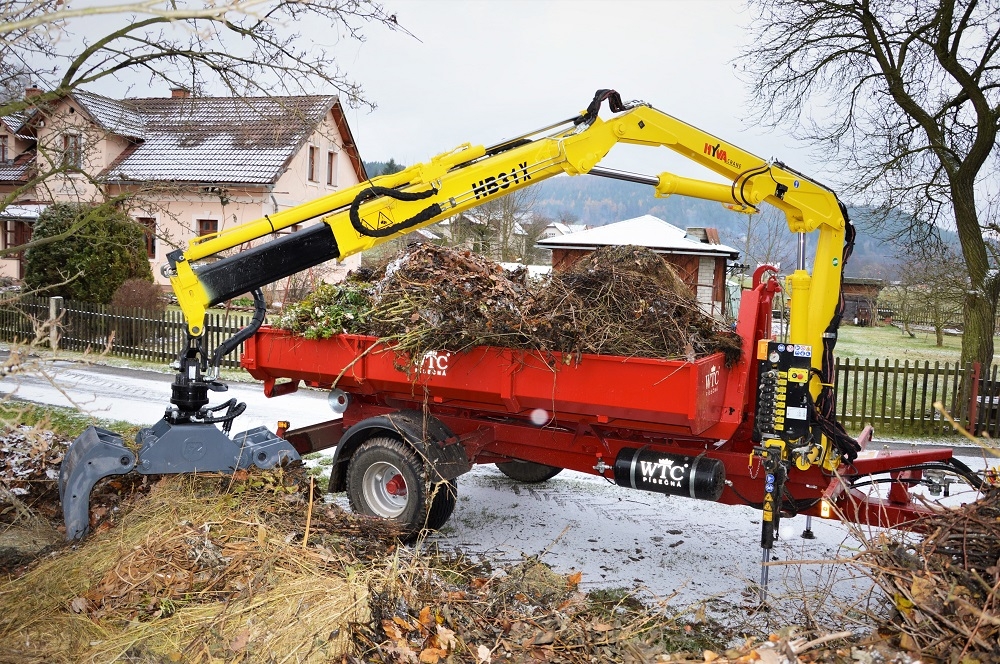

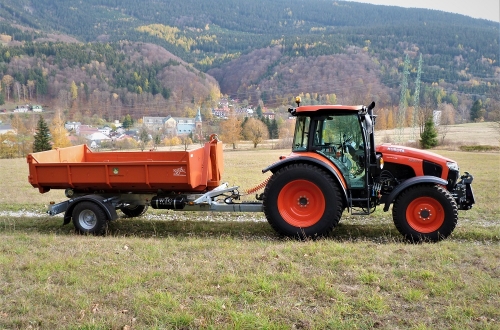

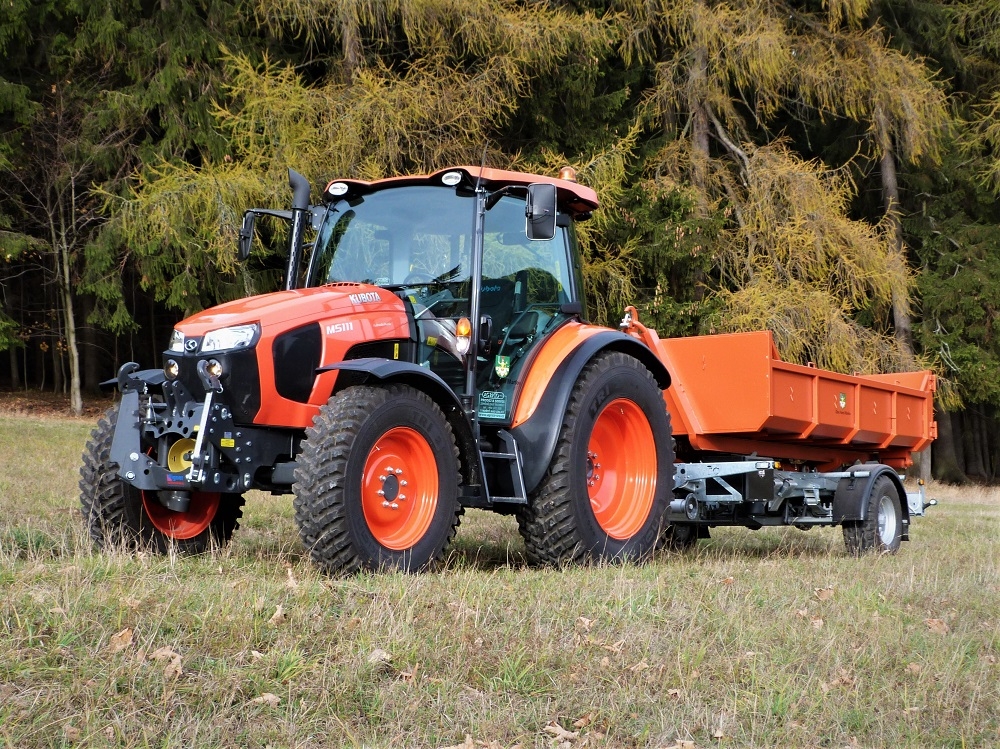

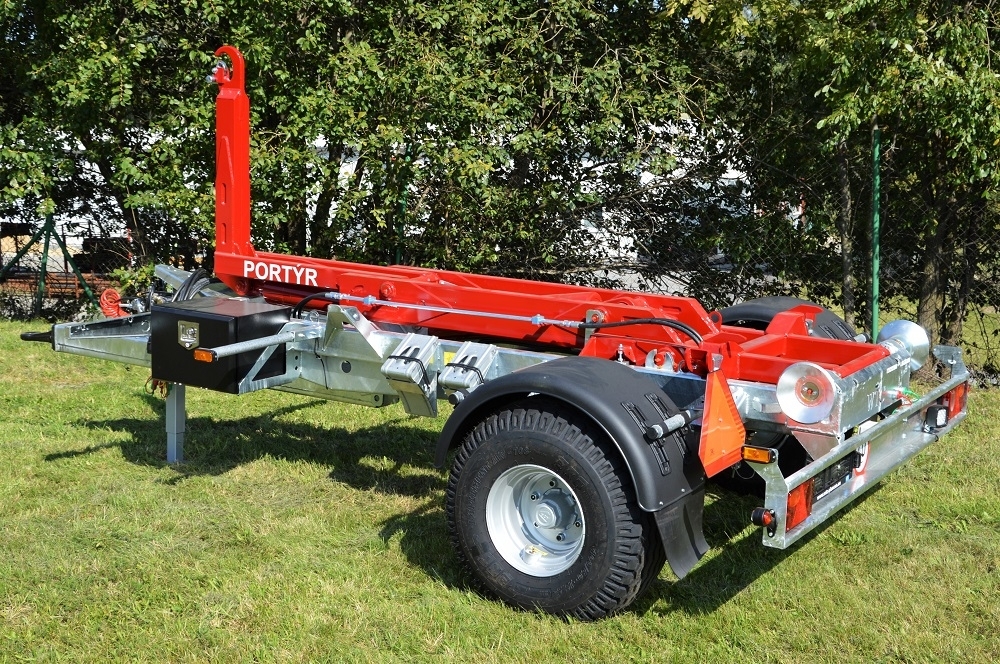

Container carrier PORTÝR 7.5

Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5
Standard equipment
  • simple suspended axle ADR
  • total permissible weight 7 000 kg
  • loading capacity 5 570 kg
  • optimal container length: 3,8 m
  • container length min/max: 3,8 - 4 m
  • speed 40 km/hour
  • spring suspended height
  • mechanical drawbar support
  • automatic parking brake
  • automatic brake load sensing controller (ALB/AZR)

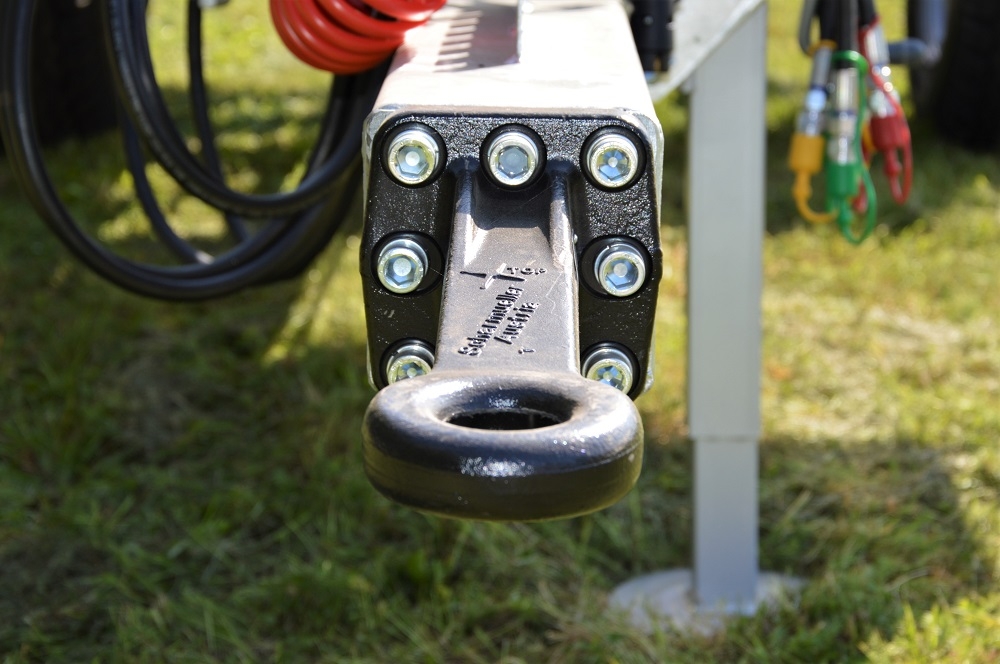

  • towing hitch 50/40 mm/K-80
  • tractor upper or lower hitch
  • direct connection to the tractor
  • polyurethane paint
Optional equipment
  • ADR overrun brake (40 km/h)
  • single line air brake (total permissible weight 6 000 kg)
  • 6-way solenoid valve (HUB hydraulic circuit IN 2x / 4x OUT)
  • electro-hydraulic control distributor of radio control (cardan drive-pump)
  • electro-hydraulic control distributor of radio control (drive straighten the tractor)
  • active secure the container
  • zinc finish of the undercarriage

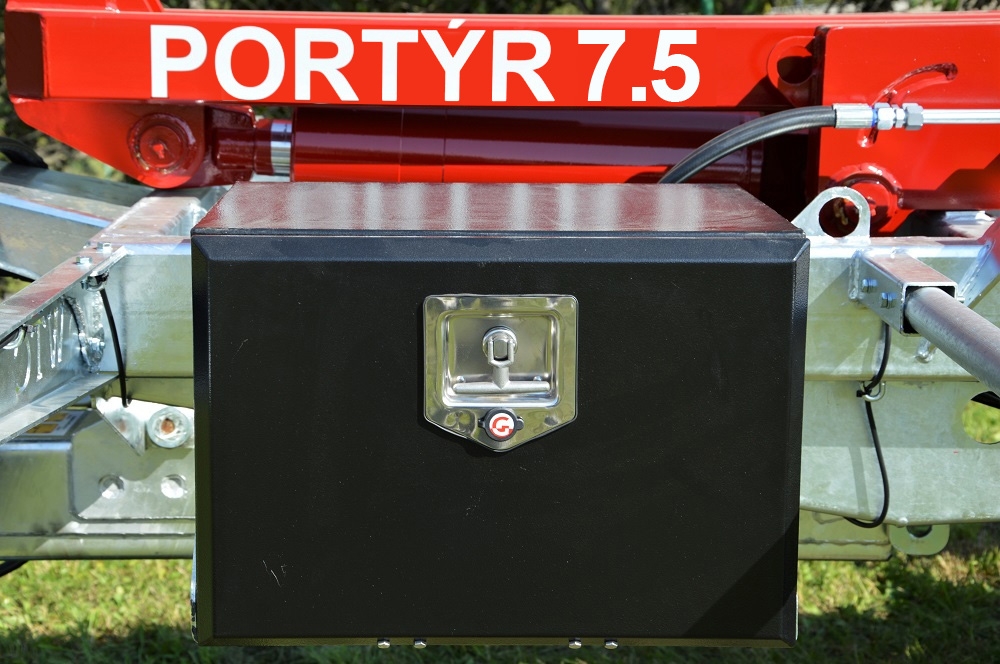

  • toolbox
  • colour on request

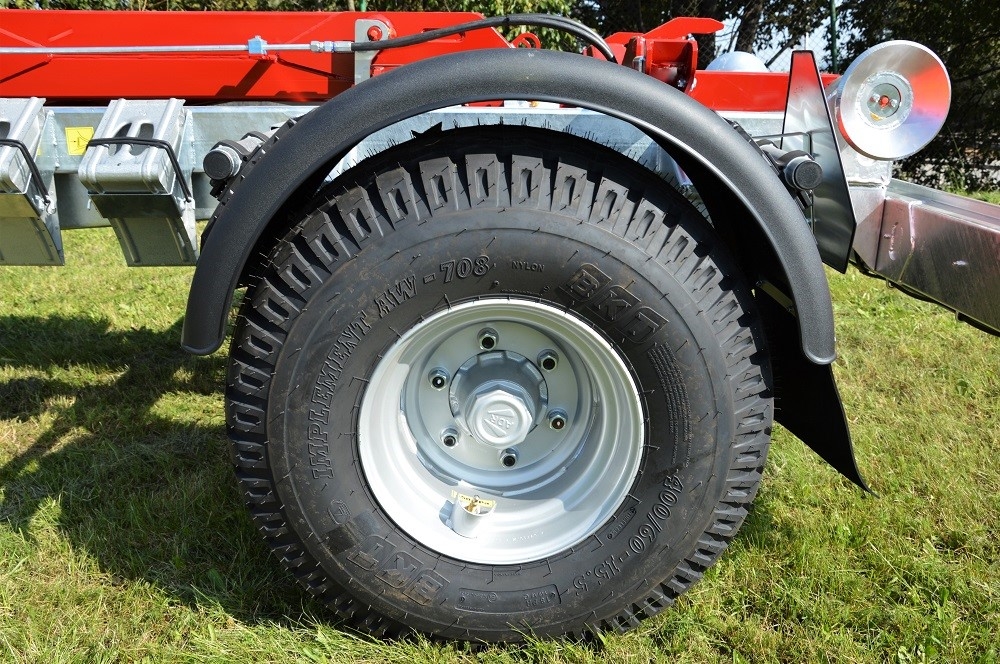

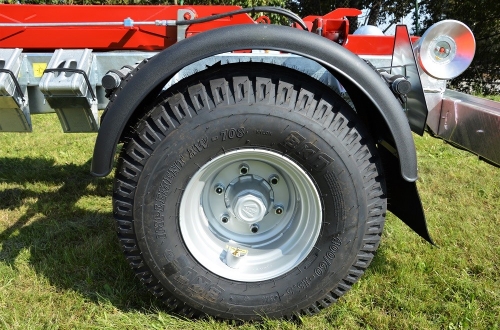

  • wheels 400/60-15,5 18 PR
  • wheels 445/45 R 19,5 radial
  • spare wheel holder
Technical parameters
Number of axles
1
Technically permissible mass (kg)
7 000
Payload (kg)
5 570
Operating weight (kg)
1 430
The length of container - optimal (m)
3,9
Hook height (mm)
1 000
Total Length (m)
4,98
The total width of the chassis (m)
2,5
Maximum speed (km/h)
40

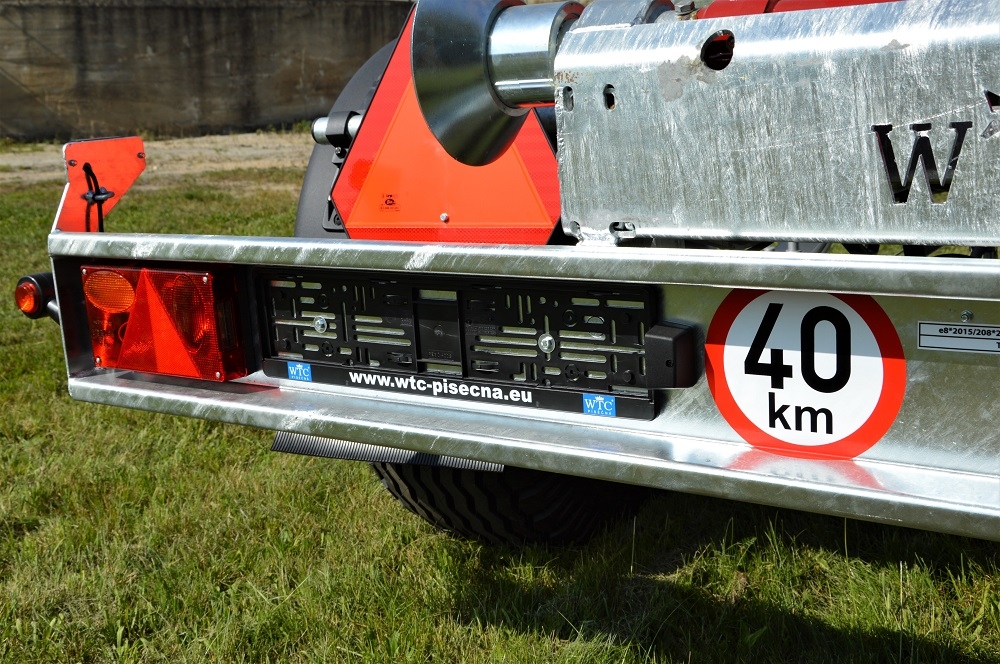

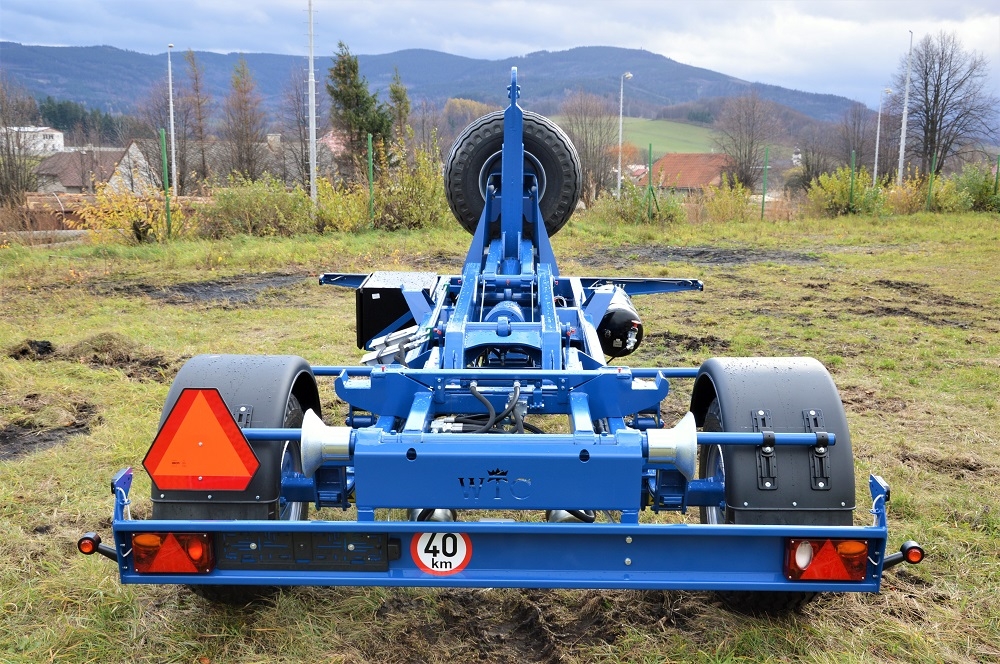

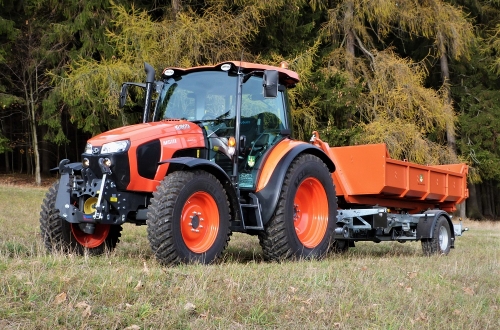

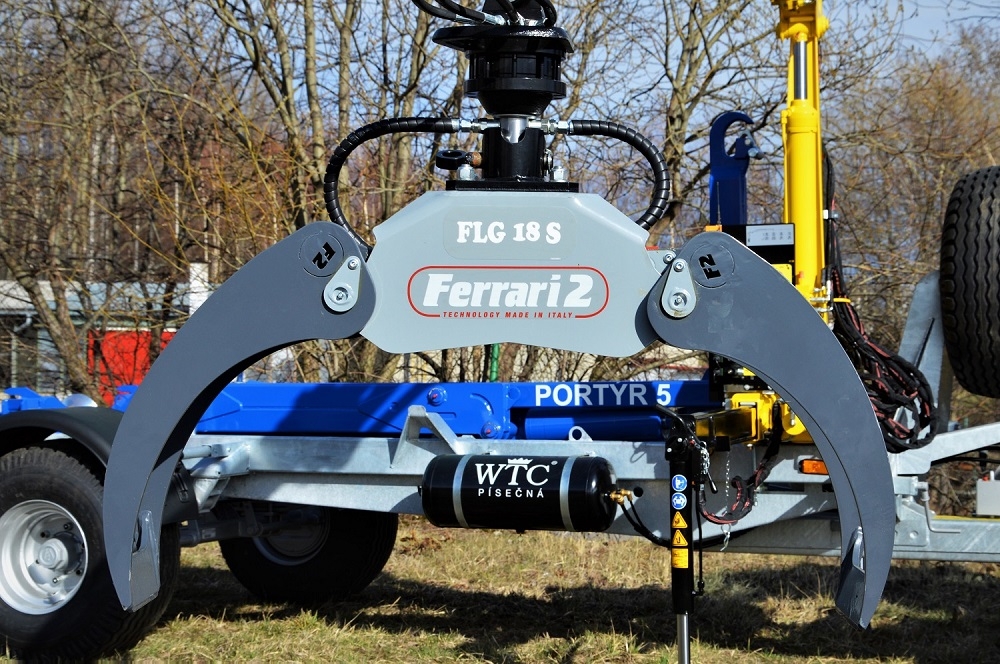

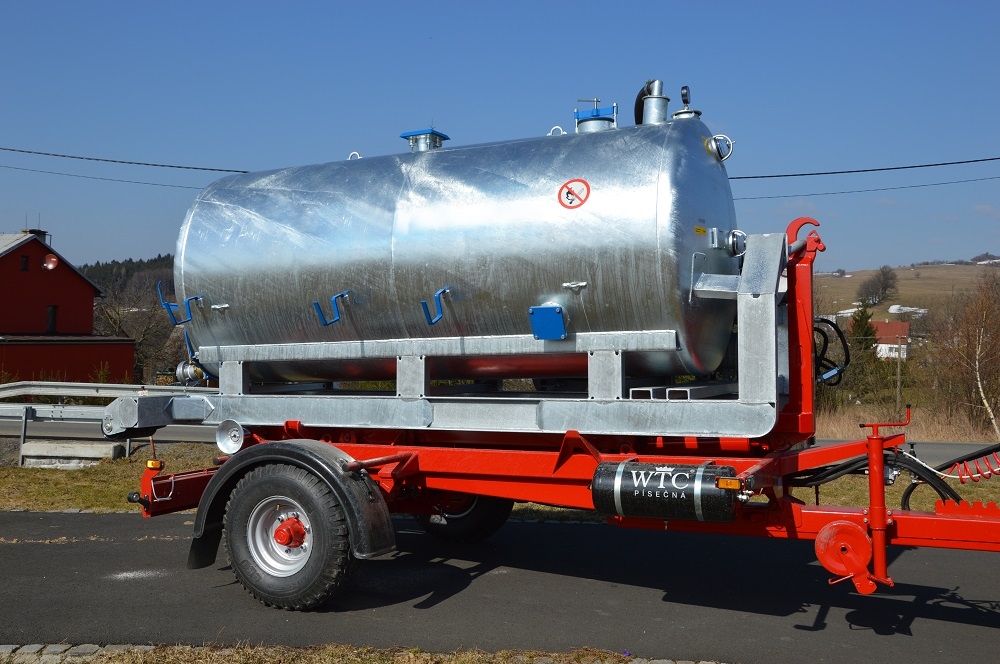

Photo gallery
Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5Container carrier PORTÝR 7.5
