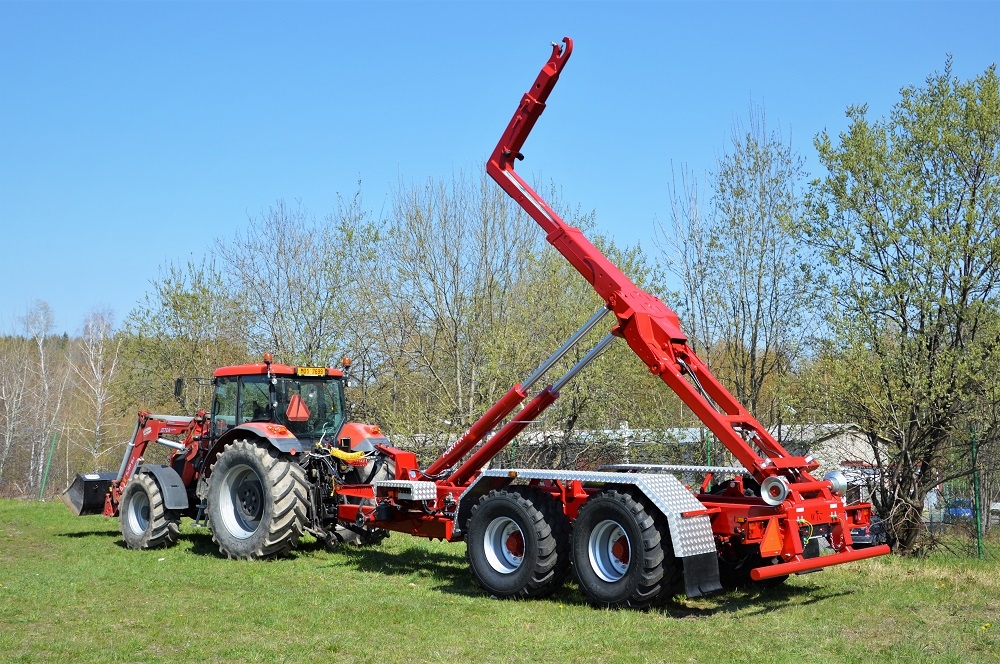

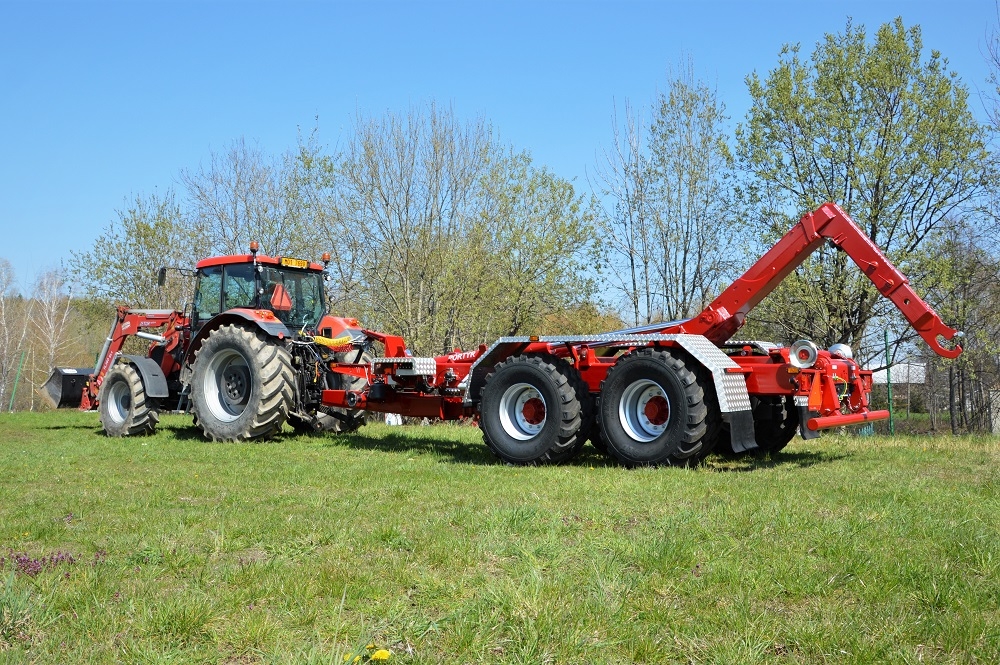

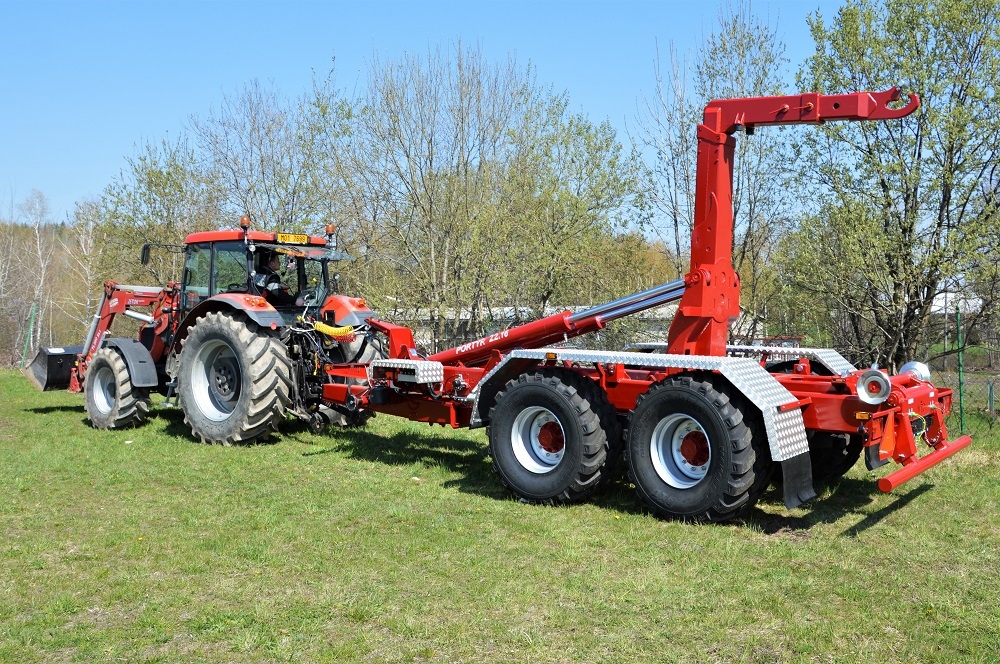

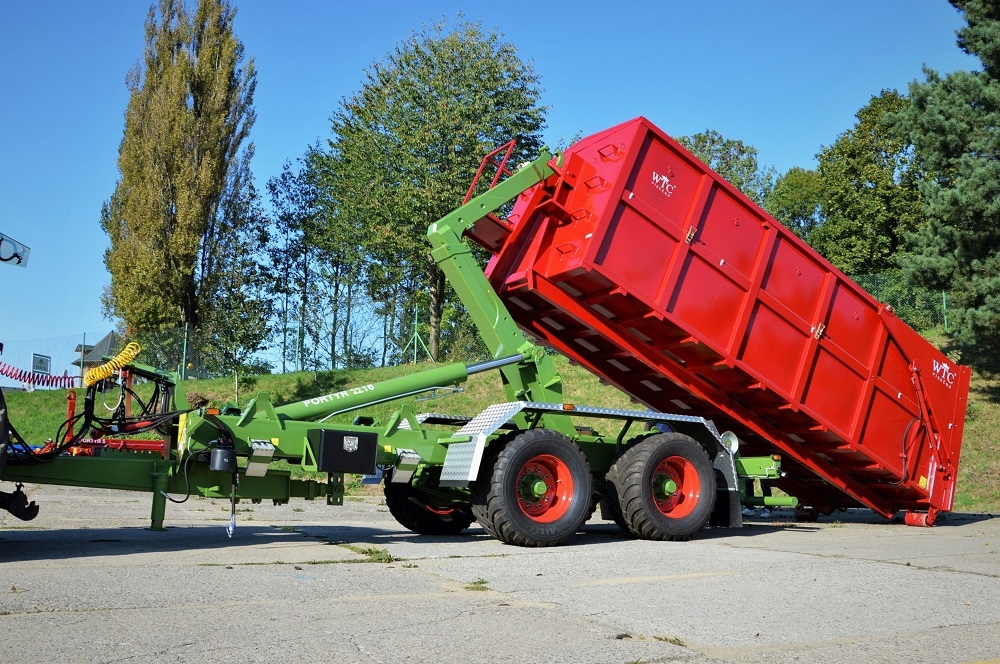

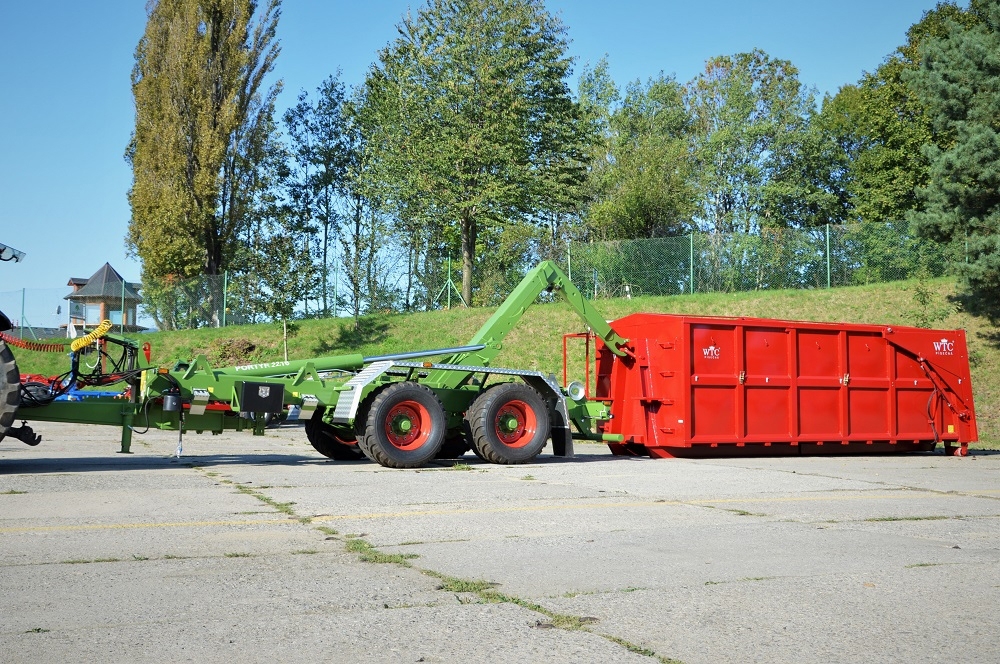

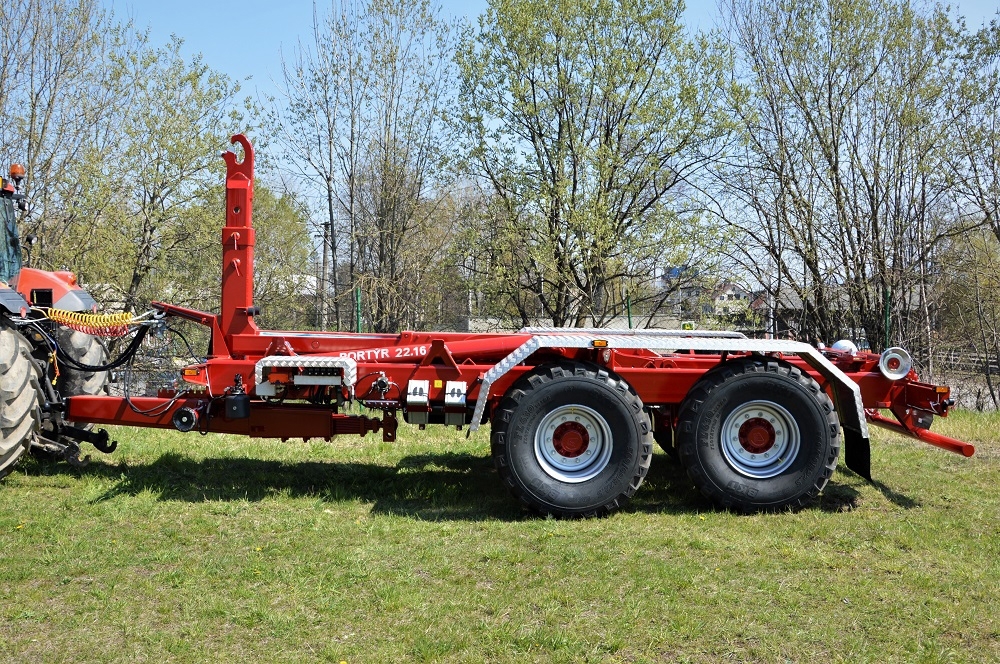

Container carrier PORTÝR 22.16

Container carrier PORTÝR 22.16Container carrier PORTÝR 22.16Container carrier PORTÝR 22.16Container carrier PORTÝR 22.16
Standard equipment
  • TANDEM suspended axle ADR
  • total permissible weight 21 000 - 22 000 kg
  • loading capacity 16 000 kg
  • optimal container length: 6,3 m
  • container length min/max: 5,3 – 6,3 m

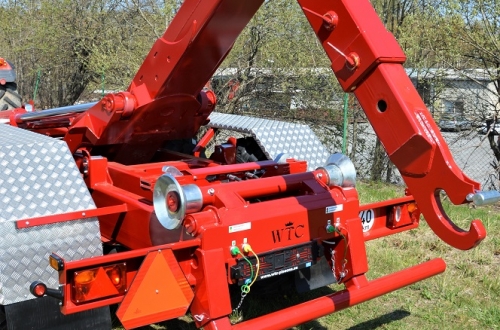

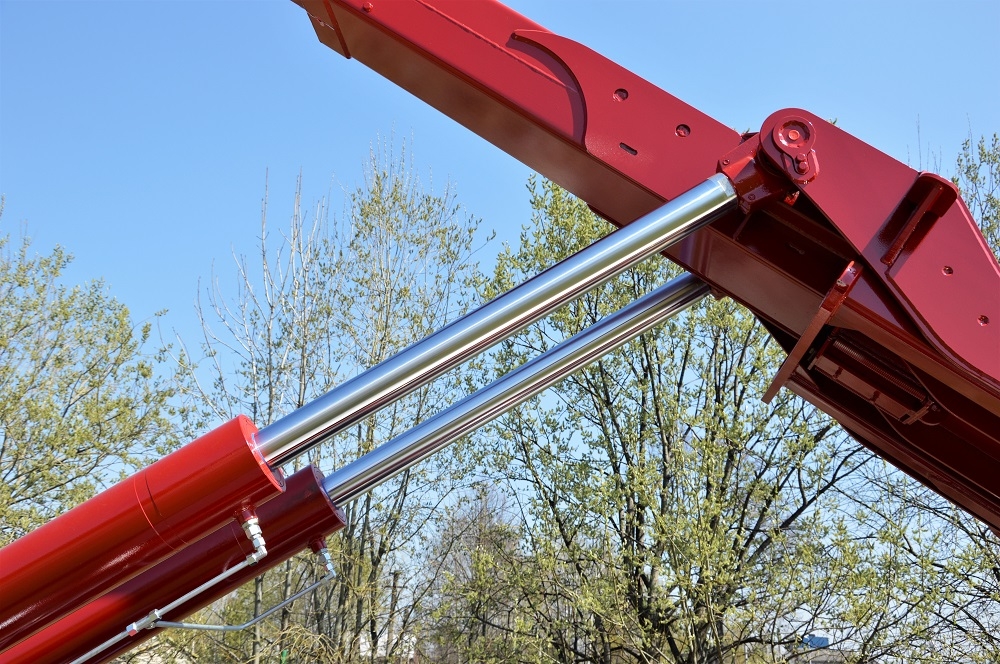

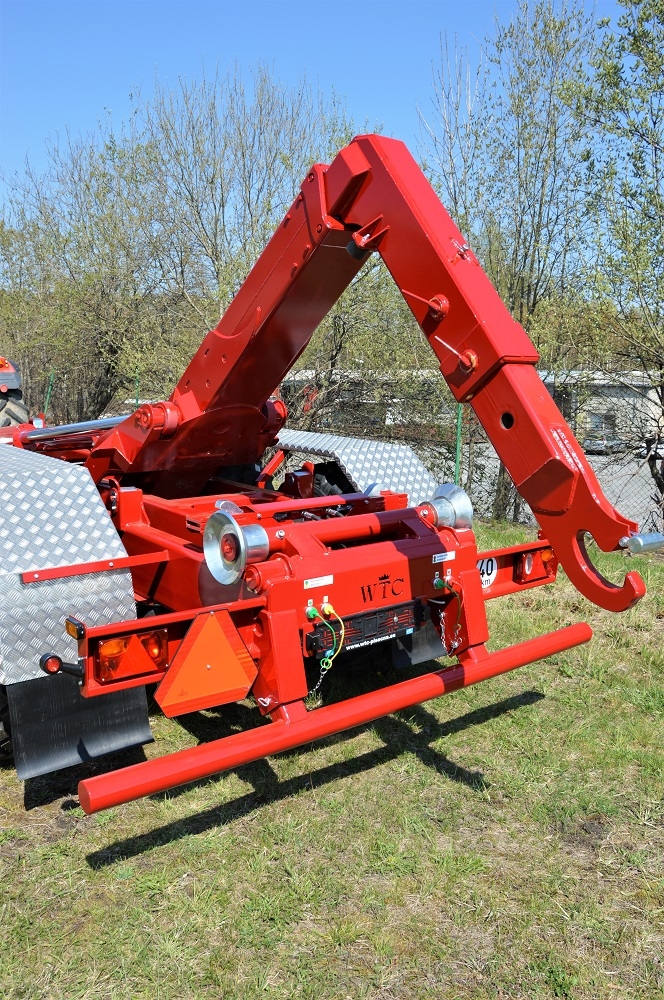

  • telescopic lift system – various container lengths
  • hook height 1 570 mm

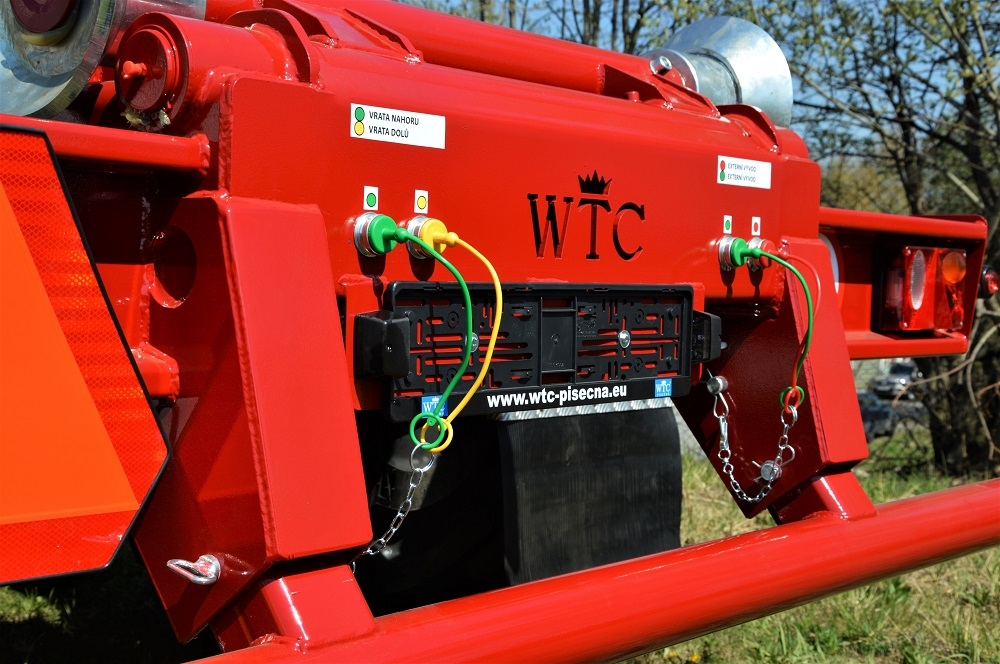

  • active hydraulic container lock
  • protection against mechanism damage
  • spring suspended height – adjustable drawbars
  • hydraulic drawbar support
  • direct connection to tractor hydraulic circuits

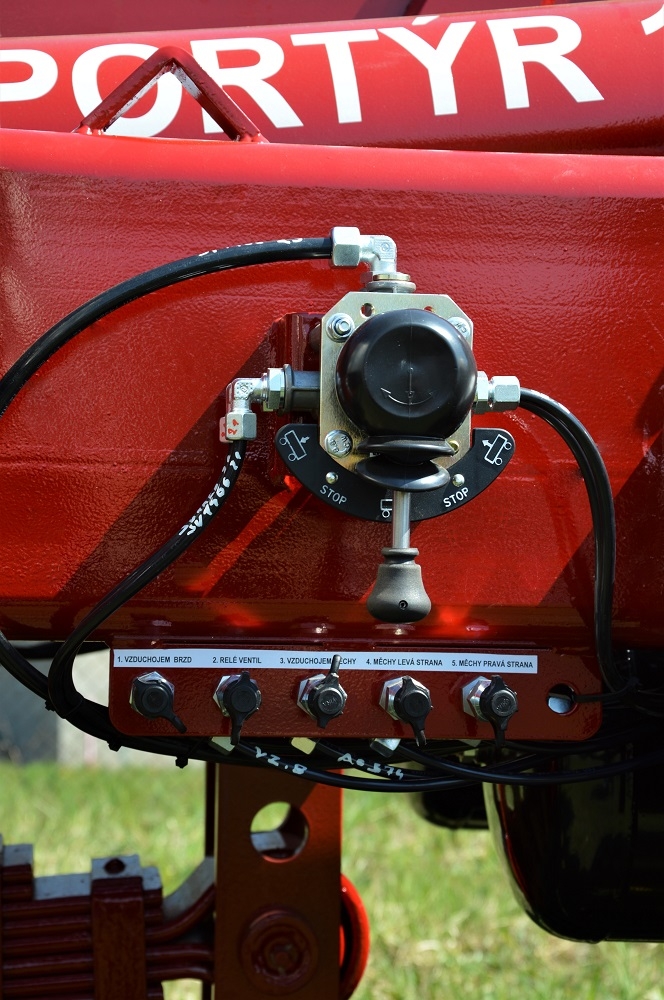

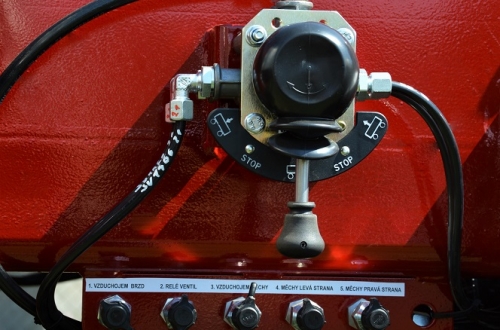

  • automatic parking brake
  • automatic brake load sensing controller
  • towing hitch Scharmüller 50/40 mm/K-80
  • lower tractor hitch
  • polyurethane paint
  • speed 40 km/hour
Optional equipment

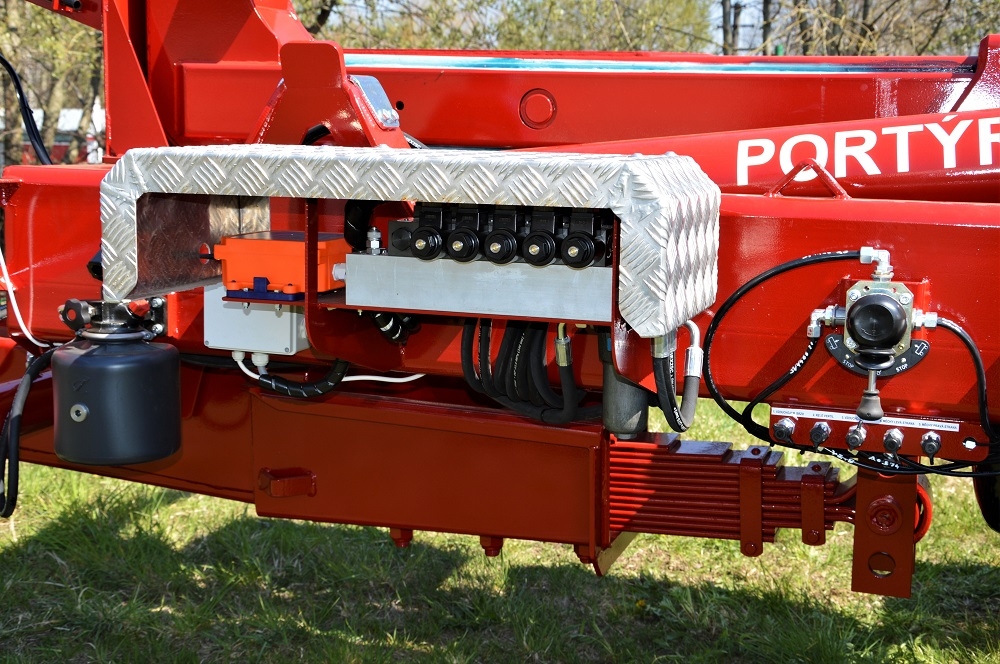

  • 6-way solenoid valve (HUB hydraulic circuit IN 2x / 4x OUT)

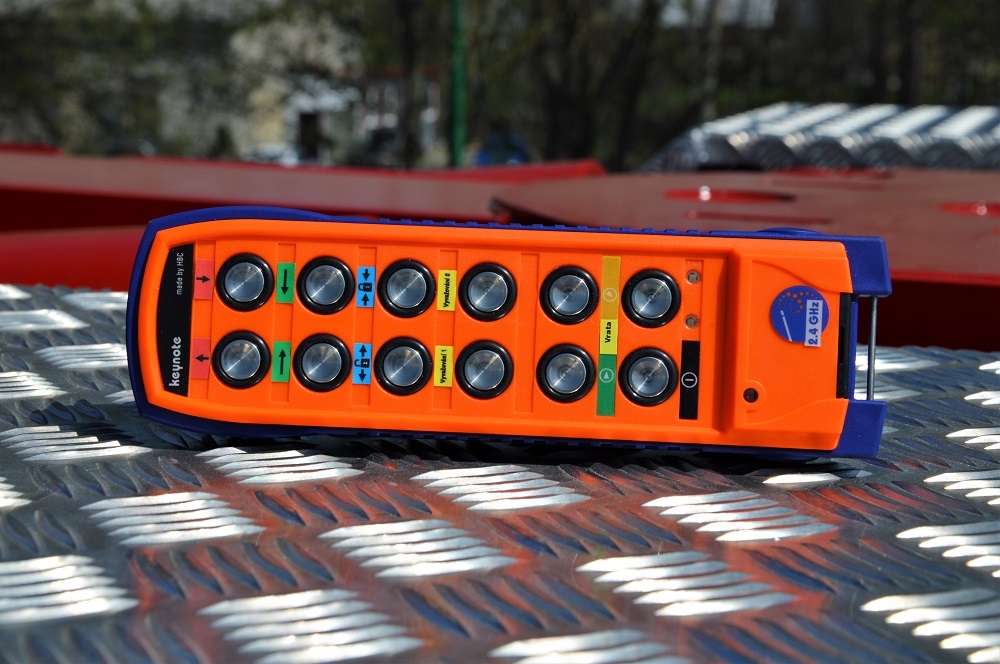

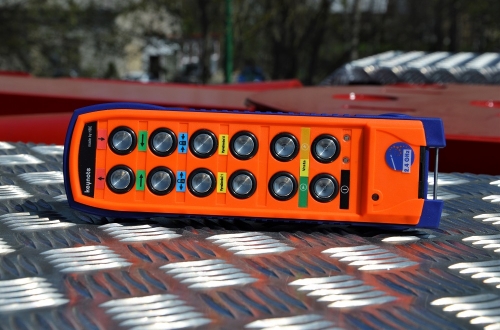

  • electro-hydraulic control distributor of radio control (cardan drive-pump)
  • electro-hydraulic control distributor of radio control (drive straighten the tractor)
  • steelable trailing axle
  • steerable axle – positive steering
  • air suspension of the axles
  • manual height adjustable hook (1 340 + 1 570 mm)
  • swivel hitch 50 mm
  • balancing rod
  • support cylinder
  • colour on request

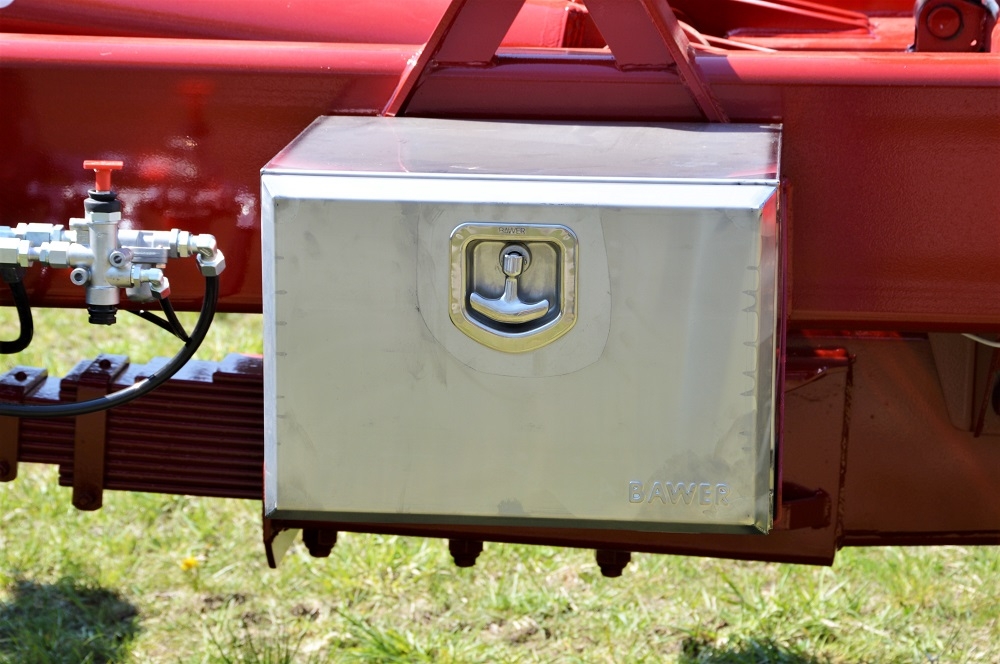

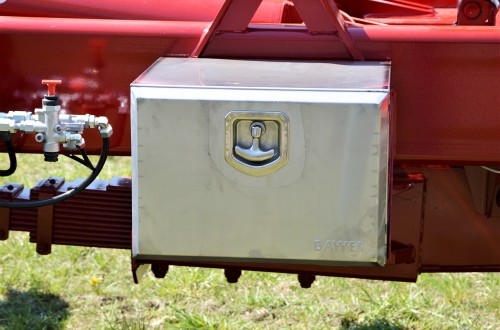

  • toolbox
  • speed 60 km/hod
  • wheels 385/55R22,5 RE
  • wheels 560/45R22,5 152D BKT FL-630 Plus TL
  • wheels 560/45 R22,5 ALLIANCE 885 Steel Belted
  • wheels 560/45 R22,5 BKT FL-693 TL
  • wheels 560/45 R22,5 NOKIAN Country King TL
  • wheels 560/60R22,5 Mitas AR 02

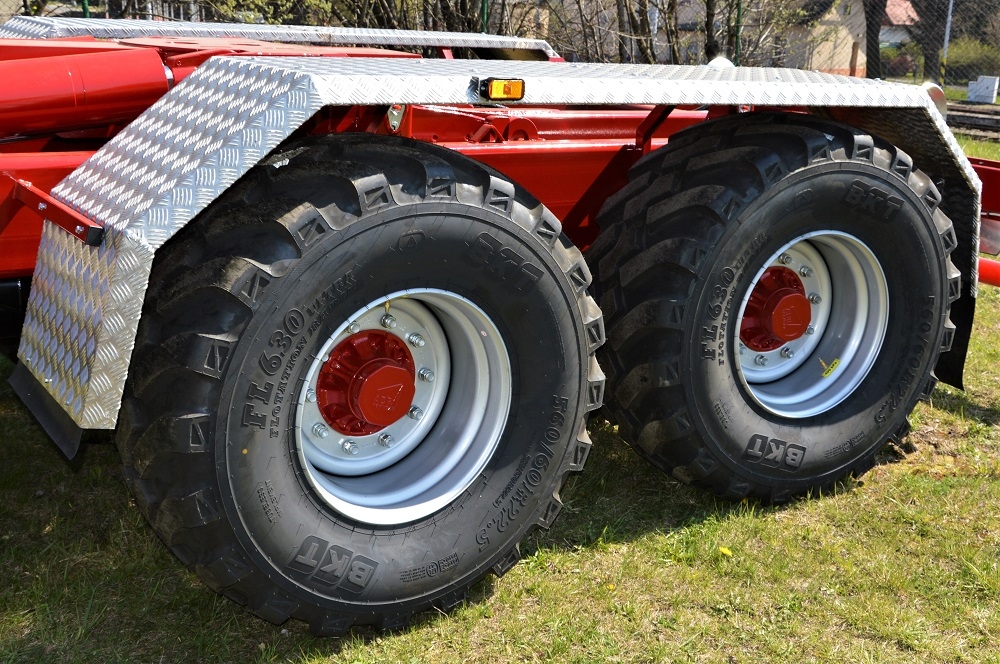

  • wheels 560/60R22,5 161D BKT FL-630 Plus TL
  • wheels 560/60R22,5 Alliance 885 Steel Belted
  • wheels 560/60R22,5 Alliance 390
  • wheels 560/60R22,5 161D Country King TL
  • wheels 560/60-22.5TL Michelin
Technical parameters
Number of axles
2
Technically permissible mass (kg)
21 - 22 000
Payload (kg)
16 000
The length of container - optimal (m)
6,3
Hook height (mm)
1 570
Total Length (m)
7,68
The total width of the chassis (m)
2,55
Maximum speed (km/h)
40 / 60

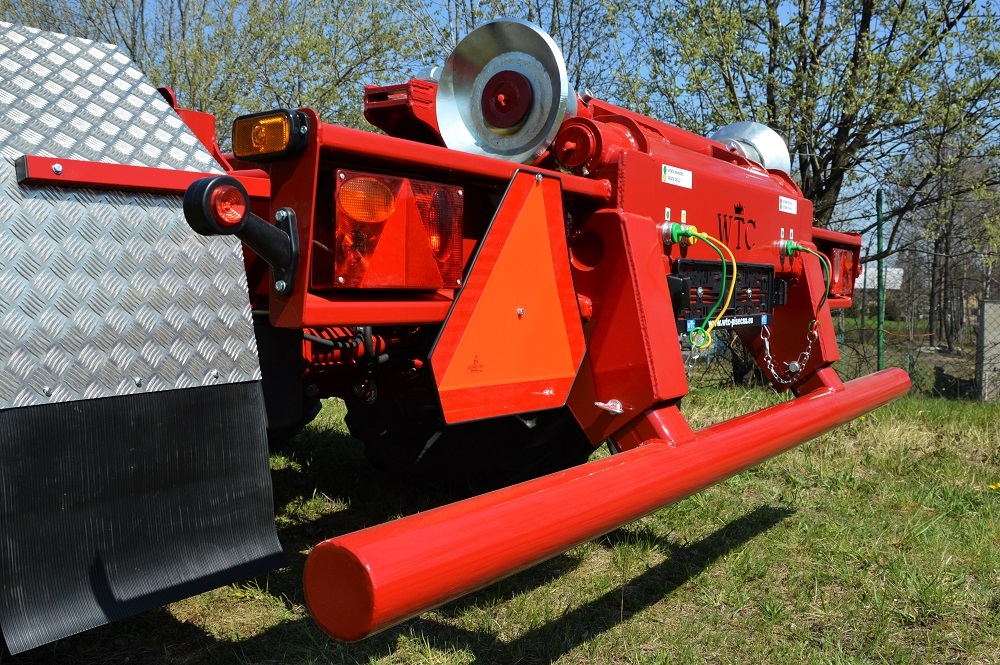

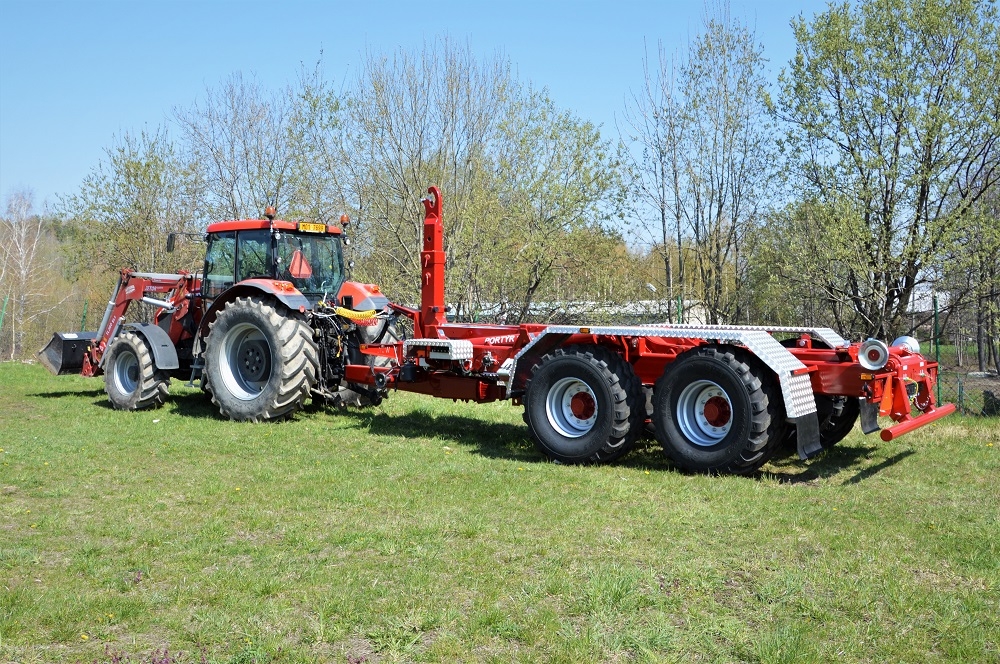

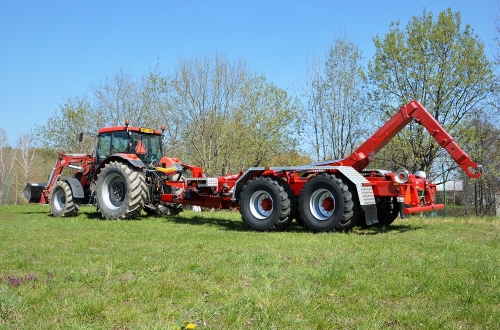

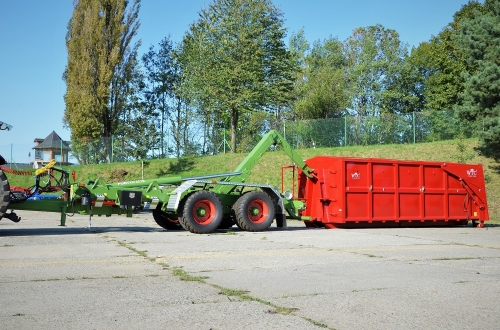

Photo gallery
