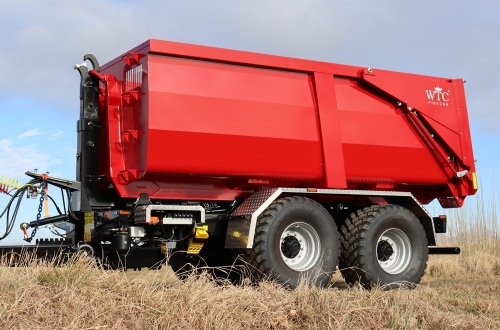

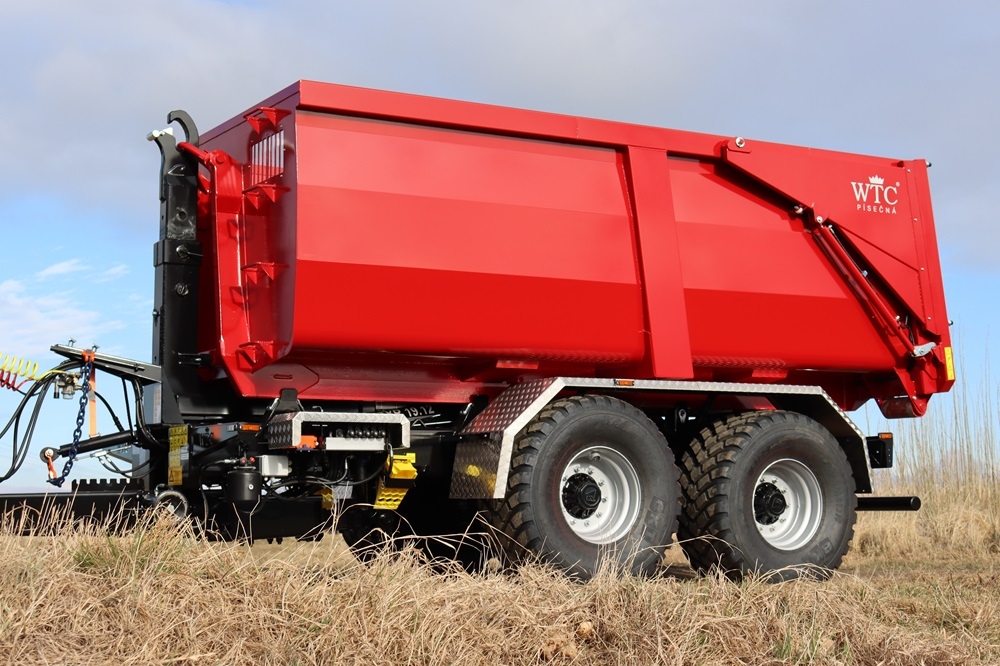

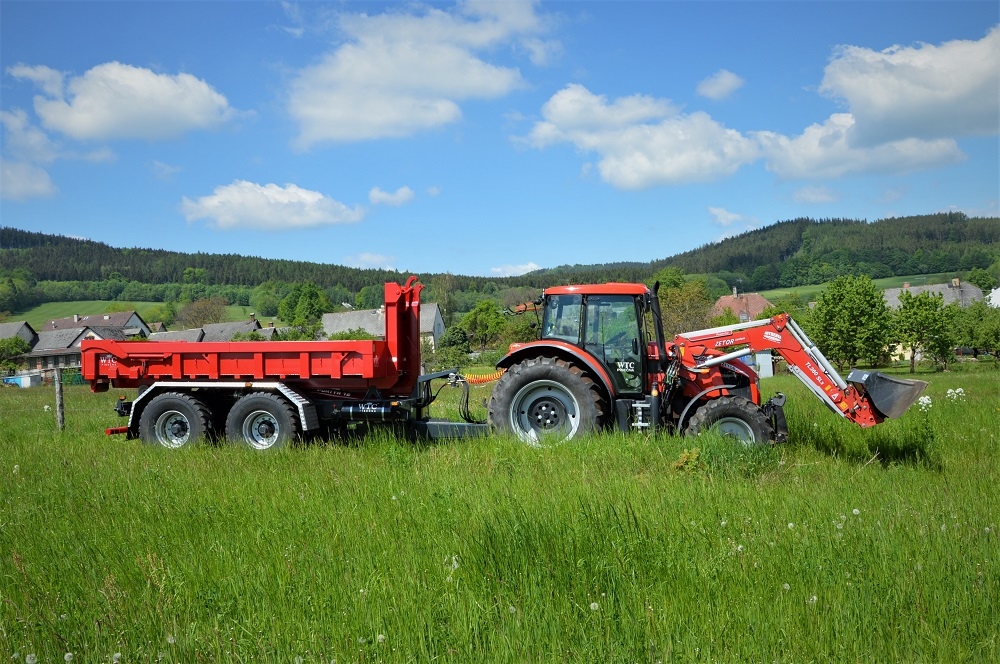

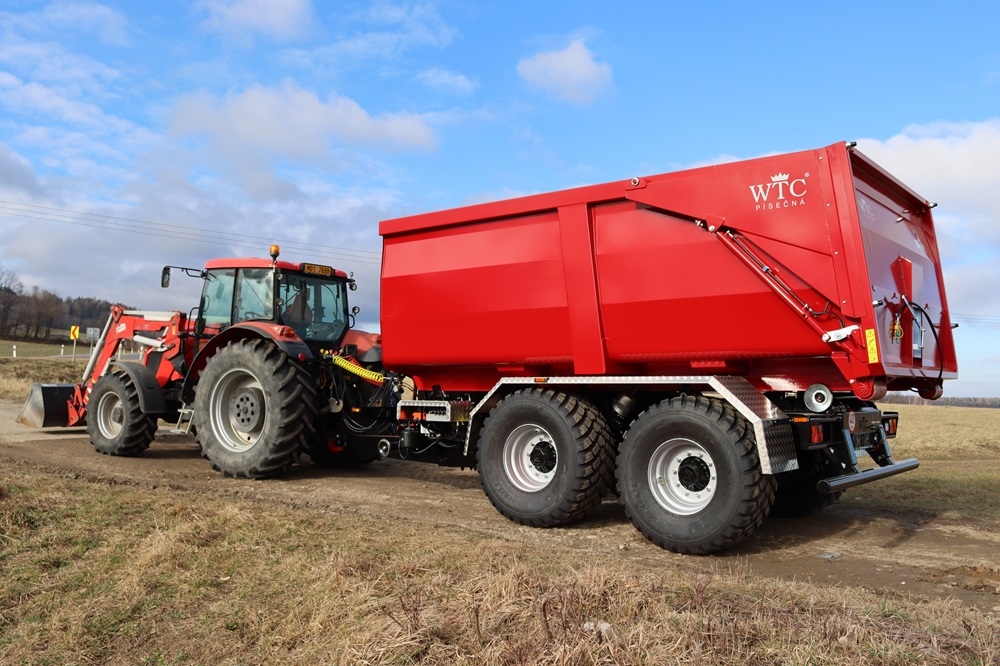

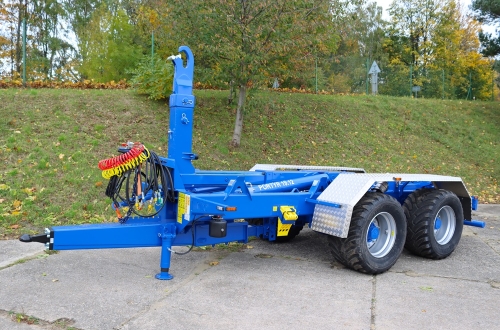

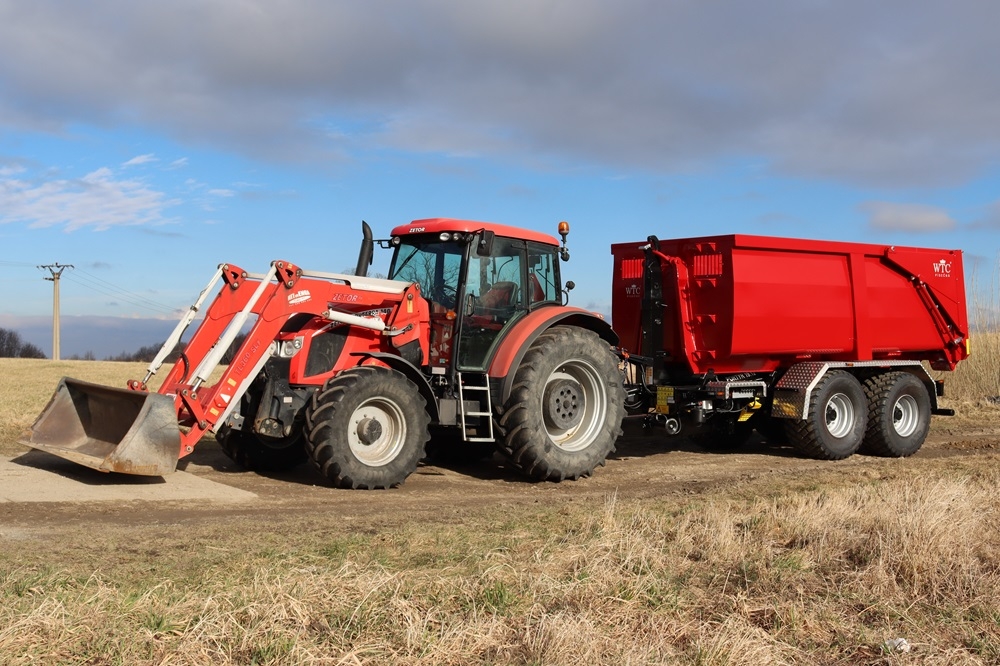

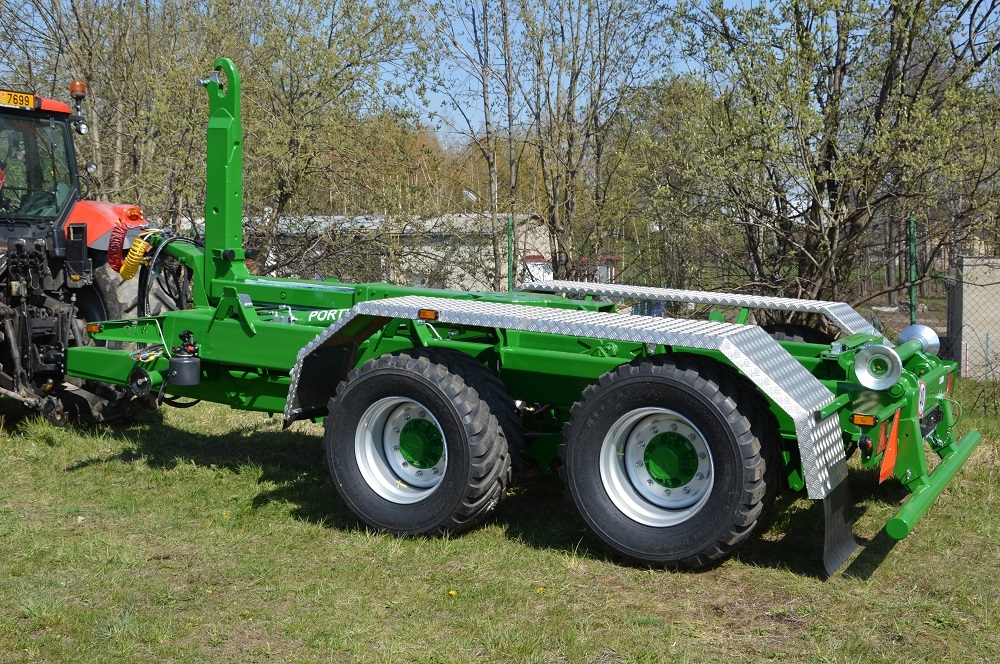

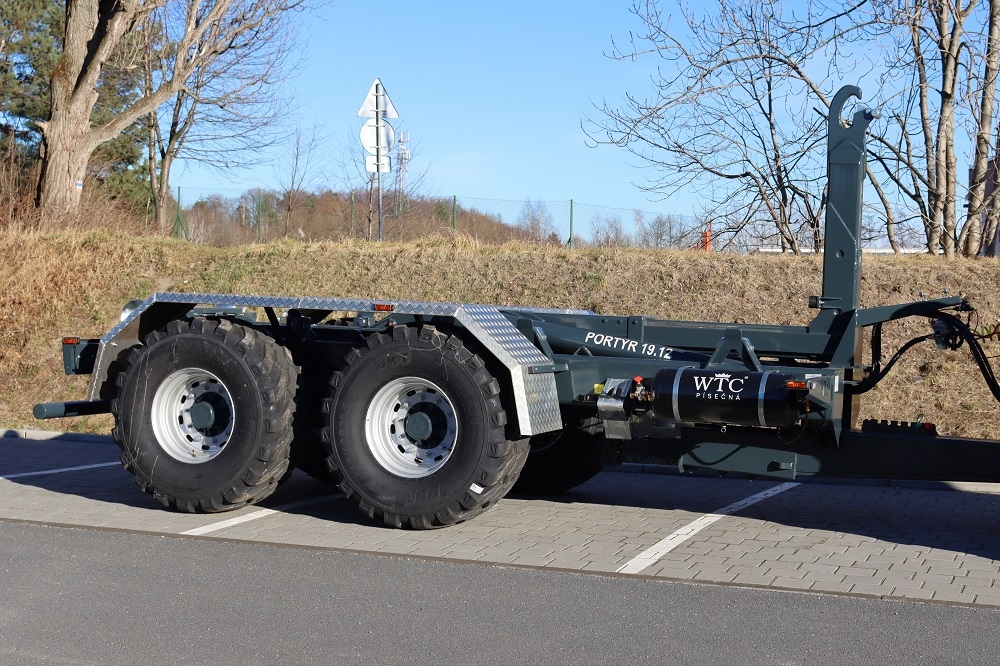

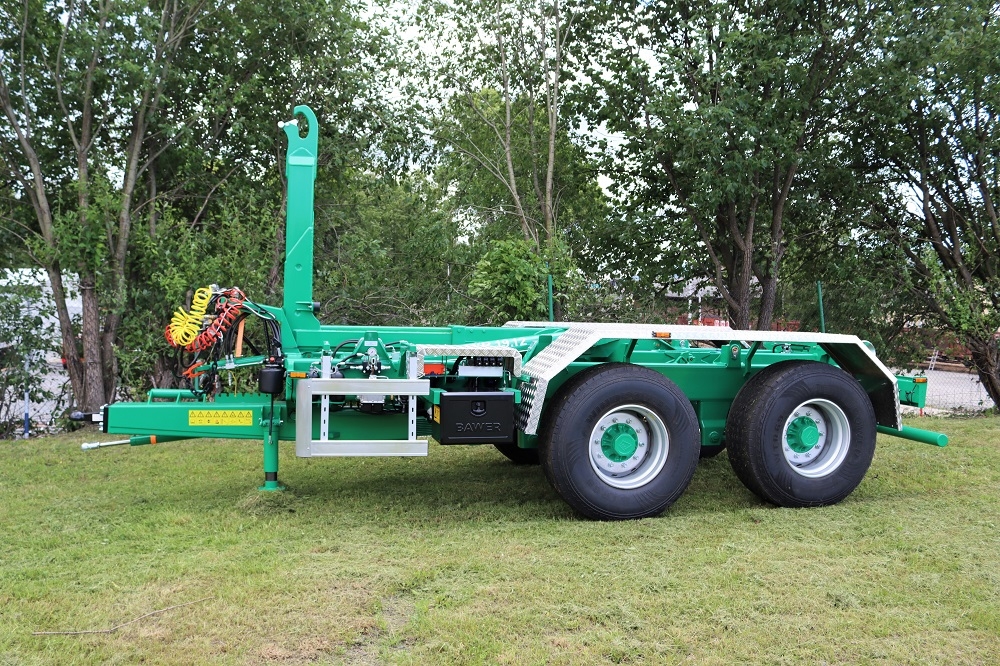

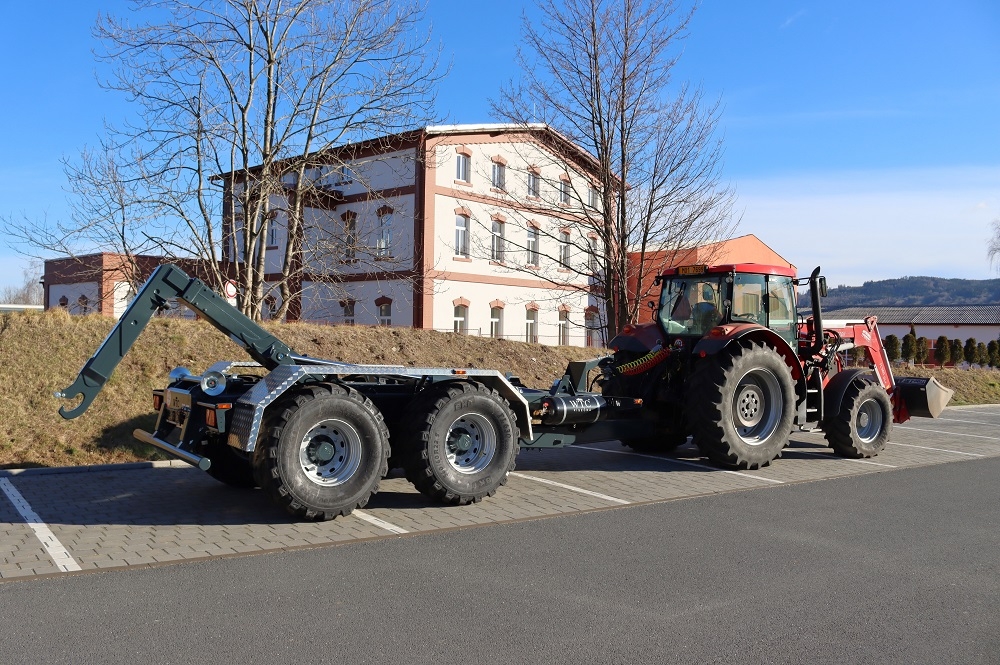

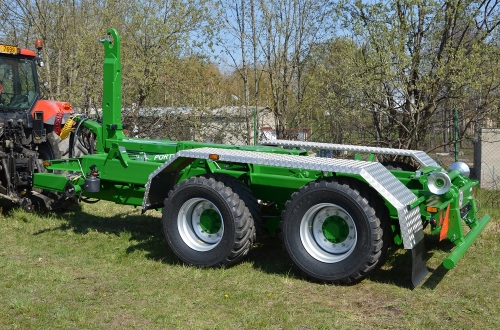

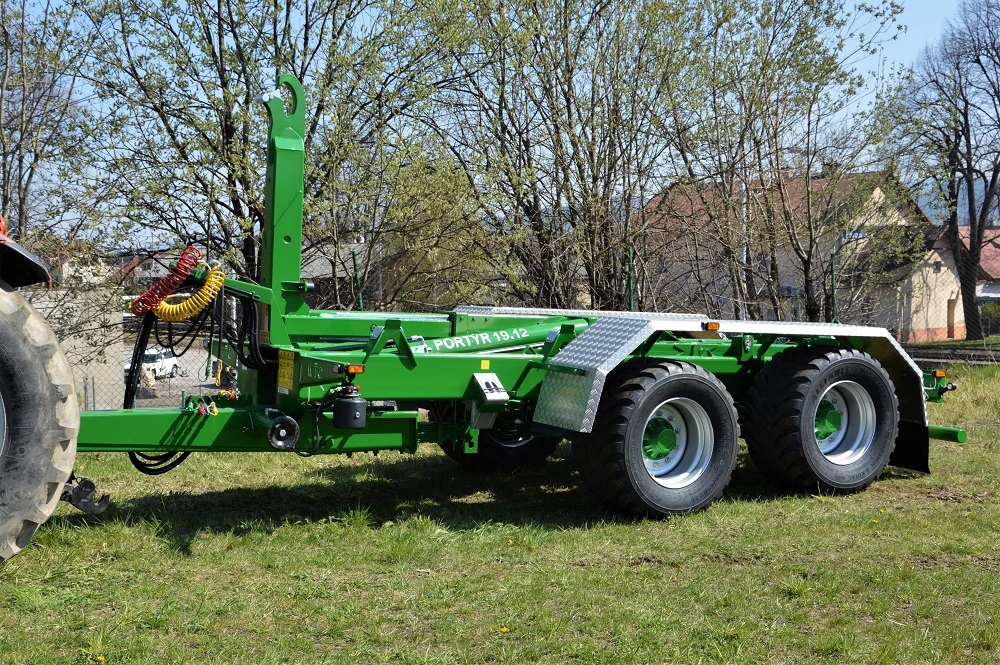

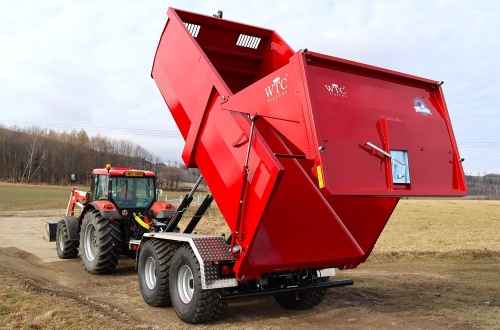

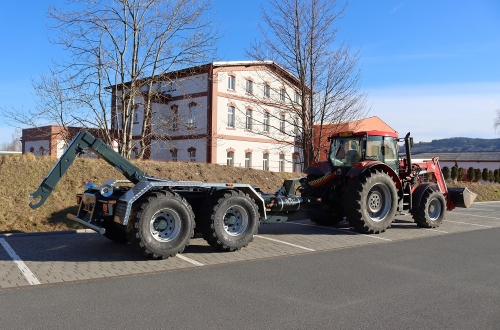

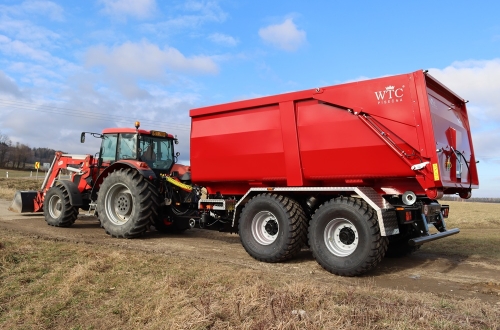

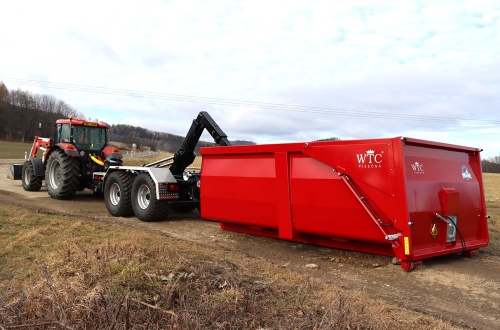

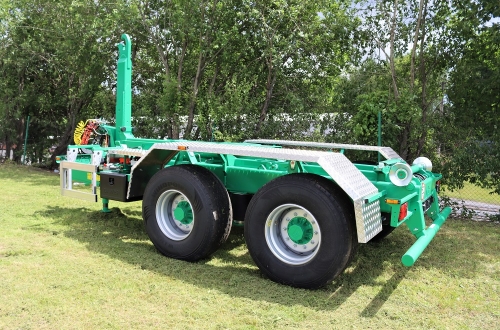

Container carrier PORTÝR 19.12

Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12
Standard equipment

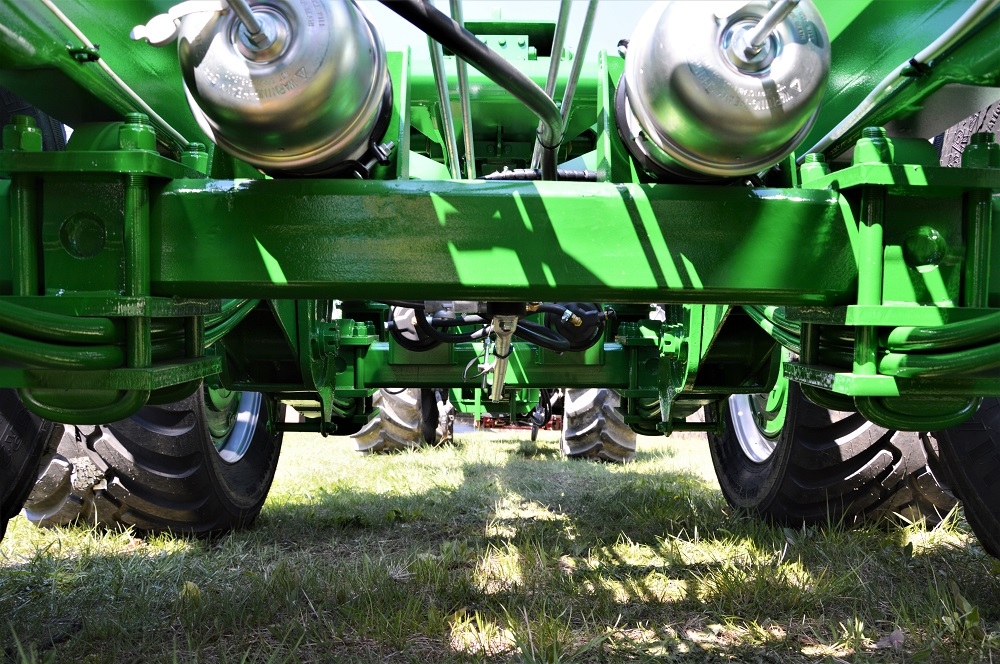

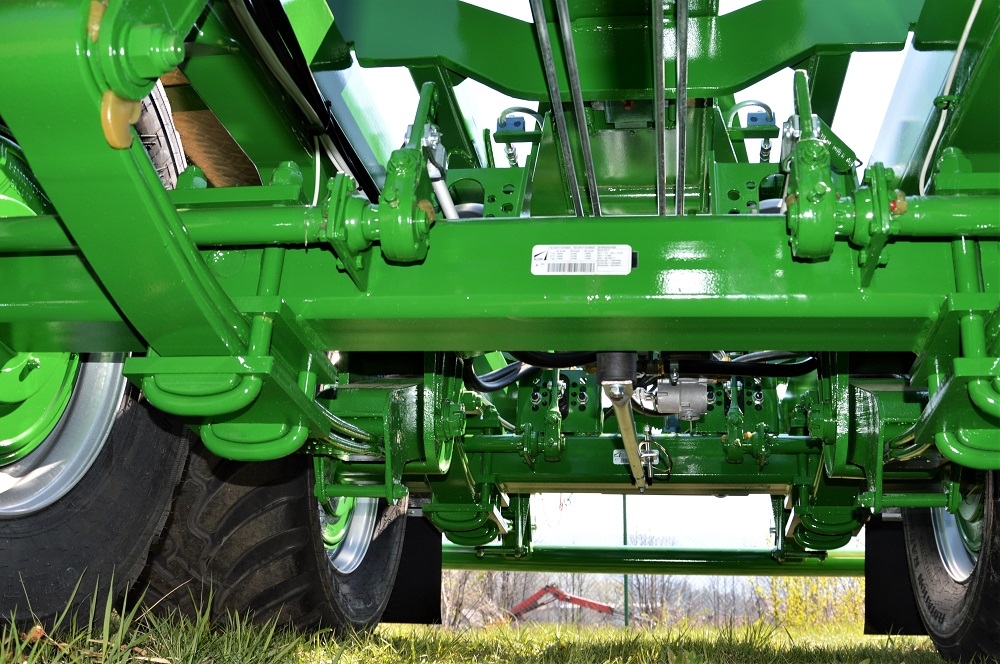

  • TANDEM suspended axle ADR
  • total permissible weight 19 000 kg
  • loading capacity 14 230 kg

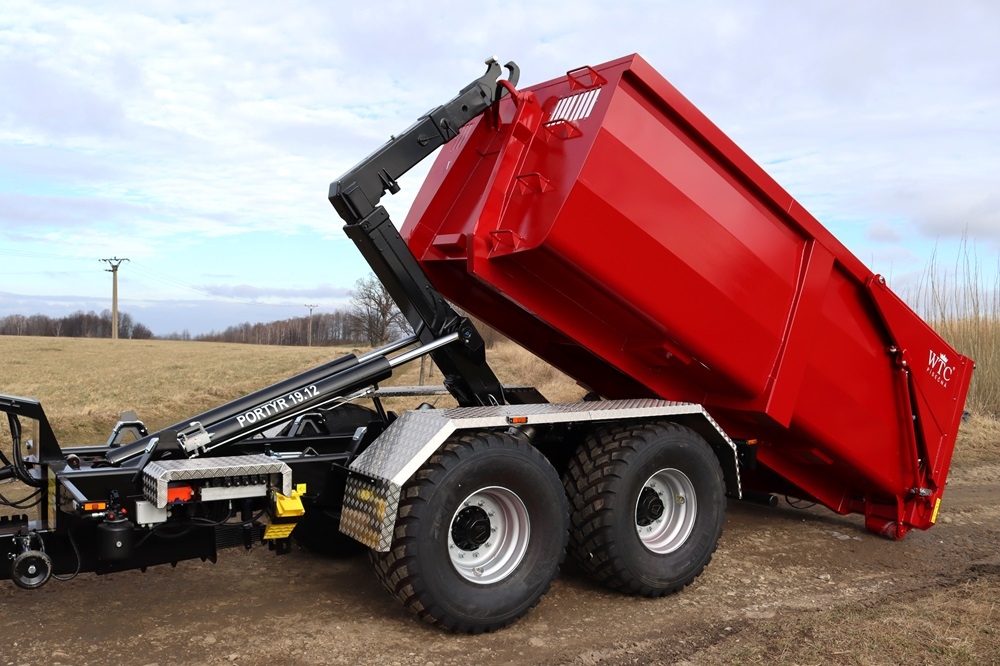

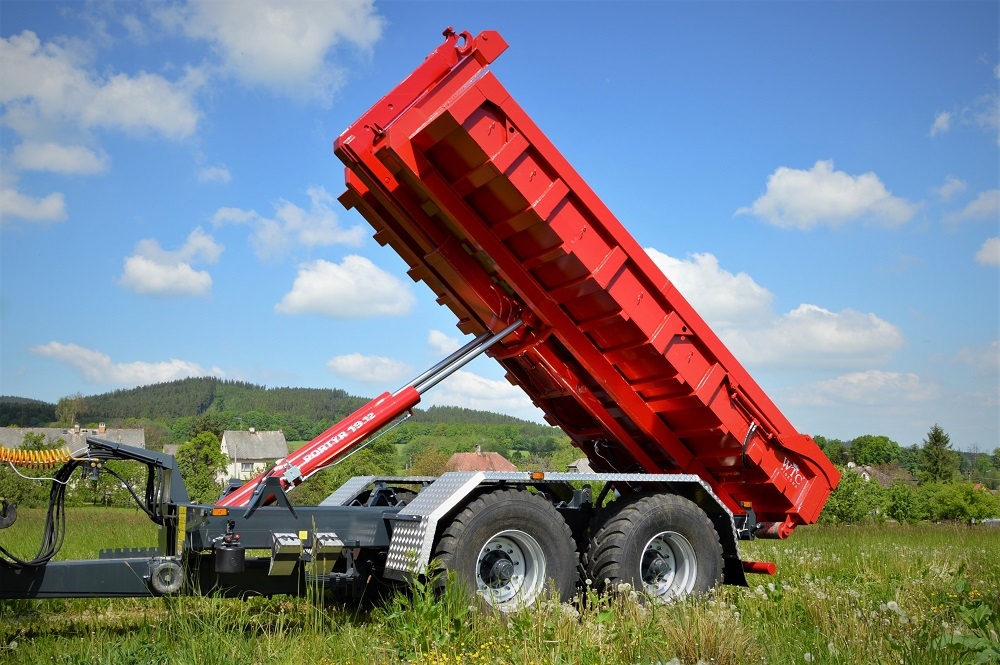

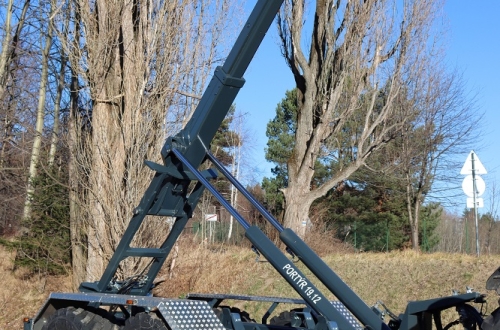

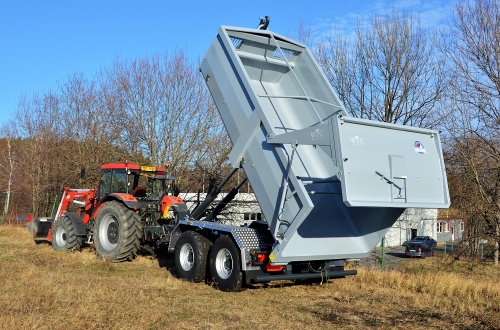

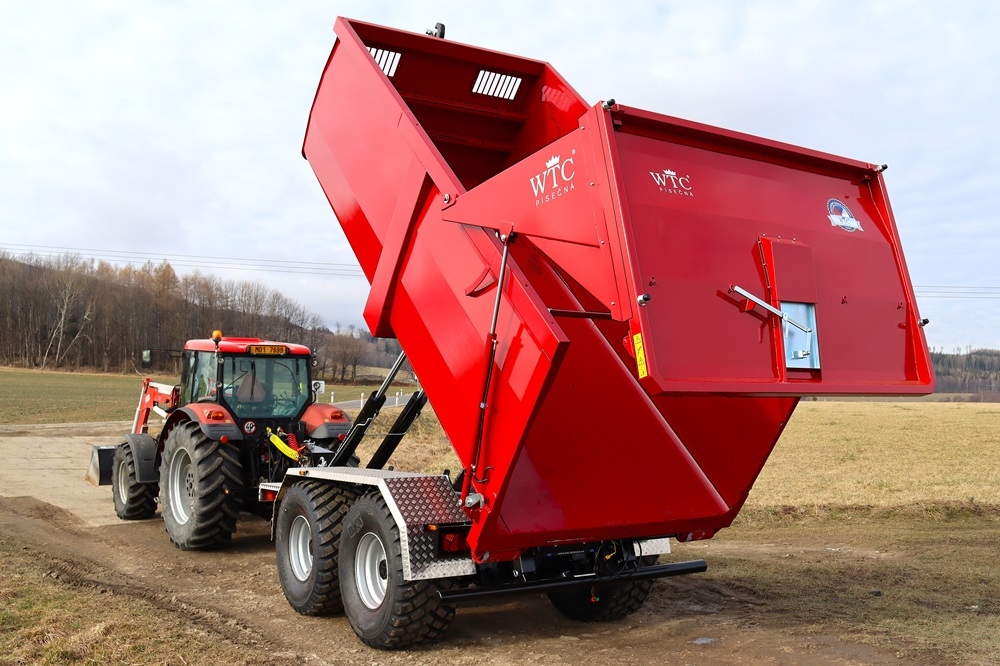

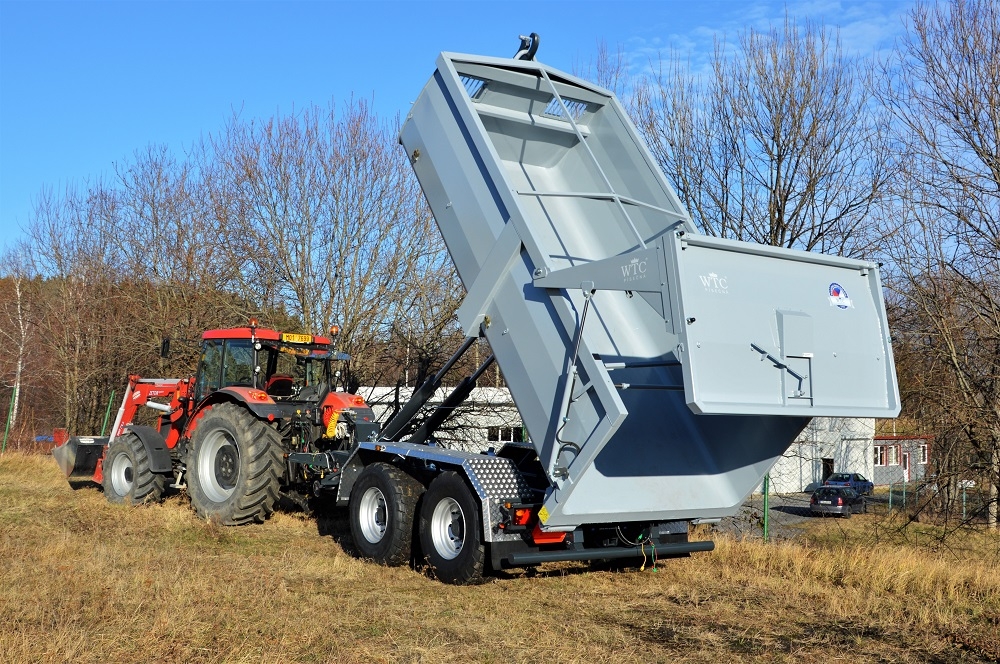

  • telescopic lift system – various container lengths

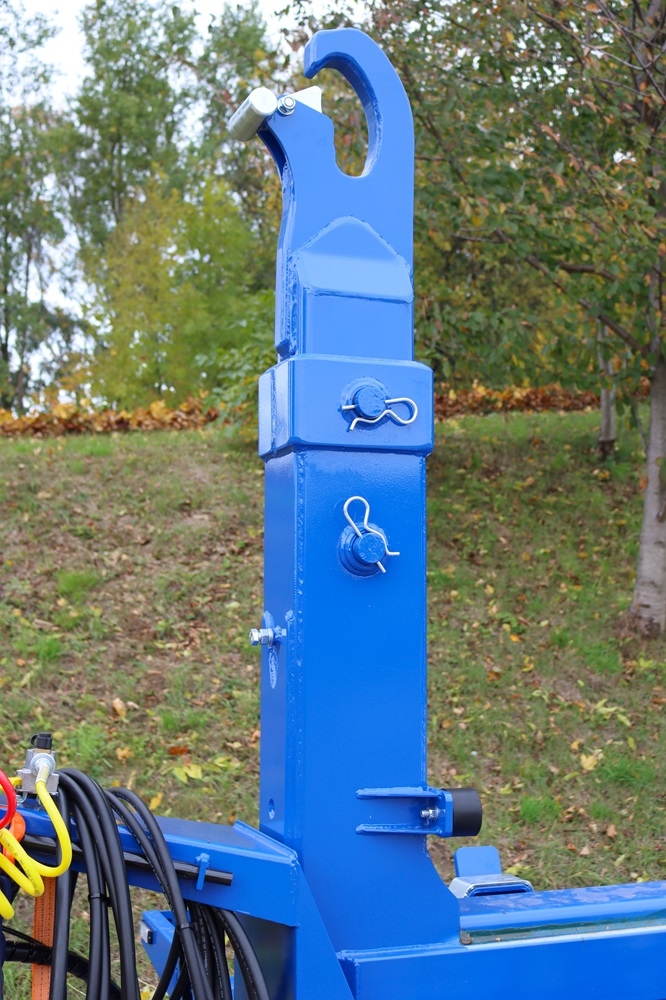

  • hook height 1 000 – 1 340 – 1 570 mm up to customer
  • optimal container length: 5,3 m
  • container length min/max: 4,5 – 5,3 m

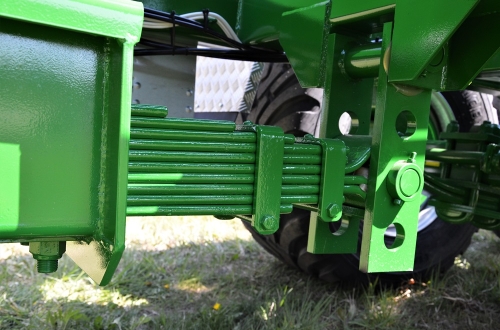

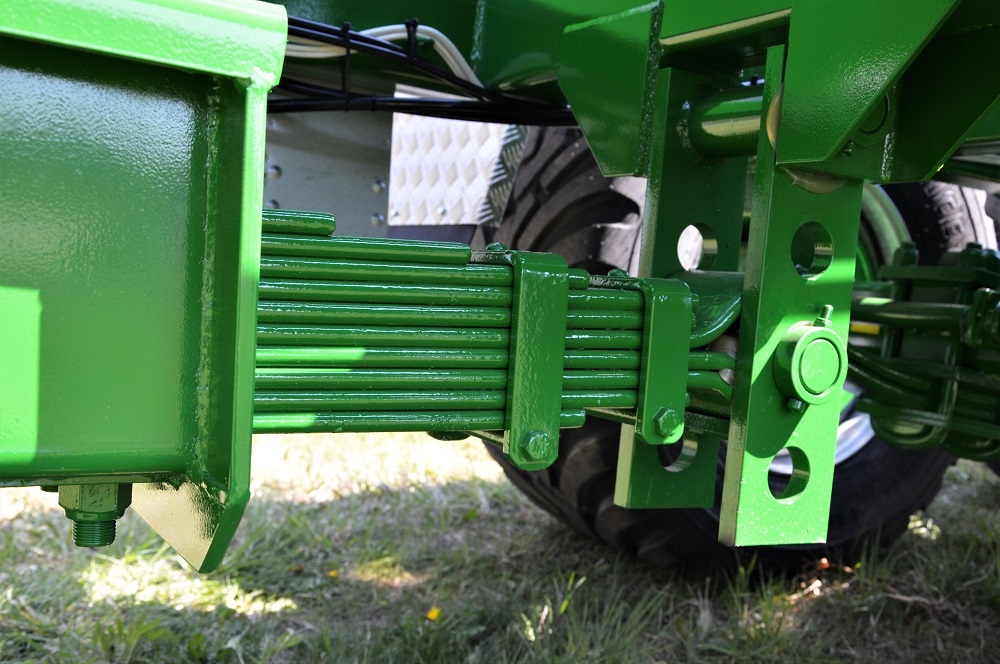

  • spring suspended height – adjustable drawbars

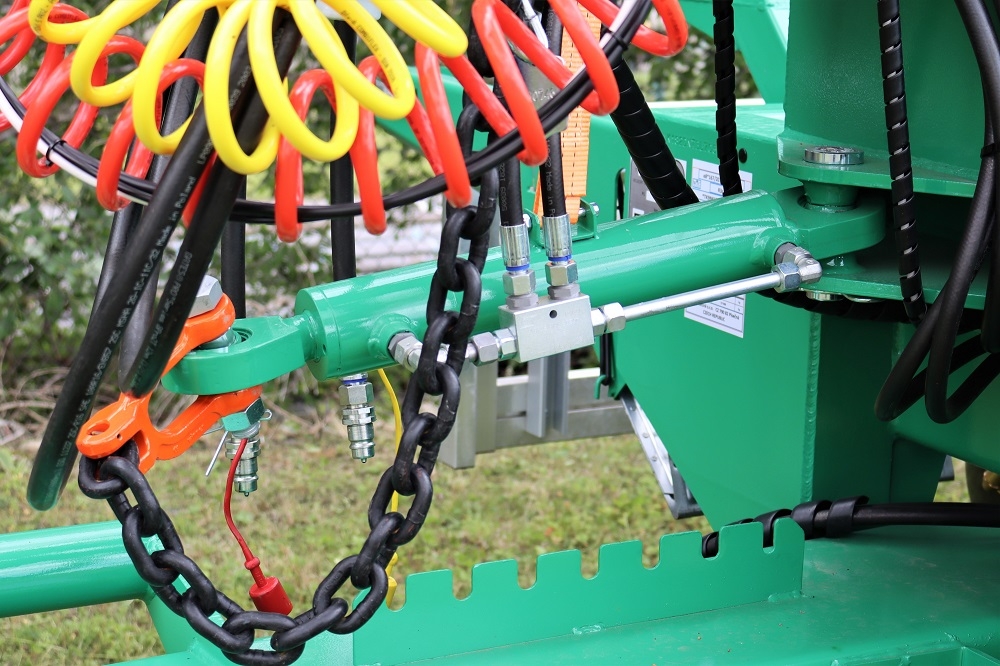

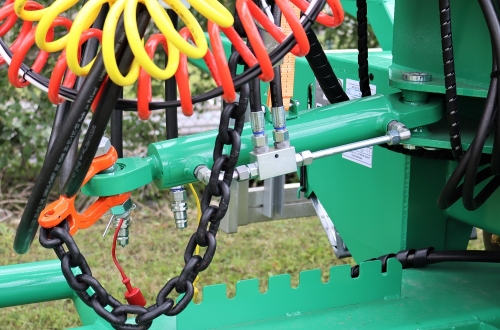

  • hydraulic drawbar support
  • automatic parking brake
  • automatic brake load sensing controller
  • active hydraulic container lock
  • protection against mechanism damage

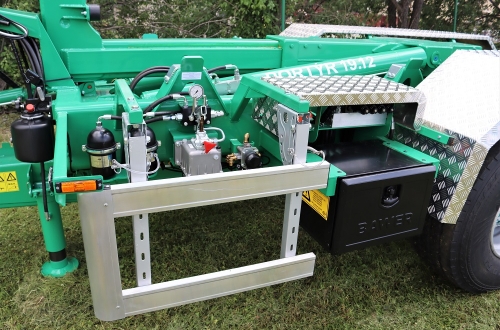

  • direct connection to tractor hydraulic circuits

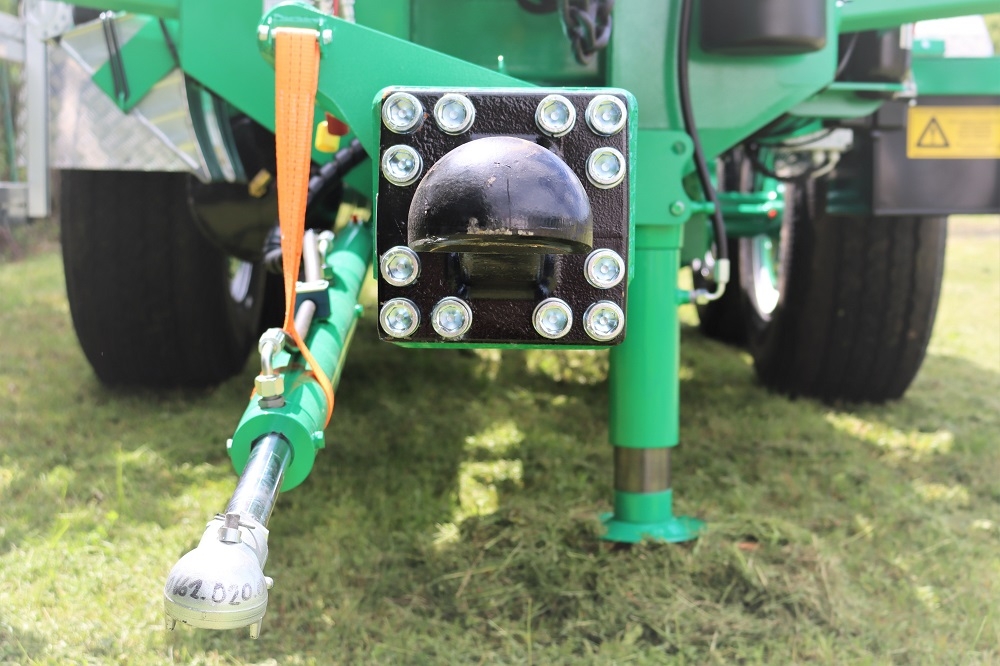

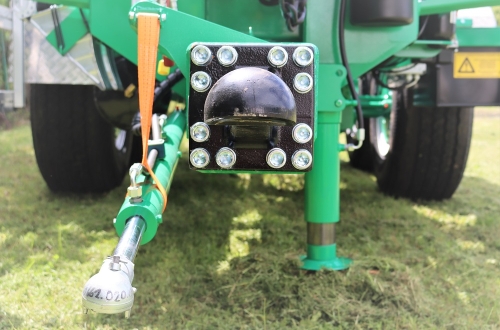

  • towing hitch Scharmüller 50/40 mm/K-80
  • lower tractor hitch

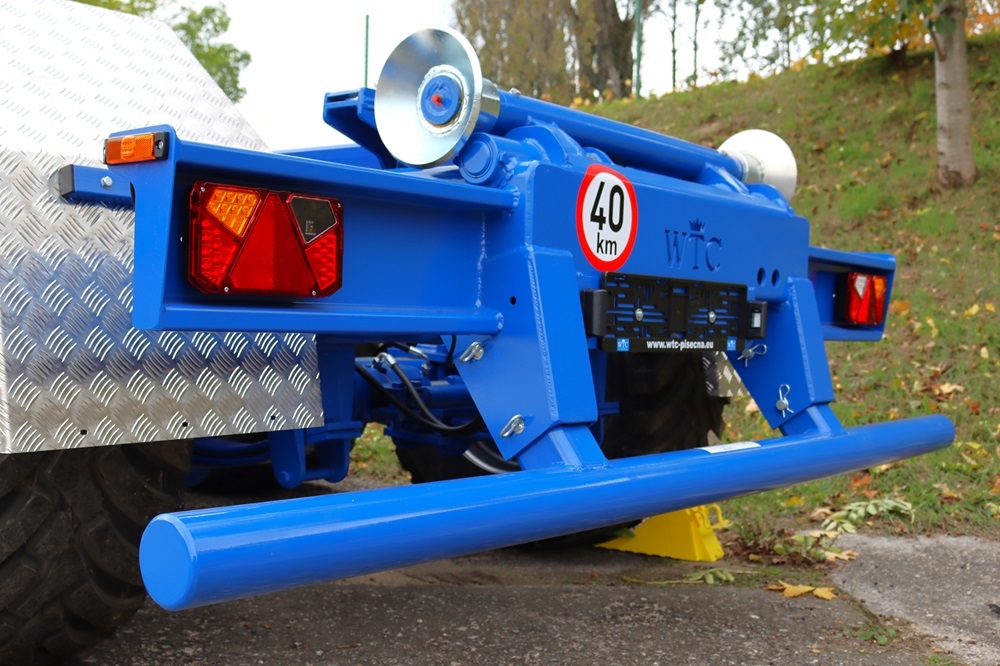

  • speed 40 km/hour
  • polyurethane paint
Optional equipment
  • 6-way solenoid valve (HUB hydraulic circuit IN 2x / 4x OUT)

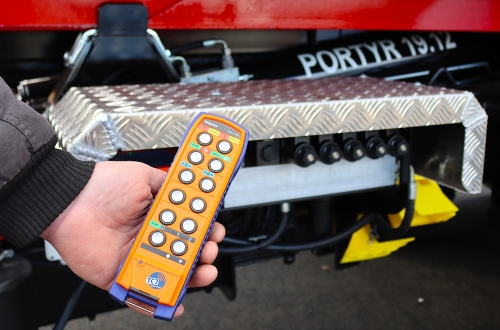

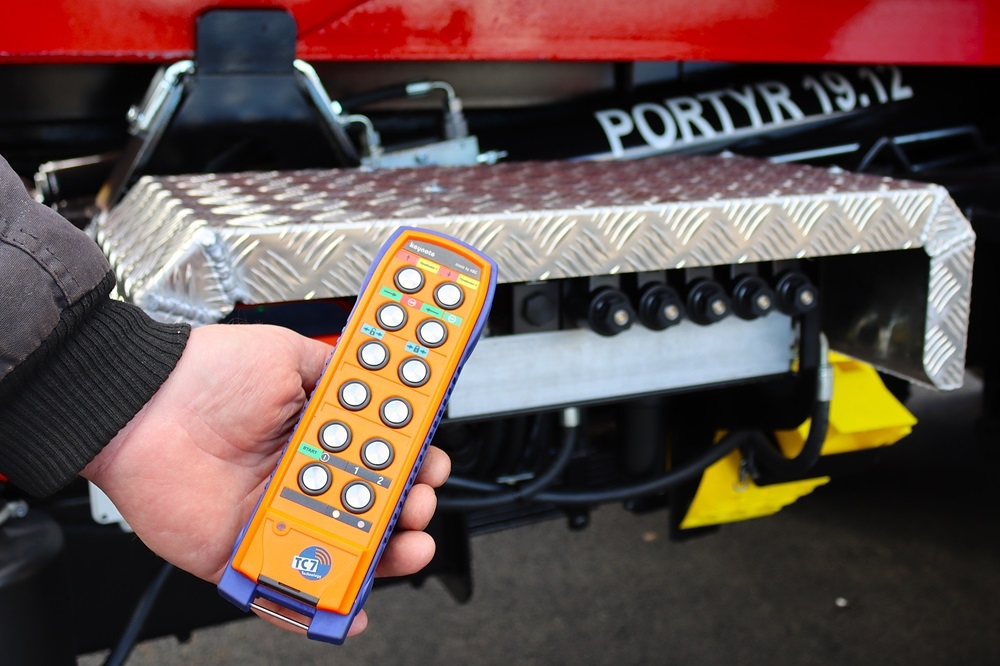

  • electro-hydraulic control distributor of radio control (cardan drive-pump)
  • electro-hydraulic control distributor of radio control (drive straighten the tractor)
  • steelable trailing axle
  • steerable axle – positive steering

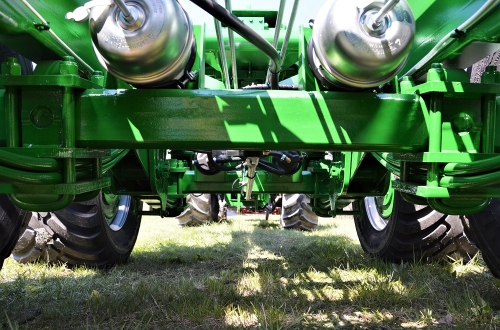

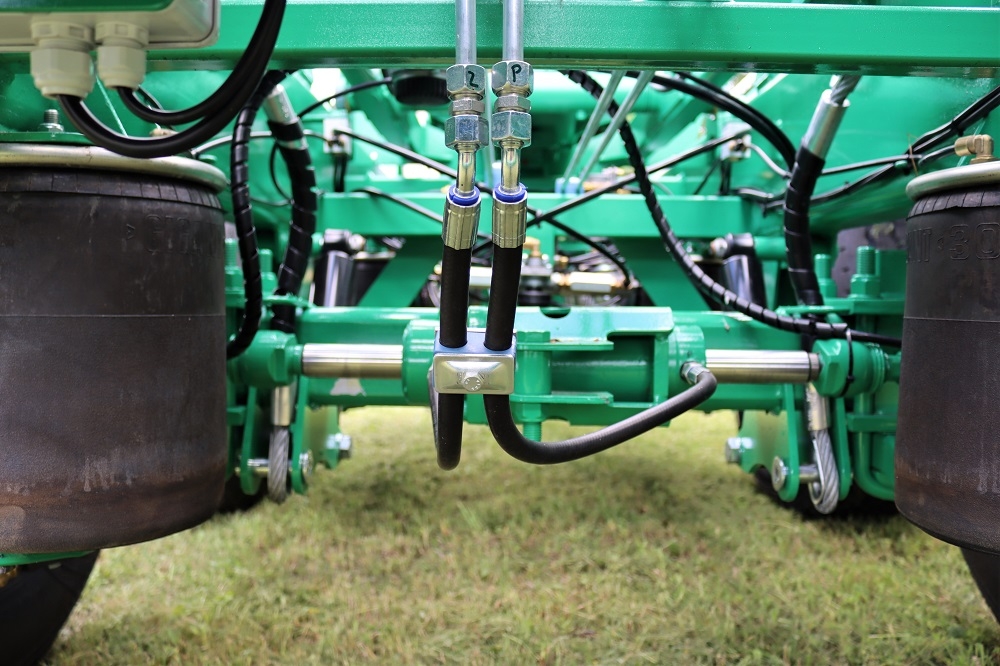

  • air suspension of the axles
  • balancing rod
  • support cylinder
  • manual height adjustable hook (1 340 + 1 570 mm)
  • swivel hitch 50 mm
  • colour on request
  • toolbox

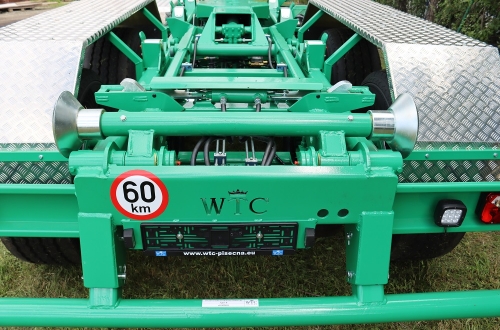

  • speed 60 km/hod
  • wheels 385/55R22,5 RE
  • wheels 560/45R22,5 152D BKT FL-630 Plus TL
  • wheels 560/45 R22,5 ALLIANCE 885 Steel Belted
  • wheels 560/45 R22,5 BKT FL-693 TL
  • wheels 560/45 R22,5 NOKIAN Country King TL
  • wheels 560/60R22,5 Mitas AR 02
  • wheels 560/60R22,5 161D BKT FL-630 Plus TL
  • wheels 560/60R22,5 Alliance 885 Steel Belted
  • wheels 560/60R22,5 Alliance 390
  • wheels 560/60R22,5 161D Country King TL
  • wheels 560/60-22.5TL Michelin
Technical parameters
Number of axles
2
Technically permissible mass (kg)
19 000
Payload (kg)
14 230
The length of container - optimal (m)
5,5
Hook height (mm)
1 340 / 1 570
Total Length (m)
6,64
The total width of the chassis (m)
2,55
Maximum speed (km/h)
40 / 60
Photo gallery
Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12Container carrier PORTÝR 19.12
Video
Container carrier PORTÝR 19.12
