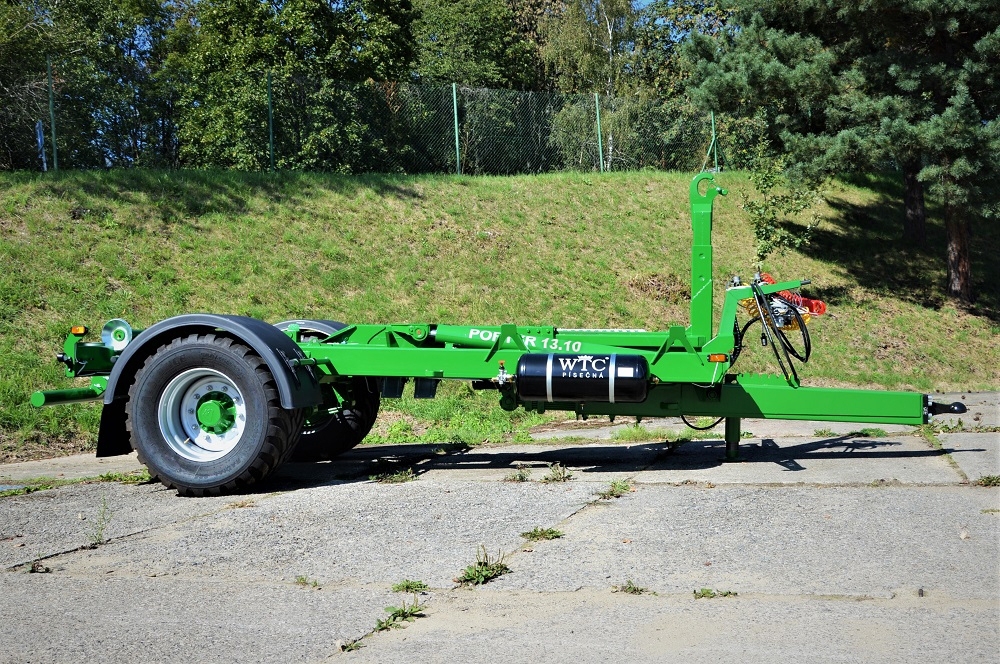

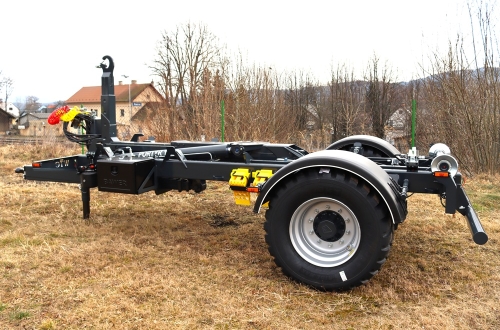

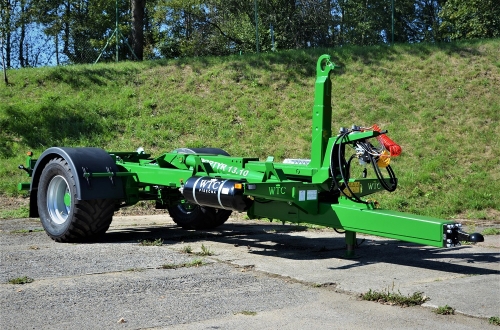

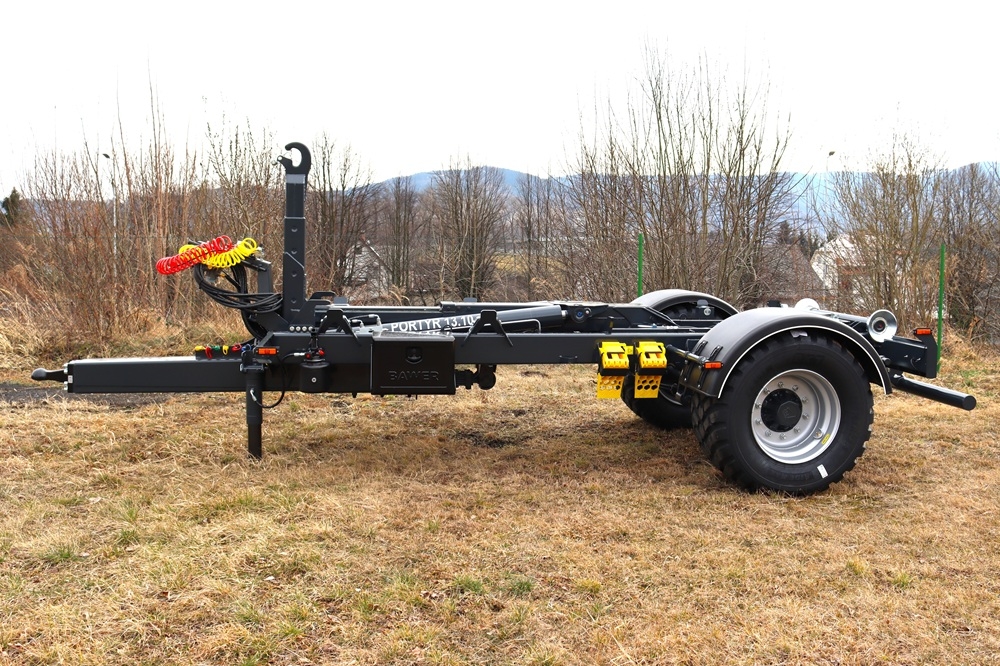

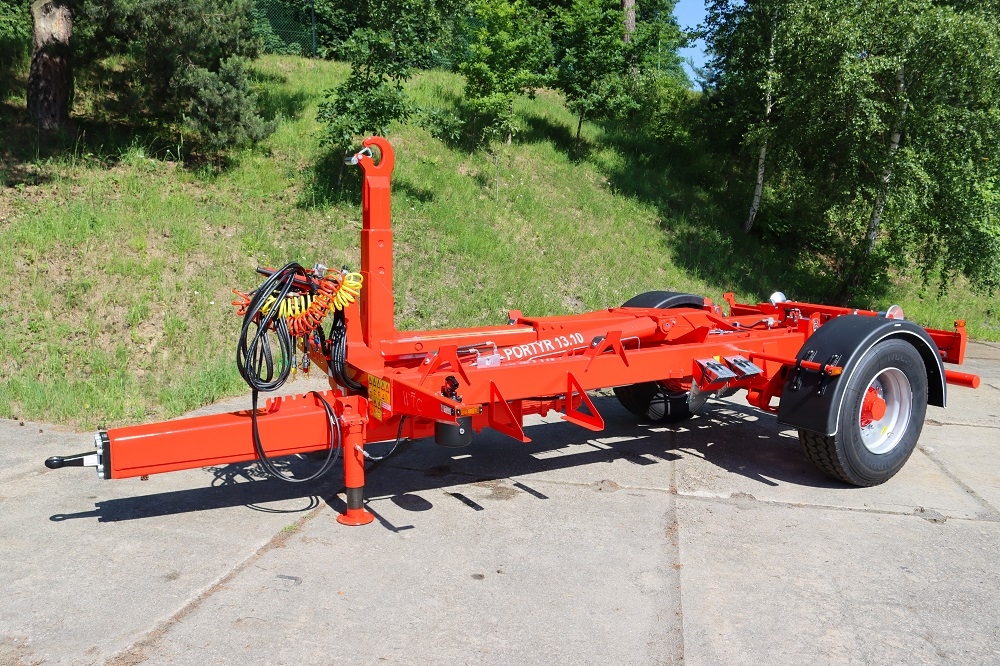

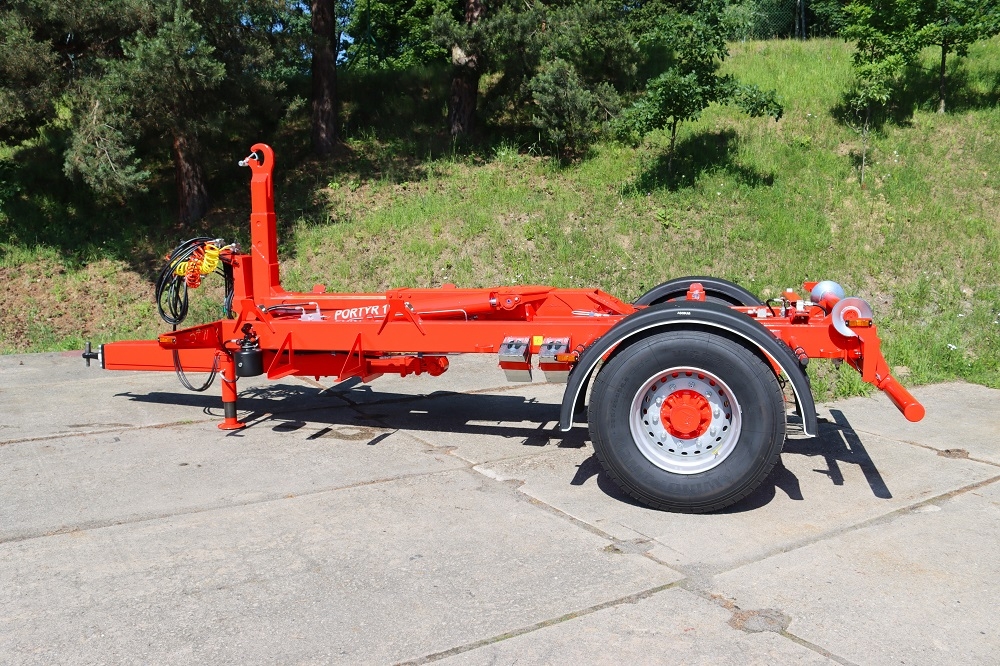

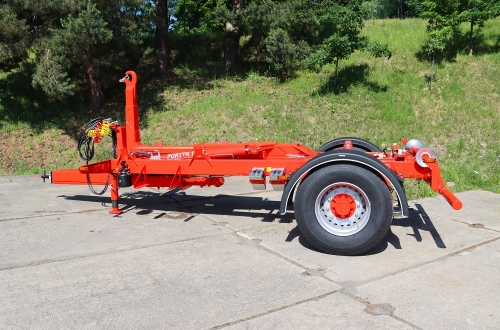

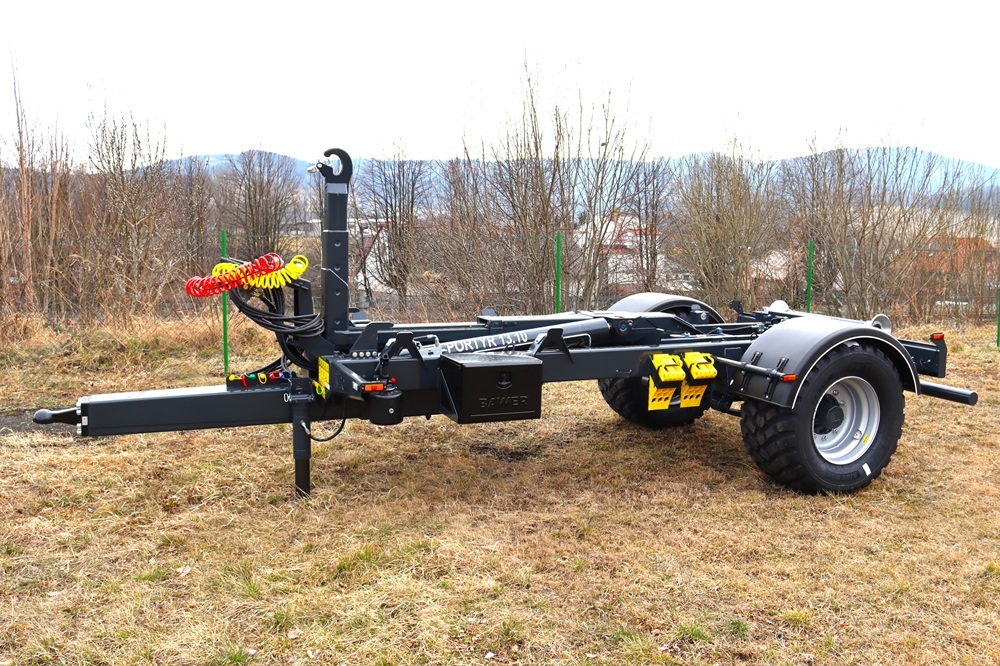

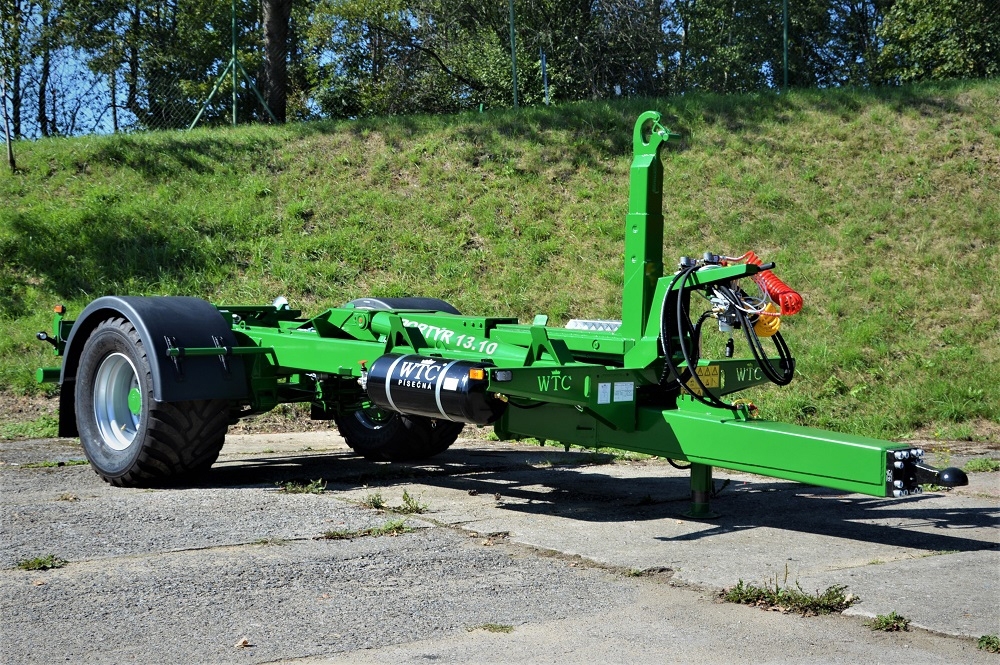

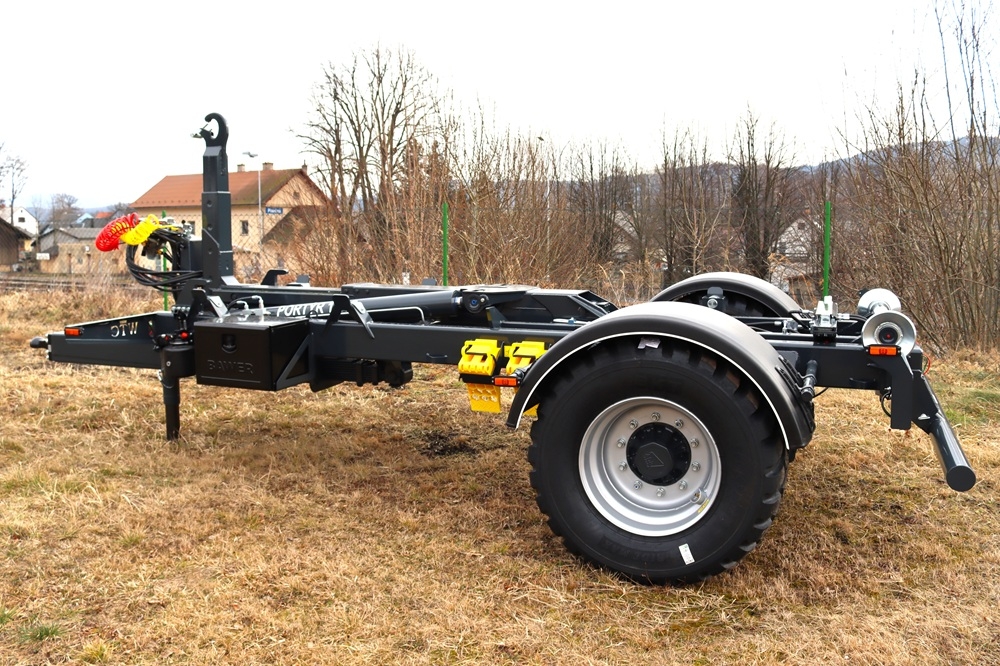

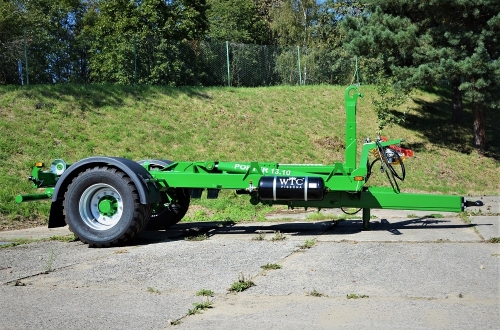

Container carrier PORTÝR 13.10

Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10
Standard equipment

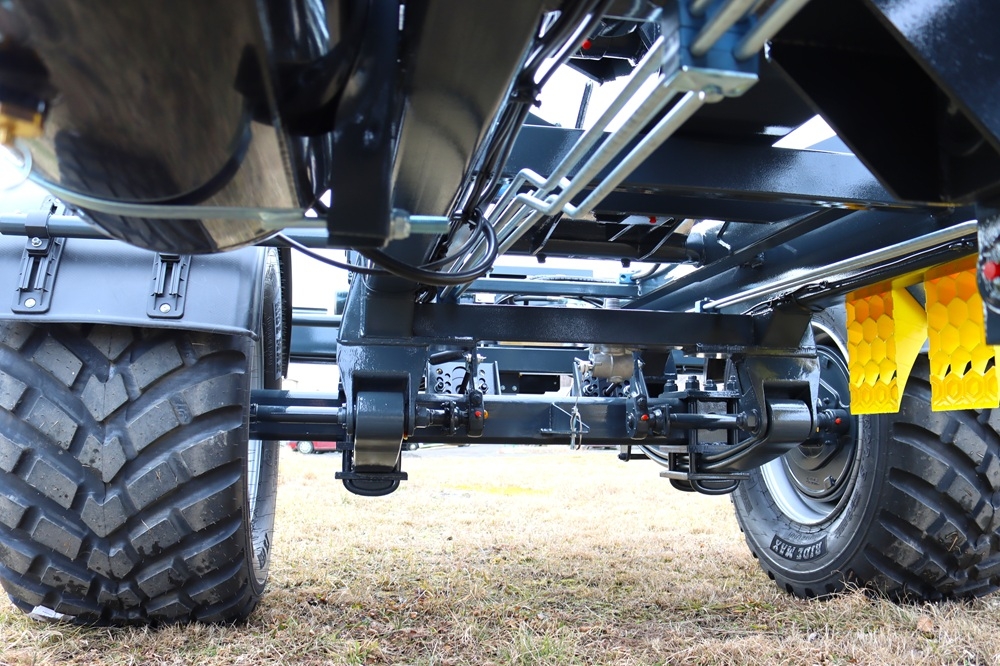

  • single suspended axle ADR

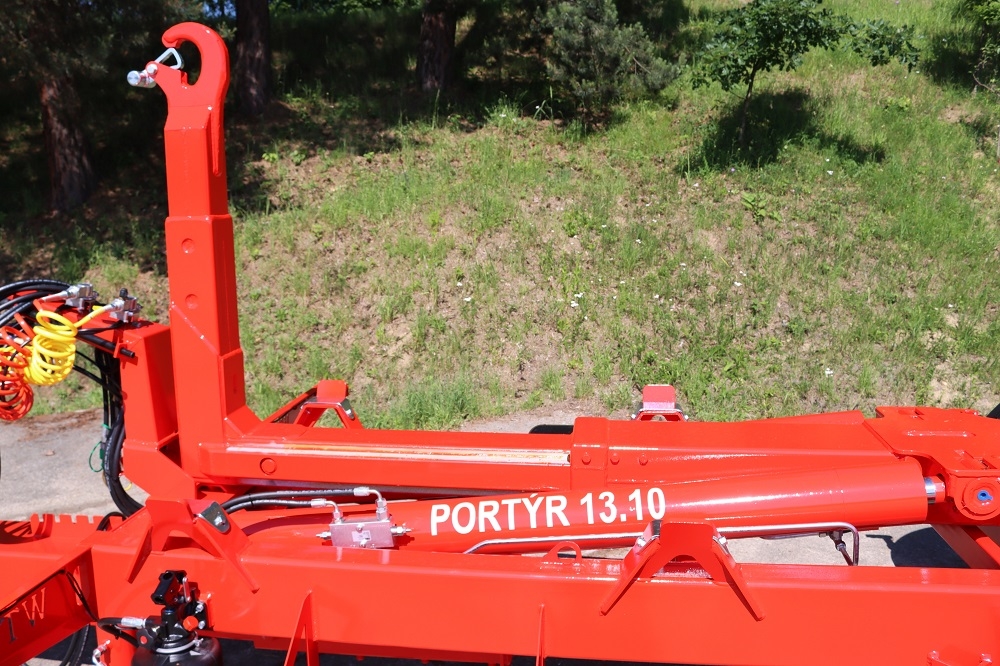

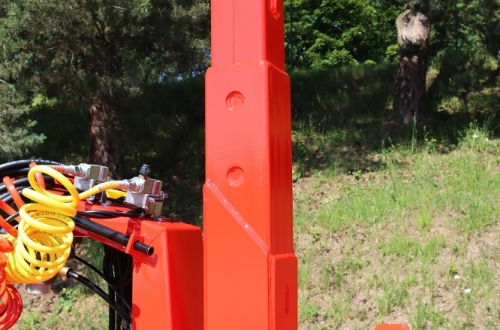

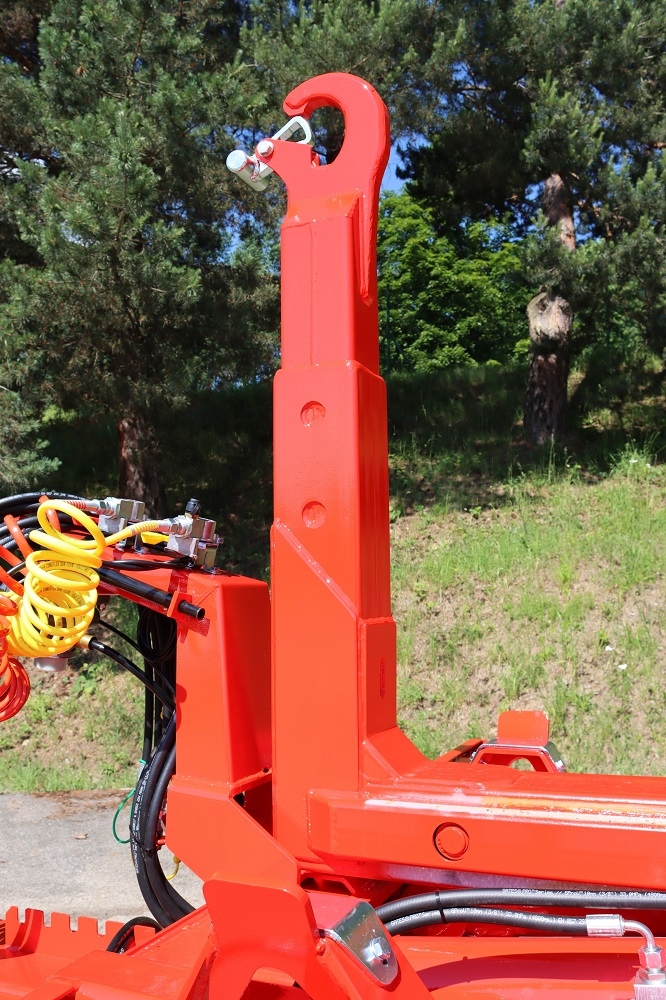

  • telescopic lift system – various container lengths
  • total permissible weight 13 000 kg
  • loading capacity 10 140 kg
  • optimal container length: 4,6 m
  • container length min/max: 3,9 – 4,6 m
  • hook height 1 000 mm

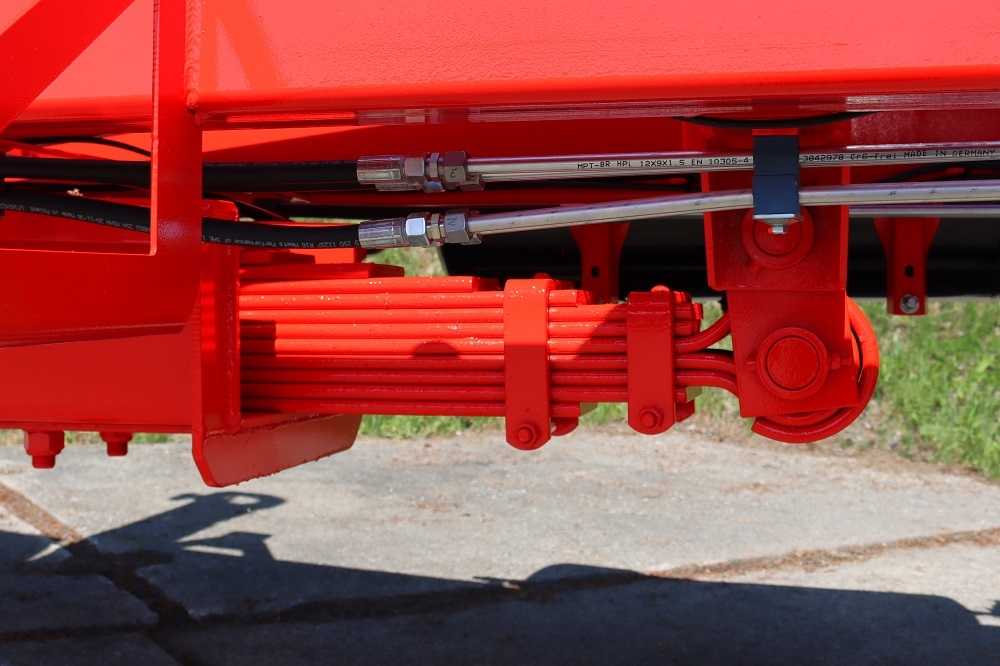

  • spring suspended height – adjustable drawbars

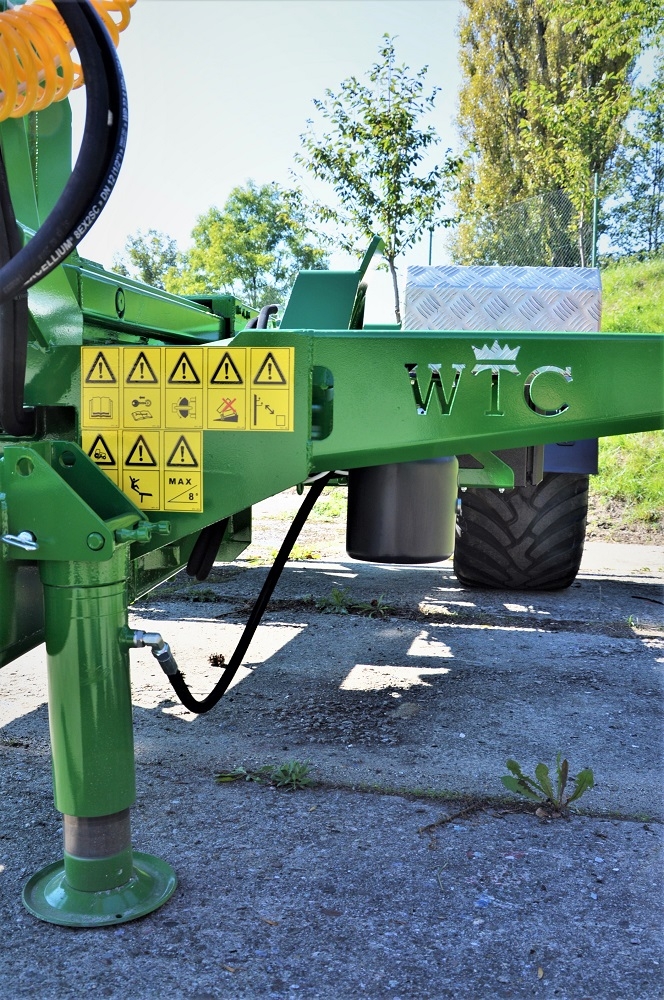

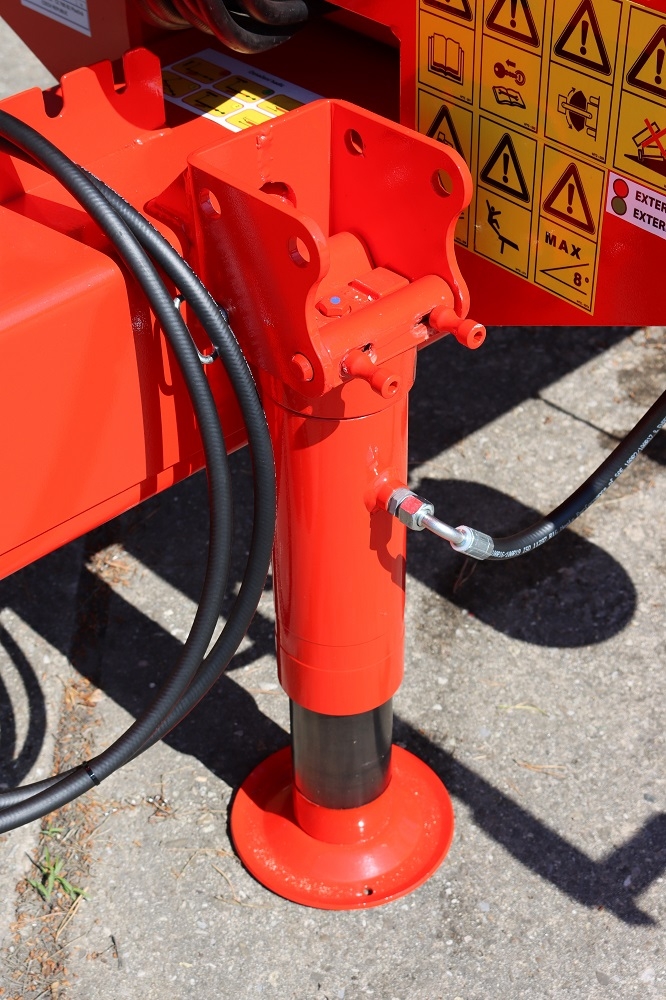

  • hydraulic drawbar support
  • direct connection to the tractor
  • automatic parking brake
  • automatic brake load sensing controller (ALB/AZR)

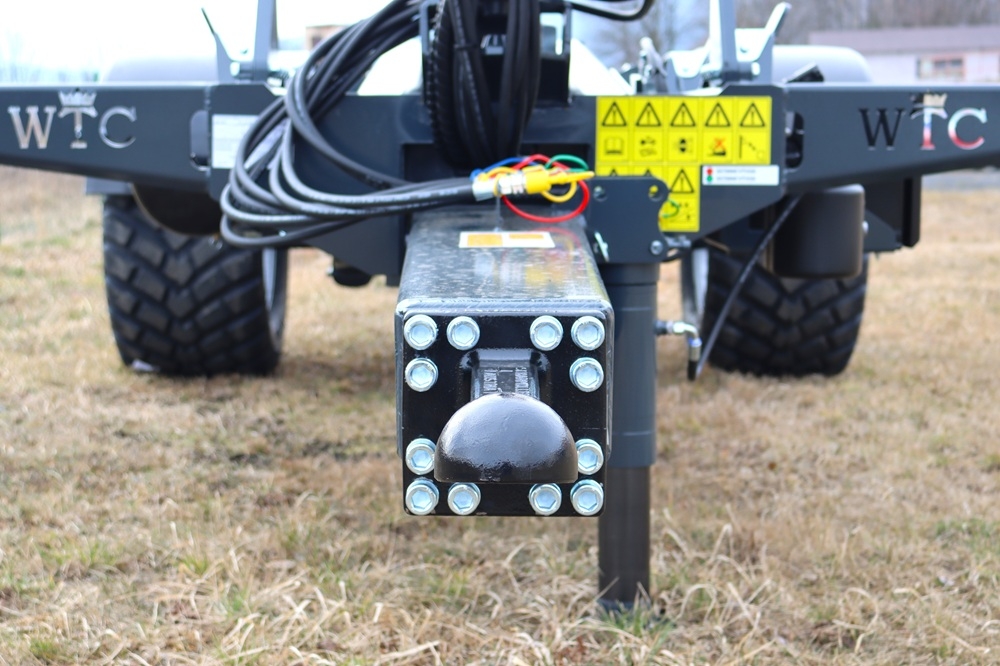

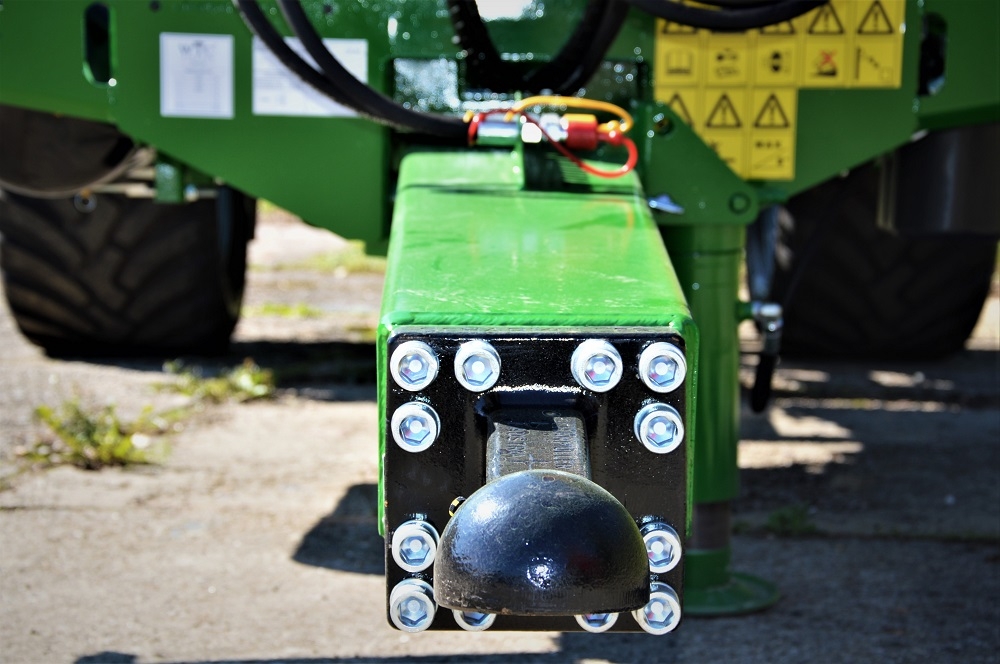

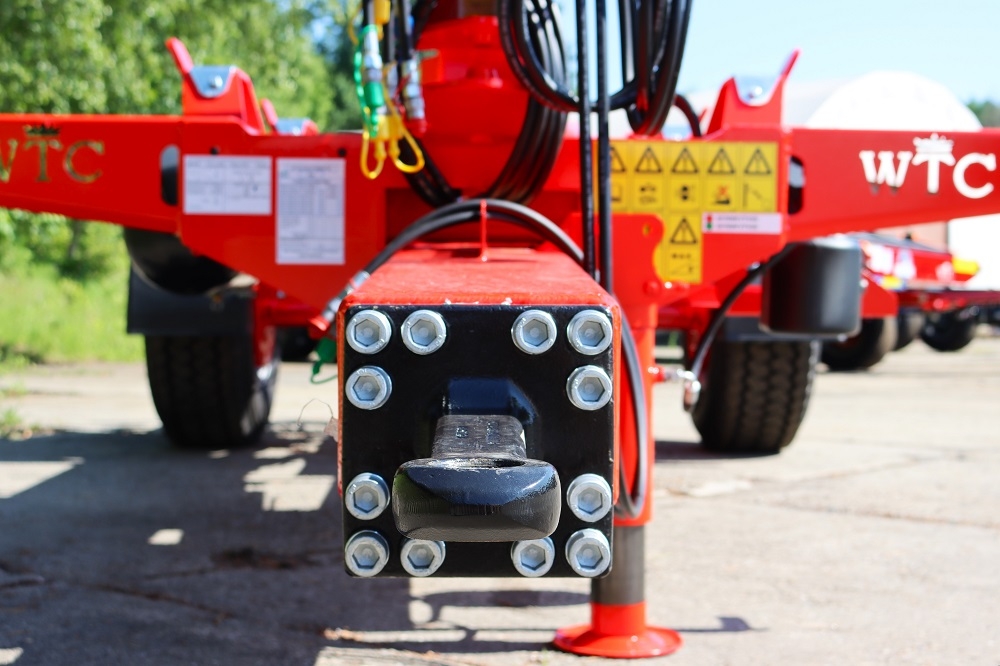

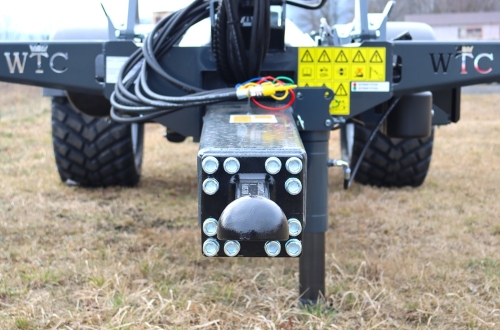

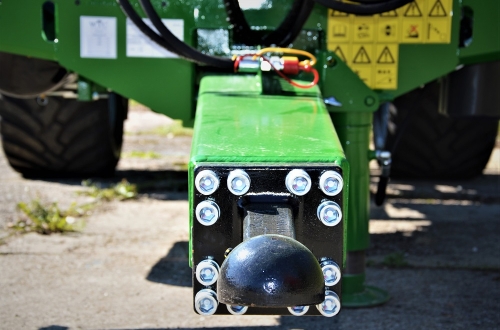

  • towing hitch 50 mm/ 40 mm / K-80

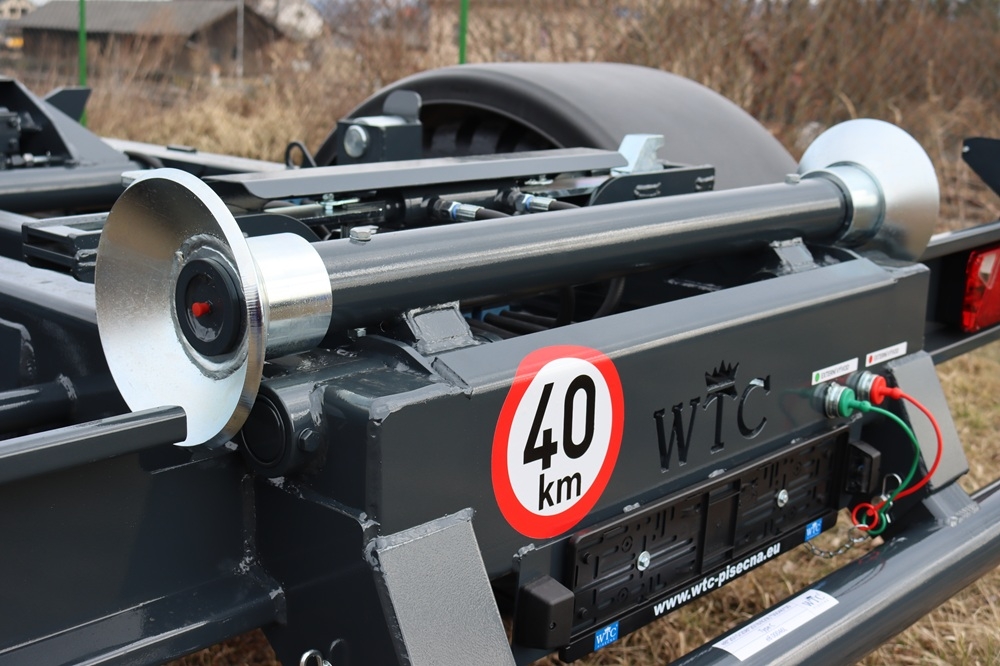

  • speed 40 km/hour
  • polyurethane paint

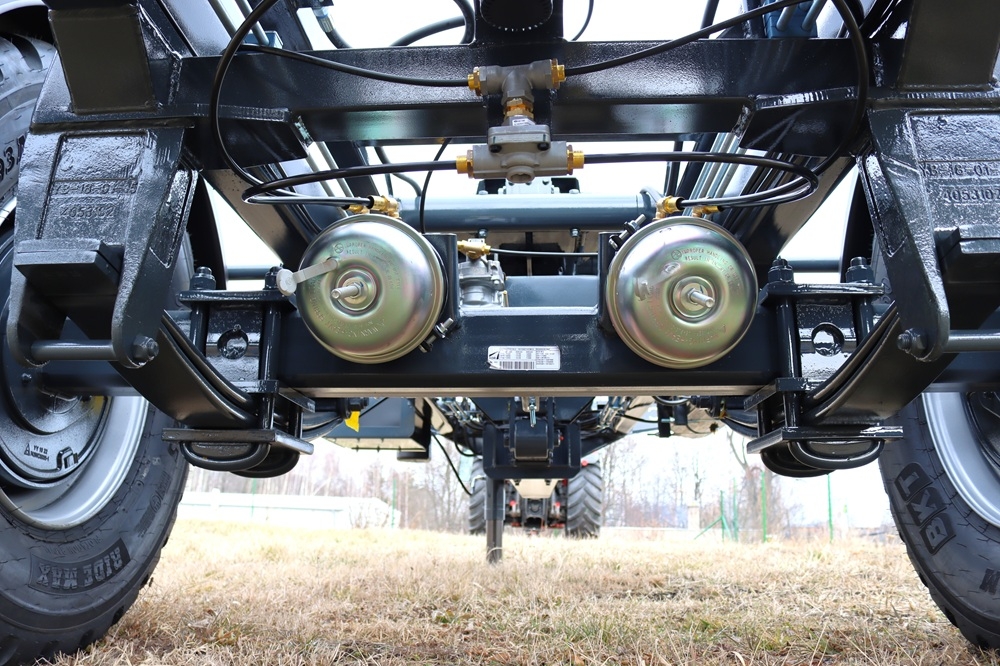

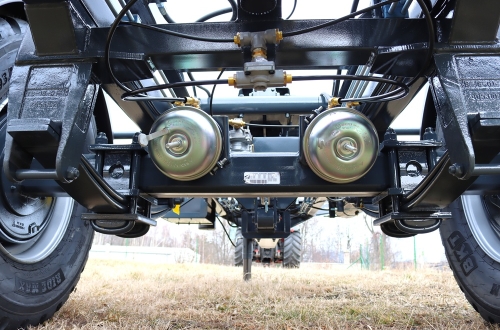

  • air brakes KNORR-BREMSE (double line)
  • wheels 385/65 R22,5 WINDPOWER
Optional equipment
  • swivel hitch 50 mm
  • 6-way solenoid valve (HUB hydraulic circuit IN 2x / 4x OUT)
  • electro-hydraulic control distributor of radio control (cardan drive-pump)
  • electro-hydraulic control distributor of radio control (drive straighten the tractor)
  • balancing rod

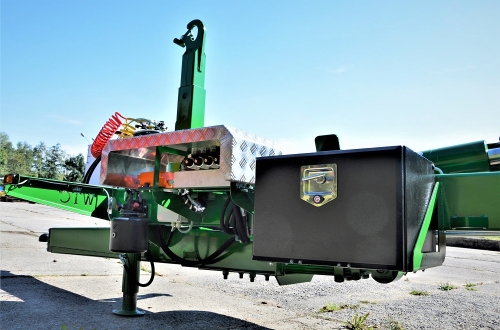

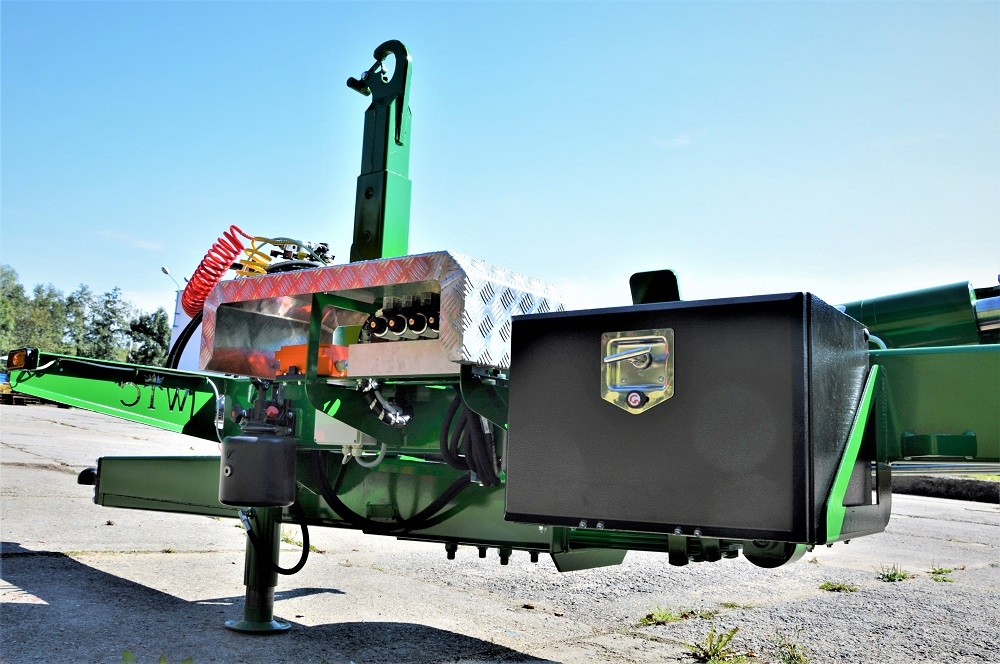

  • toolbox
  • the hydraulic circuit at the rear of the chassis
  • colour on request
  • camera (location according to usage)
  • beacon

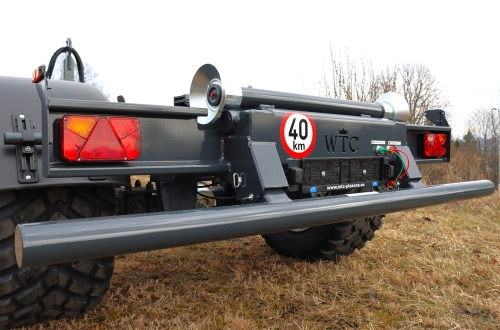

  • rear light
  • wheels 445/65 R22,5 Alliance 398
Technical parameters
Number of axles
1
Technically permissible mass (kg)
13 000
Payload (kg)
10 140
Operating weight (kg)
2 860
The length of container - optimal (m)
4,6
Hook height (mm)
1 000
Total Length (mm)
6 131
The total width of the chassis (m)
2,5
Maximum speed (km/h)
40

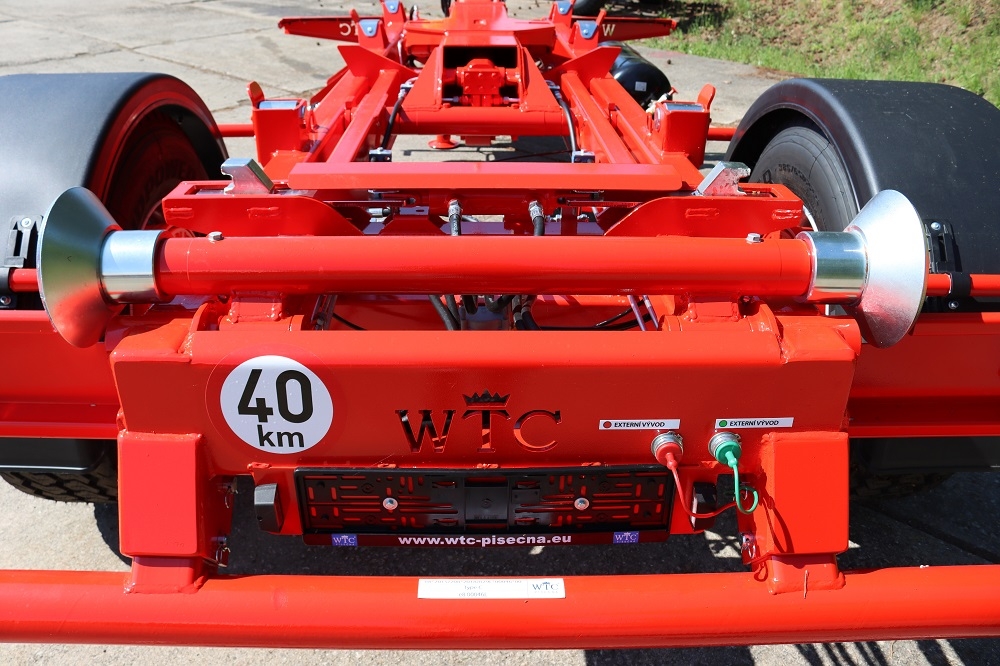

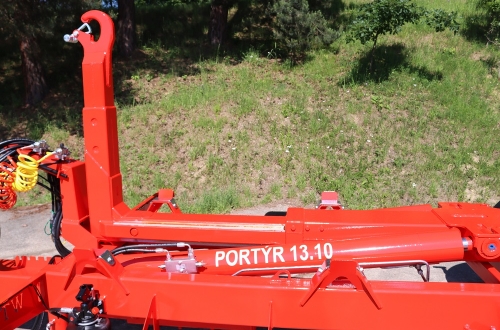

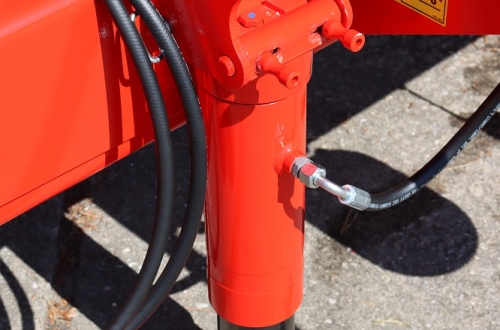

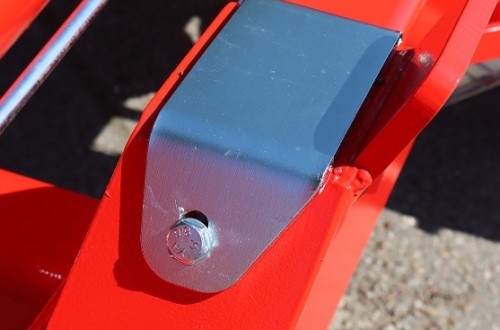

Photo gallery
Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10Container carrier PORTÝR 13.10
