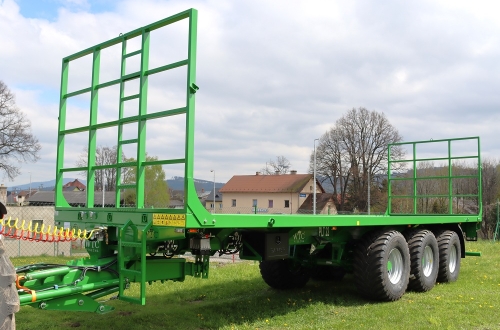

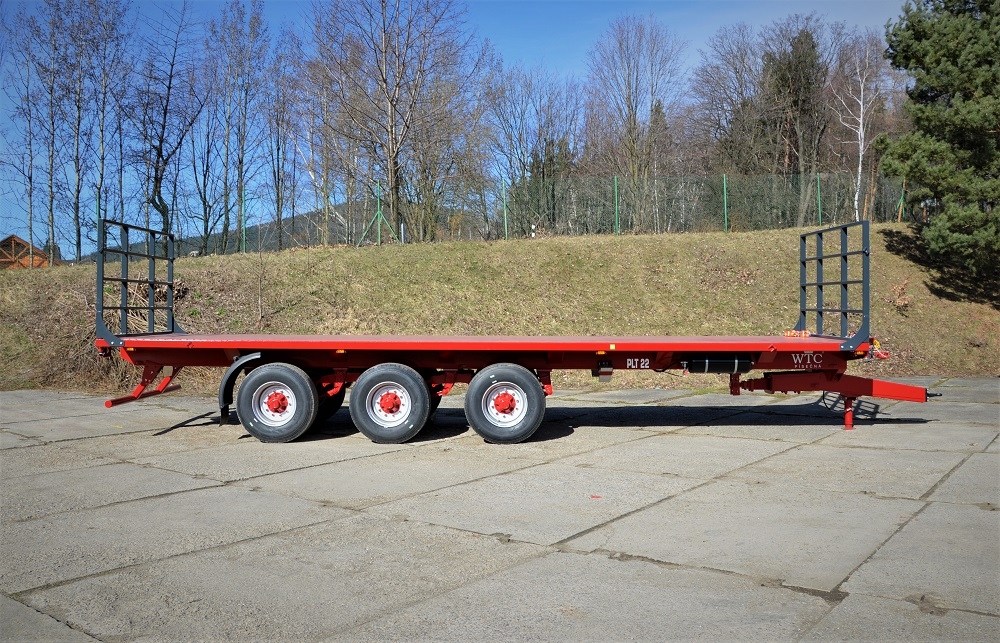

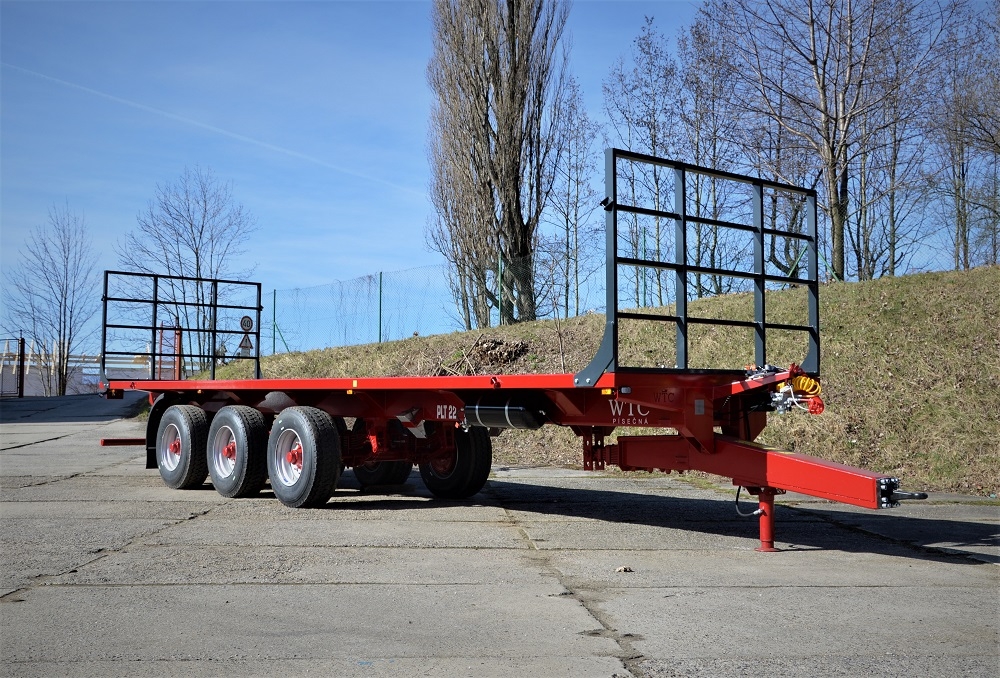

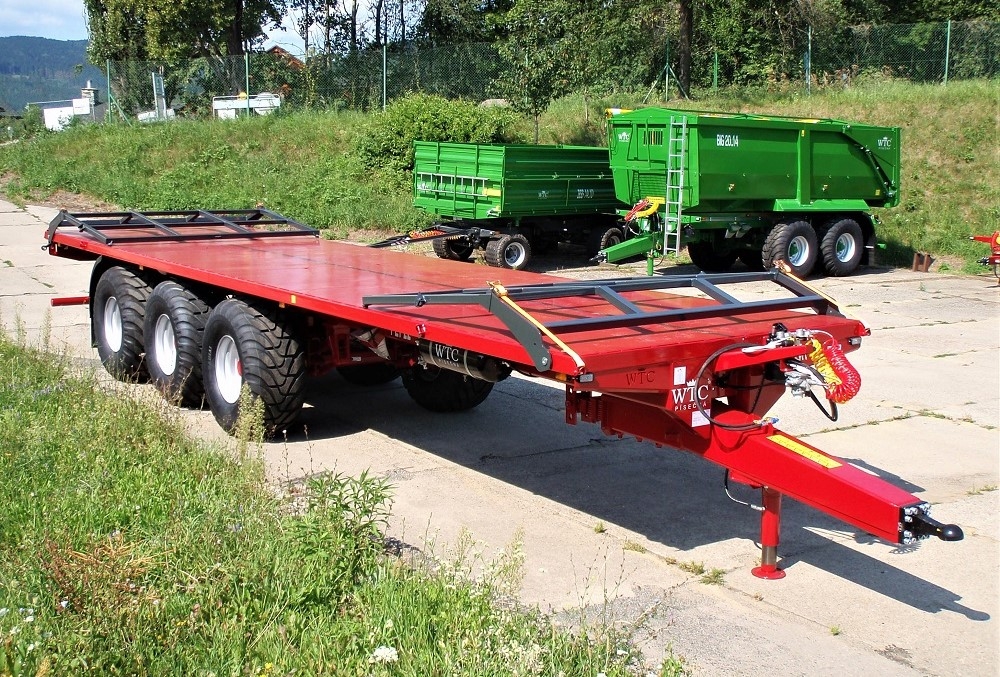

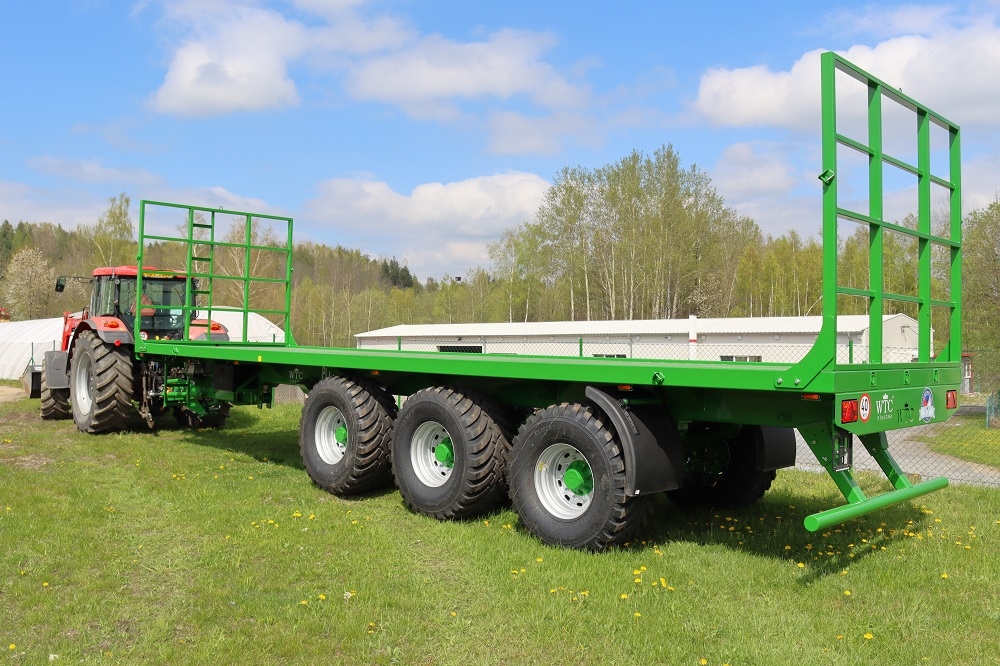

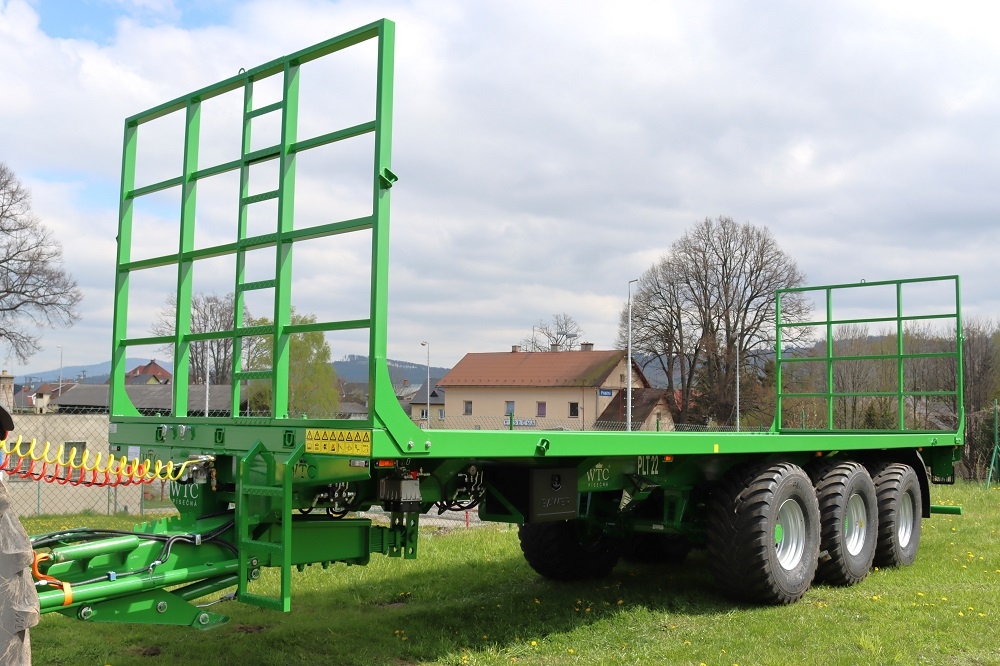

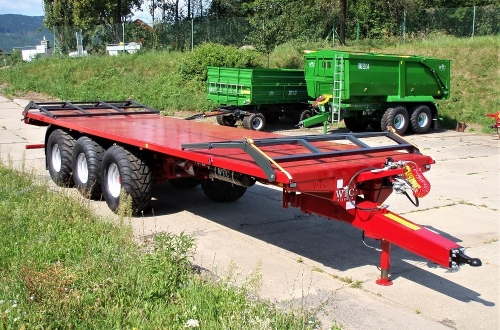

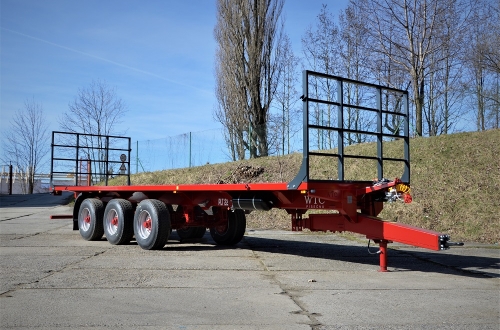

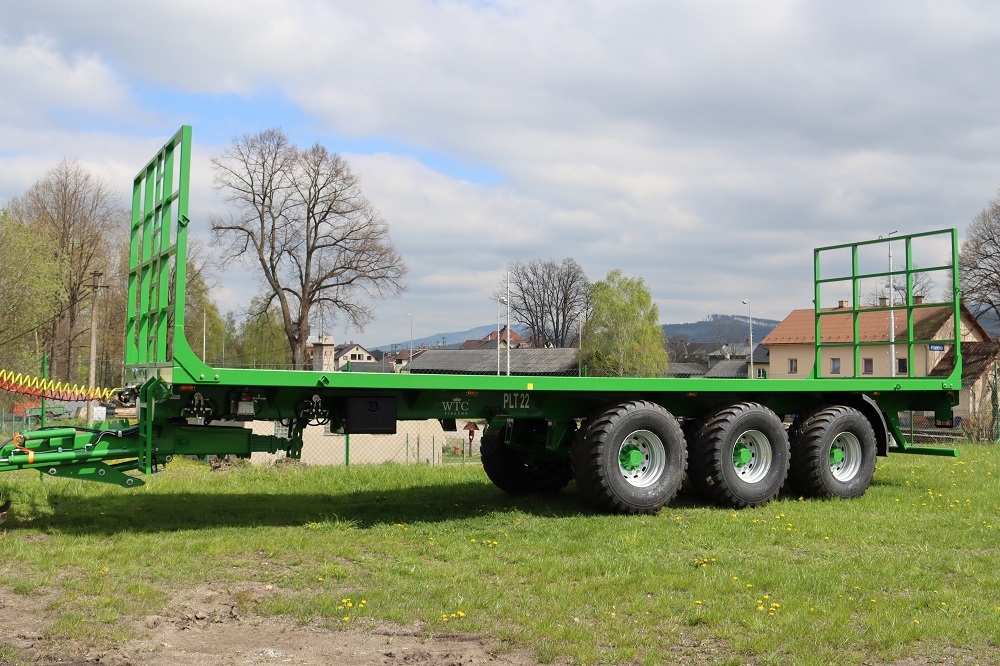

Bale transporter PLT 22 N

Bale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 N
Standard equipment

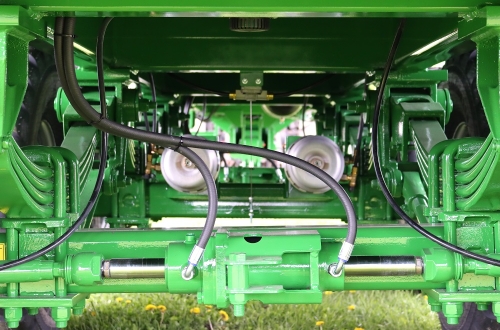

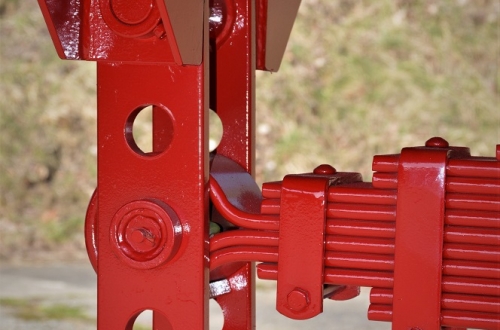

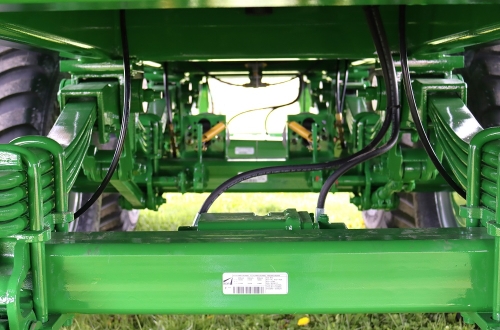

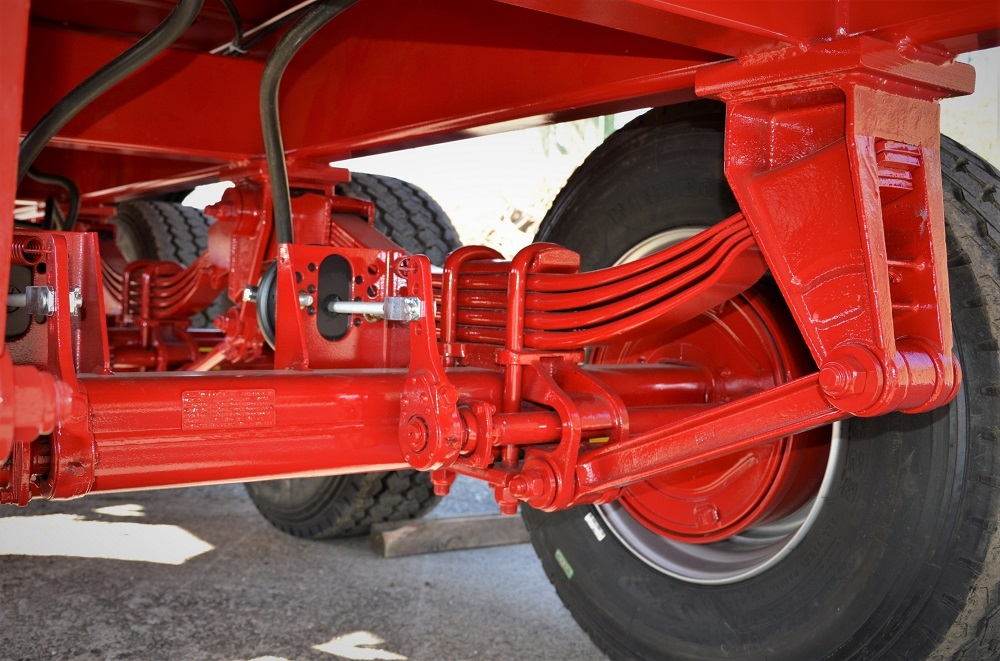

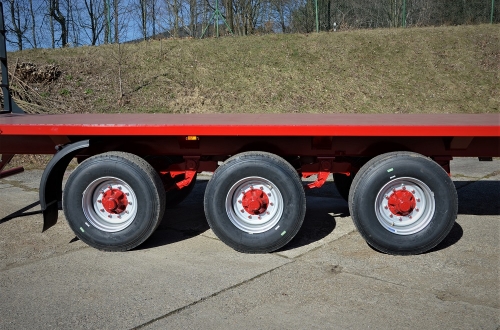

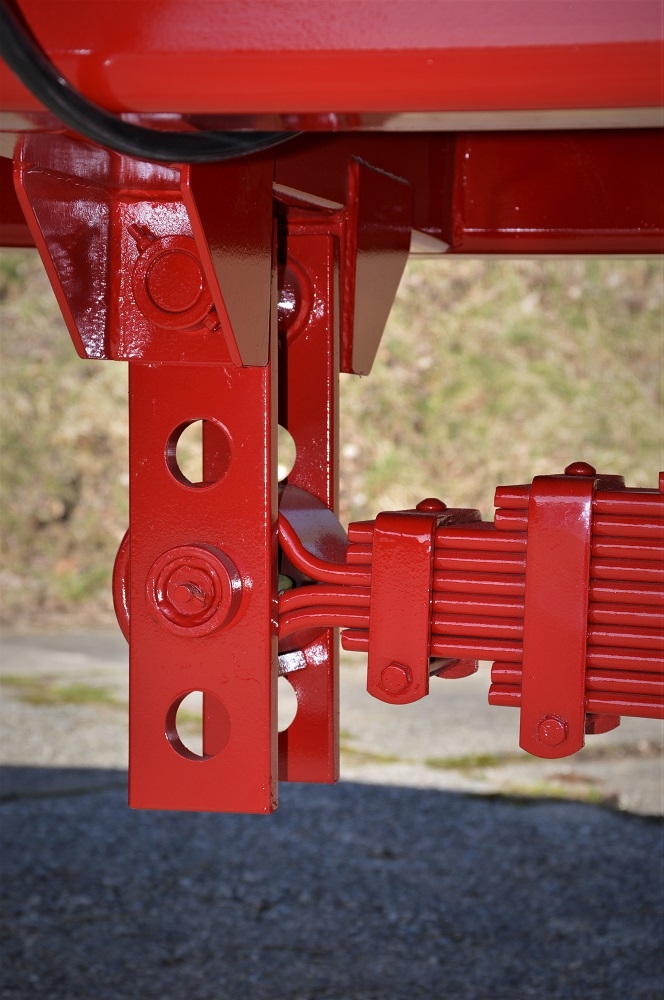

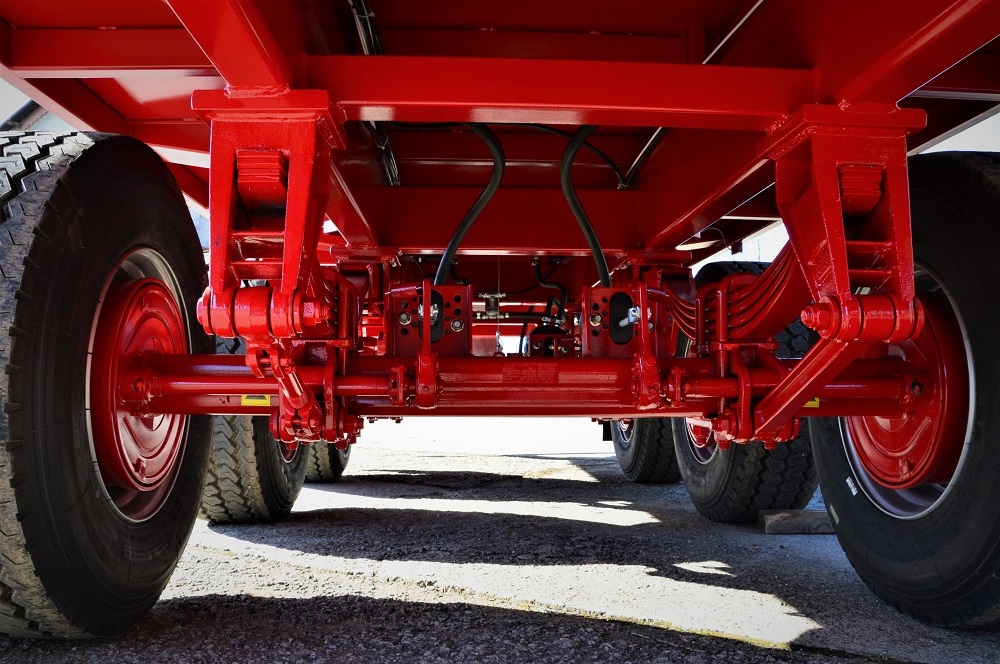

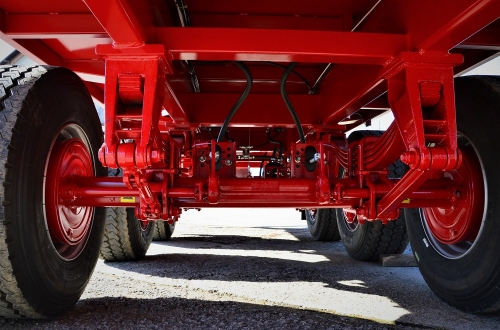

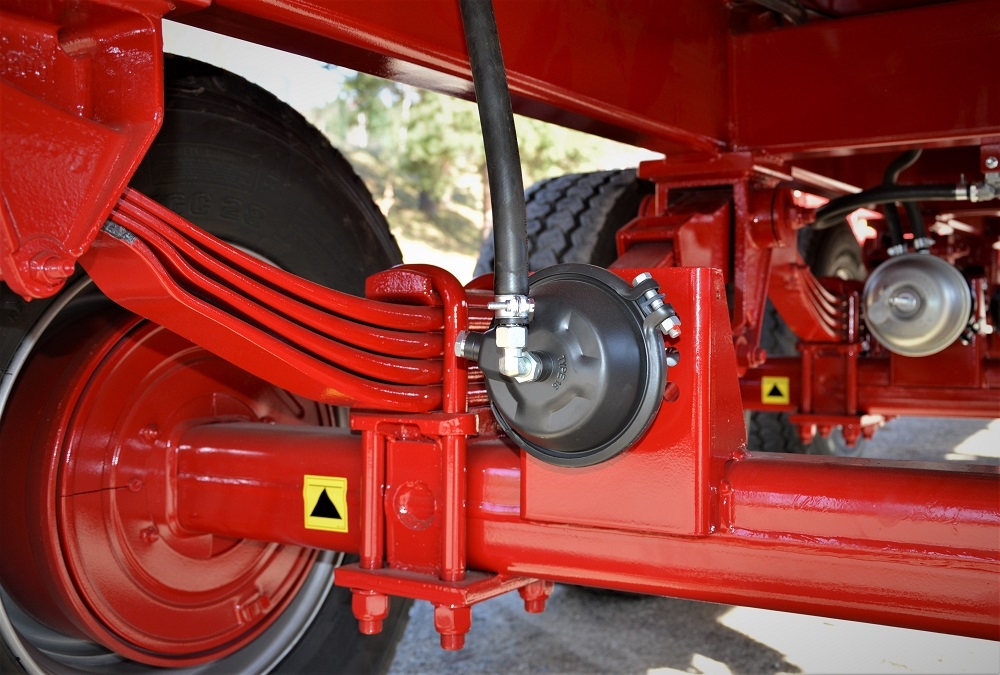

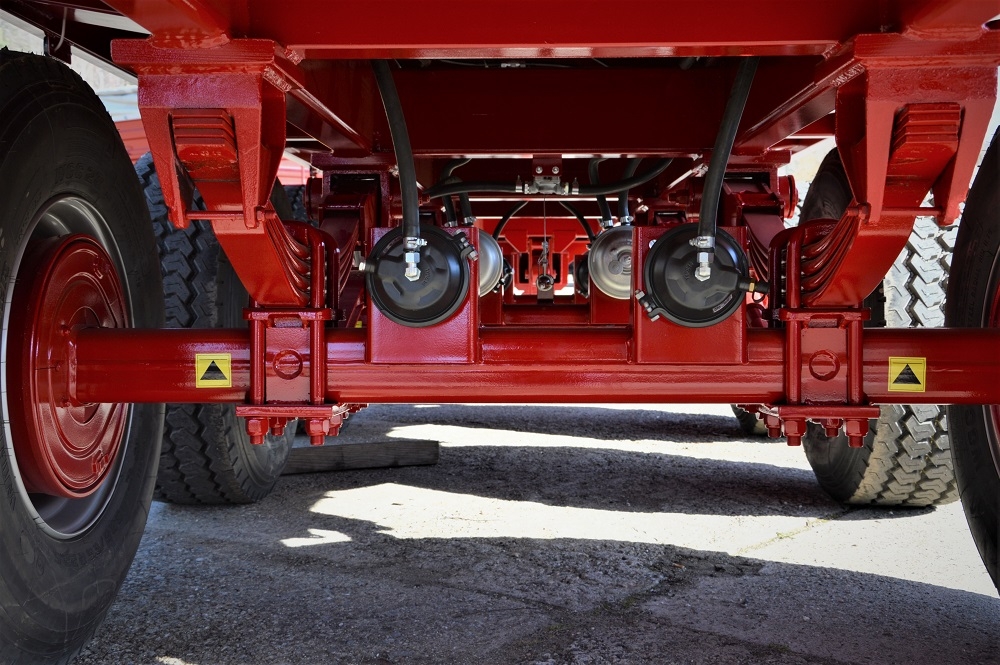

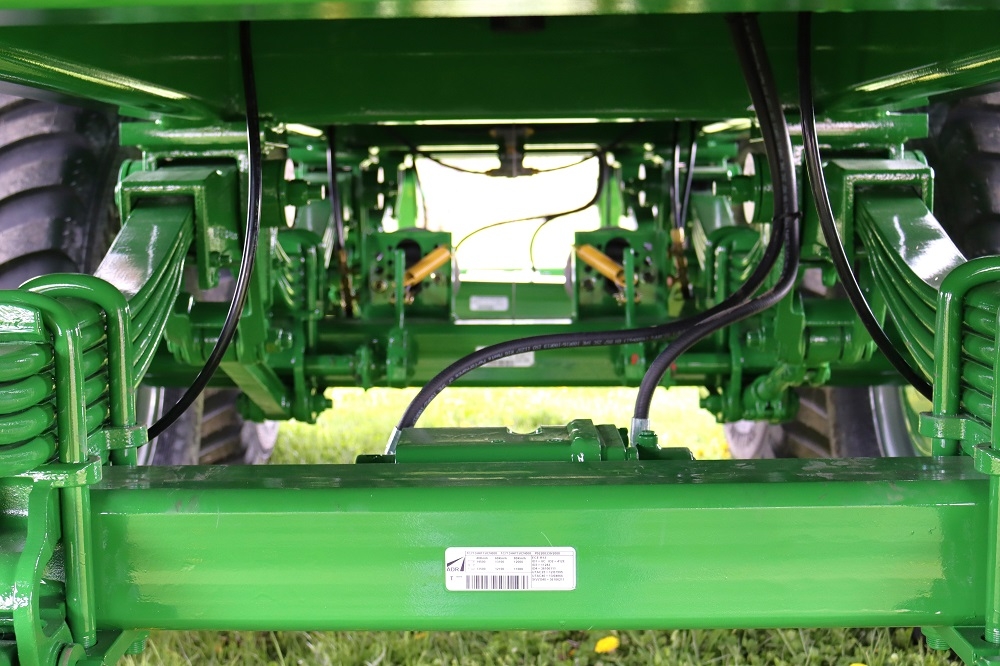

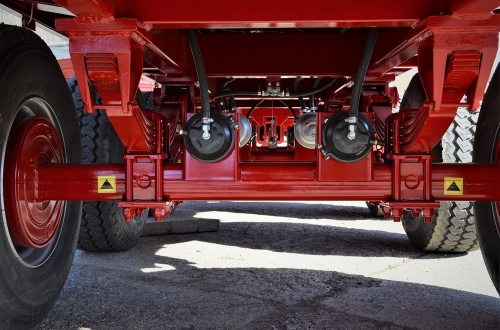

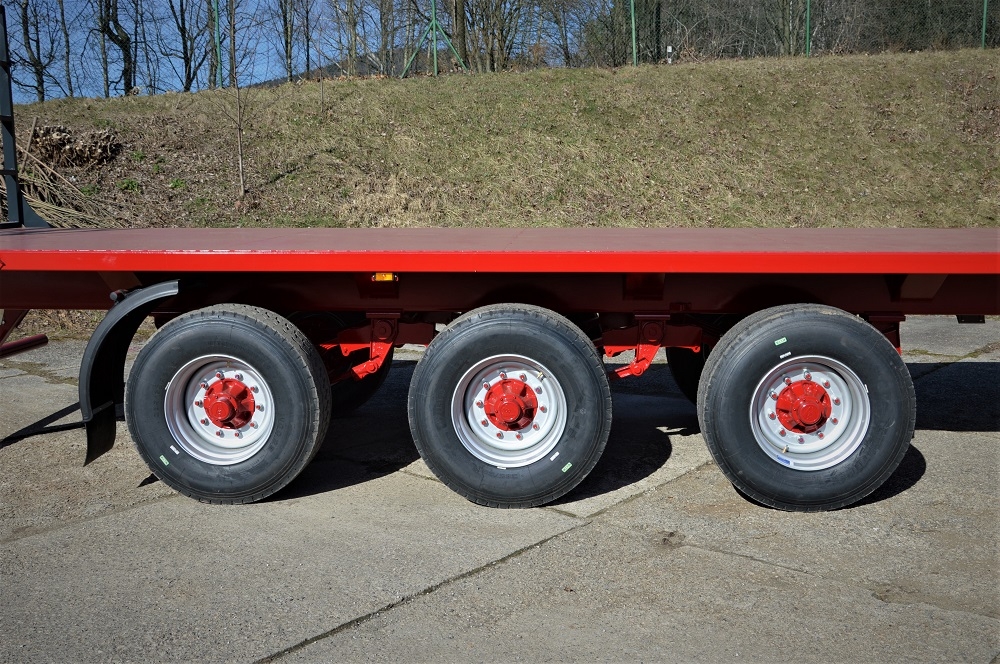

  • suspended TRIDEM axle ADR
  • total permissible weight: 27 000 kg
  • loading capacity: 20 000 kg
  • loading area: 10,2 x 2,4 m
  • automatic parking brake

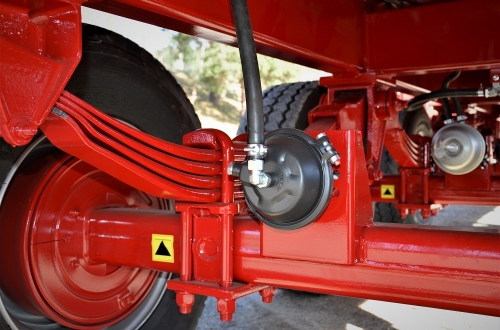

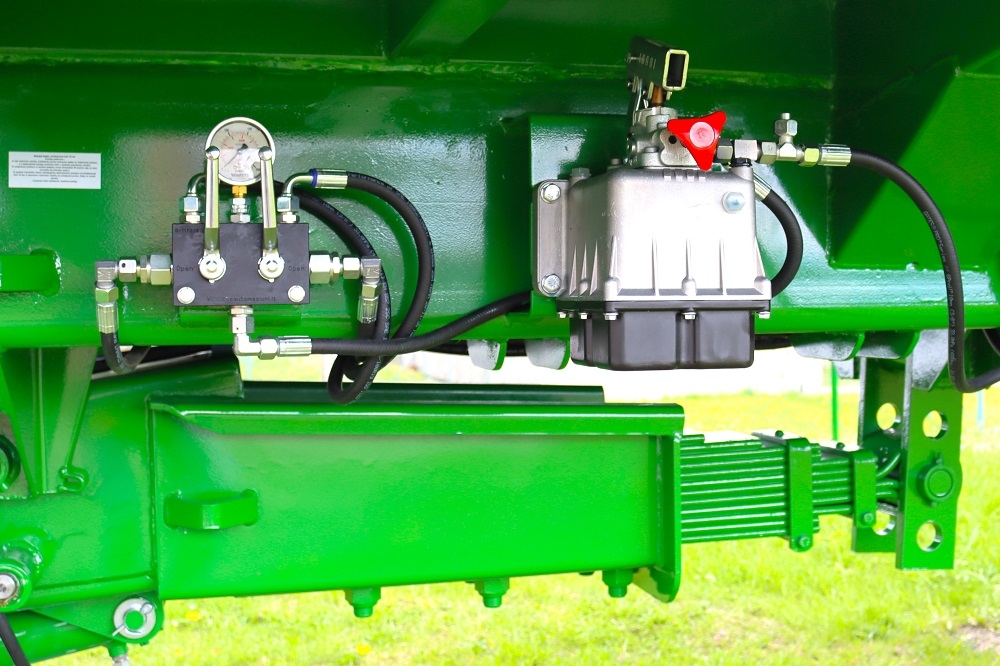

  • automatic brake load sensing controller

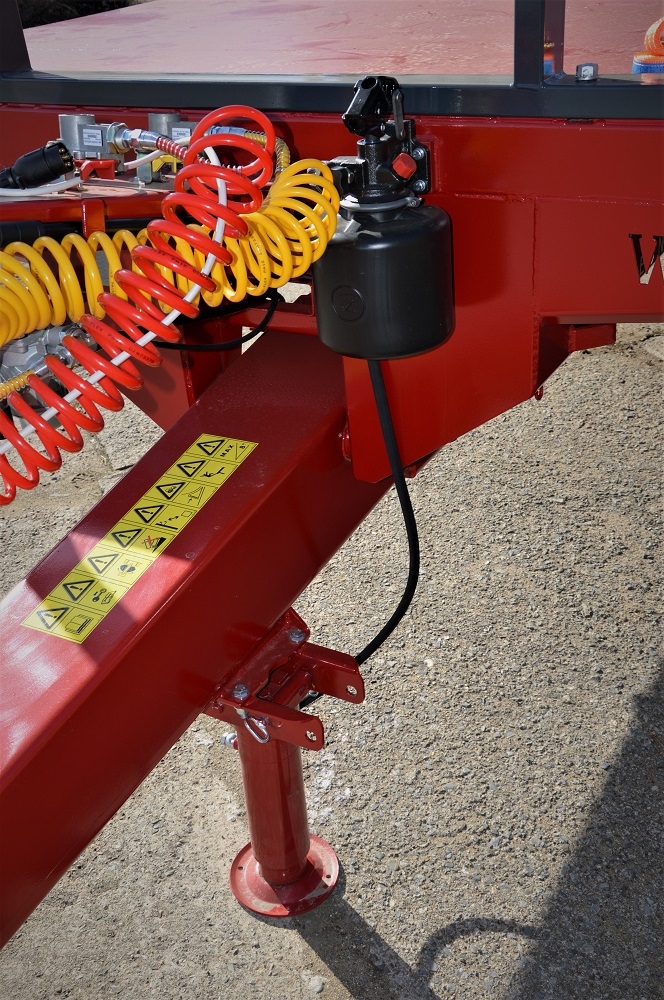

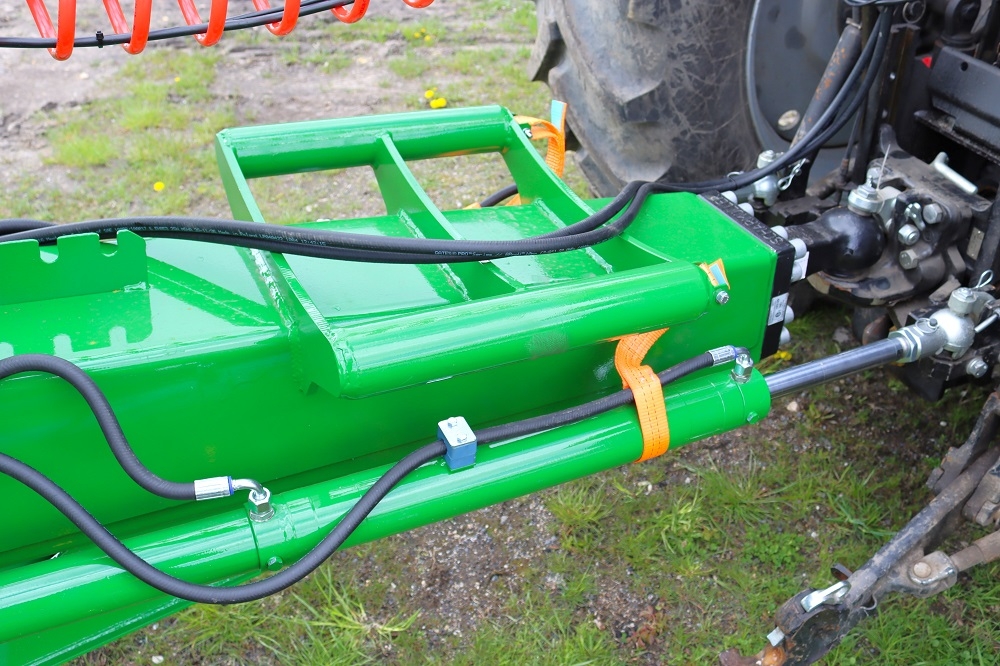

  • height-adjustable drawbars
  • towing hitch Scharmüller 40mm/50 mm/K-80
  • tractor lower hitch
  • speed 40 km/h
  • polyurethane paint
  • massive frame of thick-walled closed section
  • wheels 385/65R22,5 RE
Optional equipment

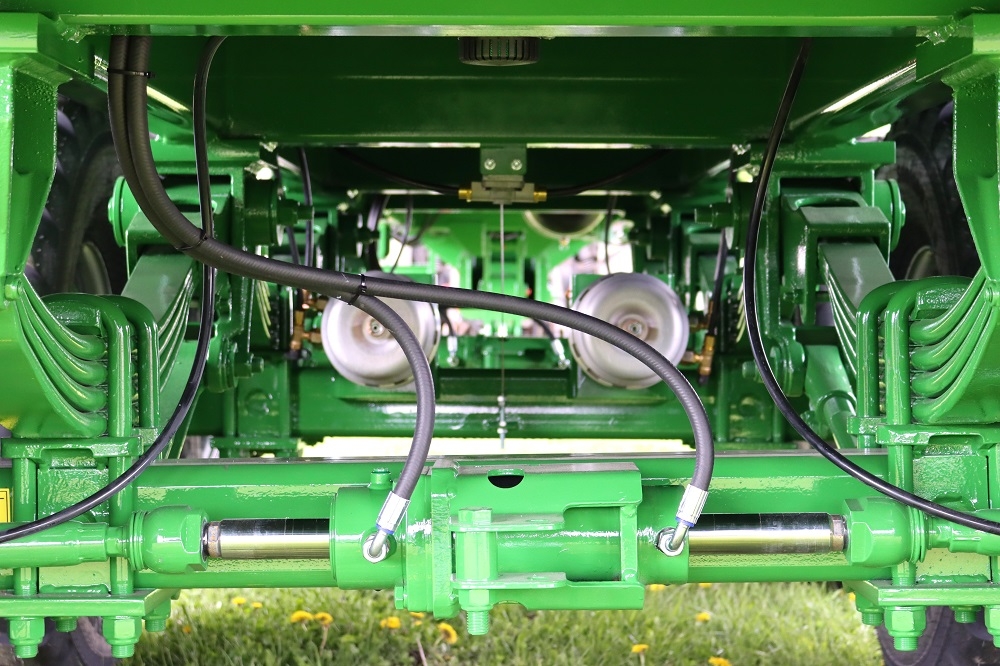

  • steerable trailing axle (first and third)
  • steerable axle - positive steering (first and third)
  • air suspension of the axles
  • swivel hitch 50 mm
  • colour on request

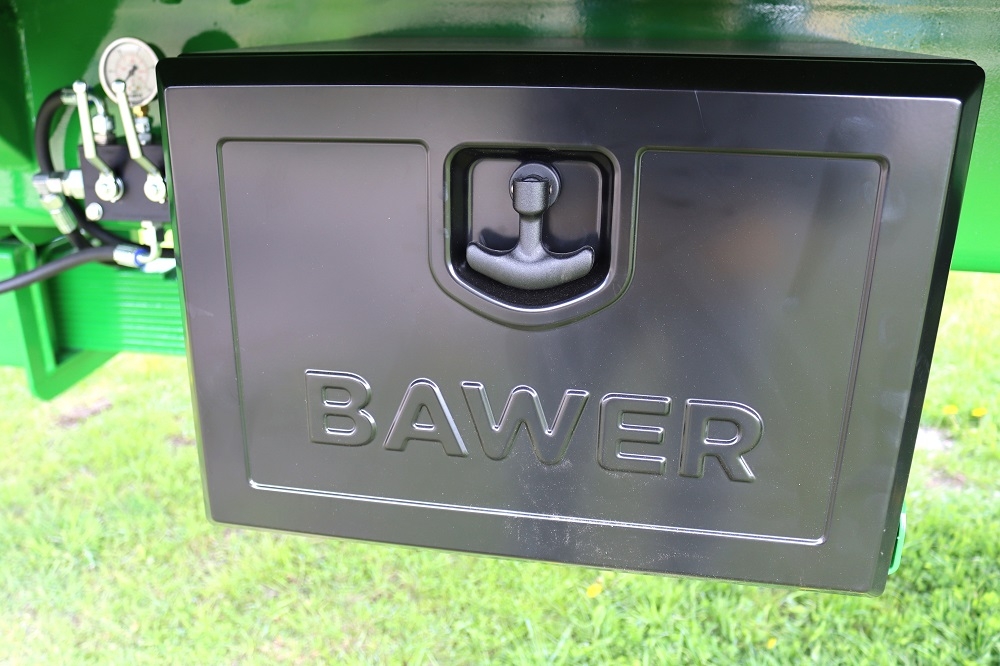

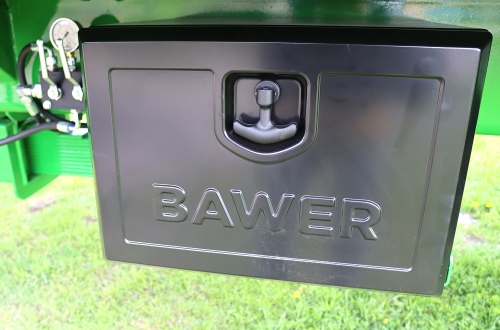

  • toolbox
  • speed 60 km/hod

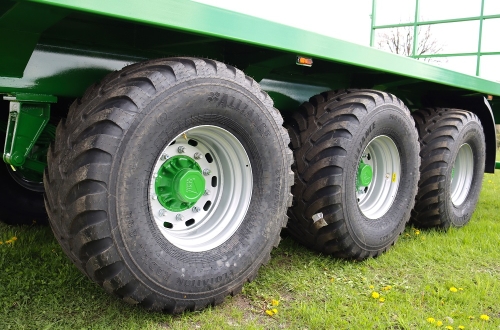

  • wheels 445/65R22,5 Mitas AR 01
  • wheels 560/45R22,5 152D BKT FL-630 Plus TL
  • wheels 560/45 R22,5 ALLIANCE 885 Steel Belted
  • wheels 560/45 R22,5 BKT FL-693 TL
  • wheels 560/45 R22,5 NOKIAN Country King TL
  • wheels 560/60R22,5 Mitas AR 02
  • wheels 560/60R22,5 161D BKT FL-630 Plus TL

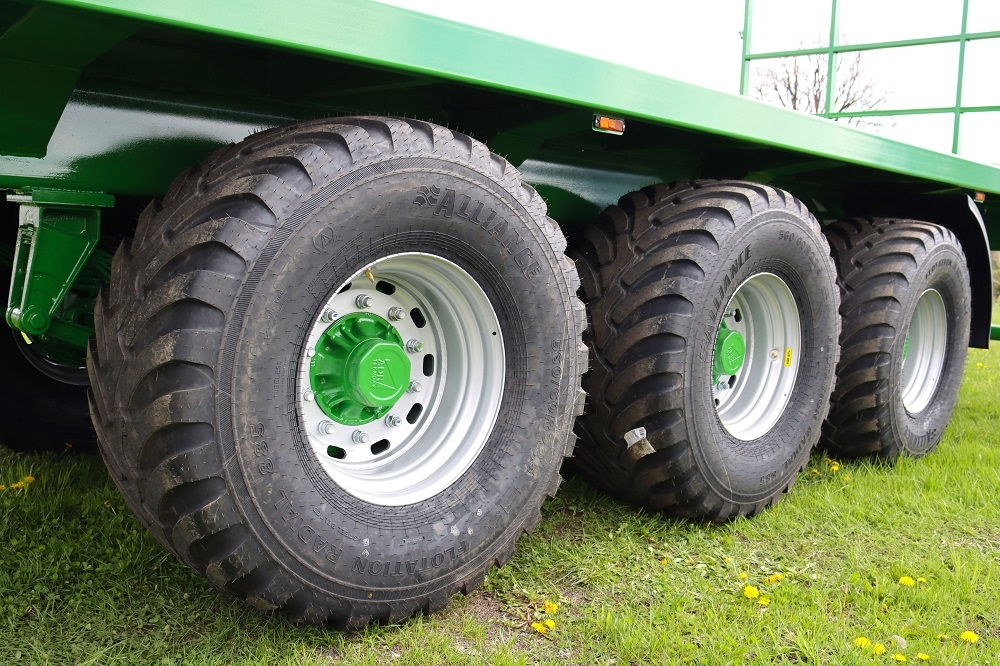

  • wheels 560/60R22,5 Alliance 885 Steel Belted
  • wheels 560/60R22,5 Alliance 390
  • wheels 560/60R22,5 161D Country King TL
  • wheels 560/60-22.5TL Michelin
Technical parameters
Number of axles
3
Technically permissible mass (kg)
27 000
Payload (kg)
20 000
Platform width (m)
2,4
Length of usable space (m)
10,2
Overall length (m)
12
Overall width - basic (m)
2,55
Maximum speed (km/h)
40 / 60
Photo gallery
Bale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 NBale transporter PLT 22 N
Inquiry
If you are interested in any of our products, please do not hesitate to use the simple inquiry form. The sent question will be perceived as completely non-binding. We will respond to your request as soon as possible.
