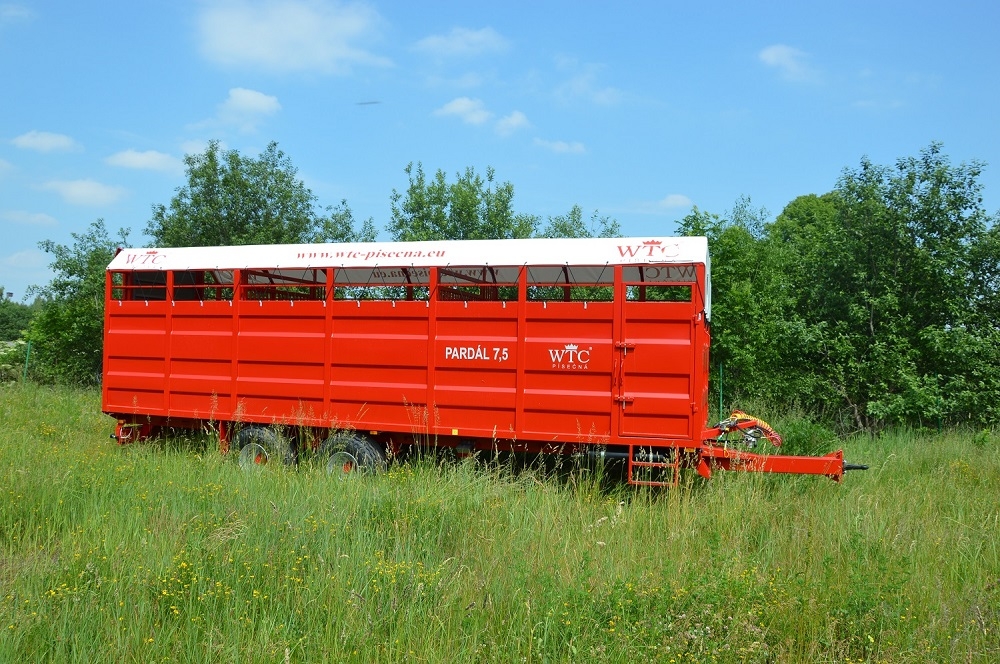

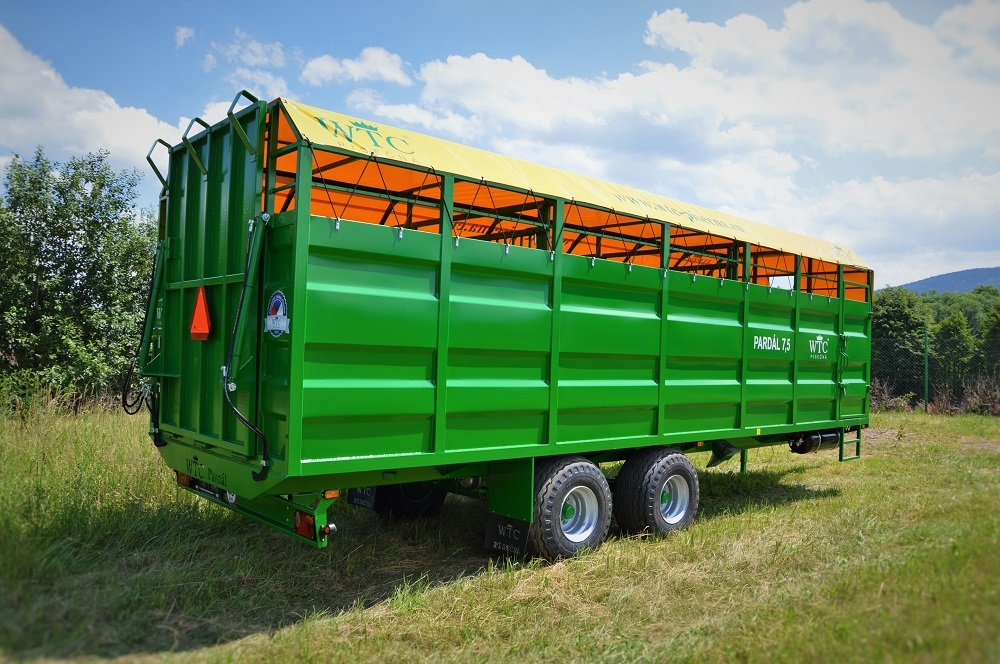

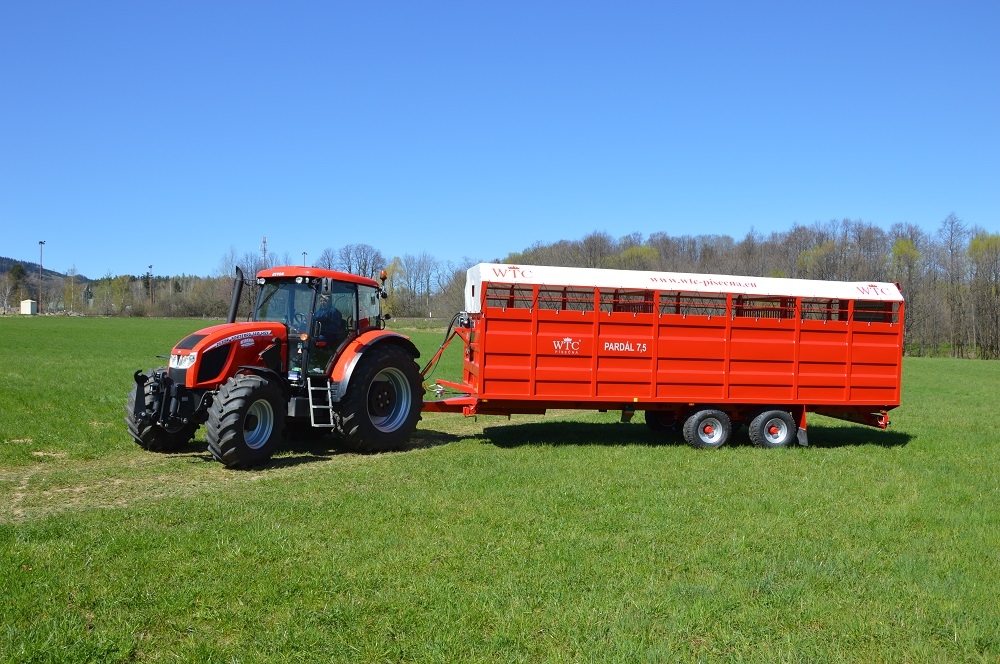

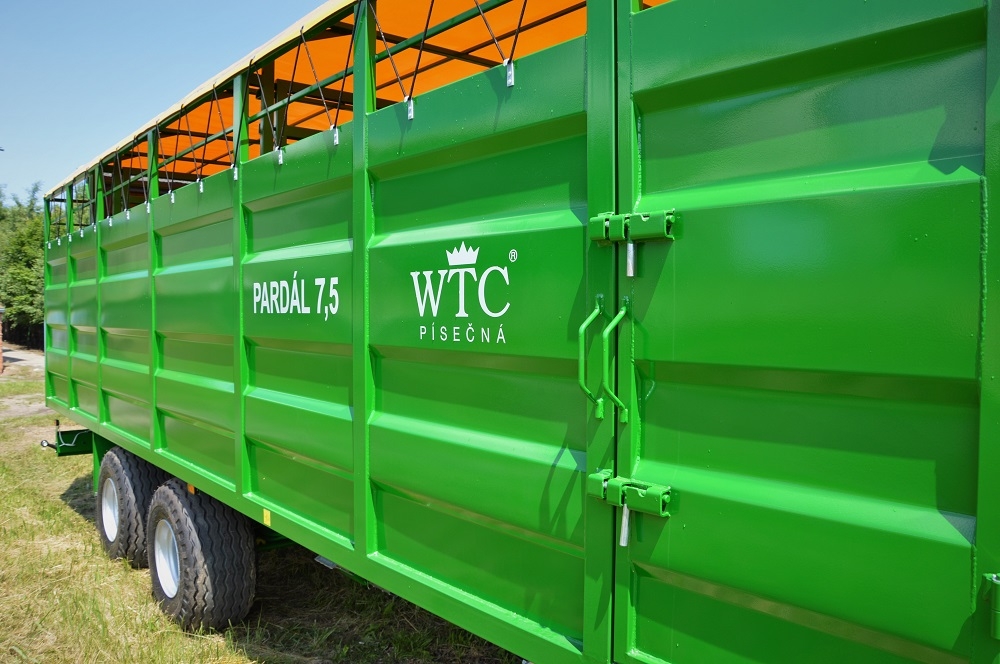

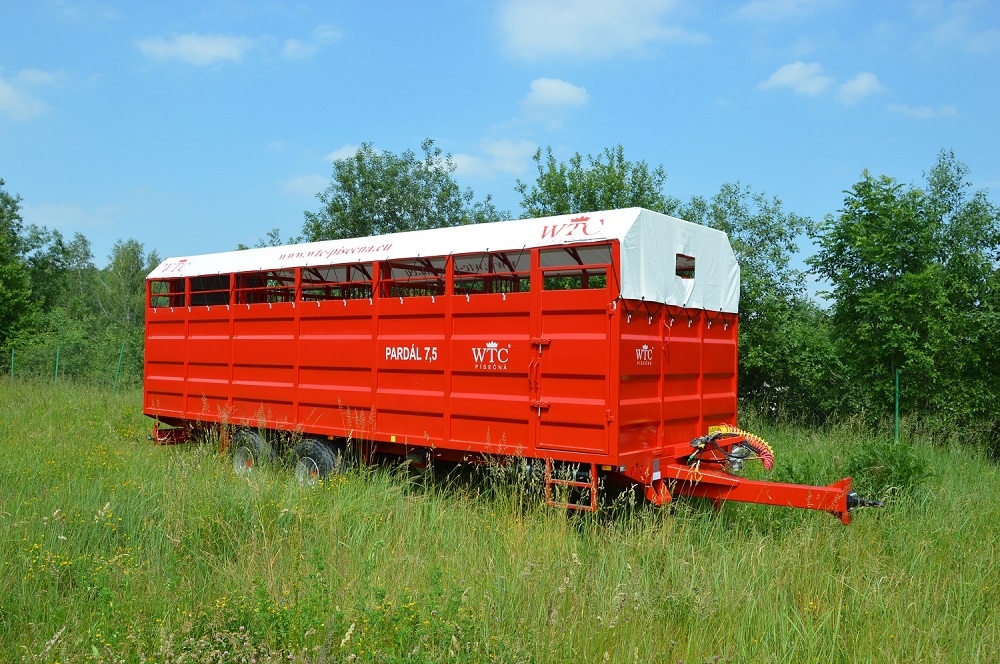

Animal carrier PARDÁL 7,5
Standard equipment

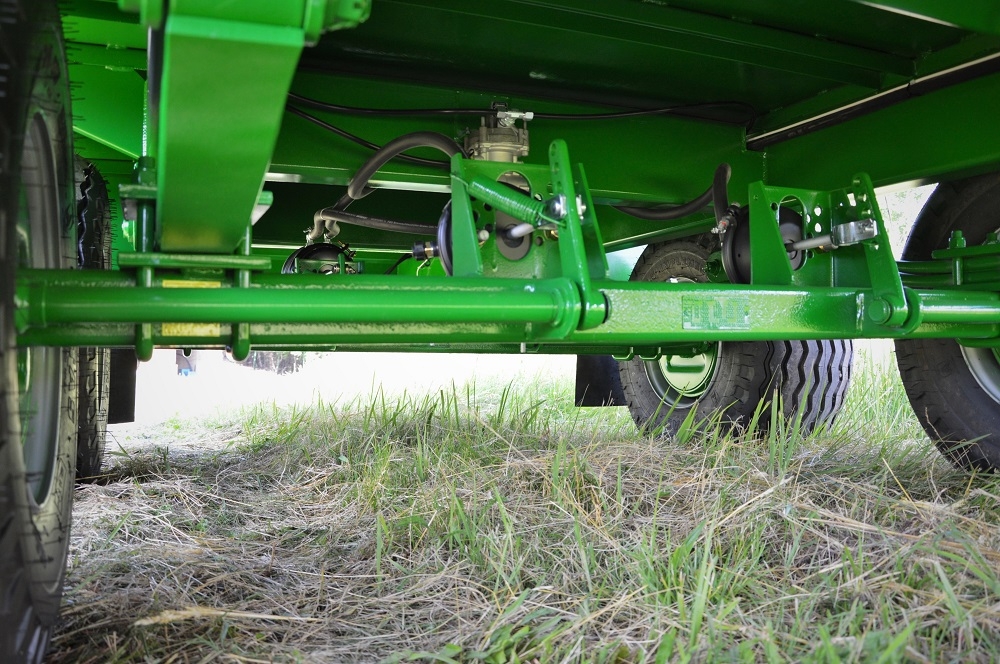

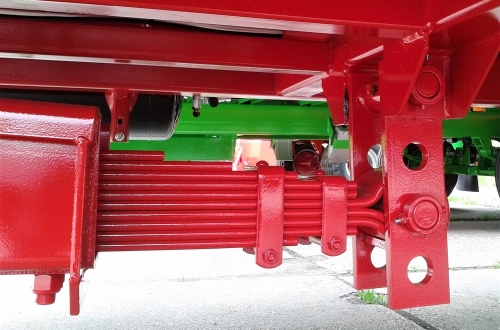

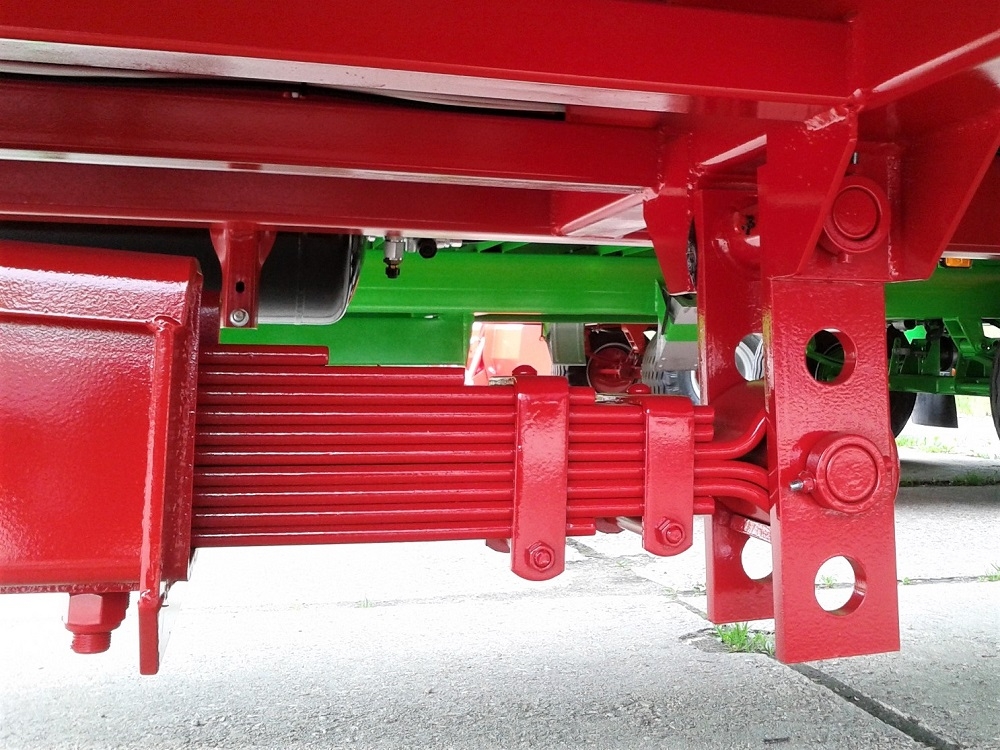

- suspended tandem axle ADR
- capacity heads of beef cattle: 12 - 14
- loading area: 7,5 m x 2,34 m
- total permissible weight 12 000 kg

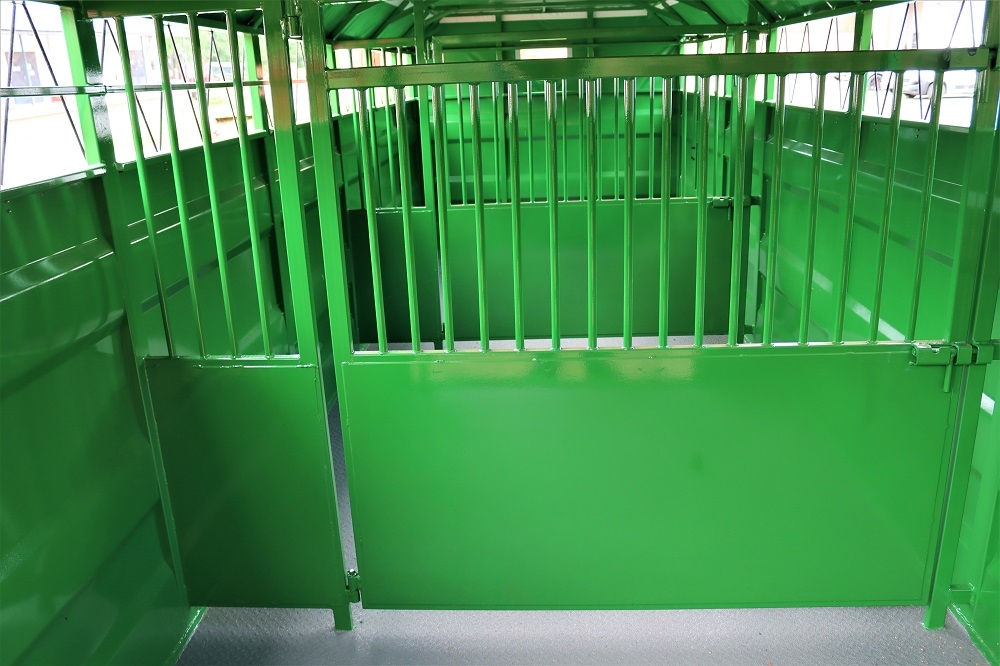

- 3 section with 2 partition door
- front door

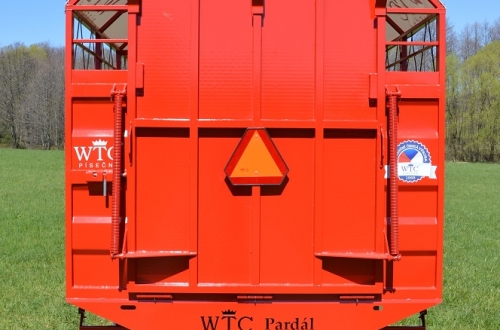

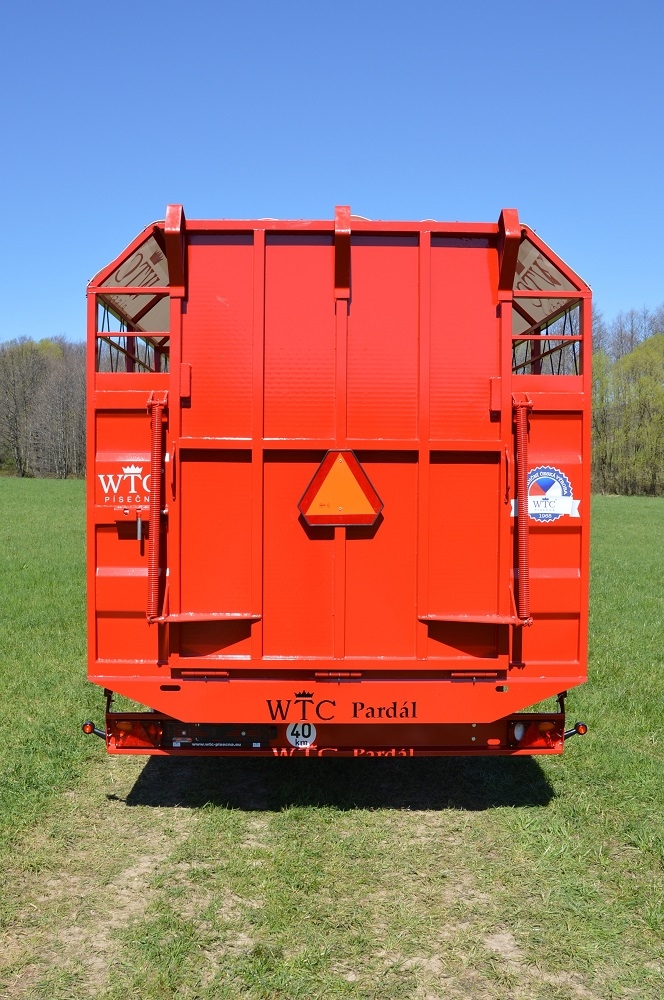

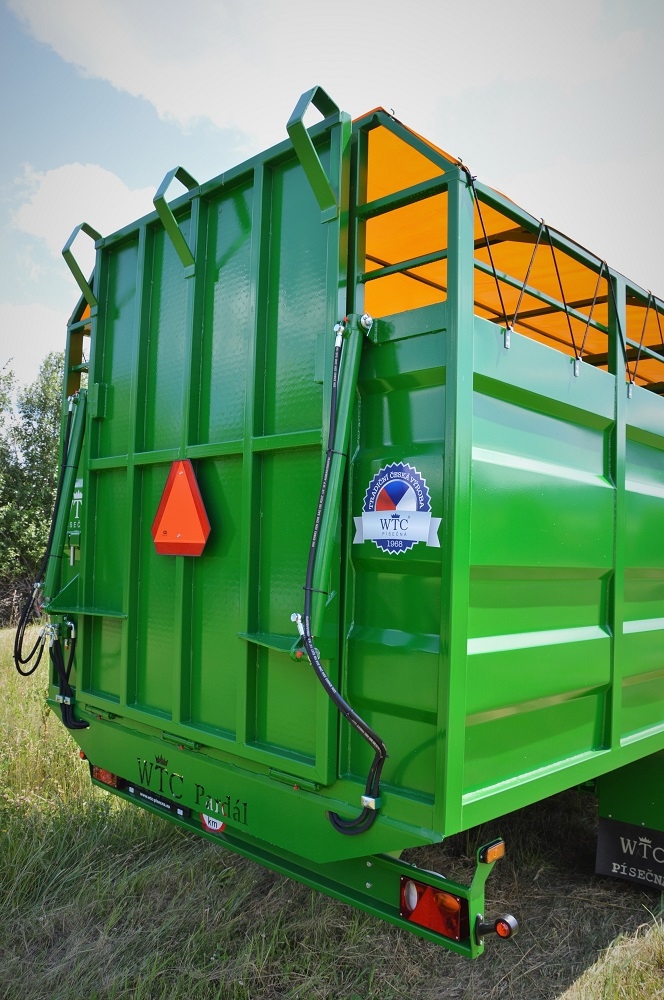

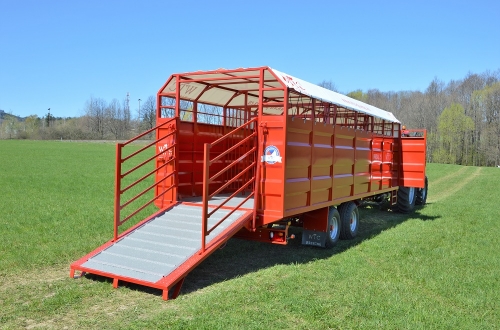

- rear door side barriers
- spring suspended rear door
- 2 drain holes at the back (including stopper)

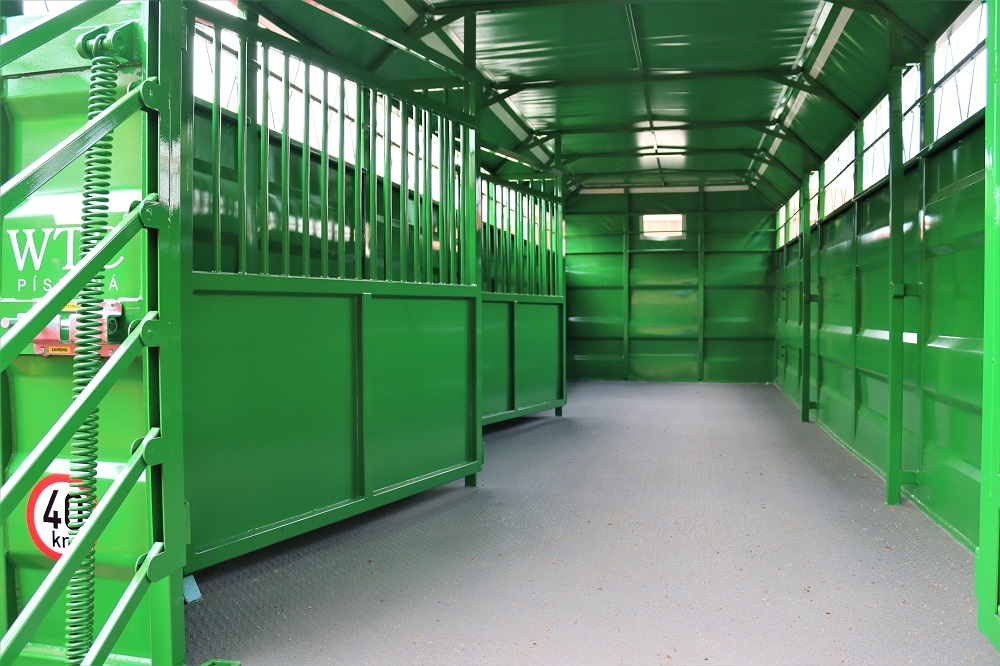

- no-slip floor – riffled plates
- height-adjustable drawbars
- mechanical drawbar

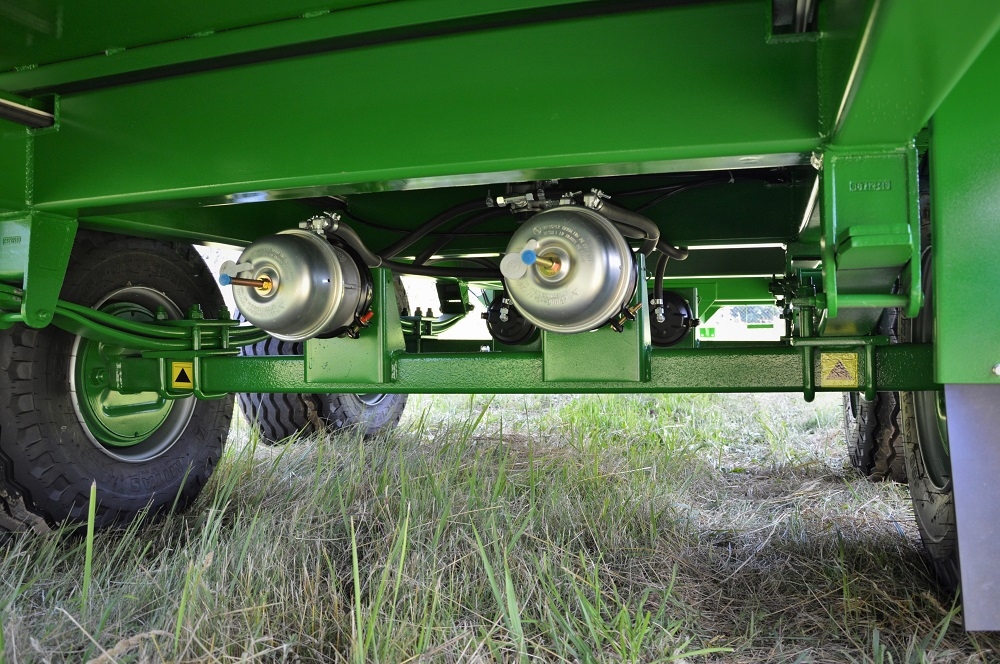

- automatic parking brake
- automatic brake load sensing controller

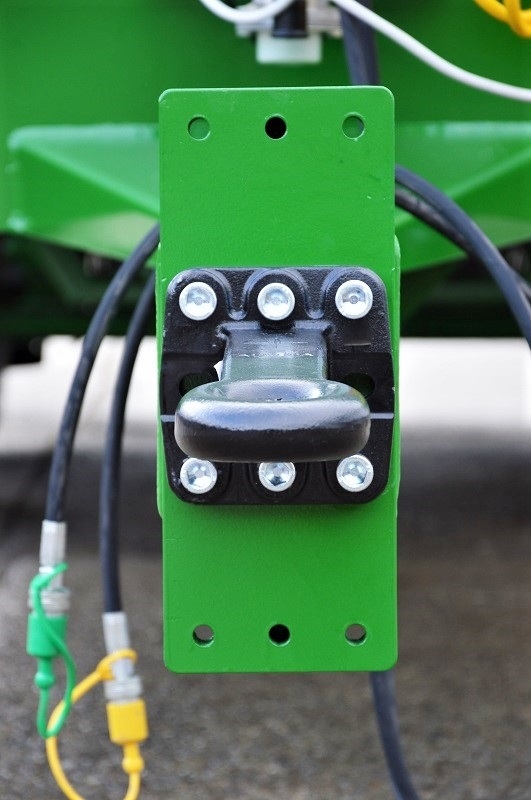

- towing hitch Scharmüller 50/40 mm/K-80
- speed 40 km/h
- polyurethane paint
- all metal structure
Optional equipment
- tarpaulin
- hydraulic door control
- special floor finish - resin non-spil coating
- colour on request
- wheels 11,5/80-15,3 18PR
- wheels 400/60-15,5 18PR
Technical parameters
Number of axles
2
Number of cattle
12-14
Number of compartments
3
Technically permissible mass (kg)
12 000
Platform width (m)
2,34
Length of usable space (m)
7,5
Height transport area (m)
2,13
Overall length (m)
9,54
Overall width - basic (m)
2,5
Front escape door
YES
Maximum speed (km/h)
40
Downloads
- Animal carrier PARDAL - PDF to download
