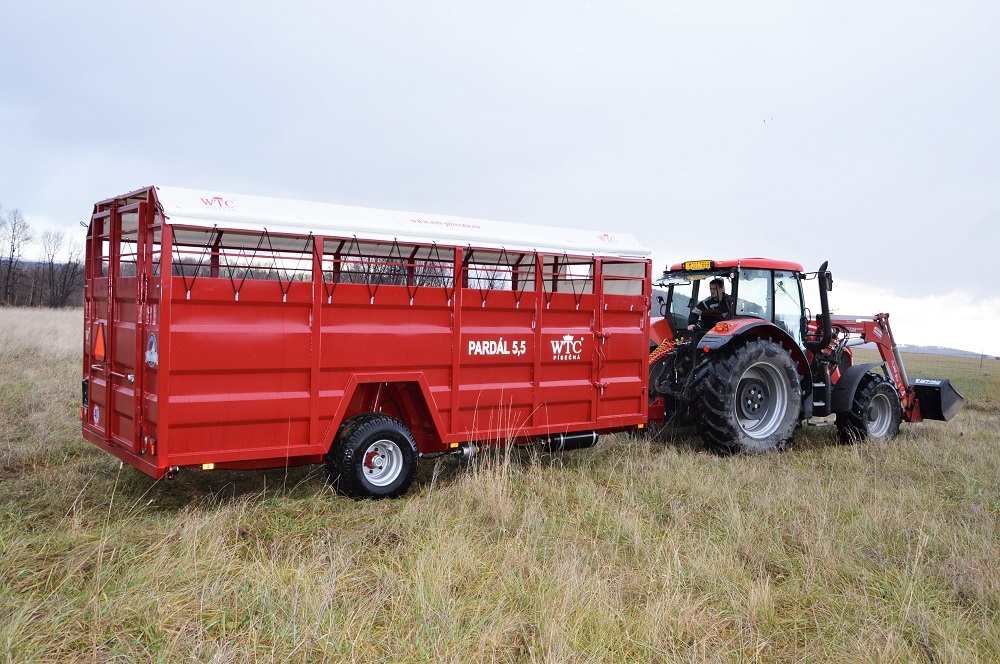

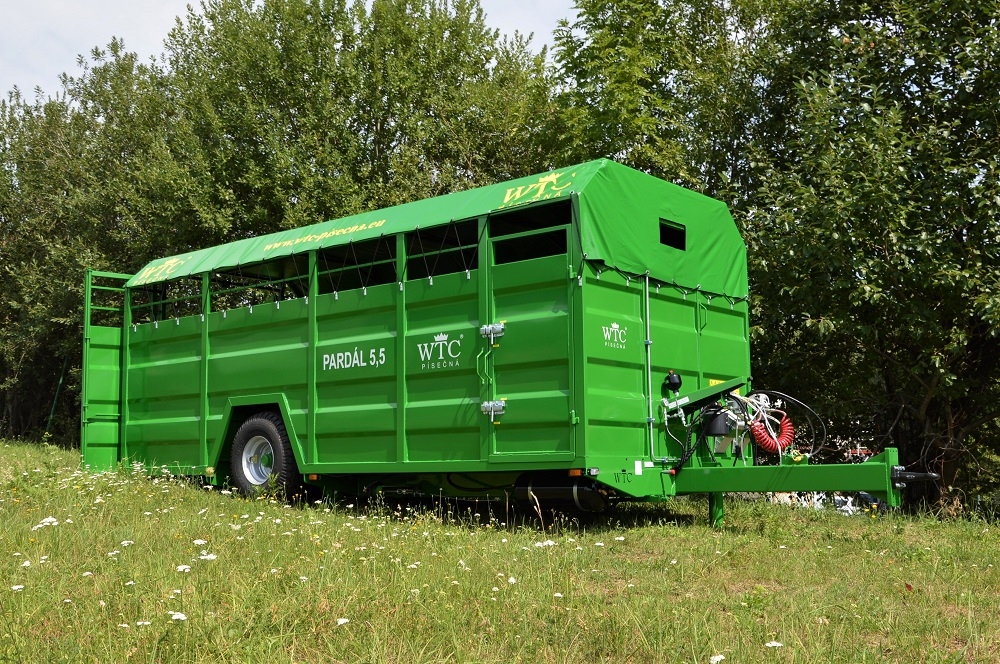

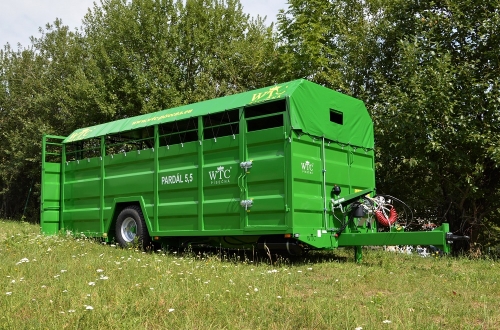

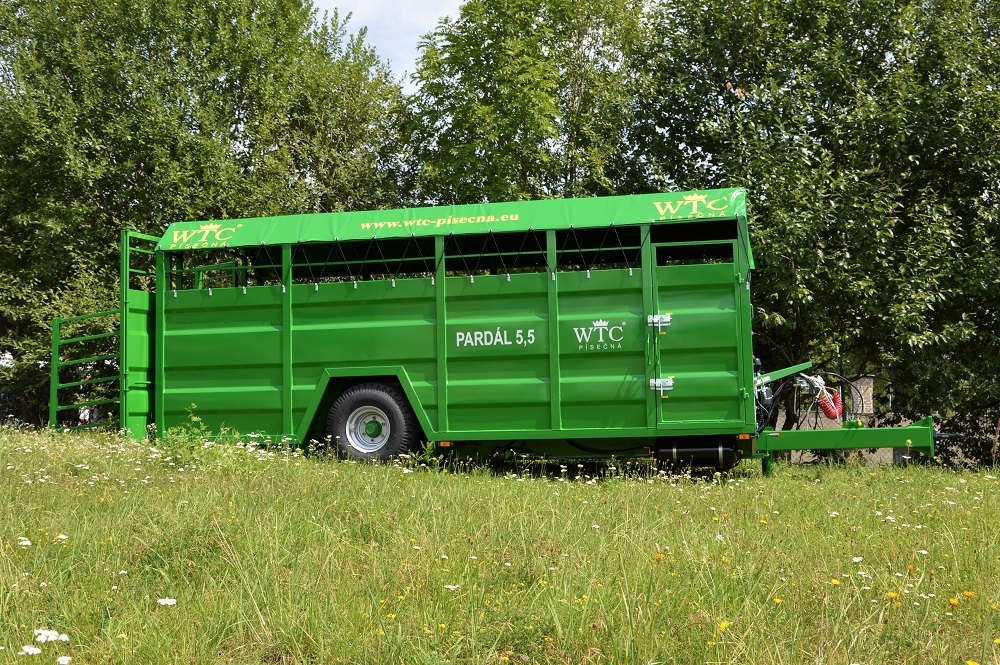

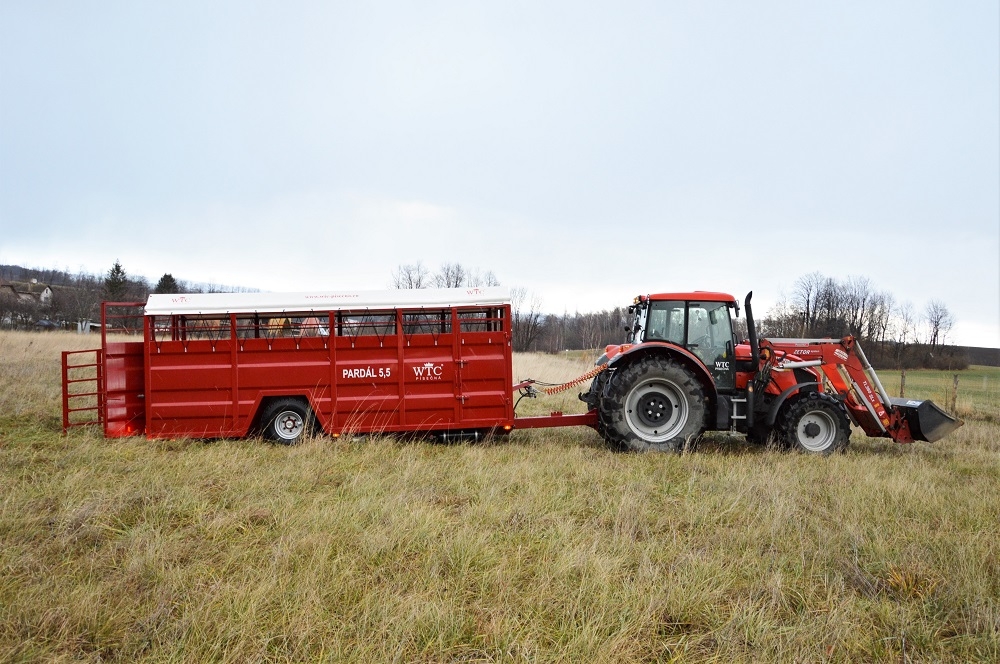

Animal carrier PARDÁL 5,5 KLEK

Animal carrier PARDÁL 5,5 KLEKAnimal carrier PARDÁL 5,5 KLEKAnimal carrier PARDÁL 5,5 KLEK

Standard equipment

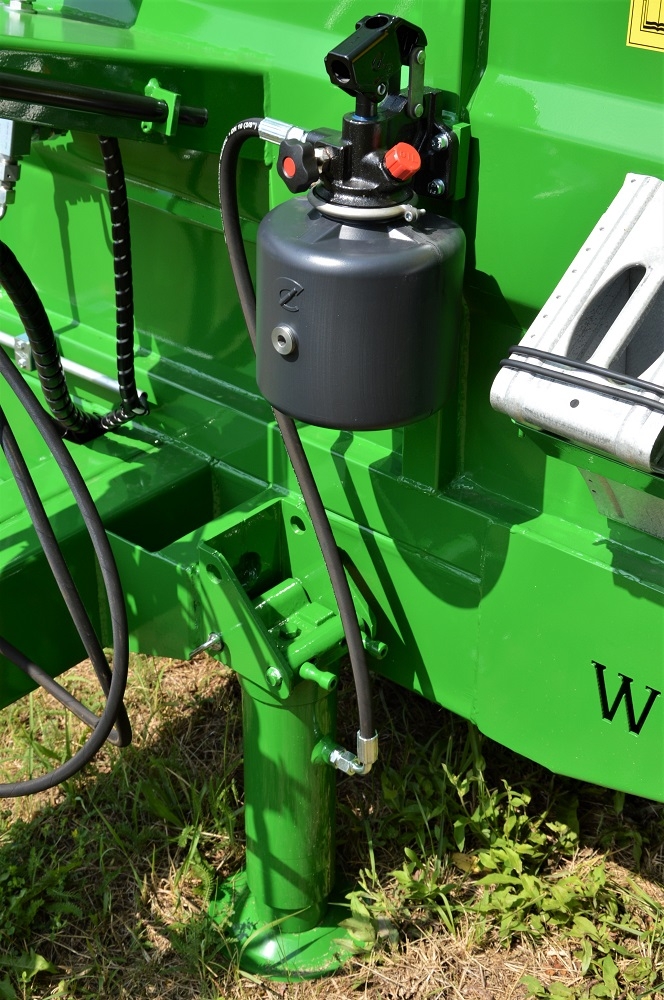

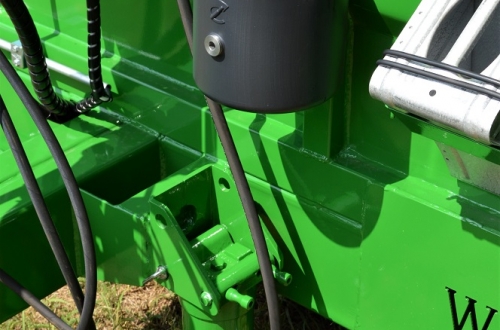

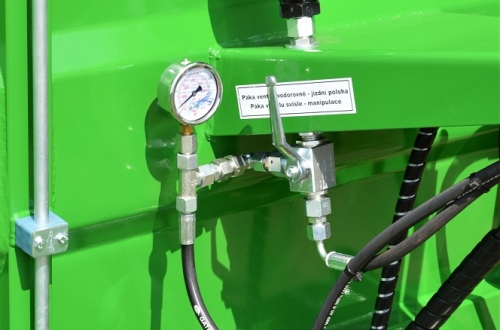

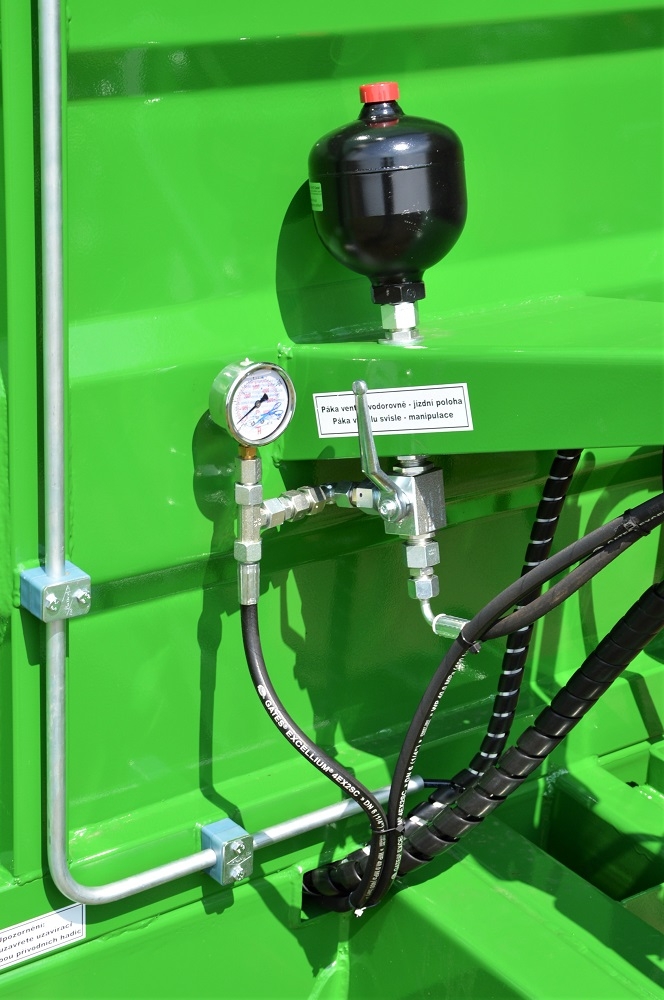

  • reclining system up and down
  • single suspended axle ADR
  • capacity heads of beef cattle: 8
  • loading area: 5,50 m x 2,34 m
  • total permissible weight 6 600 kg

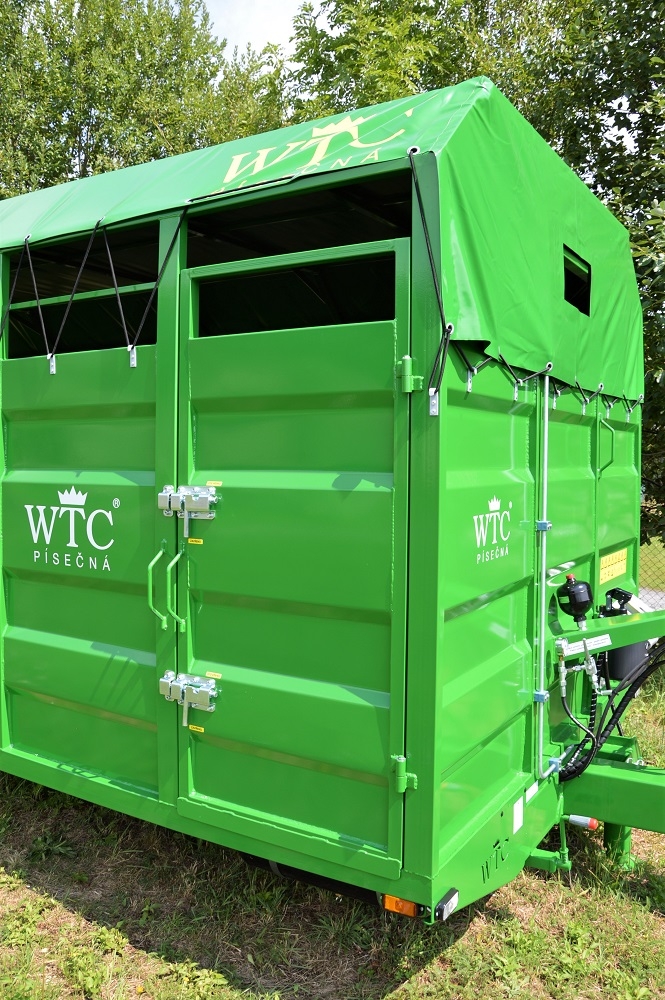

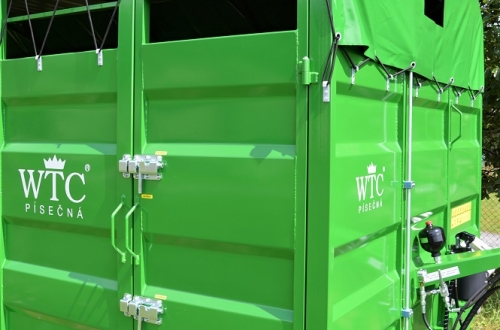

  • front door
  • 2 drain holes at the back (including stopper)

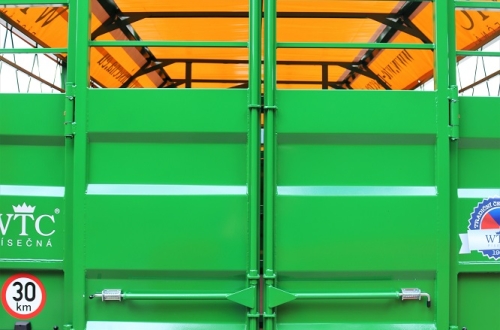

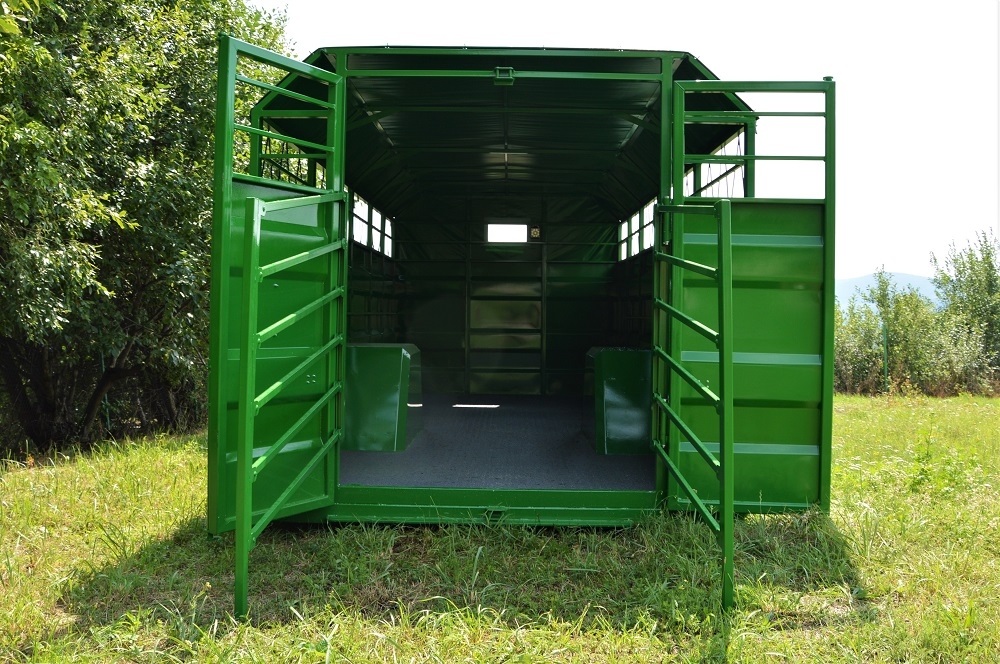

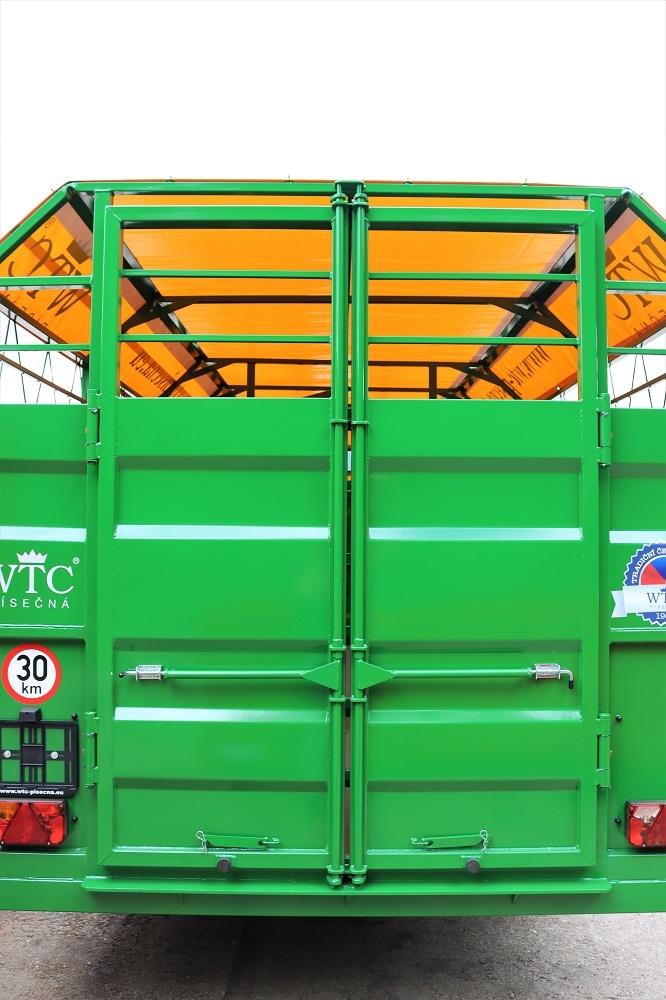

  • rear door side barriers

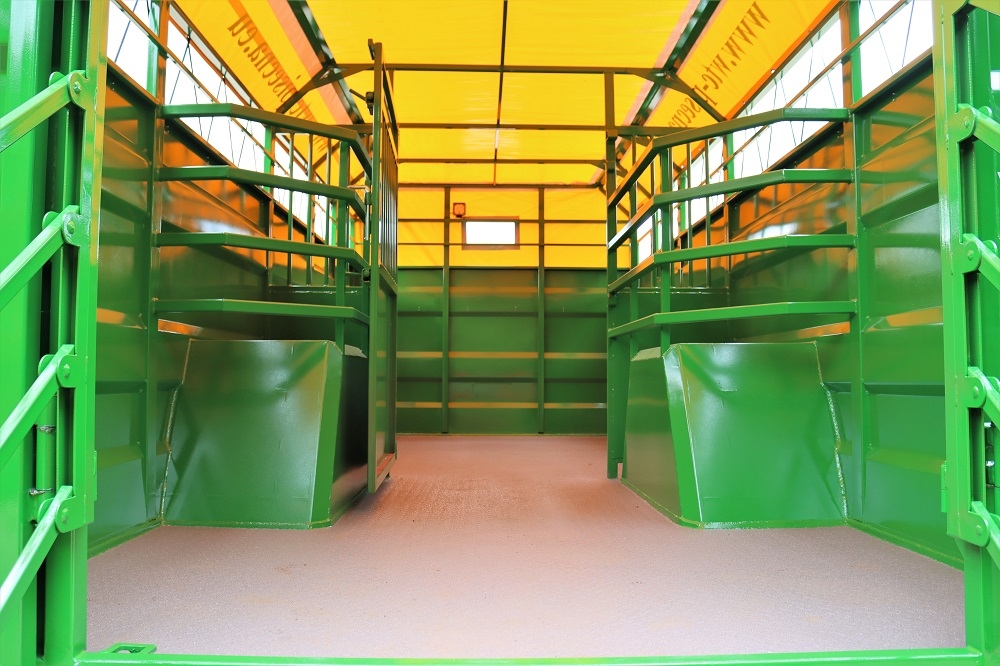

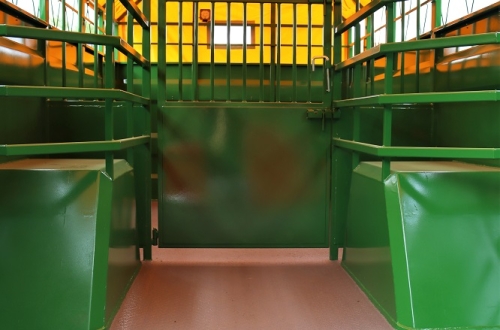

  • no-slip floor – riffled plates

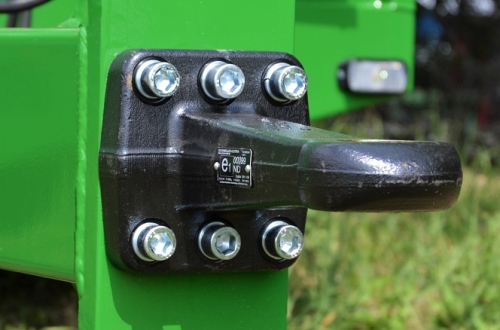

  • mechanical drawbar
  • automatic parking brake

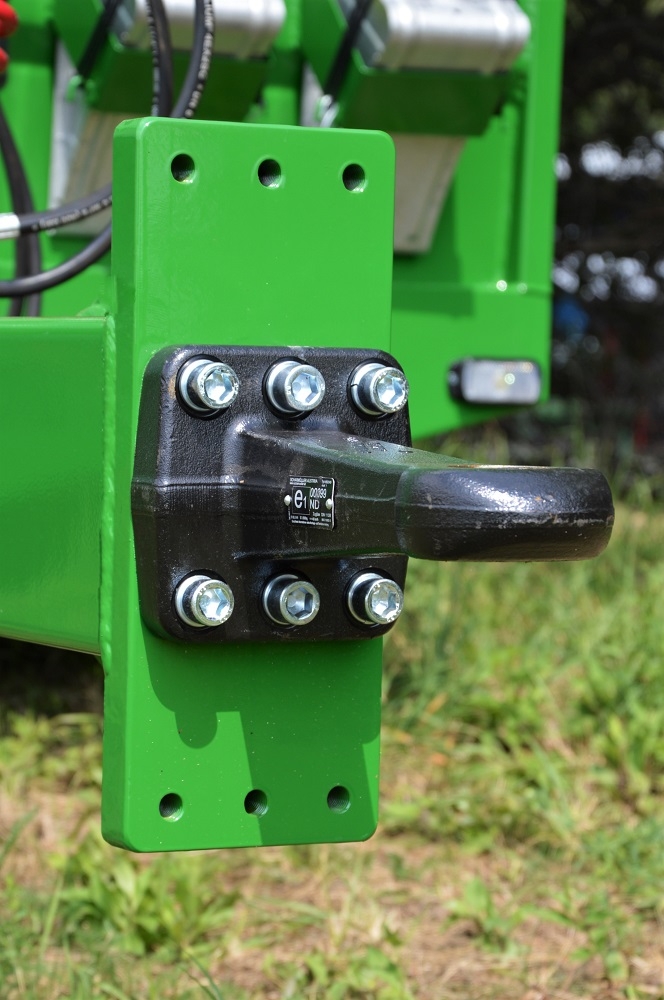

  • towing hitch Scharmüller 50/40 mm/K-80
  • speed 40 km/h
  • all metal structure
  • polyurethane paint

Optional equipment

  • tarpaulin
  • special floor finish - resin non-spil coating
  • colour on request
  • wheels 11,5/80-15,3 18PR
  • wheels 400/60-15,5 18PR

Technical parameters

Reclining system

YES

Number of axles

1

Number of cattle

8

Number of compartments

1

Technically permissible mass (kg)

6 600

Permitted weight (kg)

6 600

Platform width (m)

2,34

Length of usable space (m)

5,5

Height transport area (m)

2,13

Overall length (m)

7,5

Overall width - basic (m)

2,5

Front door

YES

Maximum speed (km/h)

40

Videogallery

Animal carrier PARDÁL 5,5 KLEK

Animal carrier PARDÁL 5,5 KLEK - reclining system (up and down), single suspended axle ADR, loading area: 5,50 m x 2,34 m, capacity heads of beef cattle: 8, total permissible weight 6 600 kg, front door, rear door side barriers, all metal structure, speed 40 km/h, automatic parking brake, 2 drain holes at the back, no-slip floor (special floor finish - resin non-spil coating).

Photo-gallery

Animal carrier PARDÁL 5,5 KLEKAnimal carrier PARDÁL 5,5 KLEKAnimal carrier PARDÁL 5,5 KLEKAnimal carrier PARDÁL 5,5 KLEKAnimal carrier PARDÁL 5,5 KLEKAnimal carrier PARDÁL 5,5 KLEKAnimal carrier PARDÁL 5,5 KLEKAnimal carrier PARDÁL 5,5 KLEKAnimal carrier PARDÁL 5,5 KLEKAnimal carrier PARDÁL 5,5 KLEK
