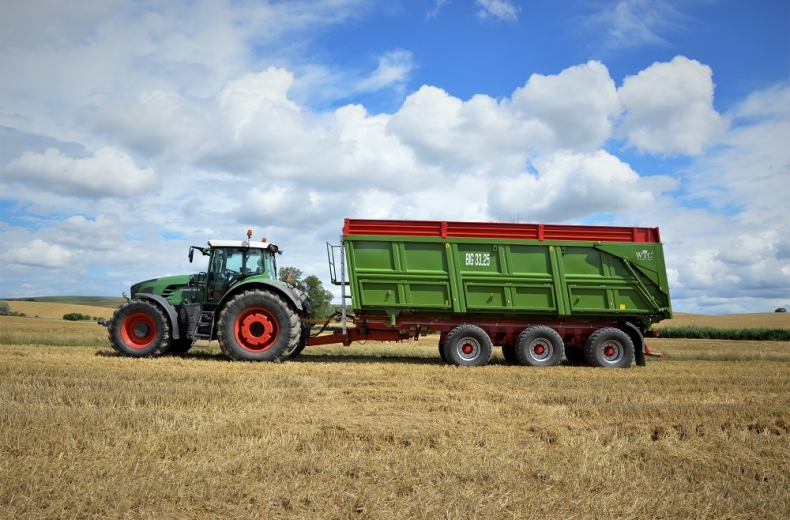

Tractor trailer BIG 33.25

Tractor trailer BIG 33.25 - technically permissible mass 33 000 kg, loading capacity 25 000 kg, suspended TRIDEM axle ADR - steelable trailing axle (first a third), hydraulic drawbar support with pump, hydraulic door opening, spring suspended height-adjustable drawbars, automatic parking brake, automatic brake load sensing controller, inspection window at the front of the body and many more.

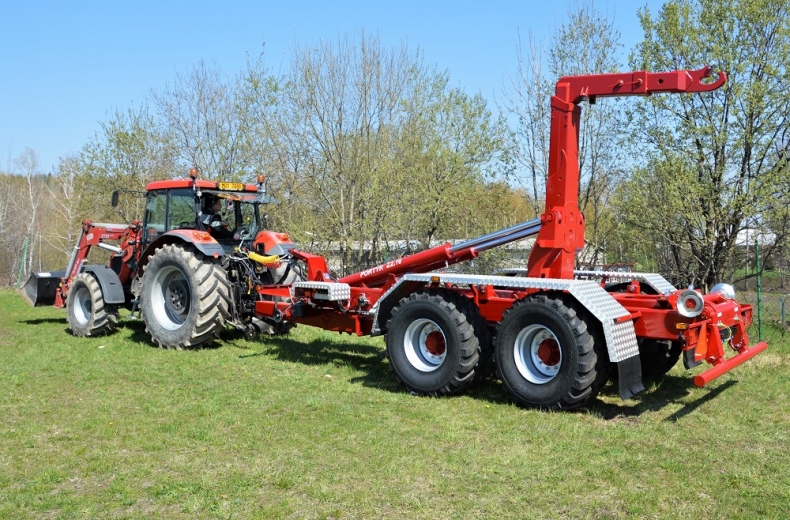

Container carriers PORTÝR 16

Container carrier PORTÝR 16 with suspended ADR axle, total permissible weight 21 000 kg, loading capacity 16 000 kg, telescopic lift system - various container lengths, hydraulic drawbar support, automatic parking brake, spring suspended height - adjustable drawbars, active hydraulic container lock, automatic brake load sensing controller, protection against mechanism damage and many more.

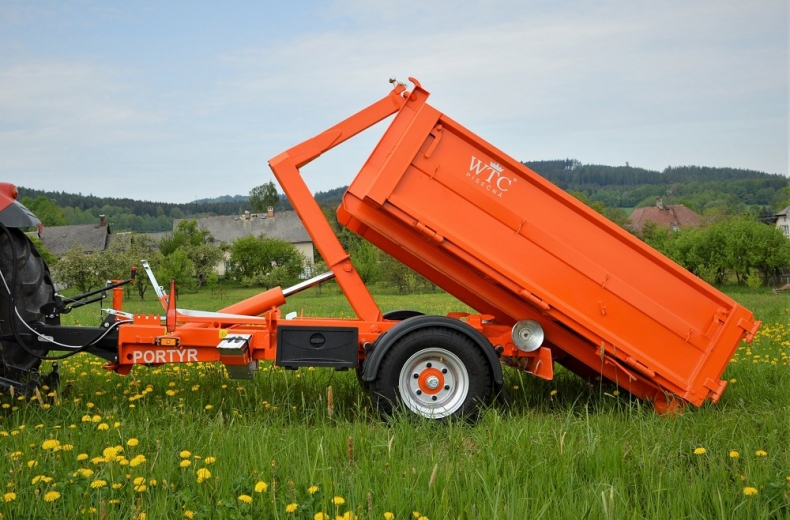

Container carrier PORTÝR 3

Container carrier PORTÝR 3 - simple axle BPW, total permissible weight 3 500 kg, loading capacity 2 700 kg, mechanical drawbar support, BPW overrun brake with auto revers, direct connection to the tractor, ideal length of container 2,80 m, hook height 900 or 1 000 mm, passive container lock, hook lock gravity latch, towing hitch 40 mm, speed 25 km/hour, polyurethane paint, wheels 10/75-15,3 and colour on request.

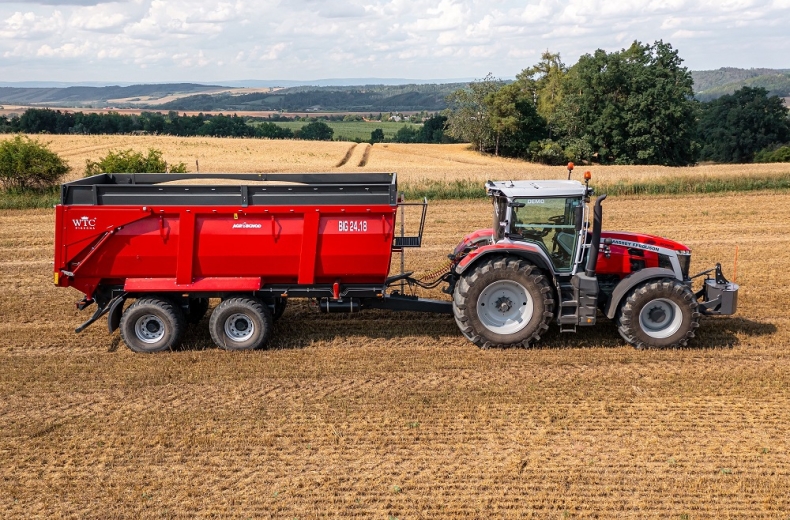

Tractor trailer BIG 25.18 tandem

Tractor trailer BIG 25.18 with BOOGIE suspended axle, loading capacity 18 000 kg, total permissible mass 25 000 kg, hydraulic drawbar support with pump, hydraulic door opening, spring suspended height-adjustable drawbars, hydraulic door lock, rear dump hatch, automatic parking brake, automatic brake load sensing controller, max. speed limit 40 km/h and many more.

Platform car PLT 16 with hydraulic crane

Platform car PLT 16 with hydraulic crane HYVA HB 60X with suspended tandem axle ADR (steerable trailing axle), total permissible weight 21 000 kg, loading area 10,50 x 2,40 m, capacity 16 000 kg, speed 40 km/hod (or 60 km/hod), automatic parking brake, automatic brake load sensing controller, massive frame of thick-walled closed section, polyurethane paint and many more.

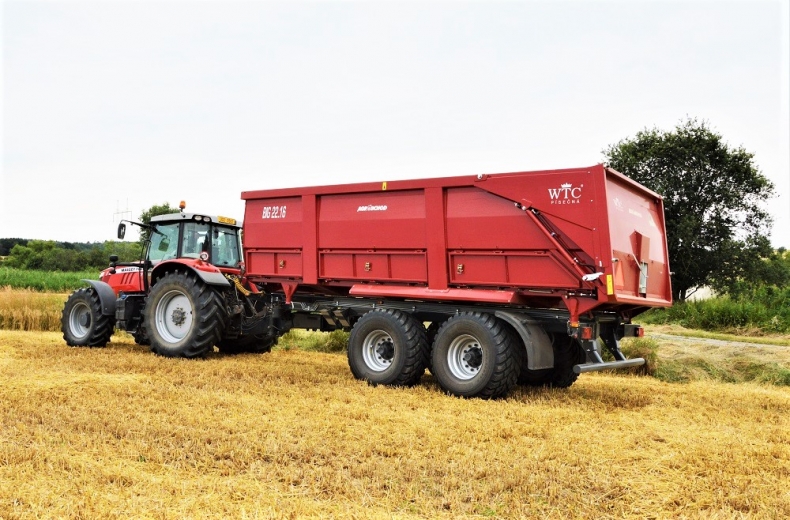

Tractor trailer BIG 22.16

Tractor trailer BIG 22.16 with BOOGIE suspended axle, loading capacity 16 000 kg, total permissible weight 21 000 kg, hydraulic drawbar support with pump, hydraulic door opening, spring suspended height-adjustable drawbars, hydraulic door lock, rear dump hatch, automatic parking brake, automatic brake load sensing controller, max. speed limit 40 km/h (or 60 km/h).

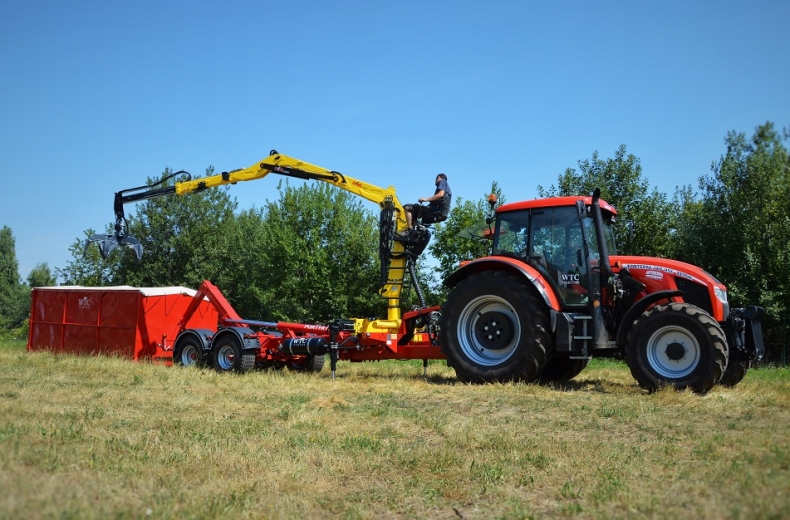

CONTAINER CARRIER PORTÝR 8 with hydraulic crane

CONTAINER CARRIER PORTÝR 8 with hydraulic crane HYVA HZT - tandem (or single) ridig axle - suspension - ADR, total permissible weight 11 000 kg, loading capacity 8 000, spring suspended height – adjustable drawbars, hydraulic drawbar support, direct connection to the tractor, automatic parking brake, automatic brake load sensing controller, speed 40 km/hour and many more.

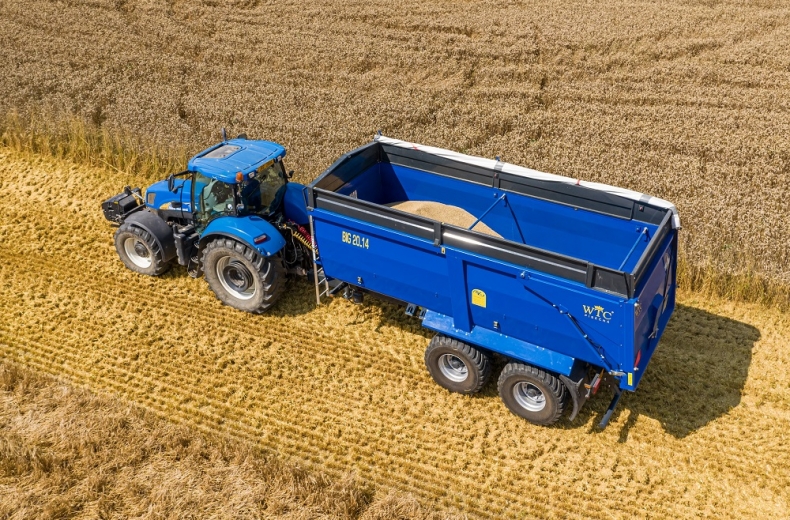

Tractor trailer BIG 20.14

Tractor trailer with BOOGIE suspended axle, loading capacity 14 400 kg, total permissible weight 20 000 kg, hydraulic drawbar support with pump, hydraulic door opening, spring suspended height-adjustable drawbars, hydraulic door lock, rear dump hatch, automatic parking brake, automatic brake load sensing controller, max. speed limit 40 km/h (or 60 km/h).

Tractor trailer BIG 27.20

Tractor trailer with suspended TRIDEM axle, total permissible weight 27 000 kg, loading capacity 20 000 kg, platform (tank body): 7,30 m x 2,20 m, spring suspended height-adjustable drawbars, hydraulic drawbar support with pump, hydraulic door opening, hydraulic door lock, rear dump hatch, automatic parking brake, automatic brake load sensing controller, speed 40 or 60 km/hod, steelable trailing axle (first a third).

Tractor trailer BIG 14.10

Tractor trailer with suspended axle (single or tandem - up to customer), loading capacity 10 500 kg, total permissible weight 14 000 kg, hydraulic drawbar support with pump, hydraulic door opening, spring suspended height-adjustable drawbars, hydraulic door lock, rear dump hatch, automatic parking brake, automatic brake load sensing controller, max. speed limit 40 km/h.

Tractor trailer BIG 22.16 - II.

Tractor trailer with BOOGIE suspended axle, loading capacity 16 000 kg, total permissible weight 21 000 kg, hydraulic drawbar support with pump, hydraulic door opening, spring suspended height-adjustable drawbars, hydraulic door lock, rear dump hatch, automatic parking brake, automatic brake load sensing controller, max. speed limit 40 km/h (or 60 km/h).

Tractor trailers BIG 9.7 with hydraulic crane

Tractor trailers BIG 9.7 with hydraulic crane - payload 7 000 kg, technically permissible mass 9 000 kg, permitted weight 9 000 kg, operating weight 2 000 kg, maximum speed 40 km/h, simple ridig suspended axle, three-way tilting, automatic parking brake, automatic brake load sensing controller, rear dump hatch, bed height from the ground 1 230 mm, platform 4,50 m x 2,40 m, overall length 6 m.

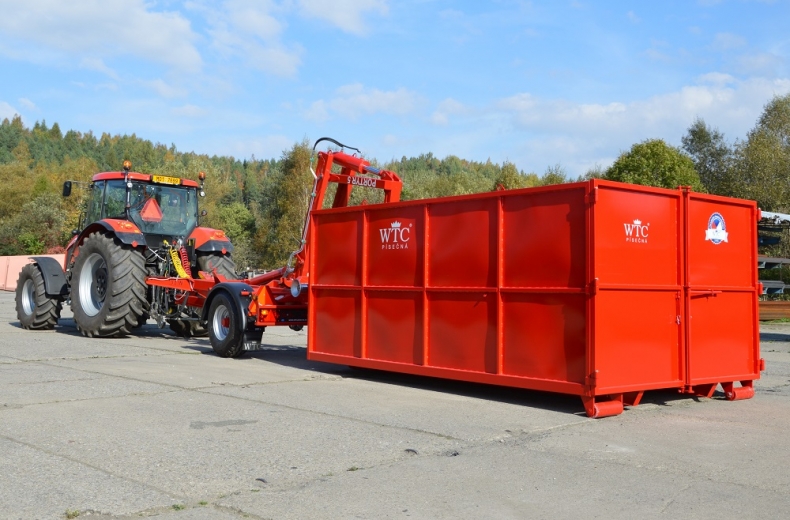

Container carrier PORTÝR 7

Container carrier PORTÝR 7 - simple suspended axle ADR, total permissible weight 9 000 kg, loading capacity 7 000 kg, telescopic lift system, speed 40 km/hour, spring suspended height, hydraulic drawbar support, automatic parking brake, automatic brake load sensing controller (ALB/AZR), container length min/max: 3,2 – 4,6 m, direct connection to the tractor, polyurethane paint and many more.

Container carrier PORTÝR 5

Simple rigig axle - suspension, total permissible weight 6 950 kg, loading capacity 5 000 kg, speed 40 km/hour, spring suspended height, mechanical drawbar support with wheel, automatic parking brake, automatic brake load sensing controller (ALB/AZR), towing hitch 50/40 mm, tractor upper or lower hitch, direct connection to the tractor, polyurethane paint, colour on request and much more.

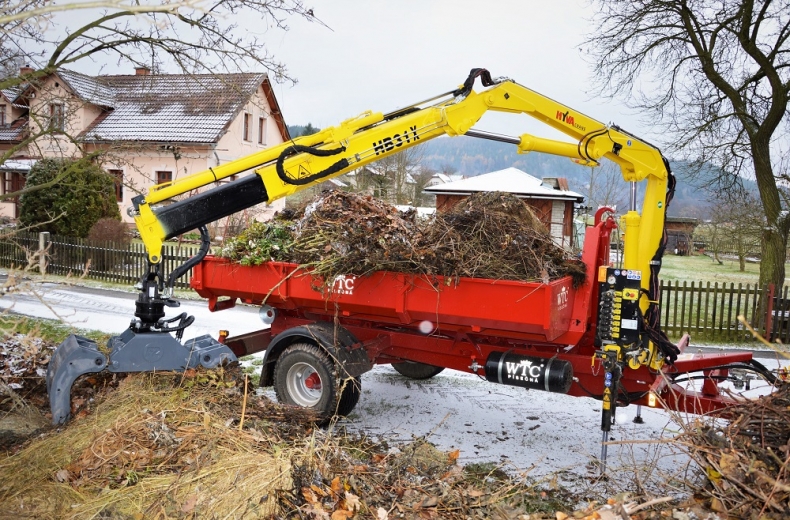

Container carriers PORTÝR 5 with hydraulic arm

Container carriers PORTÝR 5 with hydraulic arm HYVA CRANE. simple rigig axle (suspension - ADR), total permissible weight 6 950 kg, loading capacity 5 500 kg, speed 40 km/hour, spring suspended height, mechanical drawbar support with wheel, automatic parking brake, automatic brake load sensing controller (ALB/AZR) and much more.

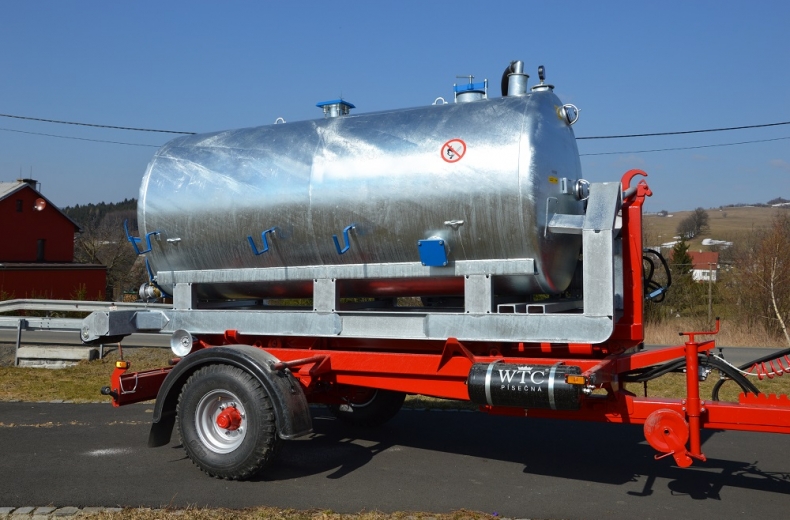

Container carriers PORTÝR 5 with a tanker

Simple rigig axle - suspension, total permissible weight 6 950 kg, loading capacity 5 000 kg, speed 40 km/hour, spring suspended height, mechanical drawbar support with wheel, automatic parking brake, automatic brake load sensing controller (ALB/AZR), towing hitch 50/40 mm, tractor upper or lower hitch, direct connection to the tractor - customized with a tanker by Meprozet.

Container carrier PORTÝR 5 on an older chassis forwarders PALMS

One of three combinations of components on older chassis (PALMS) - Tractor container carrier PORTÝR 5 with hook mechanism (alternatively we produce with a telescopic mechanism). On the chassis could be in this case put stanchions on the pros and simple plate of transporting bales (opt tank, other types of container or other body). Replacing the bodies is due to the simple system always during a few minutes.

Container carriers PORTÝR 10

Container carriers PORTÝR 10 with tandem axle (suspended, by ADR), total permissible weight 14 000 kg, loading capacity 10 300 kg, hook height 1 000 - 1 340 - 1 570 mm (up to customer), telescopic lift system - various container lengths, spring suspended height – adjustable drawbars, hydraulic drawbar support, automatic parking brake, automatic brake load sensing controller, speed 40 km/hour and much more.

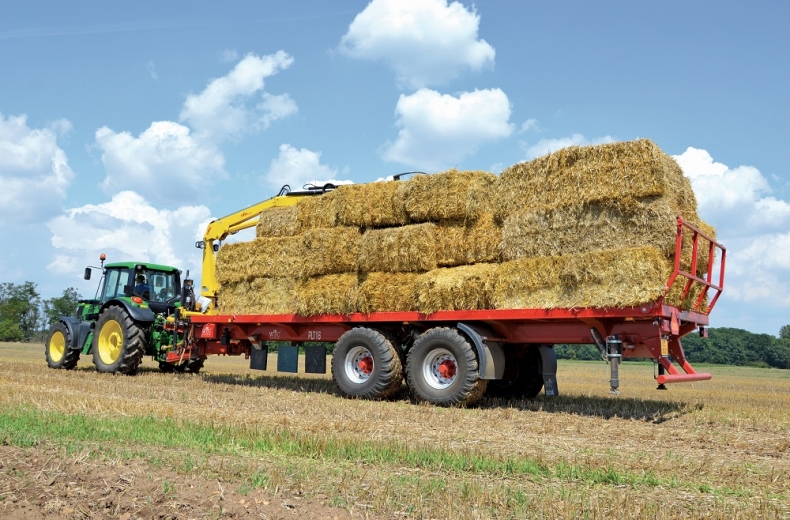

Platform car PLT 16 - WTC Písečná

Platform car with suspended tandem axle and hydraulic arm. Total permissible weight 21 000 kg, capacity 16 000 kg, operating weight 5 000 kg, technically permissible mass 22 000 kg, loading area 10,5 x 2,45 m, barriers for bales, automatic parking brake, automatic brake load sensing controller, single-circuit double hose air brake, massive frame of thick-walled closed section, speed 40 km/hod.

WTC Písečná at the fair TECHARGO 2014

The exhibition stands occupied 13 halls, all the outdoor exhibition areas and even areas that are not primarily intended for the construction of booths were also occupied. TECHAGRO, ANIMAL VETEX, SILVA REGINA and BIOMASS was attended by 743 exhibitors from 41 countries. A record number of 119 013 visitors from 46 countries came to Brno.

Tractor trailer BSS 14

Tractor trailer BSS 14 with tandem suspended axle ADR (maximum speed 40 km/hod.), three-way tilting, total permissible weight 18 000 kg, loading capacity 13 500 kg, platform: 5,20 m x 2,40 m, body height 0,8 m (10 m3) + tailpiece 0,8 mm (10 m3), rear dump hatch, automatic parking brake, automatic brake load sensing controller and many more.

Container carrier PORTÝR 12

Container carrier PORTÝR 12 tandem suspended steerable ADR axle, total permissible weight 18 500 kg, loading capacity 12 000 kg, telescopic lift system - various container lengths, spring suspended height - adjustable drawbars, hydraulic drawbar support, automatic parking brake, automatic brake load sensing controller, active hydraulic container lock, protection against mechanism damage and many more.

Container carrier PORTÝR 14

Container carrier PORTÝR 14 tandem suspended steerable ADR axle, total permissible weight 20 000 kg, loading capacity 14 000 kg, telescopic lift system - various container lengths, hydraulic drawbar support, automatic parking brake, spring suspended height - adjustable drawbars, active hydraulic container lock, automatic brake load sensing controller, protection against mechanism damage and many more.
