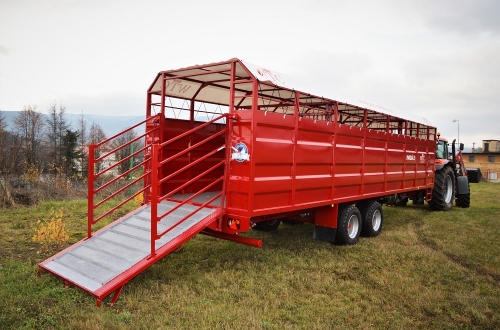

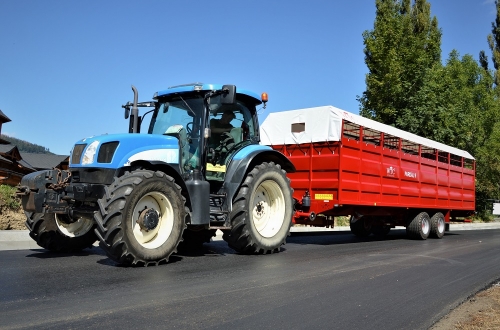

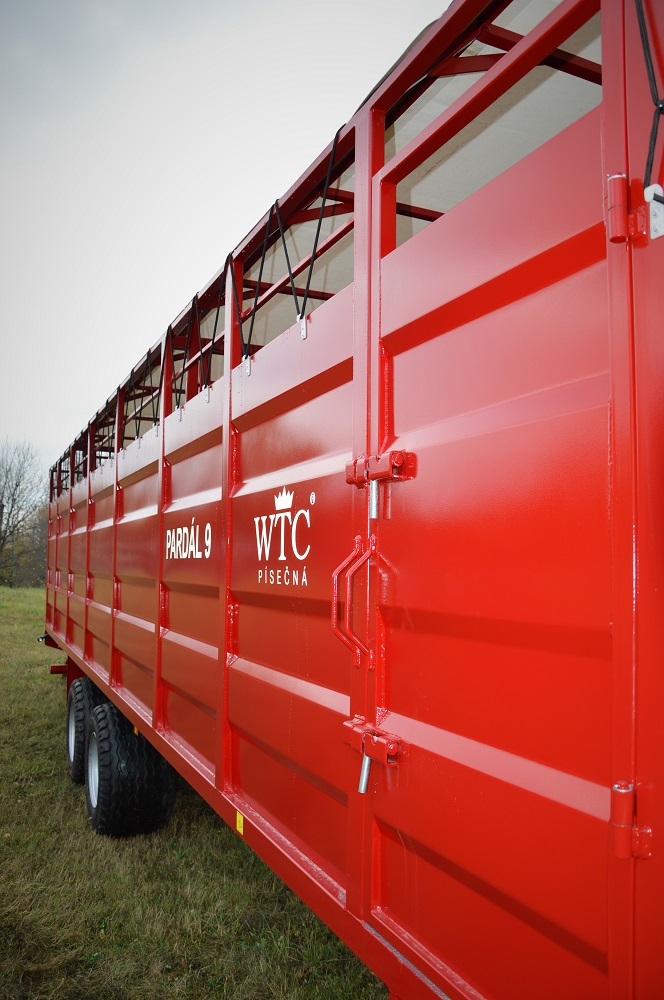

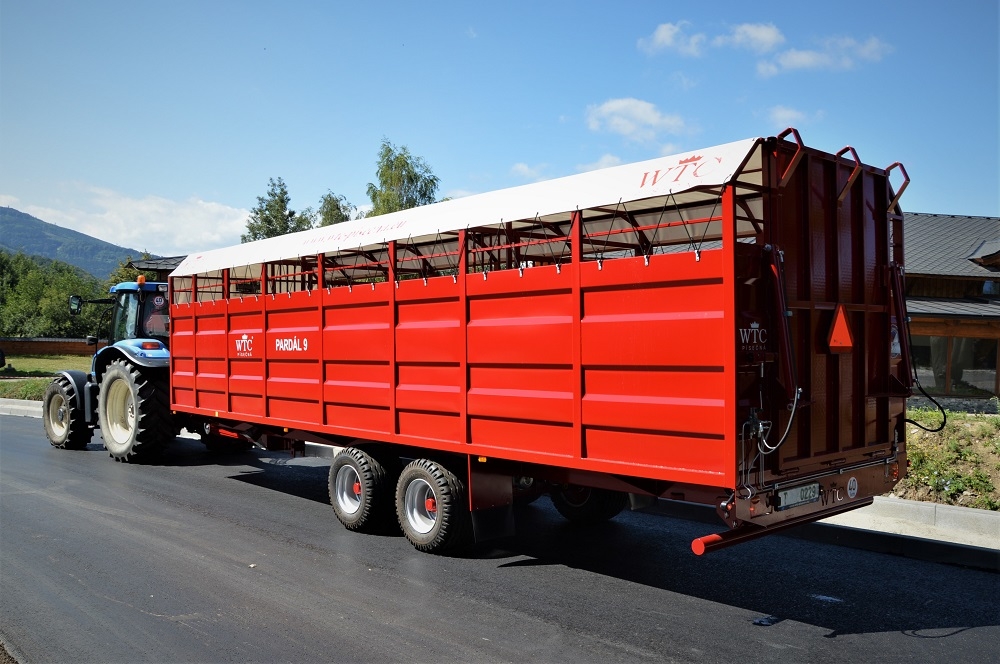

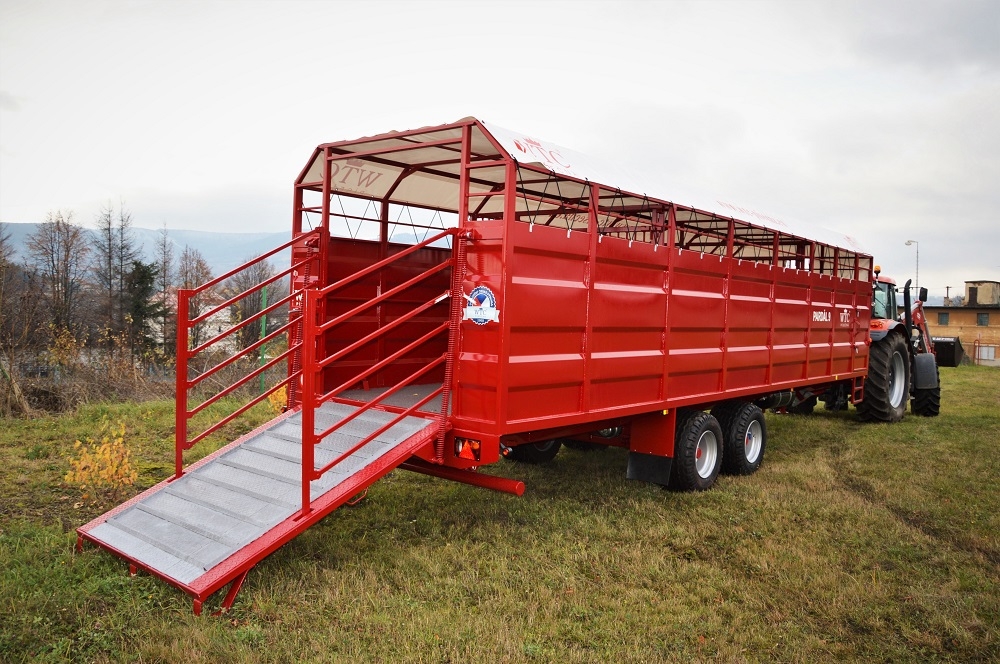

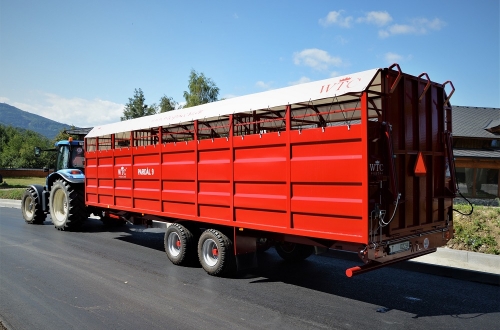

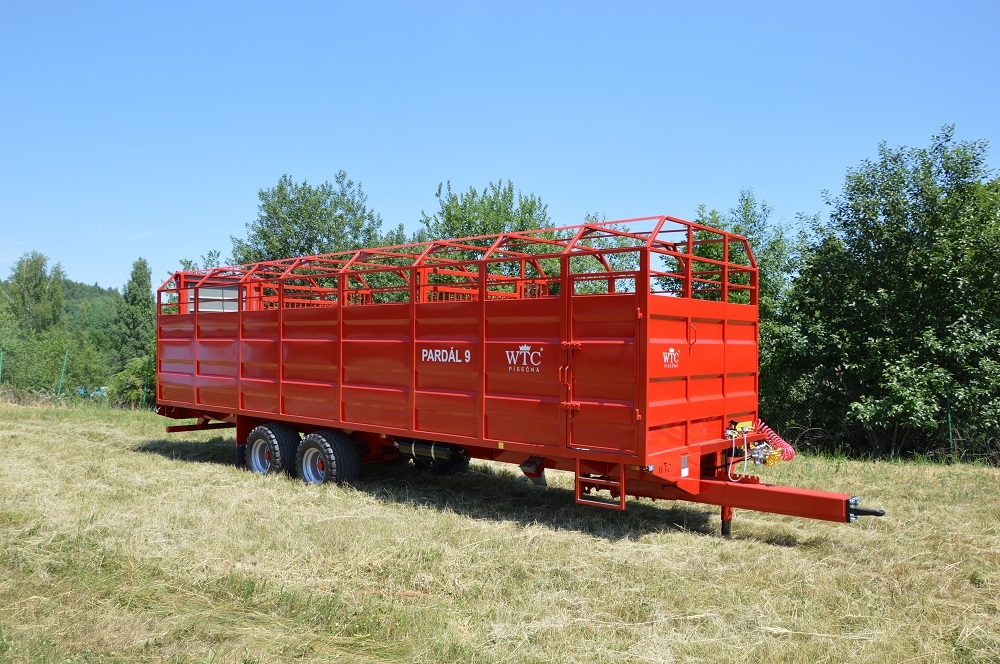

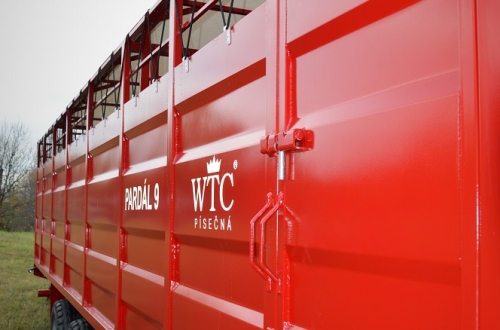

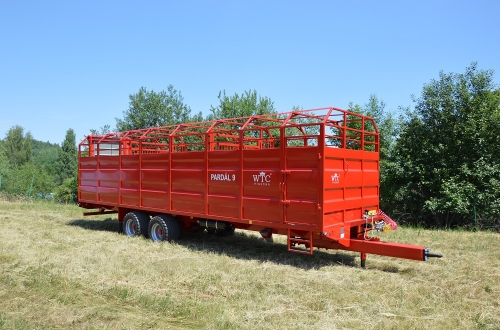

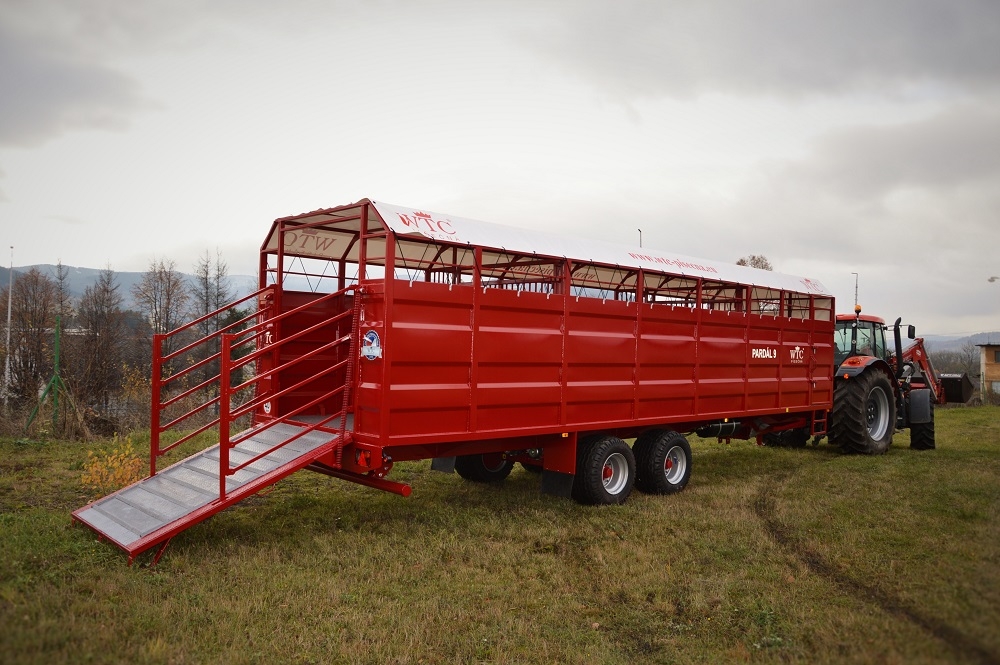

Animal carrier PARDÁL 9

Animal carrier PARDÁL 9Animal carrier PARDÁL 9Animal carrier PARDÁL 9

Standard equipment

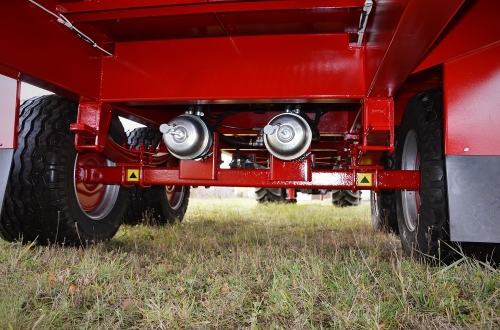

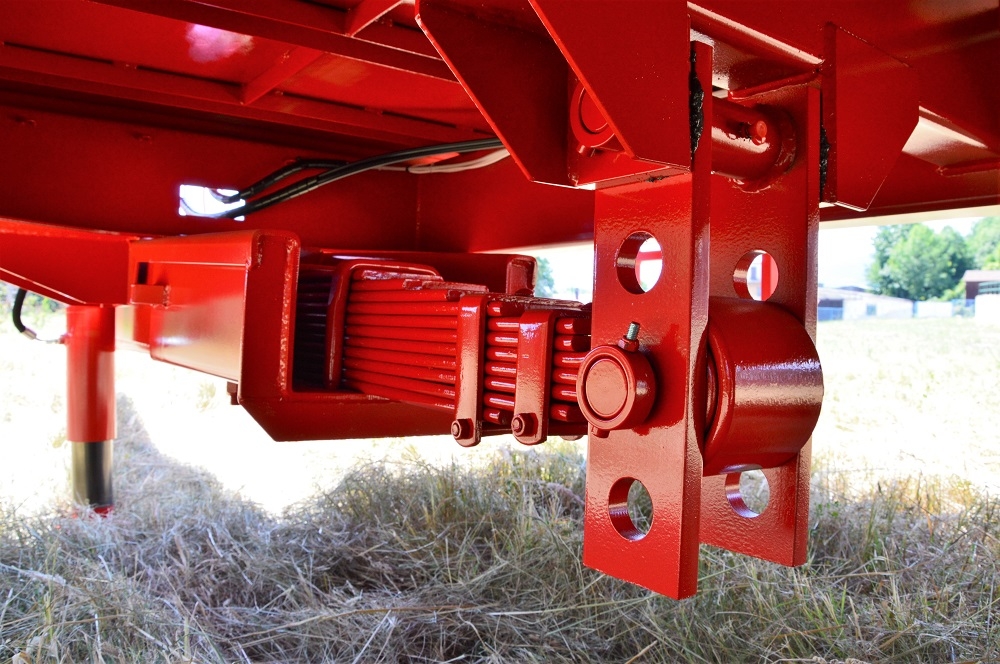

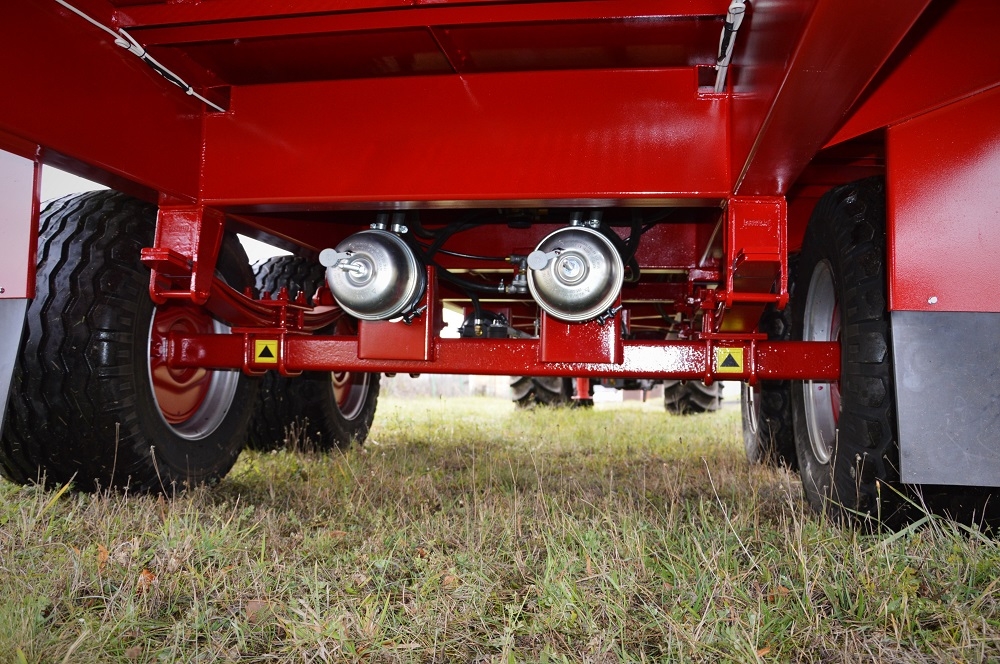

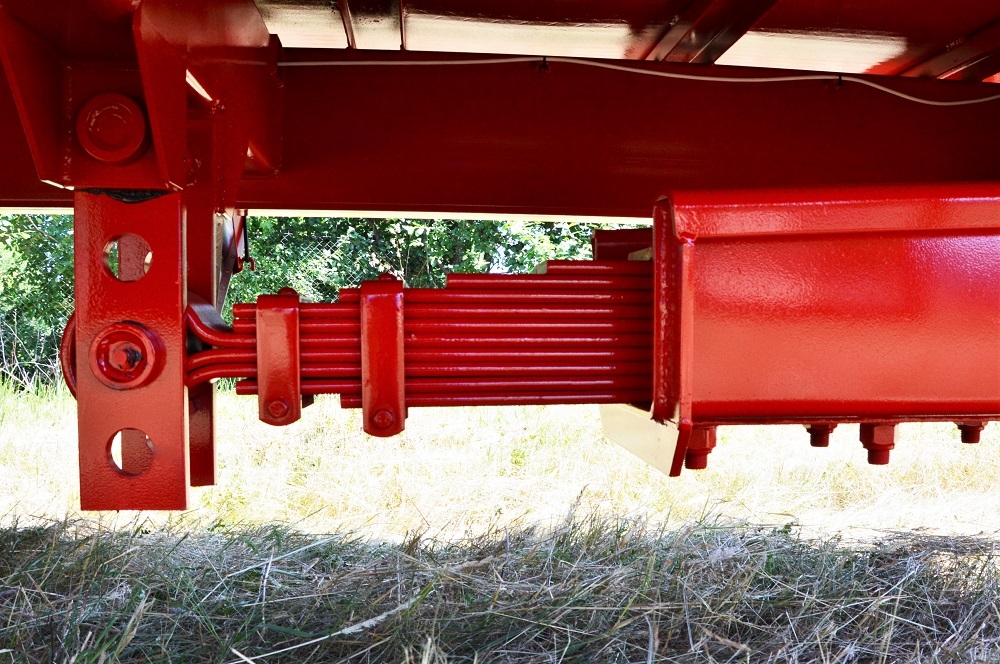

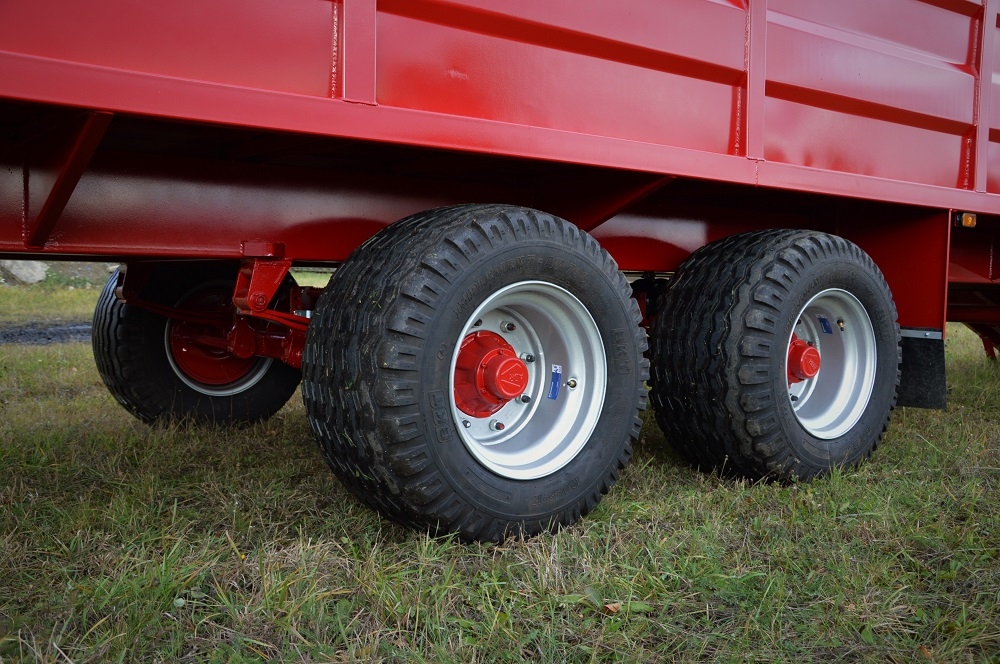

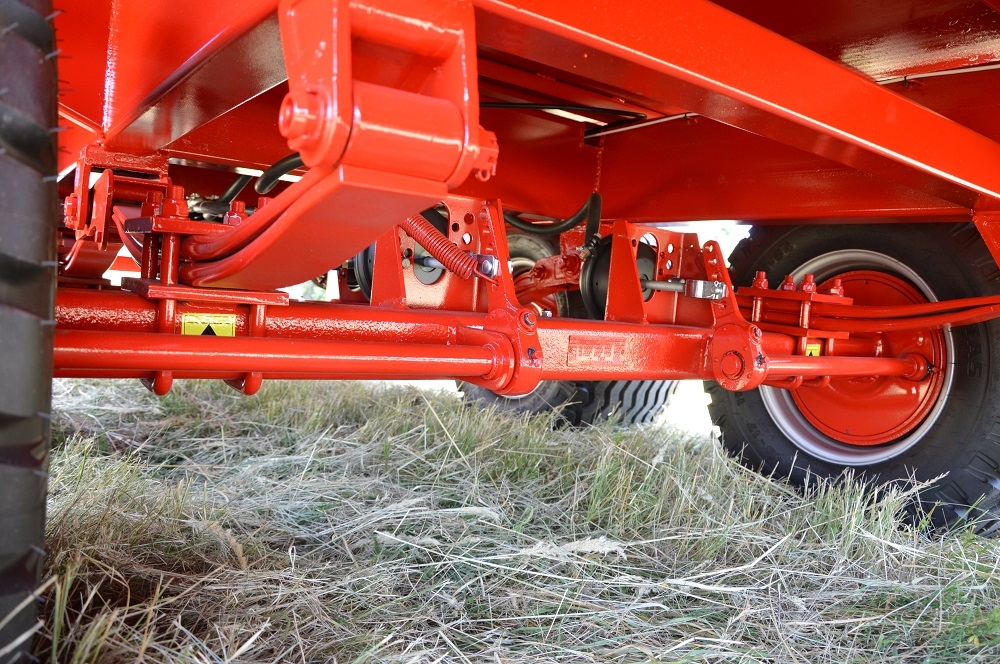

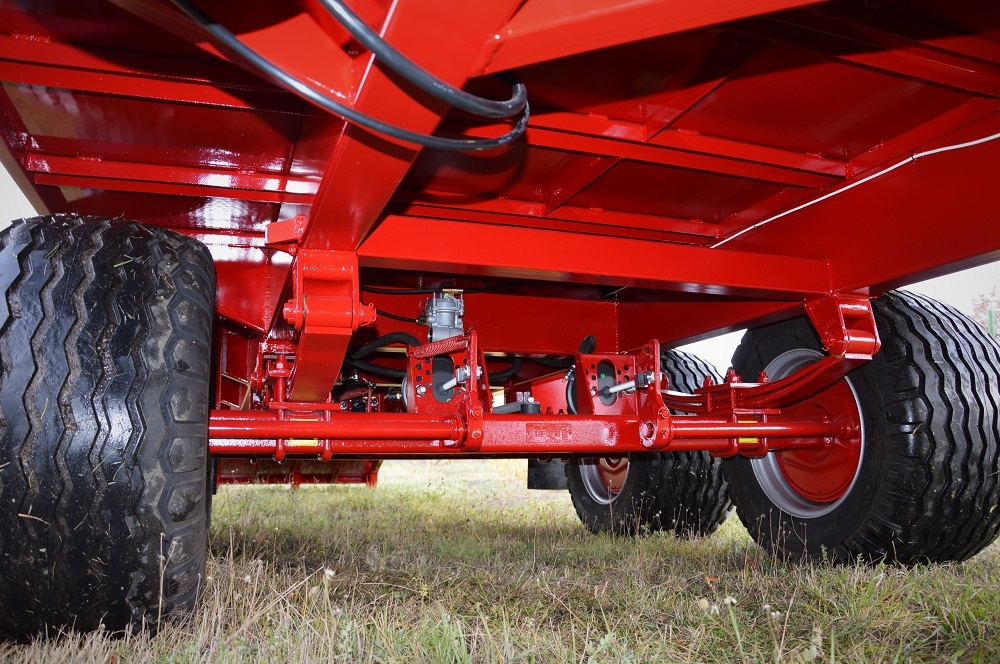

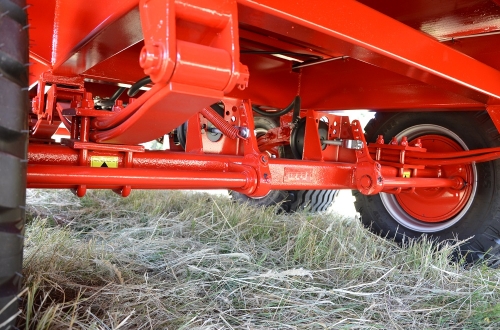

  • suspended tandem axle ADR
  • capacity heads of beef cattle: 16 - 18
  • loading area: 9 m, x 2,34 m
  • total permissible weight 14 00 kg

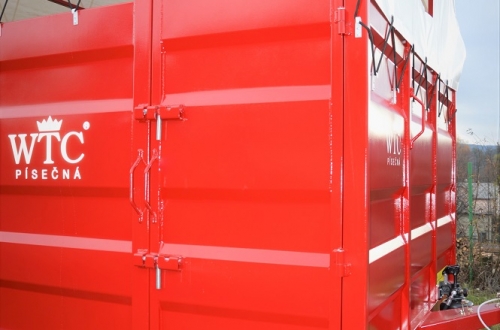

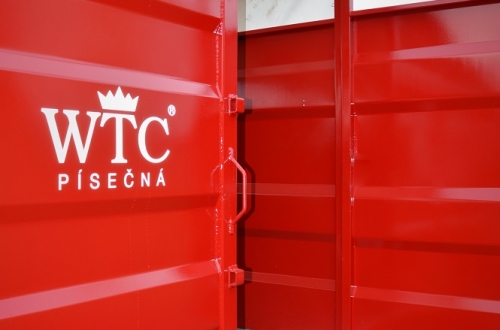

  • 3 section with two partition door

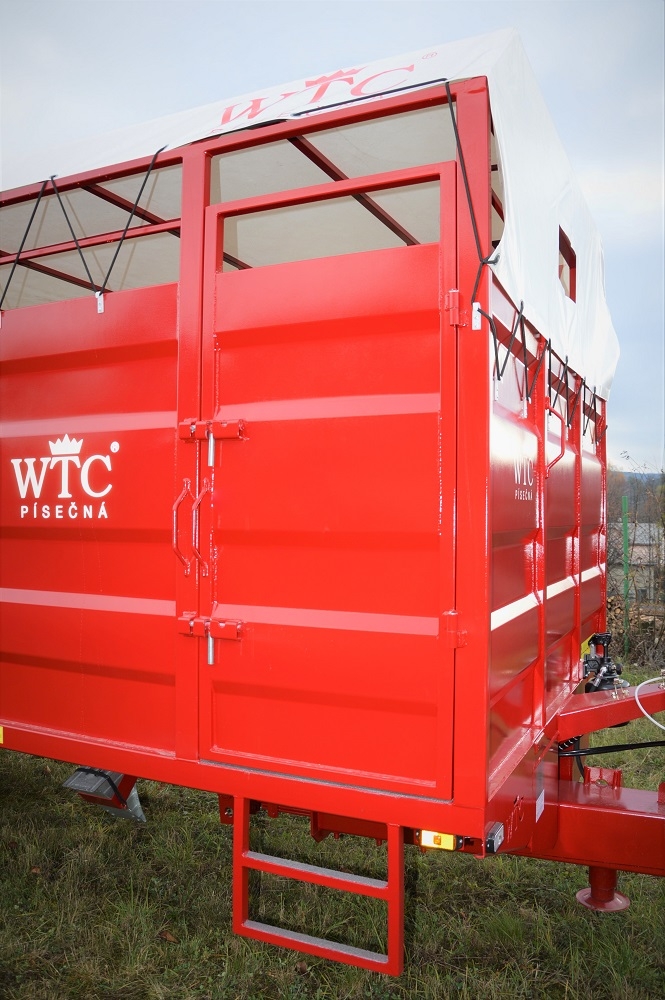

  • front door

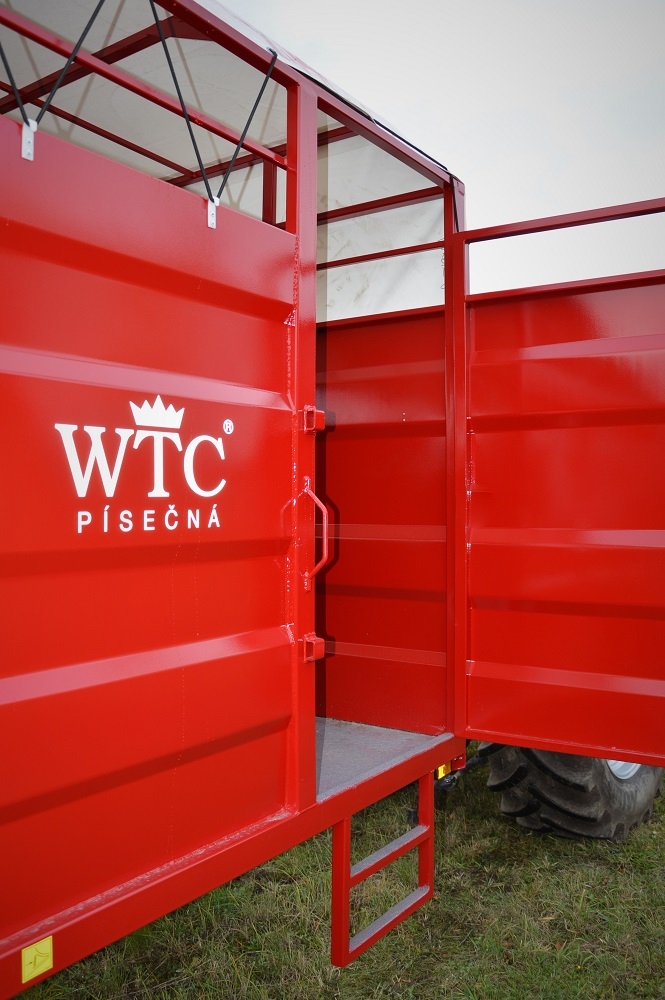

  • rear door side barriers

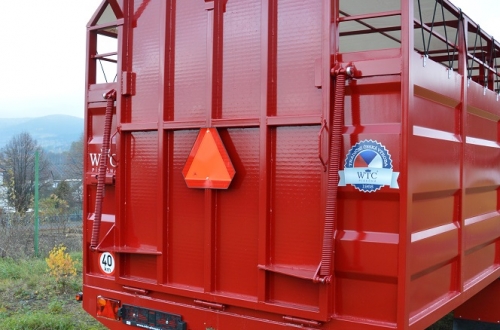

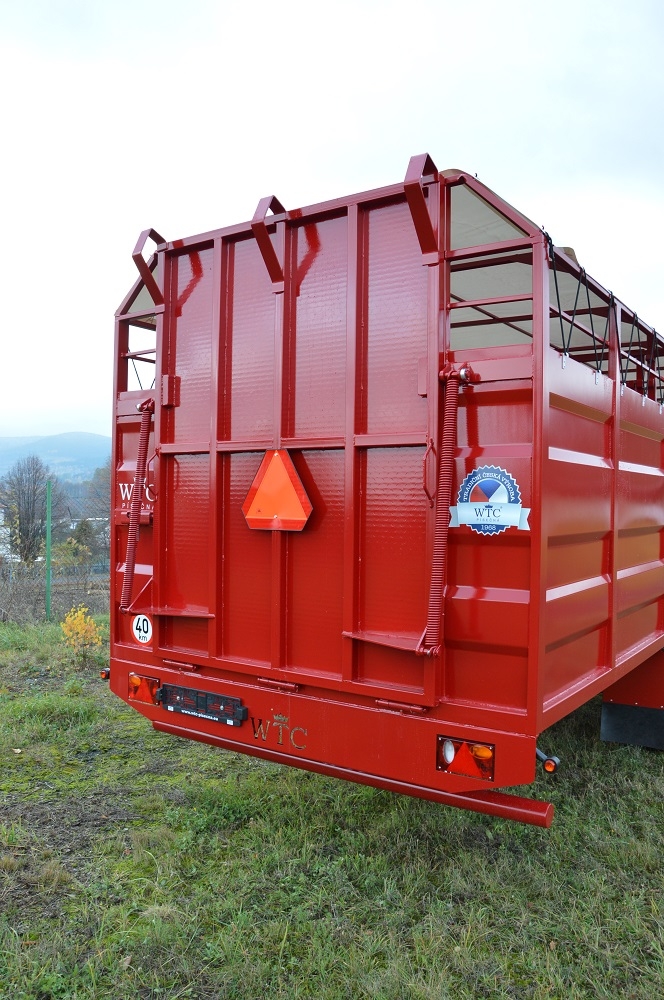

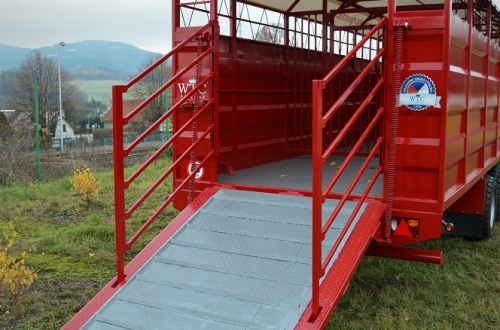

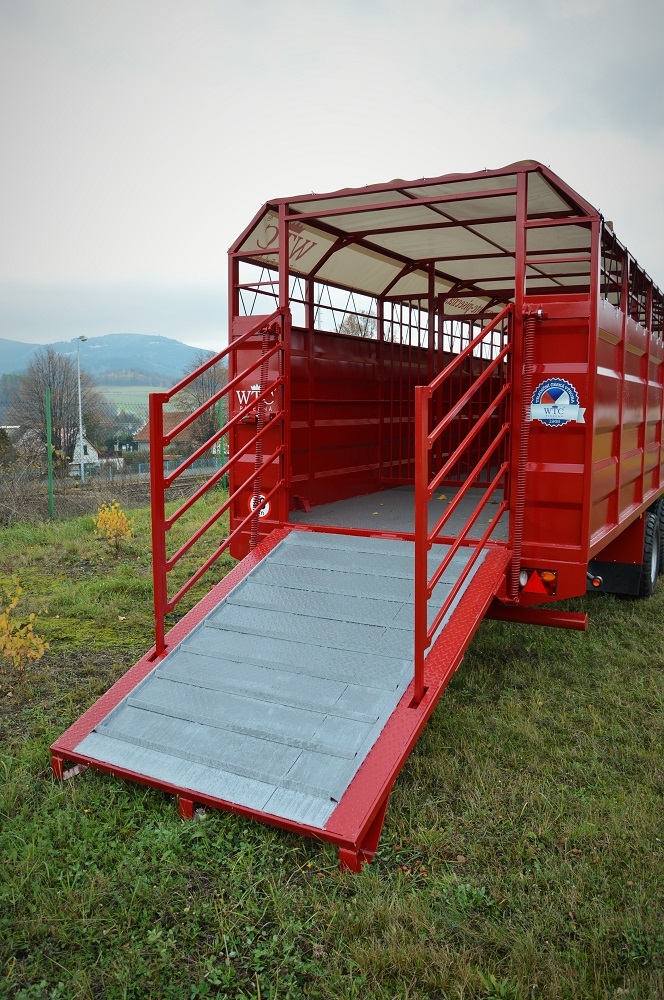

  • spring suspended rear door
  • 2 drain holes at the back (including stopper)
  • no-slip floor – riffled plates
  • height-adjustable drawbars

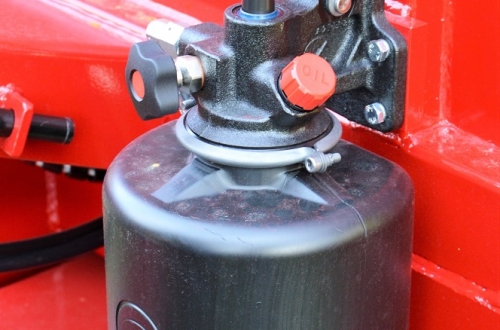

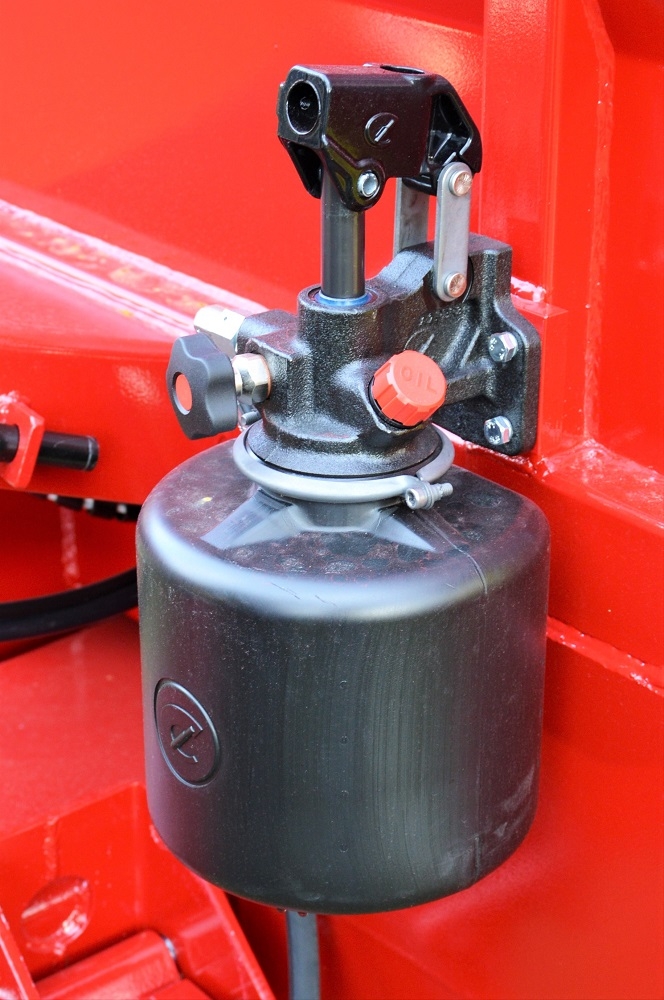

  • hydraulical drawbar
  • automatic parking brake
  • automatic brake load sensing controller
  • towing hitch 50/40 mm
  • speed 40 km/h
  • all metal structure
  • polyurethane paint

Optional equipment

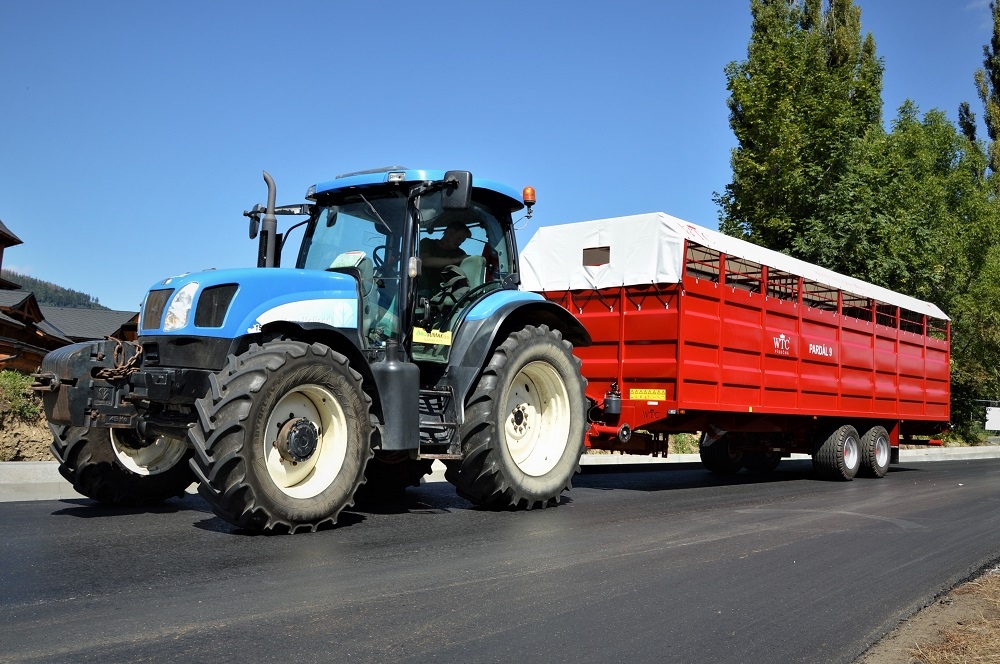

  • tarpaulin
  • hydraulic door control
  • special floor finish - resin non-spil coating
  • colour on request
  • wheels 400/60 – 15,5 18 PR
  • wheels 19/45 – 17 18 PR

Technical parameters

Number of axles

2

Number of cattle

14-16

Number of compartments

3

Technically permissible mass (kg)

14 000

Permitted weight (kg)

14 000

Operating weight (kg)

4 700

Platform width (m)

2,34

Length of usable space (m)

9

Height transport area (m)

2,13

Overall length (m)

11

Overall width - basic (m)

2,5

Front escape door

YES

Maximum speed (km/h)

40
