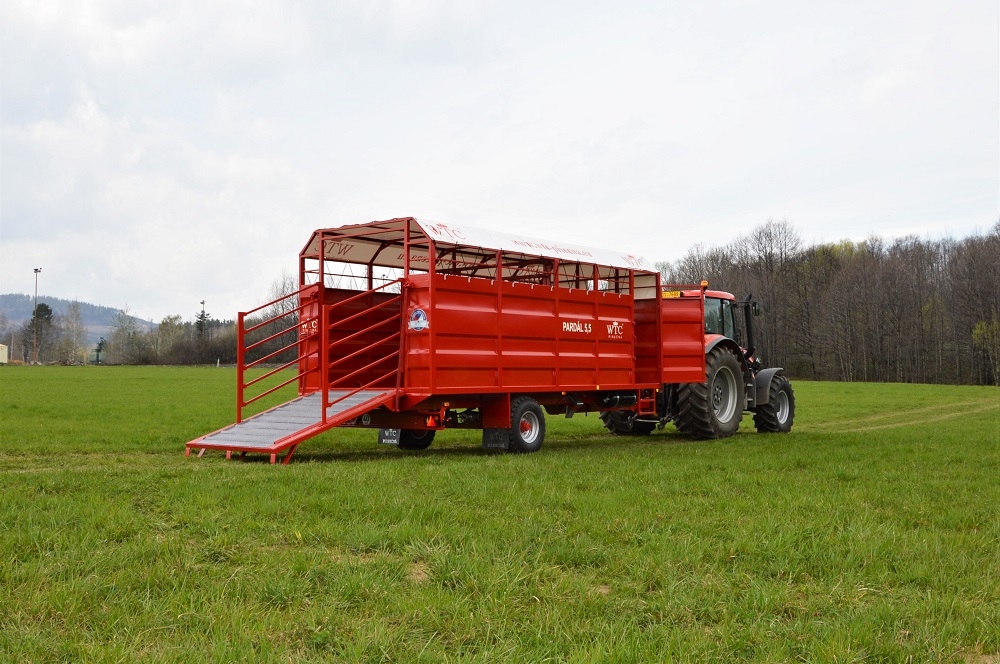

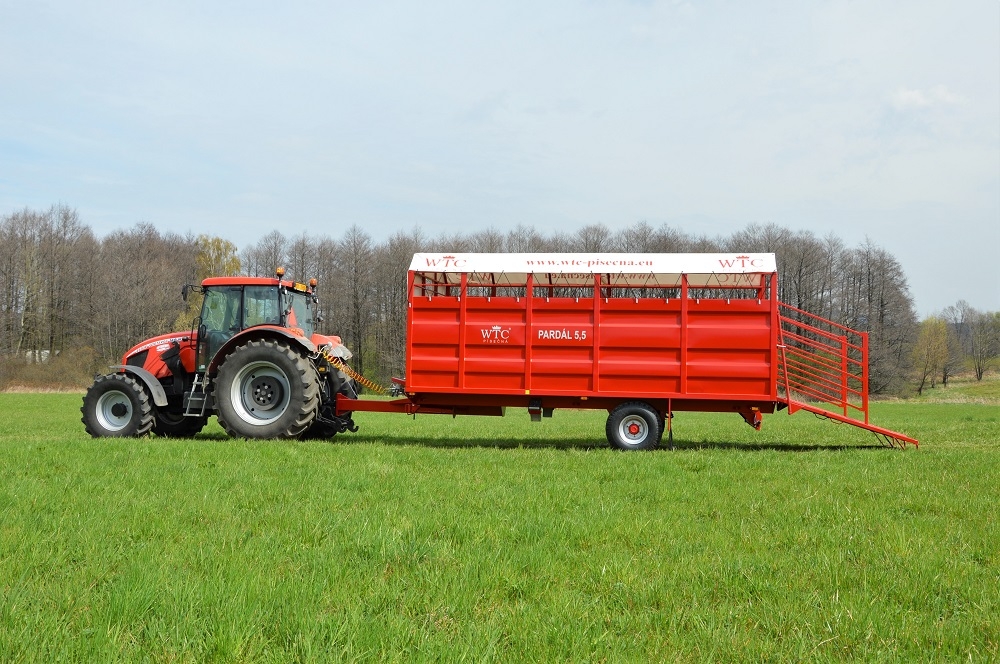

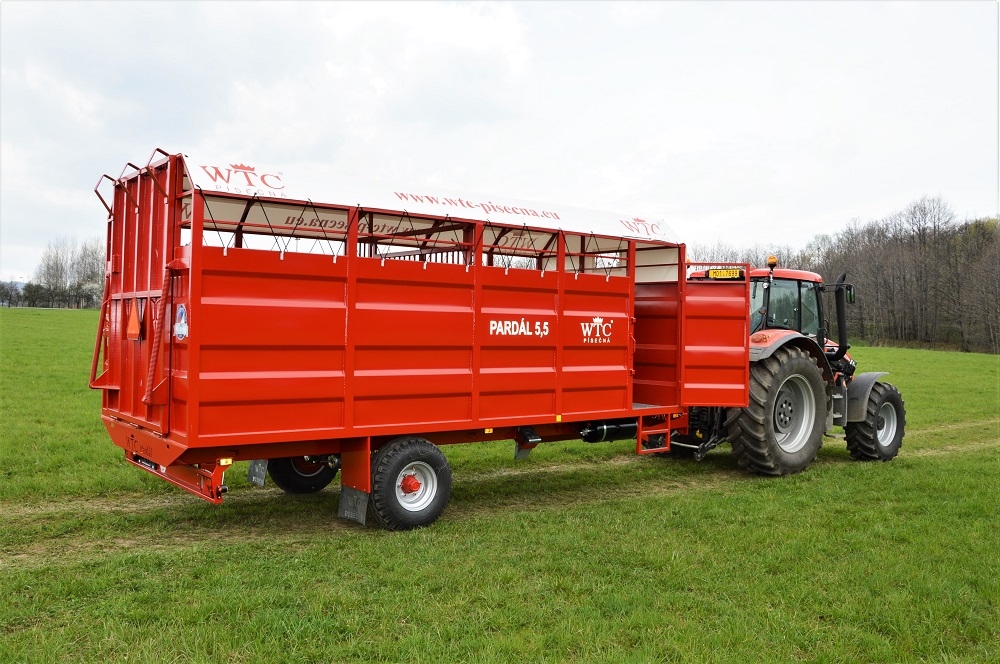

Animal carrier PARDÁL 5,5

Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5

Standard equipment

  • single suspended axle ADR
  • capacity heads of beef cattle: 8 - 10
  • loading area: 5,50 m x 2,34 m
  • total permissible weight 6 600 kg

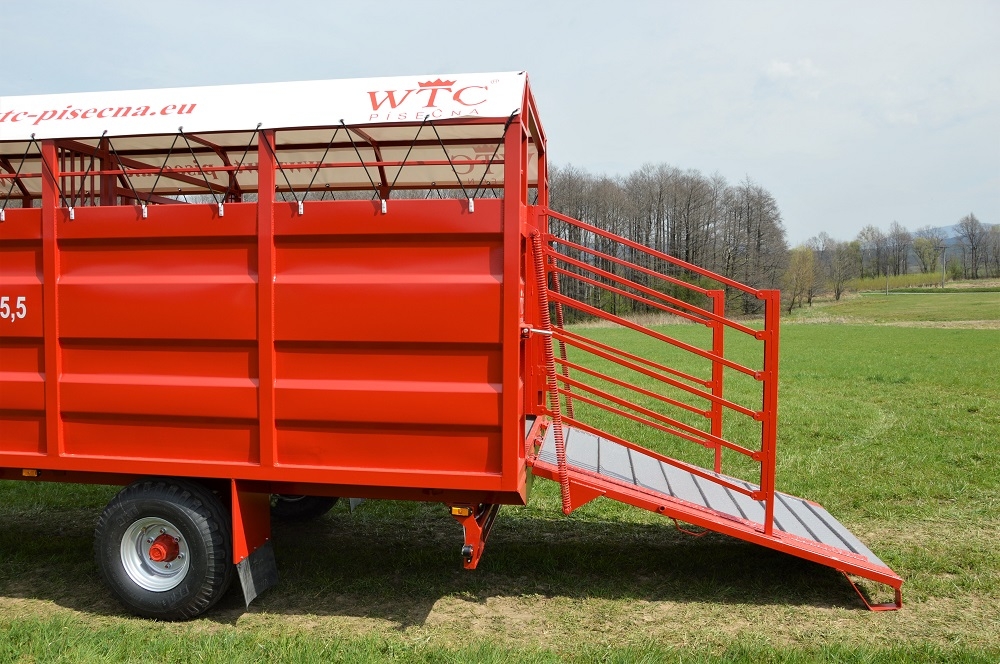

  • spring suspended rear door

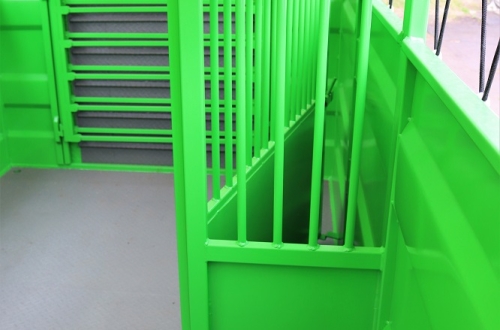

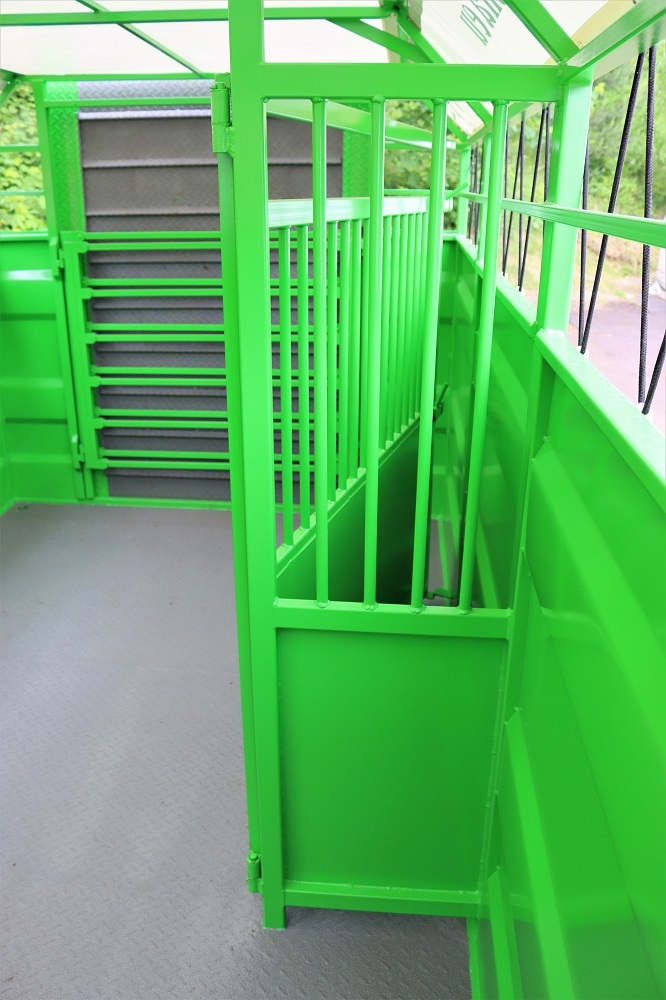

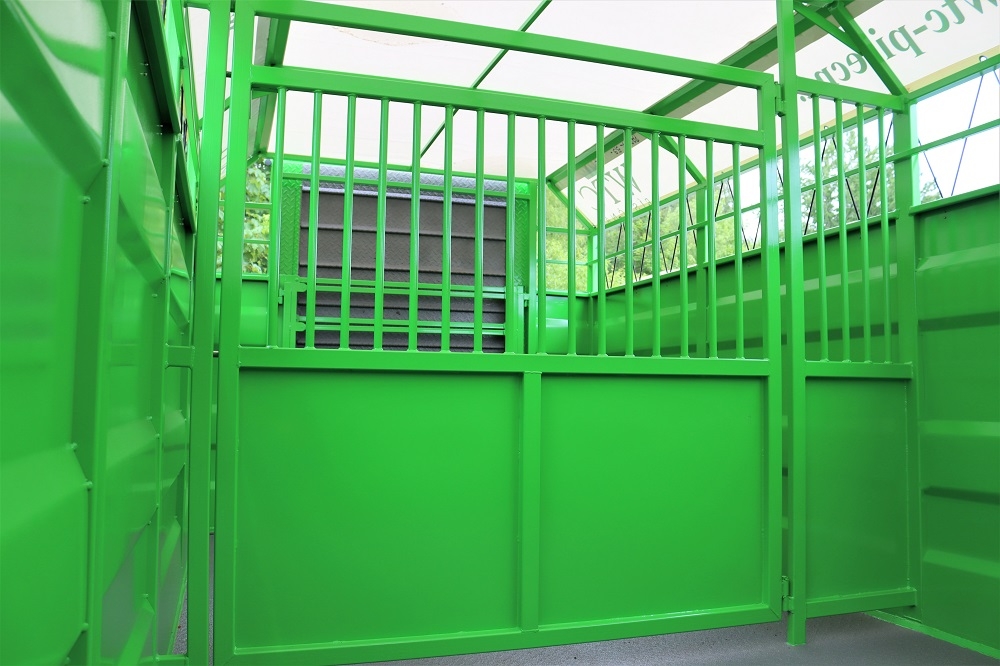

  • 2 section with a partition door

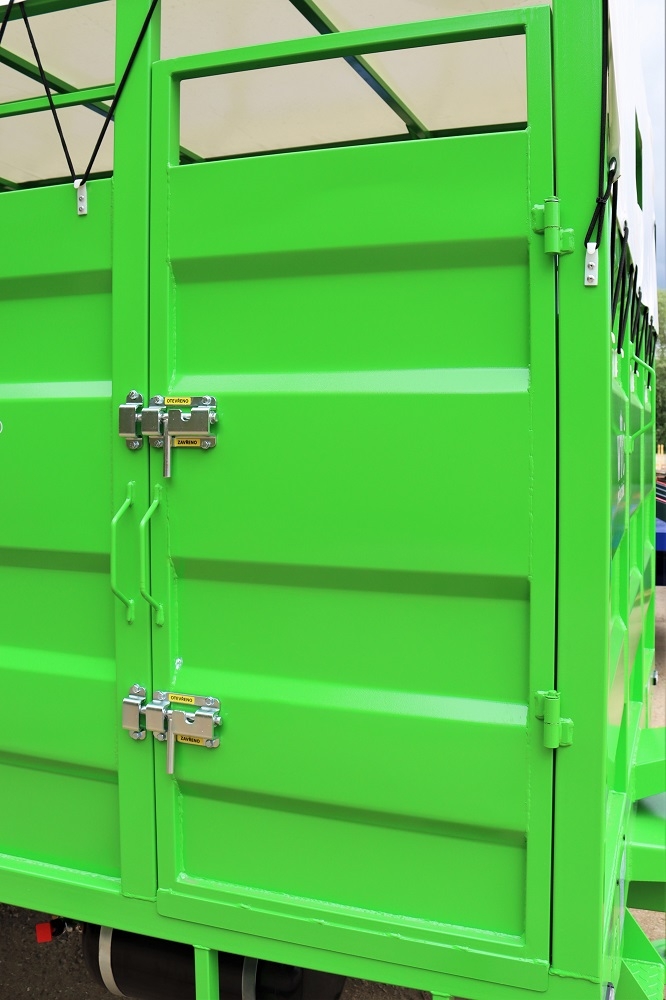

  • front door
  • 2 drain holes at the back (including stopper)
  • rear door side barriers

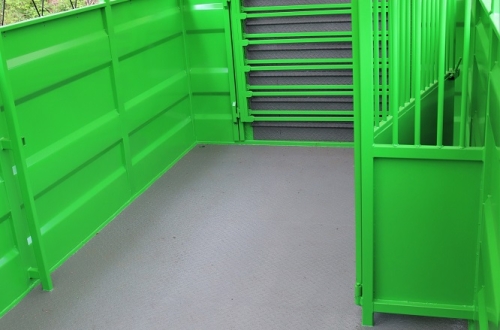

  • no-slip floor – riffled plates
  • mechanical drawbar
  • automatic parking brake
  • automatic brake load sensing controller
  • towing hitch Scharmüller 50/40 mm/K-80
  • speed 40 km/h
  • all metal structure
  • polyurethane paint

Optional equipment

  • tarpaulin

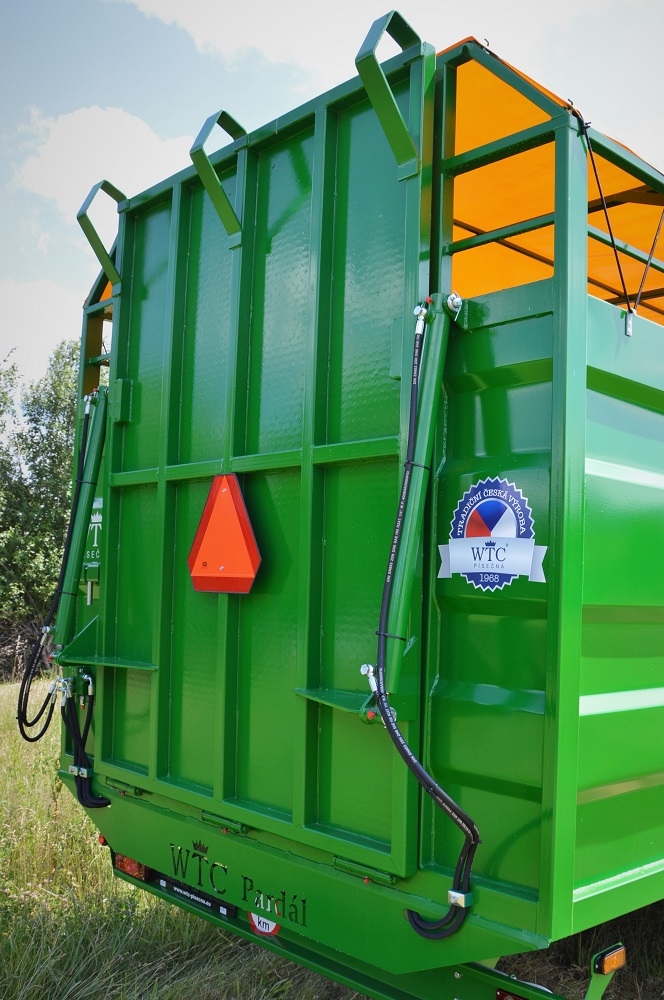

  • hydraulic door control
  • special floor finish - resin non-spil coating
  • colour on request
  • wheels 11,5/80-15,3 18PR
  • wheels 400/60-15,5 18PR

Technical parameters

Number of axles

1

Number of cattle

8-10

Number of compartments

2

Technically permissible mass (kg)

6 600

Permitted weight (kg)

6 600

Operating weight (kg)

2 500

Platform width (m)

2,34

Length of usable space (m)

5,5

Height transport area (m)

2,13

Overall length (m)

7,5

Overall width - basic (m)

2,5

Front escape door

YES

Maximum speed (km/h)

40

Photo-gallery

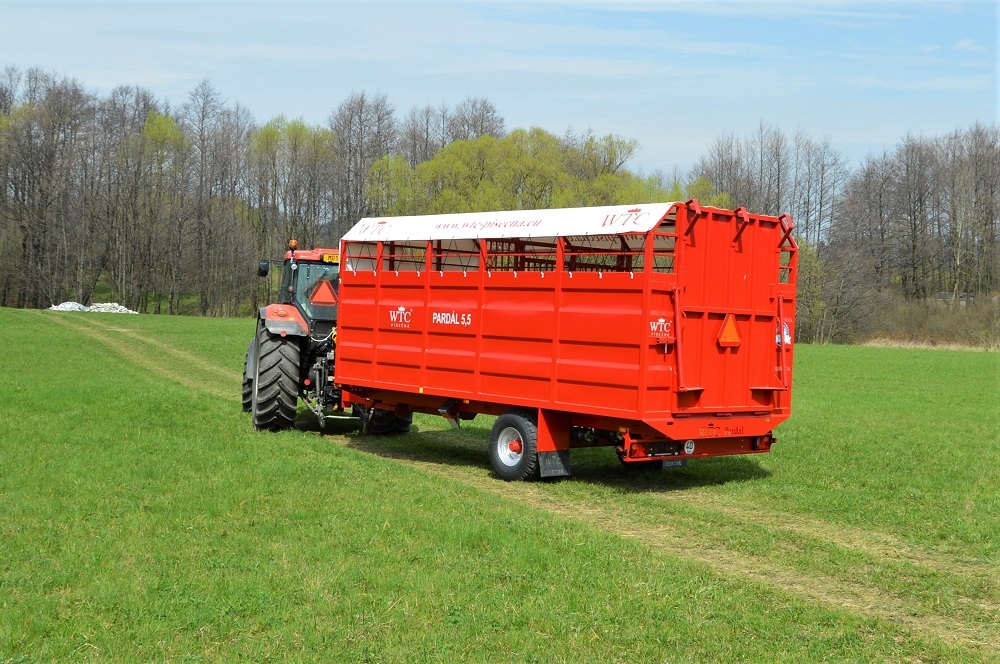

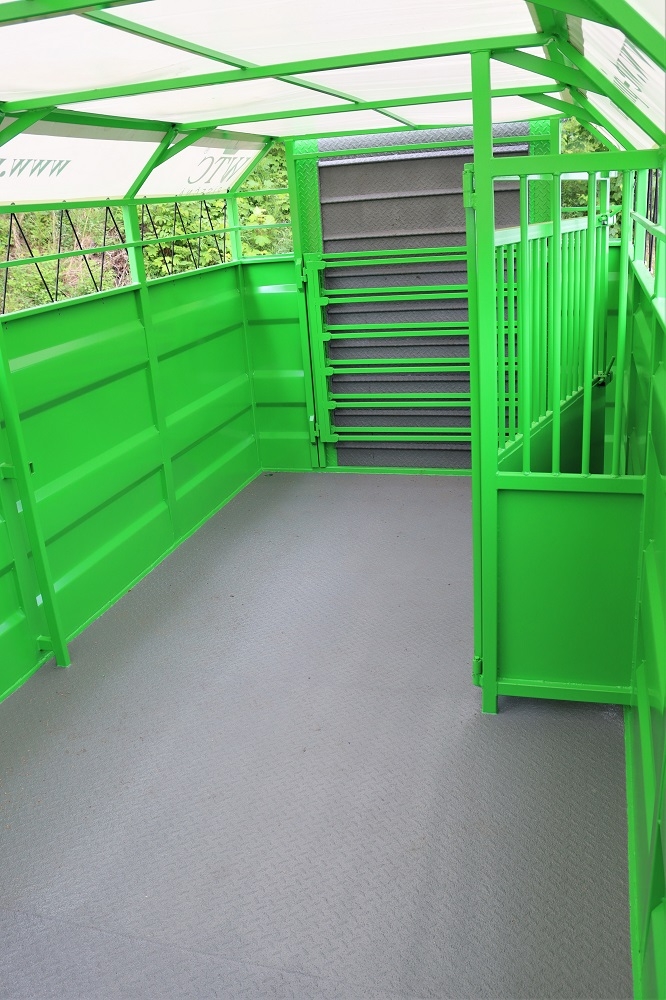

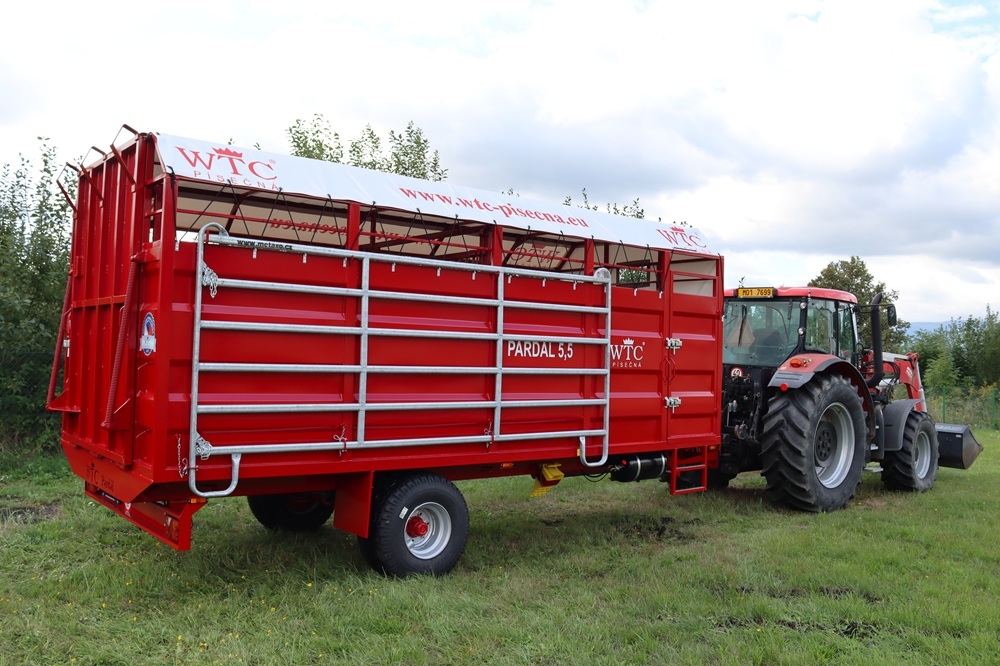

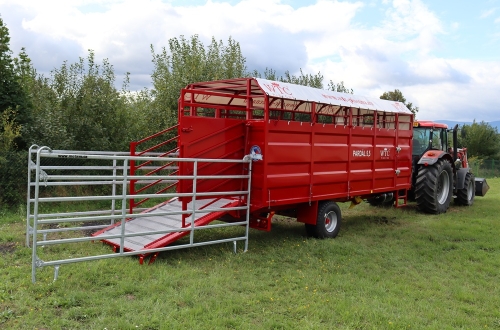

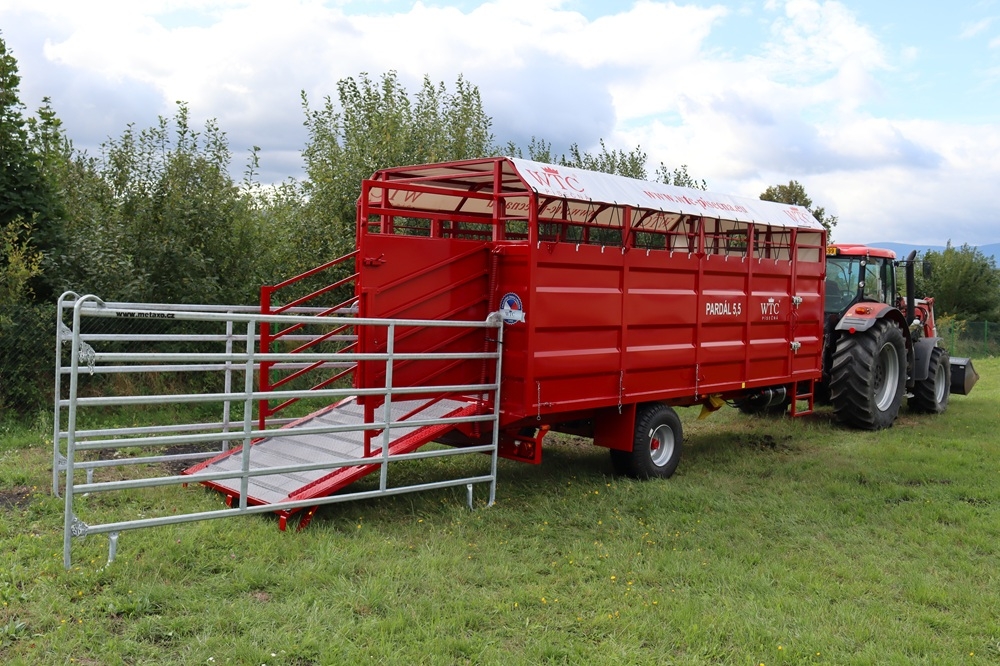

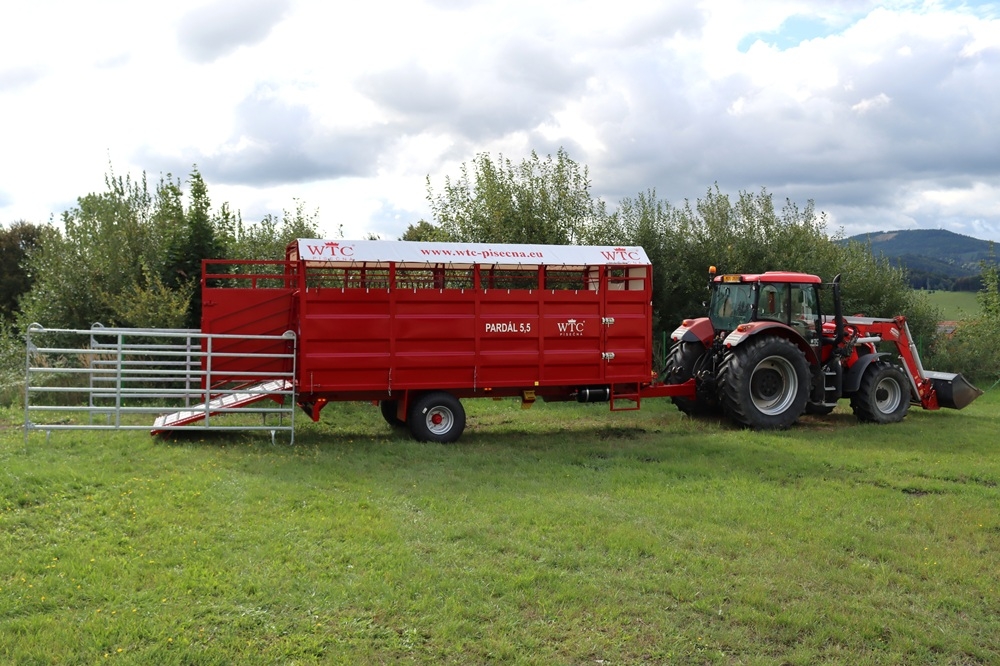

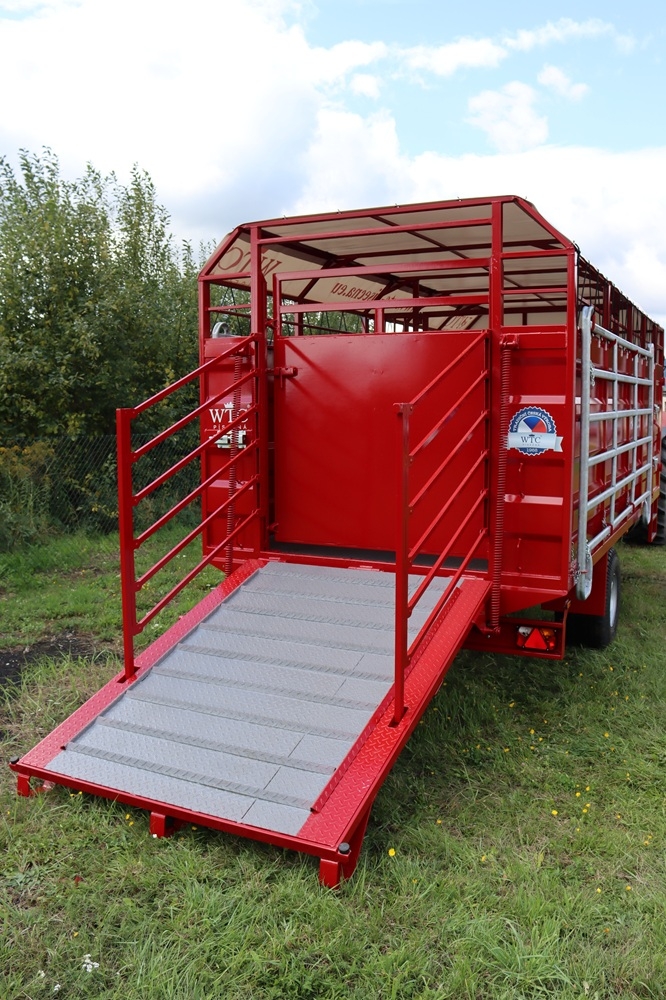

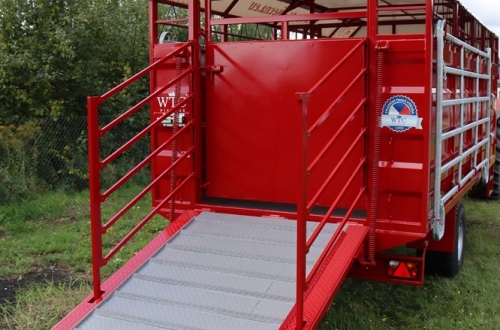

Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5Animal carrier PARDÁL 5,5
