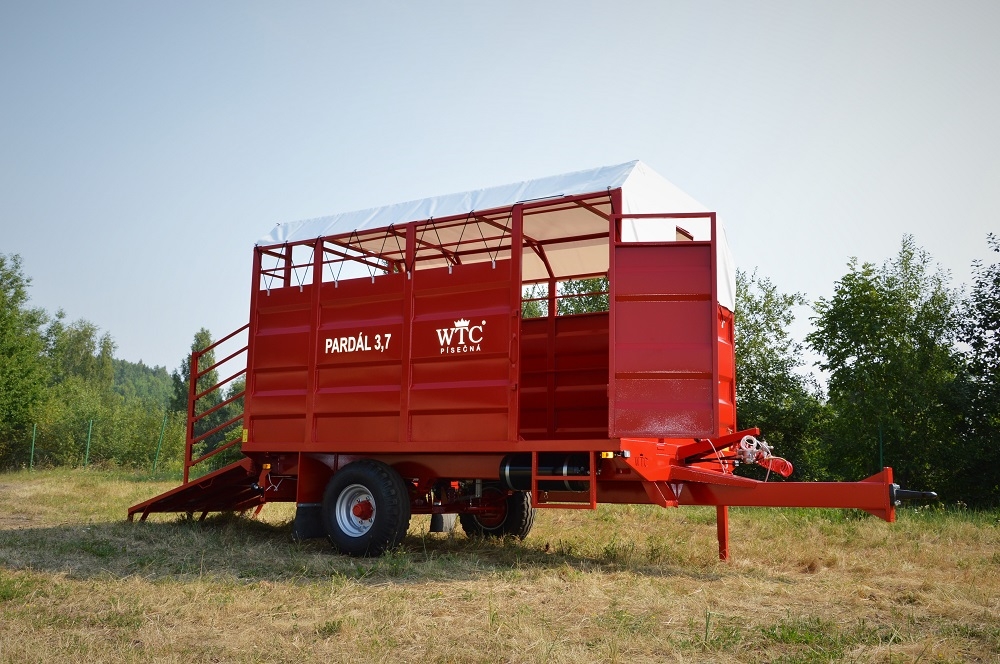

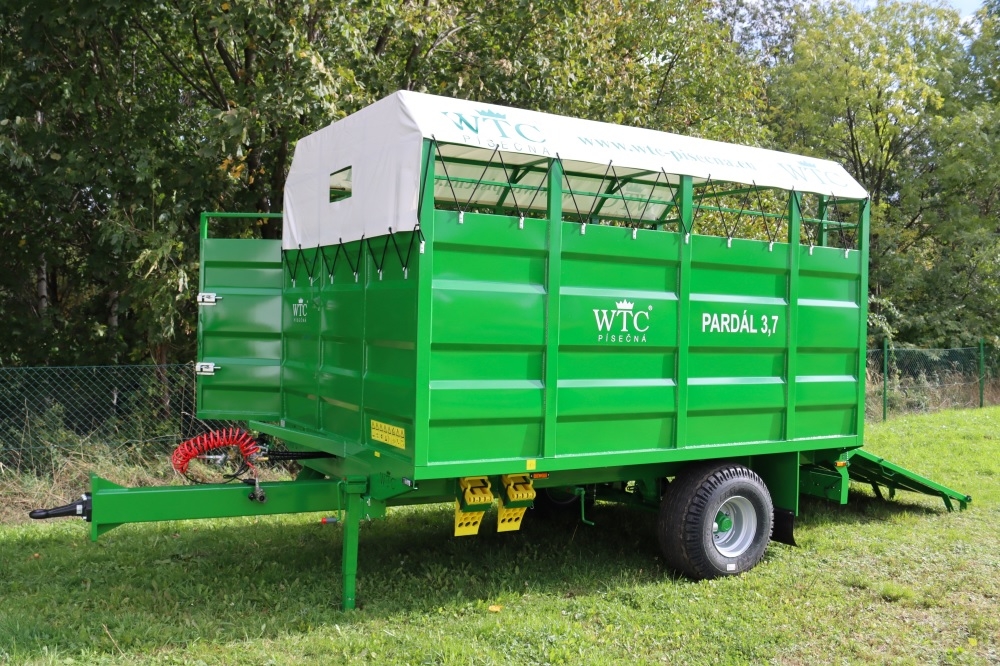

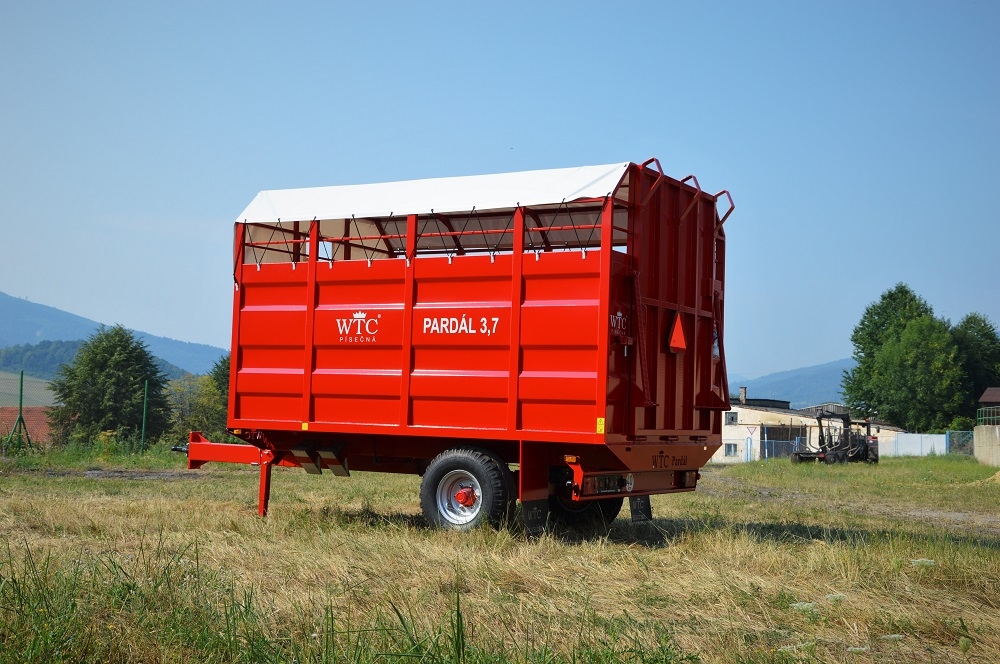

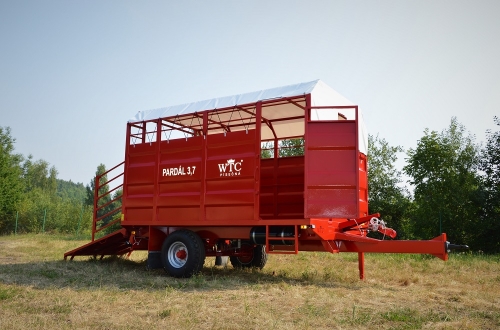

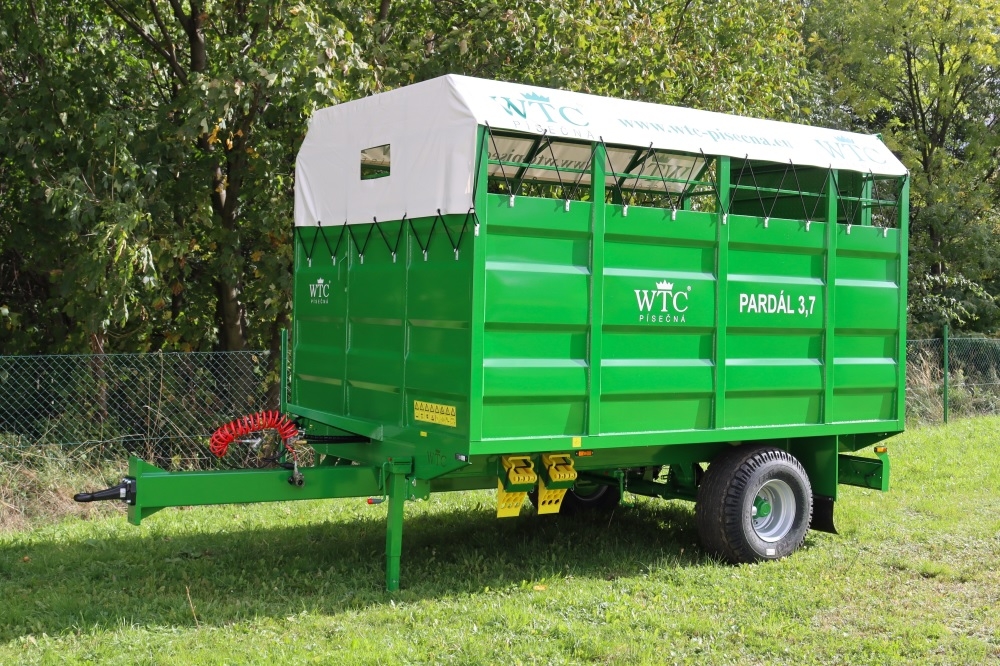

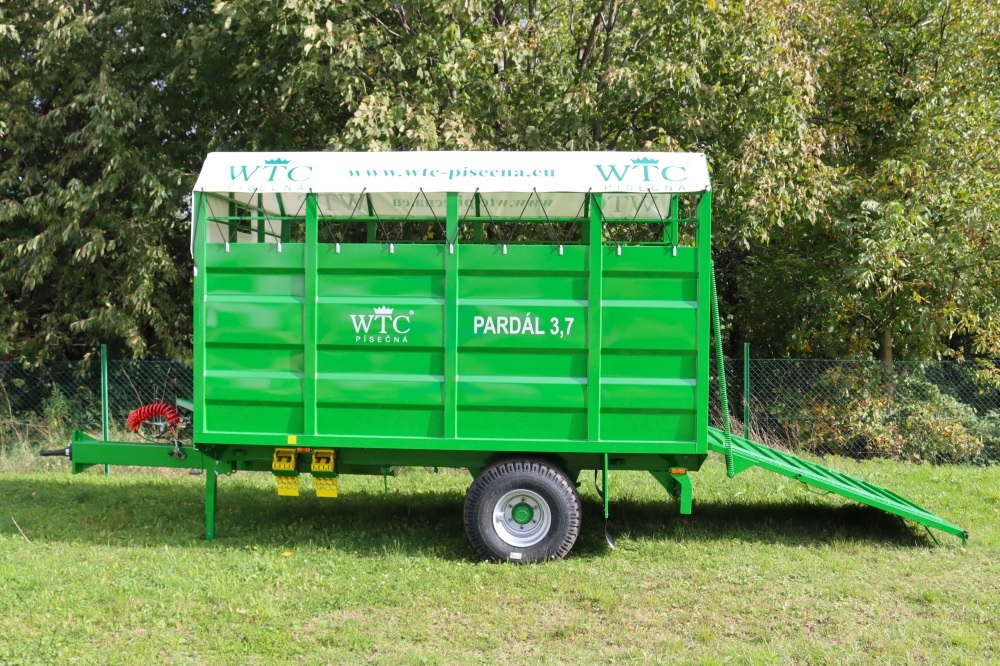

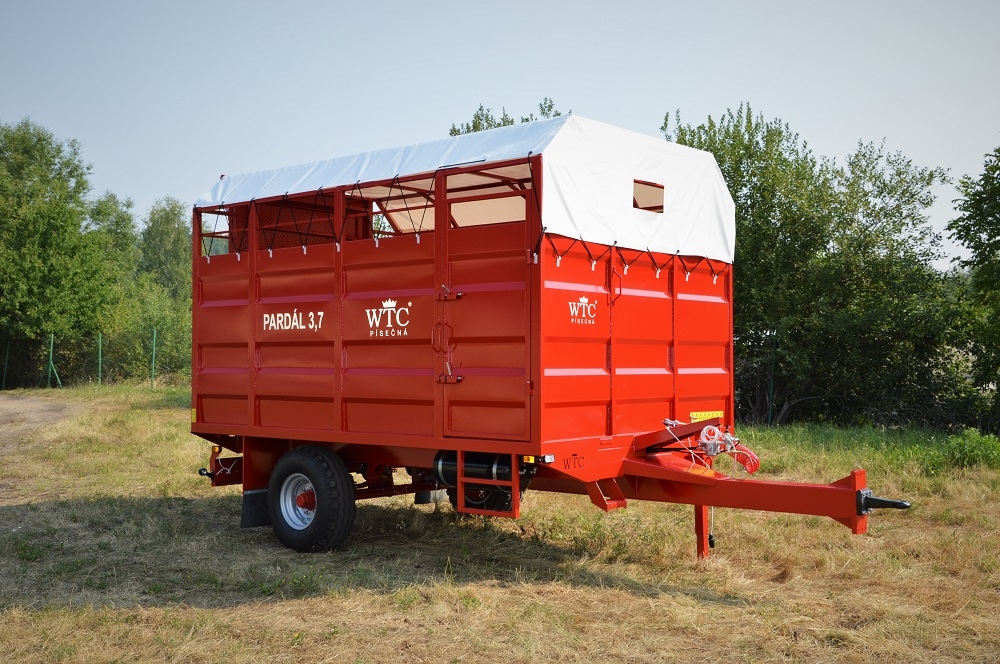

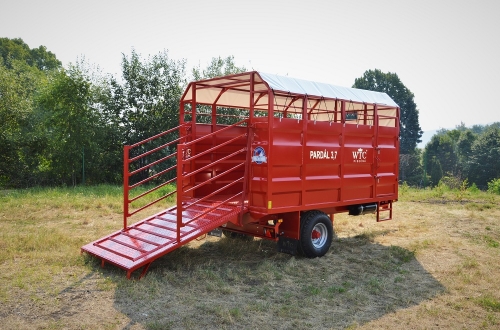

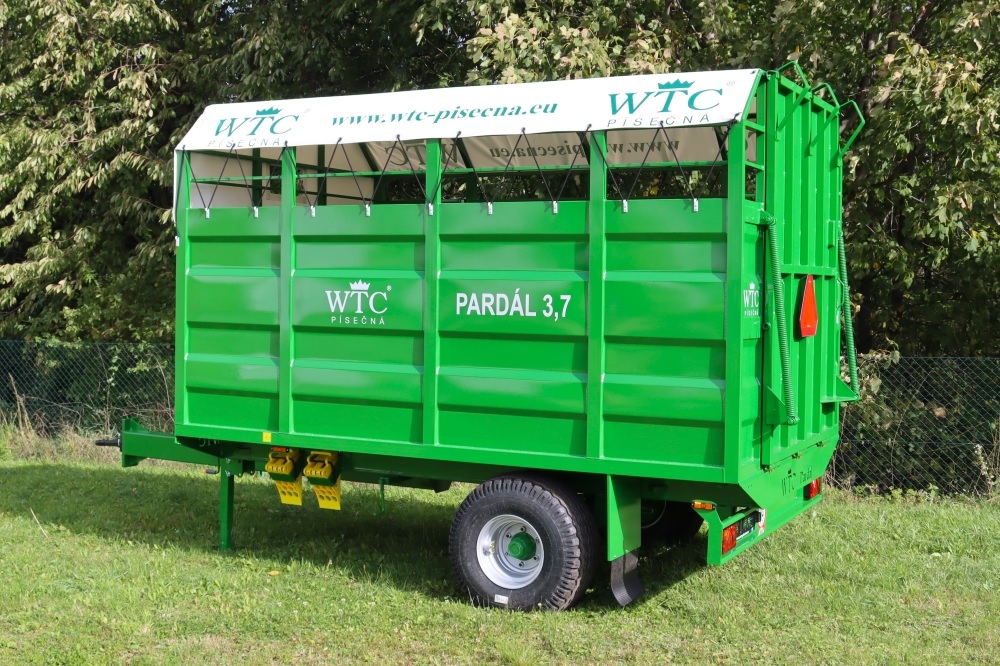

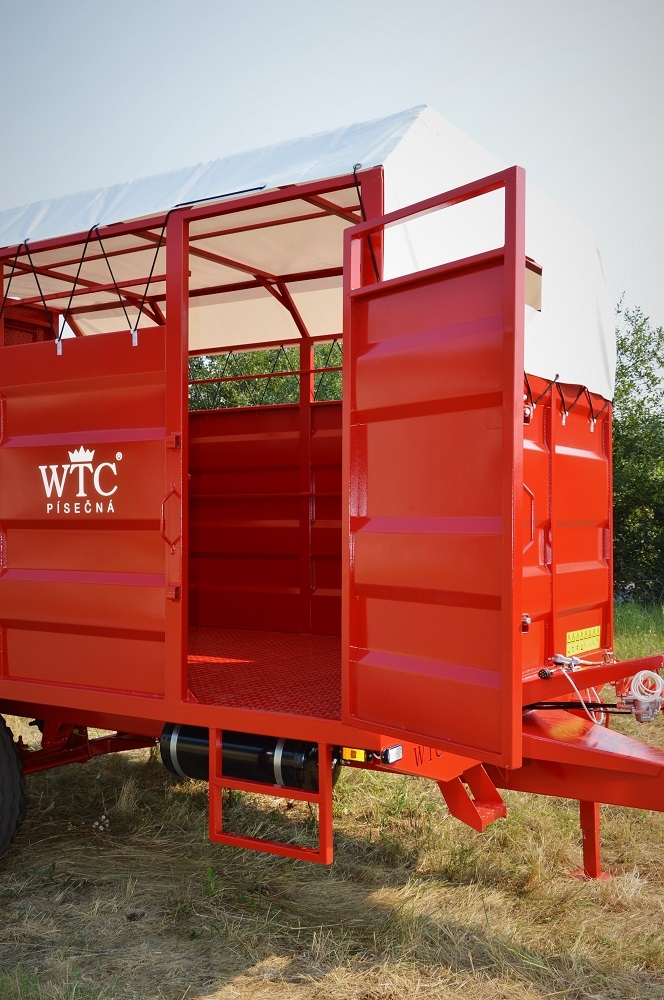

Animal carrier PARDÁL 3,7

Animal carrier PARDÁL 3,7Animal carrier PARDÁL 3,7Animal carrier PARDÁL 3,7

Standard equipment

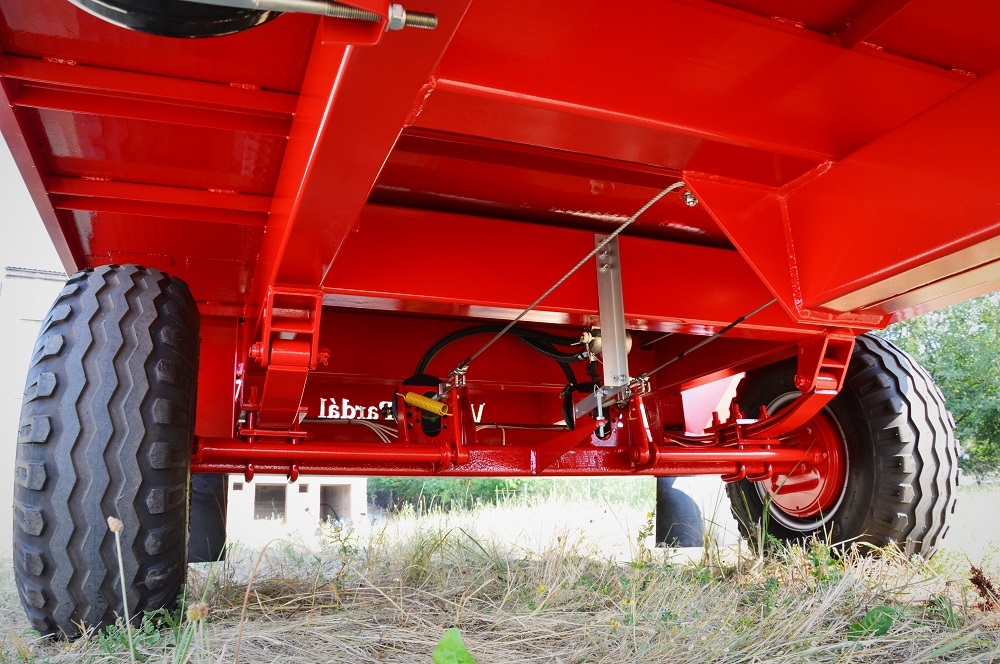

  • single suspended axle ADR
  • capacity heads of beef cattle: 4 – 6
  • total permissible weight 6 950 kg
  • loading capacity 5 000 kg
  • loading area: 3,70 m x 2,40 m

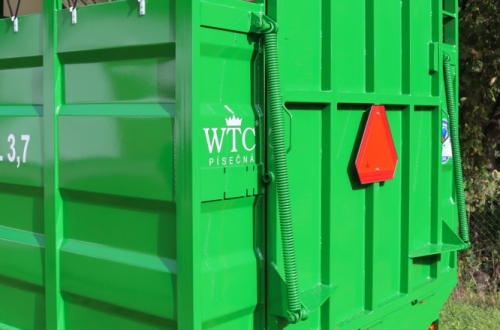

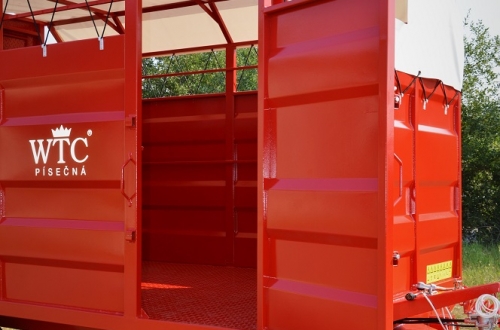

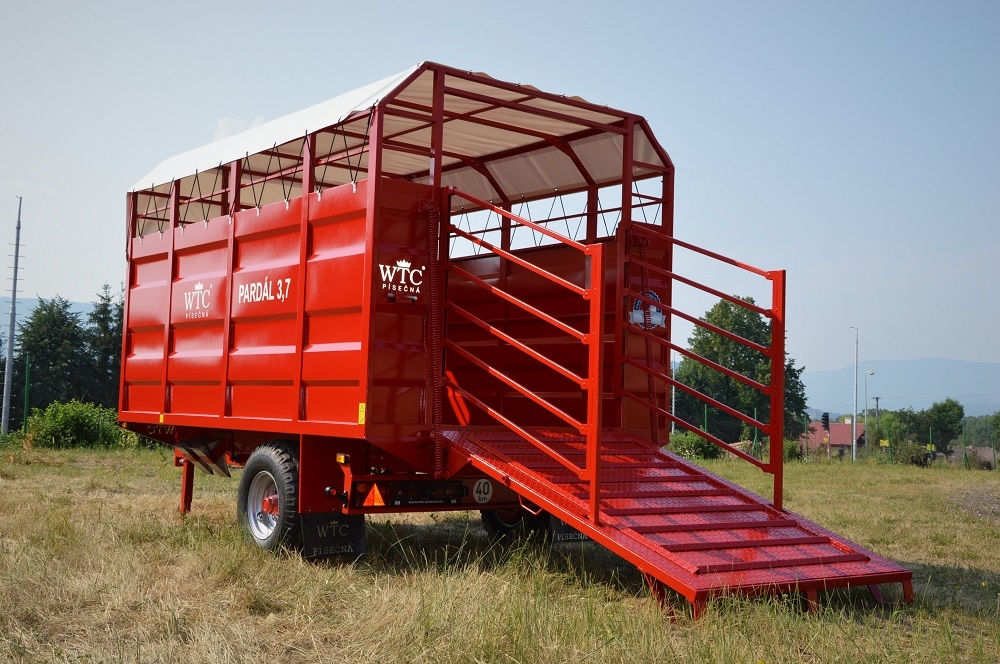

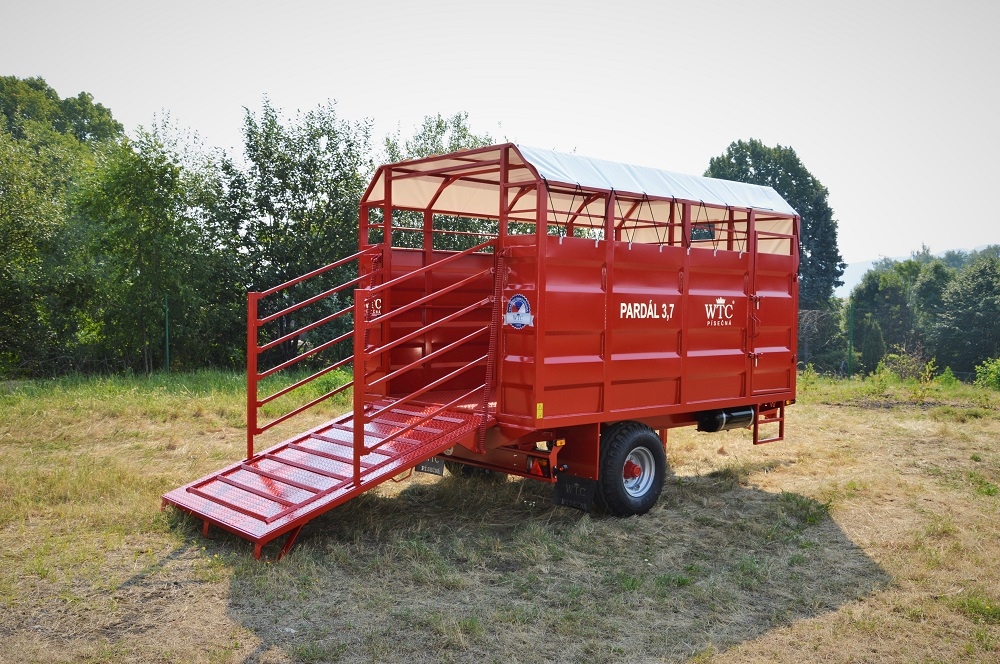

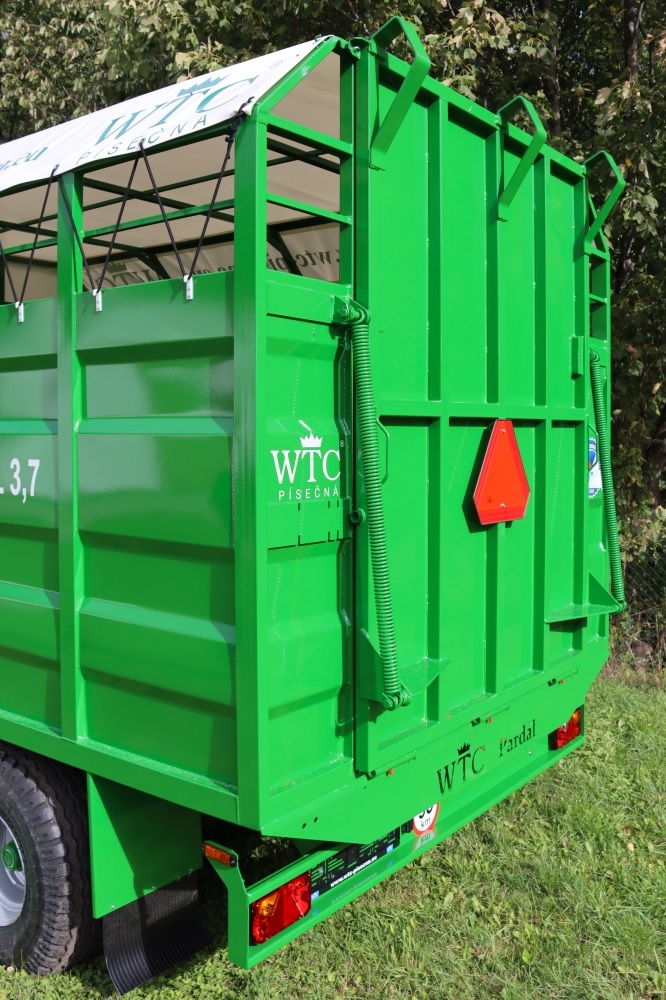

  • spring suspended rear door

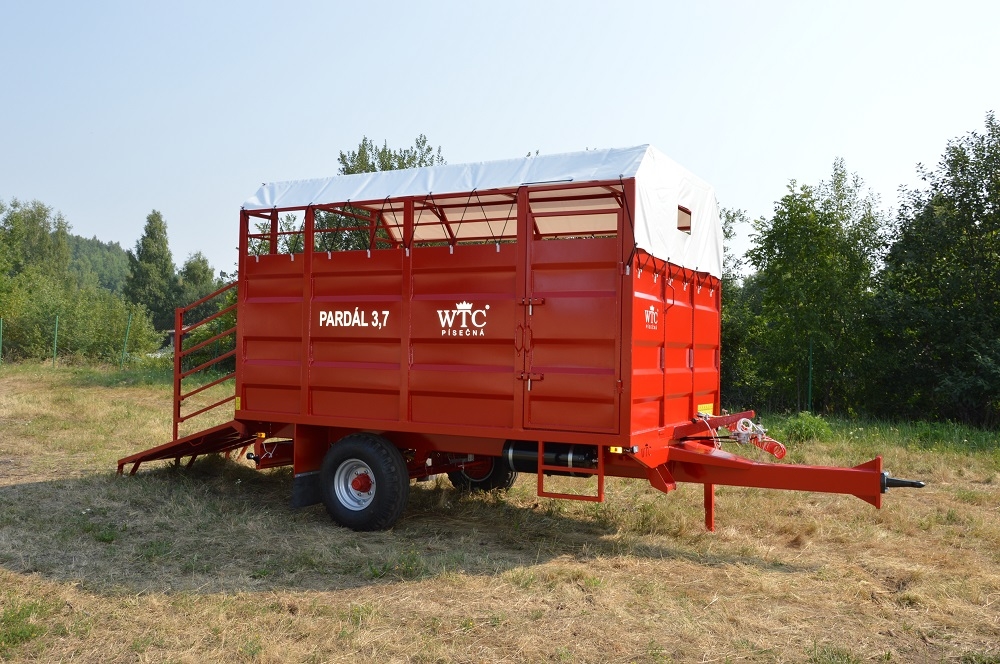

  • front door
  • 2 drain holes at the back (including stopper)
  • rear door side barriers
  • no-slip floor – riffled plates
  • mechanical drawbar

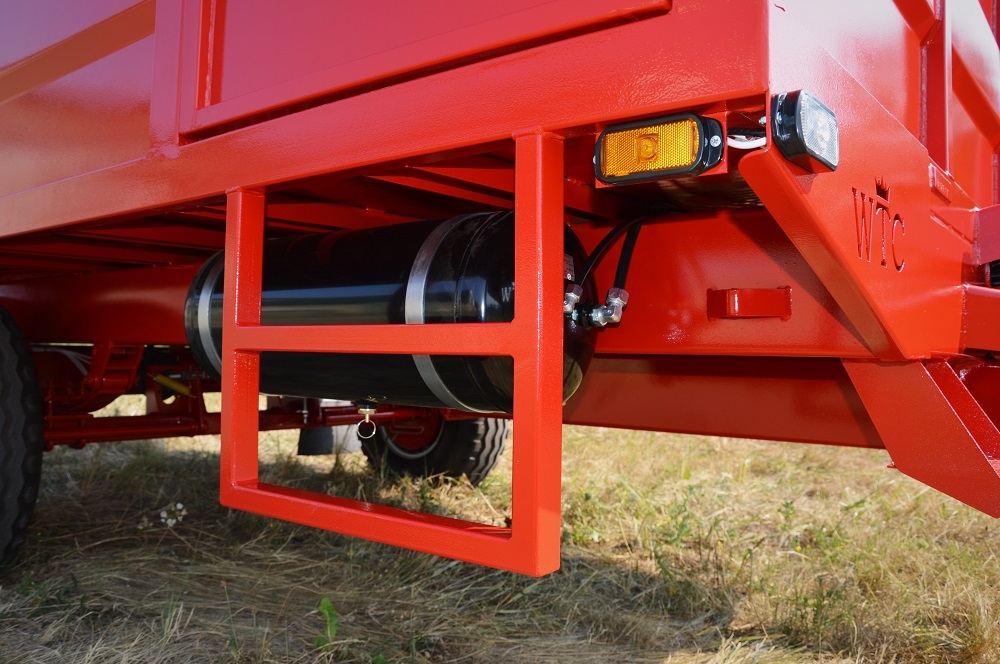

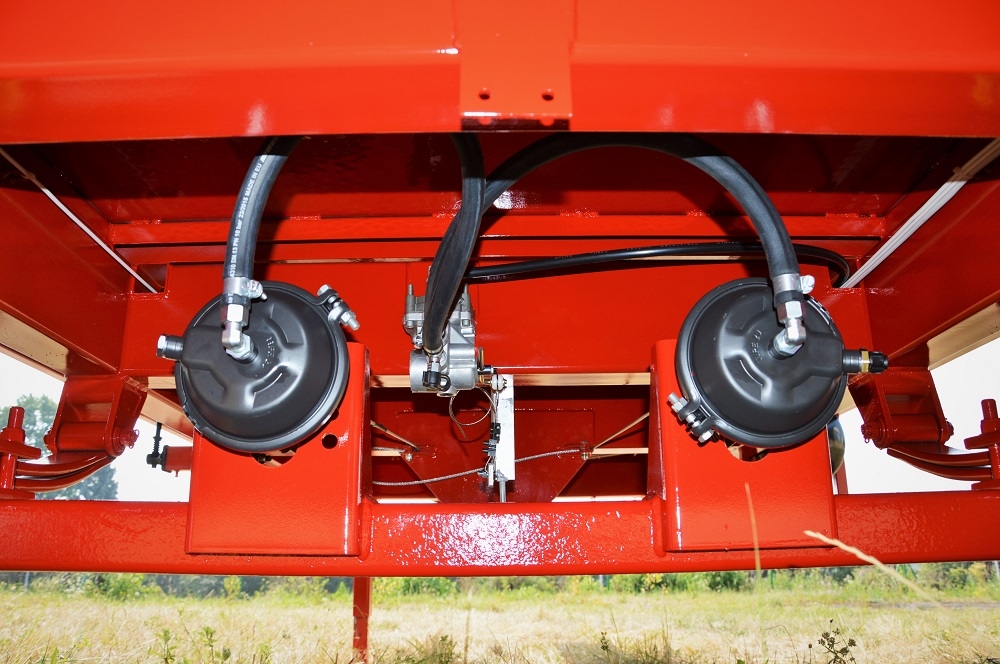

  • automatic parking brake

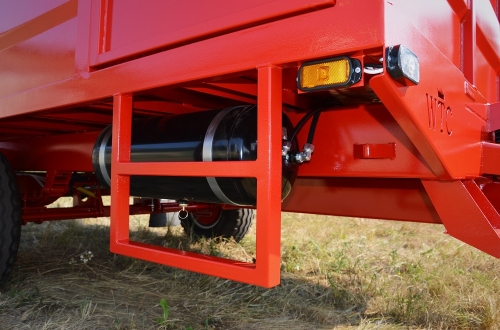

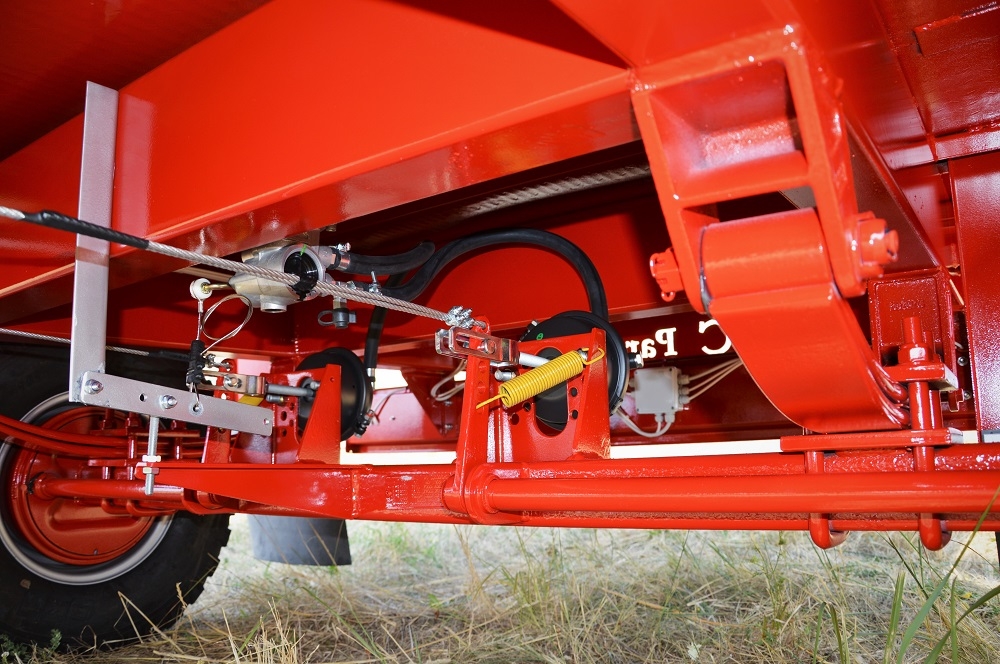

  • automatic brake load sensing controller

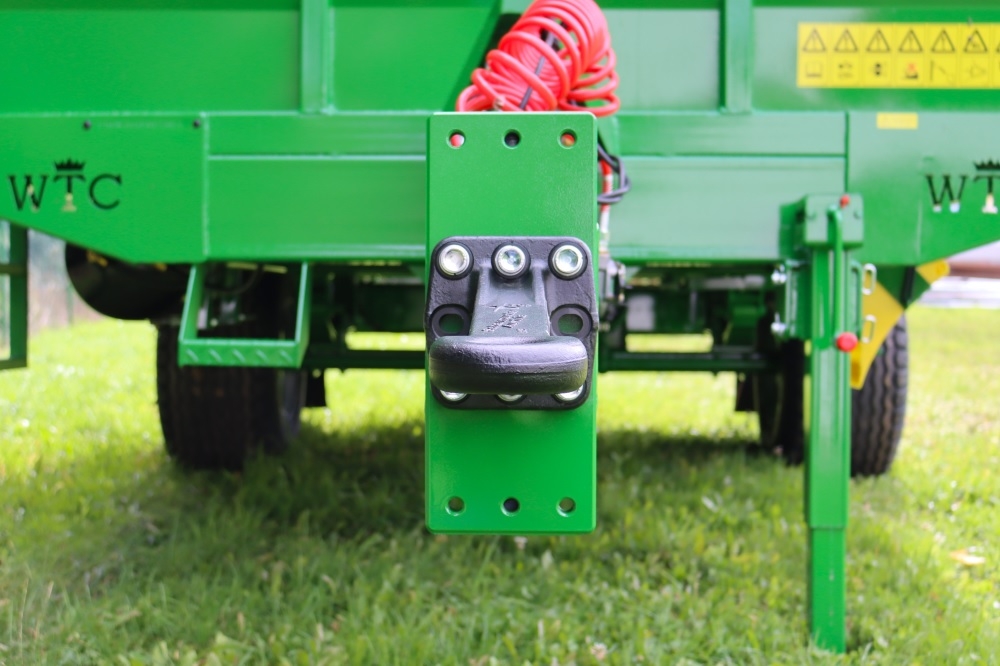

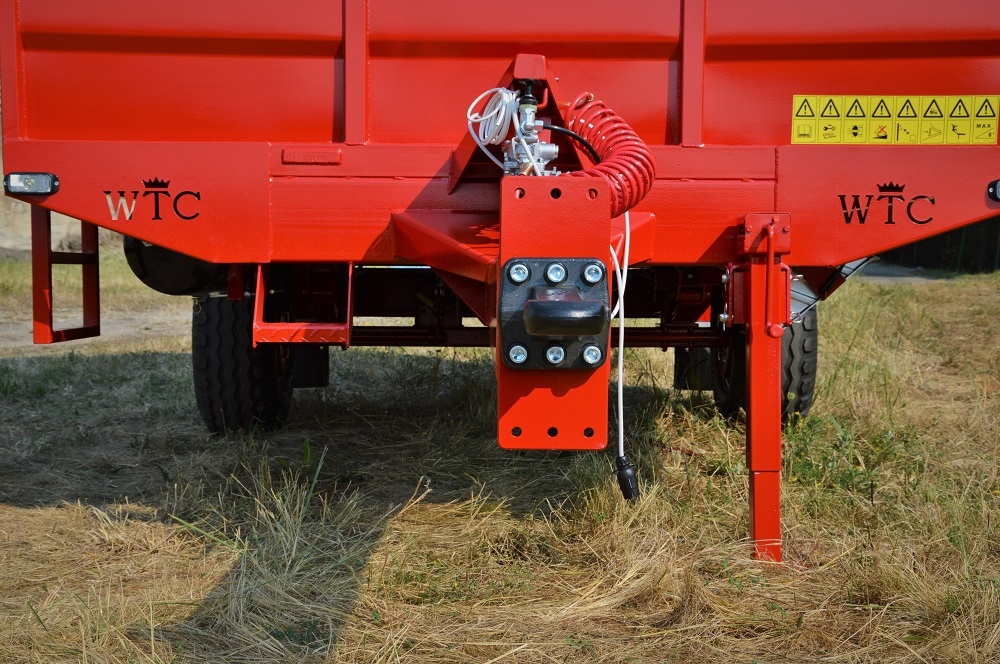

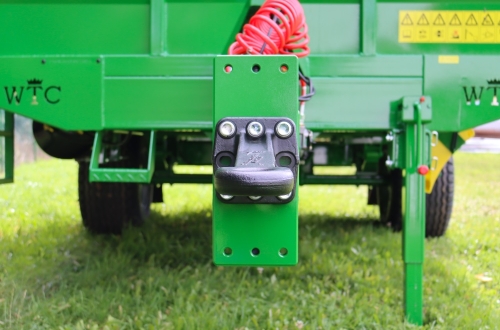

  • towing hitch Scharmüller 50/40 mm
  • speed 40 km/h
  • all metal structure
  • polyurethane paint

Optional equipment

  • hydraulic brake

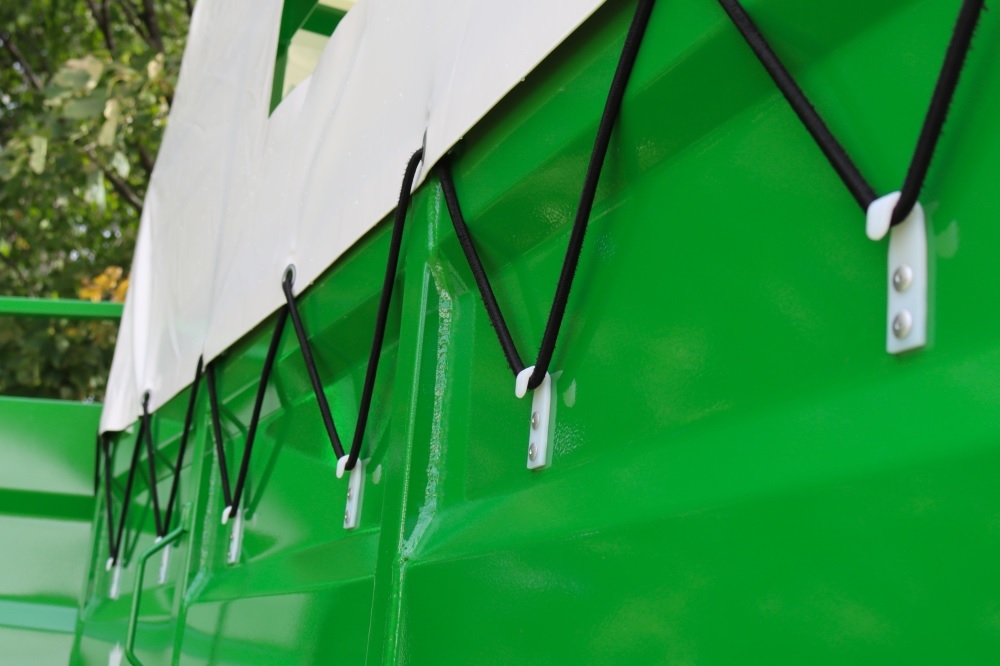

  • tarpaulin
  • hydraulic door control
  • towing hitch Scharmüller K-80
  • special floor finish – resin non-spil coating
  • colour on request
  • wheels 11,5/80-15,3 18PR
  • wheels 400/60-15,5 18PR

Technical parameters

Number of axles

1

Number of cattle

4 - 6

Number of compartments

1

Technically permissible mass (kg)

6 600

Permitted weight (kg)

6 600

Operating weight (kg)

2 300

Platform width (m)

2,34

Length of usable space (m)

3,7

Height transport area (m)

2,13

Overall length (m)

5,73

Overall width - basic (m)

2,5

Front door

YES

Maximum speed (km/h)

40
